B4J Question [ABMaterial] Raised button setup

[Rob White]

Hi all,
I want to set up a series of buttons as a menu. I want all the buttons the same width and in two columns.
I used code like this :-

    But1.InitializeRaised(page,"but1","","","FULL + SetBx","mytheme")        ' FullWidth+SetBord
    But1.UseFullCellWidth = True
    But1.SetBorderEx(ABM.COLOR_RED,ABM.INTENSITY_ACCENT4,3,ABM.BORDER_SOLID,"20px")

    page.Cell(2,1).AddComponent(But1)

but the button is not full with of the cell.

I have setup the following test program.

public Sub BuildPage()
    ' initialize the theme
    BuildTheme

    ' initialize this page using our theme
    page.InitializeWithTheme(Name, "/ws/" & ABMShared.AppName & "/" & Name, False, ABMShared.SessionMaxInactiveIntervalSeconds, theme)
    page.ShowLoader=True
    page.PageHTMLName = "index.html"
    page.PageTitle = "Add chems to list"
    page.PageDescription = ""
    page.PageKeywords = ""
    page.PageSiteMapPriority = ""
    page.PageSiteMapFrequency = ABM.SITEMAP_FREQ_YEARLY

    page.ShowConnectedIndicator = True

    ' adding a navigation bar
    ' ABMShared.BuildNavigationBar(page, "My Page","../images/logo.png", "", "", "")
    page.AddRows(1,True,"").AddCells12(1,"")
    page.AddRows(2,True,"").AddCellsOS(1,0,0,0,3,3,3,"").AddCellsOS(1,1,1,1,3,3,3,"")

    page.BuildGrid 'IMPORTANT once you loaded the complete grid AND before you start adding components
End Sub

public Sub ConnectPage()
    '    connecting the navigation bar
    ' ABMShared.ConnectNavigationBar(page)

    Dim lab As ABMLabel
    Dim But1 As ABMButton
    Dim But2 As ABMButton
    Dim But3 As ABMButton
    Dim But4 As ABMButton

    lab.Initialize(page,"lab","Button testing",ABM.SIZE_H5,False,"mytheme")

    But1.InitializeRaised(page,"but1","","","FULL + SetBx","mytheme")        ' FullWidth+SetBord
    But1.UseFullCellWidth = True
    But1.SetBorderEx(ABM.COLOR_RED,ABM.INTENSITY_ACCENT4,3,ABM.BORDER_SOLID,"20px")

    But2.InitializeRaised(page,"but2","","","Reversed","mytheme")
    But2.SetBorderEx(ABM.COLOR_RED,ABM.INTENSITY_ACCENT4,3,ABM.BORDER_SOLID,"20px")
    But2.UseFullCellWidth = True

    But3.InitializeRaised(page,"but3","","","FullWidth Only","mytheme")
    But3.UseFullCellWidth = True

    But4.InitializeRaised(page,"but4","","","BorderEx Only","mytheme")
    But4.SetBorderEx(ABM.COLOR_RED,ABM.INTENSITY_ACCENT4,3,ABM.BORDER_SOLID,"20px")

    page.Cell(1,1).AddComponent(lab)
    page.Cell(2,1).AddComponent(But1)
    page.Cell(2,2).AddComponent(But2)
    page.Cell(3,1).AddComponent(But3)
    page.Cell(3,2).AddComponent(But4)

    ' refresh the page
    page.Refresh

    ' Tell the browser we finished loading
    page.FinishedLoading
    ' restoring the navigation bar position
    page.RestoreNavigationBarPosition
End Sub

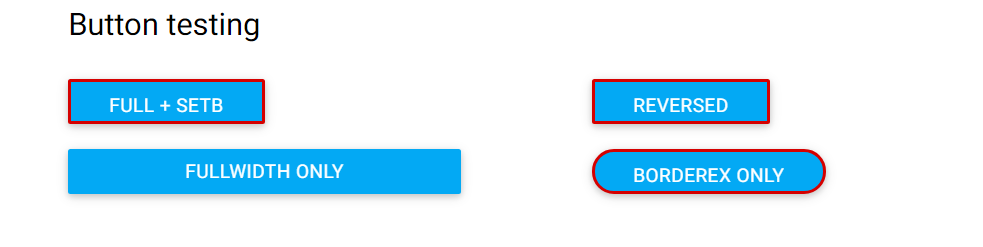

Here are the buttons:-

Why are all but button4 should be full with of the cell and have rounded corners and red borders in my mind

.
Why is this not working?



[Harris]

Wierd. Seems set full width is only respected when set border ex is not used...
Seems i have struggled with this before and cant recall any resolve at the moment..
