B4J Question ABMEditor Sizing issue

[codie01]

Hi All,

I am using ABMEditor, which is very good. I have a cell set to a height of 560px, however the ABMEditor component does not expand with the cell unless I click on it and then press the ALT key.

The result is you can not see all the content if you reload it. It does expand when you are first editing data in it.

I have tried refreshing the Cell, the container and the Editor, all without success! I have also used the following code:

Sub section0cEditor1_loaded(Target As String)
    Dim myContainer0 As ABMContainer = page.Component("section0a")
    Dim myContainer2 As ABMContainer = myContainer0.Component("section0c")
    Dim myEditor1 As ABMEditor = myContainer2.Component("section0cEditor1")
    myEditor1.SetFocus
    myEditor1.Refresh
End Sub

Has anyone resolved this issue.

Thanks All!



[alwaysbusy]

I have never found a way for that component to resize correctly. Should work with any key though, not only with ALT.



[codie01]

Hi Alian and All,

I have solved it and it now works every time. It requires a little extra programming however the result is outstanding.

Step 1. Build the component as normal

    Dim section0cEditor1 As ABMEditor
    section0cEditor1.Initialize(page,"section0cEditor1",True,True,"EditorThemeSection1")
    section0cEditor1.HideToolbar
    section0cEditor1.SetEnabled(False)

Step 2. Place the editor component into a cell as normal, then set the cell height you want, will scroll if bigger.

    section0c.Cell(4,1).AddComponent(section0cEditor1)
    section0c.Cell(4,1).SetFixedHeight(750,True)

Step 3. Set an update SUB for the editor so it is destroyed when you want it to update. When you rebuild the editor again, it forces the editor, "loaded" event.

Sub updateEditortView
    Dim myContainer0 As ABMContainer = page.Component("section0a")
    Dim myContainer2 As ABMContainer = myContainer0.Component("section0c")

    myContainer2.Cell(4,1).RemoveAllComponents

    Dim section0cEditor1 As ABMEditor
    section0cEditor1.Initialize(page,"section0cEditor1",True,True,"EditorThemeSection1")
    section0cEditor1.HideToolbar
    section0cEditor1.SetEnabled(False)

    myContainer2.Cell(4,1).AddComponent(section0cEditor1)
    myContainer2.Cell(4,1).SetFixedHeight(750,True)
    myContainer2.Refresh
    section0cEditor1.Refresh
End Sub

Step 4. Every time the editor is rebuilt it runs the loaded event in the sub.

Sub section0cEditor1_loaded(Target As String)
    Dim myContainer0 As ABMContainer = page.Component("section0a")
    Dim myContainer2 As ABMContainer = myContainer0.Component("section0c")
    Dim myEditor1 As ABMEditor = myContainer2.Component("section0cEditor1")

    Dim Cursor As ResultSet
    Dim sql1 As SQL
    sql1.Initialize2("com.mysql.jdbc.Driver", "jdbc:mysql://" & ABMShared.myServerAddress & "/" & myServerDatabase, myServerUsername, myServerPassword)

    Log(mySearch1&" "&mySearch2)
    Cursor = sql1.ExecQuery("SELECT * FROM mail where messagetime = '" & myMessagetime & "' AND messagedate = '" & myMessageDate & "'")

    Do While Cursor.NextRow = True
        myEditor1.SetHTML(Cursor.GetString("message"))
    Loop

    Cursor.Close
    sql1.Close

    myEditor1.Refresh
End Sub

job done!



[alwaysbusy]

@codie01 Thank you for sharing your solution! Will be helpful in my projects too



[codie01]

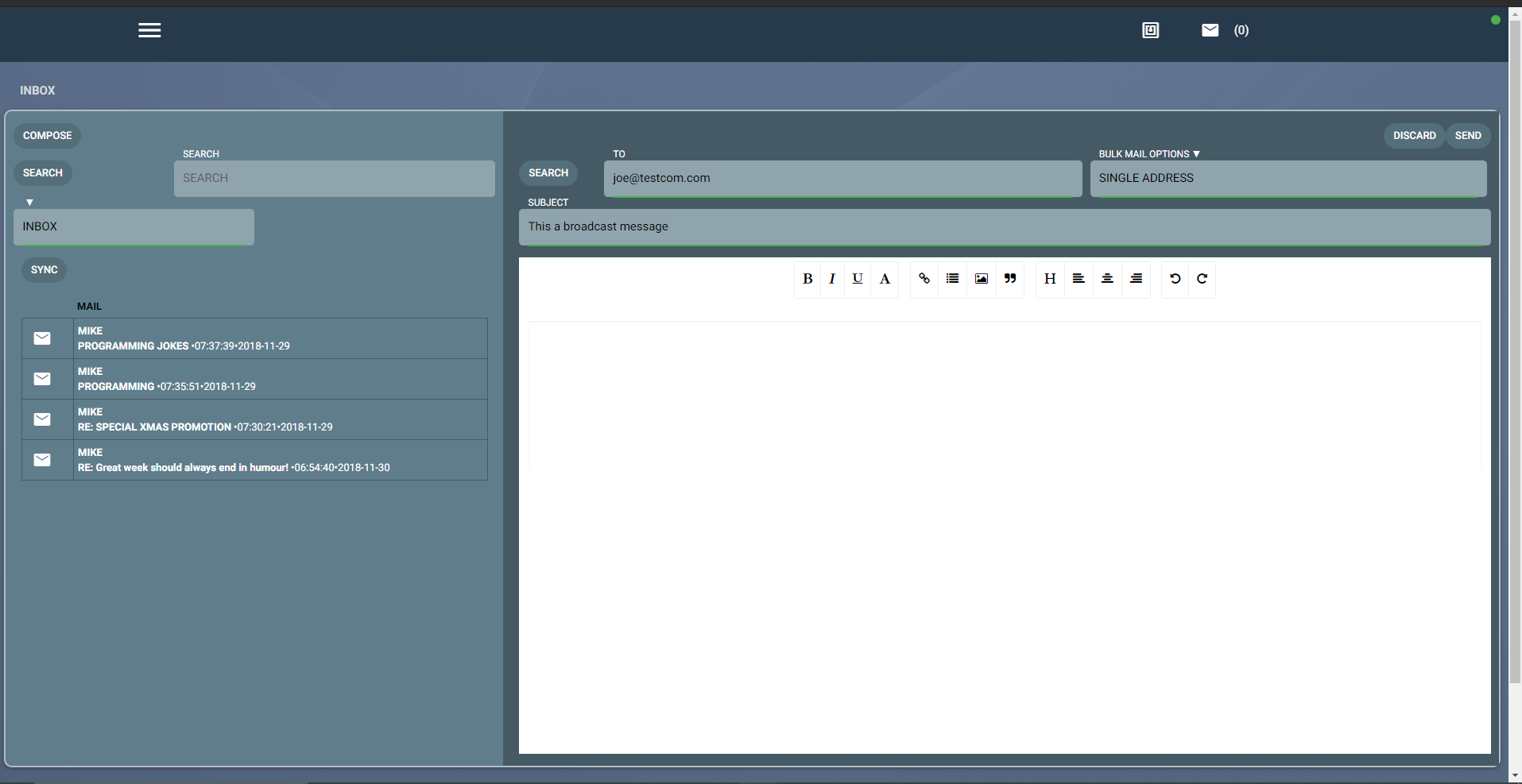

B4J and ABMaterial Rock, here is the editor being used in a email program inside an ABMaterial web app, I have died and gone to heaven.



[alwaysbusy]

@codie01 Waw, looks fabulous!



[Harris]

B4J and ABMaterial Rock, here is the editor being used in a email program inside an ABMaterial web app, I have died and gone to heaven

Reminds me of the "Doug and the Slugs" tune:
Makin it work, takes a little longer...
Makin it work, takes a bit of time...



[Harris]

here is the editor being used in a email program inside an ABMaterial web app

Hey, would you mind sharing the code for this page? Would save me much work rebuilding it for my project.

Thanks
