Android Question [AS Chips] Chips inside a customlistview

[yiankos1]

Hello,

If i add chips inside a clv item then "+2 chip" (or whetever number), is at the begining instead of the end, at the top of the first visible chip.

Here is the code CLV and PreoptimizedCLV:

Private Sub clvGym_VisibleRangeChanged (FirstIndex As Int, LastIndex As Int)

    For Each i As Int In PCLVgyms.VisibleRangeChanged(FirstIndex, LastIndex)

        Dim item As CLVItem = clvGym.GetRawListItem(i)
        Dim pnl As B4XView = xui.CreatePanel("")
        item.Panel.AddView(pnl, 0, 0, item.Panel.Width, item.Panel.Height)
        Dim gymData As gym = item.Value
        'Create the item layout
        pnl.LoadLayout("clvGym")

        #if b4a
        MediaManager.SetMediaWithExtra(pnl.GetView(0).GetView(0),$"${B4XPages.MainPage.downloadLink}?name=${gymData.photo}.jpg"$,"image/*",CreateMap(MediaManager.REQUEST_ROUNDIMAGE:True,MediaManager.REQUEST_HEADERS: CreateMap("command":"image","id": B4XPages.MainPage.user.id,"token":B4XPages.MainPage.user.token)))
        #else
        misc.DownloadAndSetImage(ImageLoader,gymData.bitmap,gymData.photo,gymData.id,pnl.GetView(0).GetView(0).tag)
        #End If

        pnl.GetView(0).GetView(1).Text = gymData.name

        Private chipType As AS_Chips = pnl.GetView(0).GetView(2).Tag

        chipType.ChipPropertiesGlobal.BackgroundColor = xui.Color_White
        chipType.ChipPropertiesGlobal.TextColor = xui.Color_Black

        For i = 0 To gymData.gymType.Size-1
            If gymData.gymType.Get(i)<>"null" Then
                chipType.AddChip(gymData.gymType.Get(i),misc.FontToBitmap(misc.Chr32(0xF1300),32,xui.Color_Black),"")
            End If
        Next

        Sleep(0)

        chipType.RefreshChips

        cs.Initialize.Color(xui.Color_RGB(255,172,11)).Append($"★ $1.2{gymData.all_time_rating}"$).Pop.Append($" (${gymData.total_ratings})"$).PopAll

        #if b4a
        pnl.GetView(0).GetView(3).Text = cs '$"★ $1.0{gymData.all_time_rating} (${gymData.total_ratings})"$
        #else
        pnl.GetView(0).GetView(3).As(Label).AttributedText = cs
        #End If


    Next

    #if b4a
    MediaManager.TrimMediaCache
    #End If

    End If
End Sub

Same behavior b4a and b4i



[Alexander Stolte]

If i add chips inside a clv item then "+2 chip" (or whetever number), is at the begining instead of the end, at the top of the first visible chip.

I assume that you still have the “AutoScale” in the Designer in the designer script for the item in the list.



[yiankos1]

I assume that you still have the “AutoScale” in the Designer in the designer script for the item in the list.

Hello Alexander,

Thank you for your reply,

AutoScale is disabled in b4i. In b4a is enabled, but the result is the same even it is not.

I see some inconsistency between my devices:

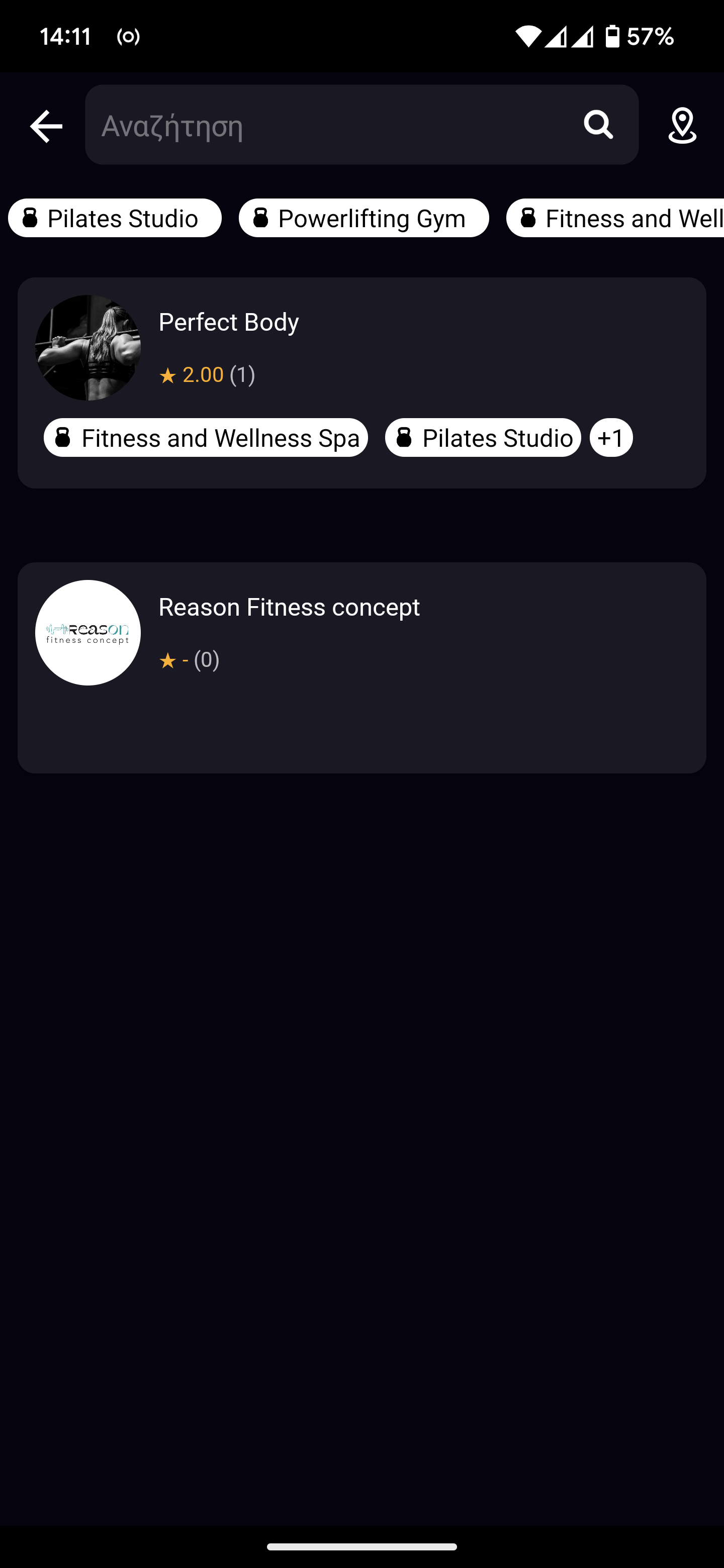

Pixel 7 Pro working fine

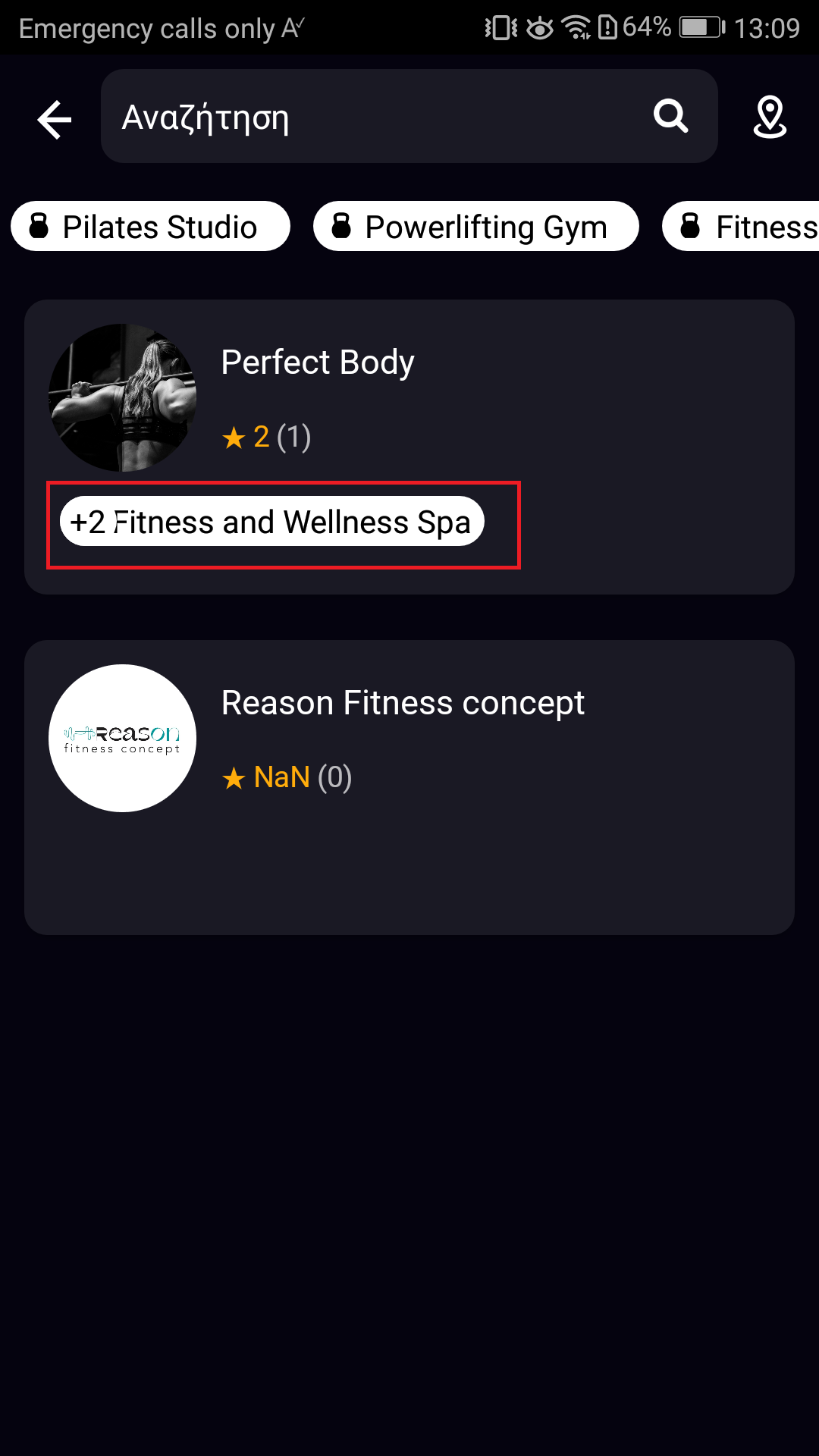

In b4i results are the same as the Huawei device(OP).

Does it come anything into your mind to try, in order not to bother you.



[Alexander Stolte]

Well, the +1 or +2 is displayed if not all chips fit.

To avoid this, either use the AS_ScrollingChips or switch on the automatic growth:
1. Enable "Auto Expand" in the designer
2. Add the HeightChanged event and adjust the height of the list item
