iOS Question B4i scrollview doesn't work

[ConnorMc]

Hello,
i wonder about the difference of scrollview in B4A and B4i.
I wrote a App that connects to a ftp-server, imports a textfile via LoadCSV and shows the rows in table which is the panel of a scrollview.
I created this App for B4A and it works fine.
I did the same for B4i and the scrollview can't be scrolled - it's just fix on the screen of the iPhone and I have no idea why.

What steps are needed to solve this problem?
Do I have to 'Resize' in any way (...although it's not necessary in B4A)?

Here's the B4i-Code (without the ftp connection-data - there's no problem with the ftp-connection)

-----------------------------------------------------------------
'Code module
#Region Project Attributes
#ApplicationLabel: Pikettinfo
#Version: 1.0.0
'Orientation possible values: Portrait, LandscapeLeft, LandscapeRight and PortraitUpsideDown
'#iPhoneOrientations: Portrait, LandscapeLeft, LandscapeRight
#iPhoneOrientations: Portrait
'#iPadOrientations: Portrait, LandscapeLeft, LandscapeRight, PortraitUpsideDown
#Target: iPhone
#ATSEnabled: True
#MinVersion: 7
#End Region

Sub Process_Globals
'These global variables will be declared once when the application starts.
'Public variables can be accessed from all modules.
Public App As Application
Public NavControl As NavigationController
Private Page1 As Page

Dim FTP As FTP
Dim EPSFtpServer As String = "ftp.energie-logistik.ch"

Dim ImageView1 As ImageView
Dim Label1 As Label
Dim Button1 As Button
Dim Button2 As Button
Dim su As StringUtils
Dim PikettListe As List

Dim SV As ScrollView
Dim Header As Panel
Dim Table As Panel
Dim NumberOfColumns, RowHeight, ColumnWidth As Int
Dim HeaderColor, TableColor, FontColor, HeaderFontColor As Int
'Dim FontSize As Float
Type RowCol (Row As Int, Col As Int)
Dim Alignment As Int
Dim SelectedRow As Int
Dim SelectedRowColor As Int

'Table settings
HeaderColor = Colors.Gray
NumberOfColumns = 5
RowHeight = 30dip
TableColor = Colors.White
FontColor = Colors.Black
HeaderFontColor = Colors.White
'FontSize = 12
'Alignment = Gravity.CENTER 'change to Gravity.LEFT or Gravity.RIGHT for other alignments.
SelectedRowColor = Colors.Blue


End Sub

Private Sub Application_Start (Nav As NavigationController)
'SetDebugAutoFlushLogs(True) 'Uncomment if program crashes before all logs are printed.
NavControl = Nav
Page1.Initialize("Page1")
Page1.Title = "Pikettinfo"
Page1.RootPanel.Color = Colors.White
Page1.RootPanel.LoadLayout("pikinfomain")
NavControl.ShowPage(Page1)

FTP.Initialize("FTP", EPSFtpServer, 21, "user", "PW")
ImageView1.Bitmap = LoadBitmap(File.DirAssets, "eps_logo_de.png")
Label1.Text = "EPS Pikettplanung aktuell"
Button1.Text = "Daten holen"
Button2.Visible = False
If File.Exists(File.DirTemp, "pikett-info.txt") Then File.Delete(File.DirTemp, "pikett-info.txt")
Table.Initialize("")
SV.Initialize("SV",85%x,55%y)

End Sub


Sub Button1_Click

Button1.Visible = False
SV.ScrollEnabled = True
Table = SV.Panel
Table.Color = TableColor

Page1.RootPanel.AddView(SV, 5%x, 25%y, 90%x, 80%y)
ColumnWidth = SV.Width / NumberOfColumns
SelectedRow = -1

'add header
SetHeader(Array As String("Tag", "Datum", "Schicht", "Reserve", "IT-Pikett"))

FTP.DownloadFile("/info_client/pikett-info/pikett-info.txt", False, File.DirTemp, "pikett-info.txt")
FTP.List("info_client/pikett-info/")
Sleep(1000)

PikettListe = su.LoadCSV(File.DirTemp, "pikett-info.txt", ";")


For Each Row() As String In PikettListe

' You can access the LINE with
' dim s as string = Row(0) ' 1. line
Dim values() As String = Row ' get the columns from one line...
' use values to the access the columns... 0 to x (values(0) 1st column, value(1) the second....)
'For Each n As String In Row
Dim Zeile As String
Zeile = values(0) & ", " & values(1) & ", " & values(2) & ", " & values(3) & ", " & values(4)
Log("Zeile: " & Zeile)
'ListView1.AddSingleLine(n)

AddRow(Array As String(values(0), values(1), values(2), values(3), values(4)))
Next

ImageView1.Left = 5%x
Button2.Width = 70dip
Button2.Height = 40dip
Button2.Top = ImageView1.Top
Button2.Left = ImageView1.Left + ImageView1.Width + 20
Button2.Text = "refresh"
Button2.Visible = True

SV.BringToFront

End Sub

Sub Button2_Click
Table.RemoveAllViews

Table = SV.Panel
Table.Color = TableColor
'Activity.AddView(SV, 5%x, 25%y, 90%x, 80%y)
ColumnWidth = SV.Width / NumberOfColumns
SelectedRow = -1
'add header
SetHeader(Array As String("Tag", "Datum", "Schicht", "Reserve", "IT-Pikett"))

FTP.DownloadFile("/info_client/pikett-info/pikett-info.txt", False, File.DirTemp, "pikett-info.txt")
FTP.List("info_client/pikett-info/")
Sleep(1000)
PikettListe = su.LoadCSV(File.DirTemp, "pikett-info.txt", ";")

For Each Row() As String In PikettListe
' You can access the LINE with
' dim s as string = Row(0) ' 1. line
Dim values() As String = Row ' get the columns from one line...
' use values to the access the columns... 0 to x (values(0) 1st column, value(1) the second....)
'For Each n As String In Row
Dim Zeile As String
Zeile = values(0) & ", " & values(1) & ", " & values(2) & ", " & values(3) & ", " & values(4)
Log("Zeile: " & Zeile)
'ListView1.AddSingleLine(n)
AddRow(Array As String(values(0), values(1), values(2), values(3), values(4)))
Next

End Sub

Sub SetHeader(Values() As String)
'If Header.IsInitialized Then Return 'should only be called once
Header.Initialize("")
For i = 0 To NumberOfColumns - 1
Dim l As Label
l.Initialize("header")
l.Text = Values(i)
'l.Gravity = Gravity.CENTER
'l.TextSize = FontSize
l.Color = HeaderColor
l.TextColor = HeaderFontColor
l.Tag = i
Header.AddView(l, ColumnWidth * i, 0, ColumnWidth, RowHeight)
Next
Page1.RootPanel.AddView(Header, SV.Left, SV.Top - RowHeight, SV.Width, RowHeight)
End Sub

Sub AddRow(Values() As String)
If Values.Length <> NumberOfColumns Then
Log("Wrong number of values.")
Return
End If
Dim lastRow As Int
lastRow = NumberOfRows
For i = 0 To NumberOfColumns - 1
Dim l As Label
l.Initialize("cell")
l.Text = Values(i)
'l.Gravity = Alignment
'l.TextSize = FontSize
l.TextColor = FontColor
Dim rc As RowCol
rc.Initialize
rc.Col = i
rc.Row = lastRow
l.Tag = rc
Table.AddView(l, ColumnWidth * i, RowHeight * lastRow, ColumnWidth, RowHeight)
Next
Table.Height = NumberOfRows * RowHeight
End Sub

Sub NumberOfRows As Int
Return Table.NumberOfViews / NumberOfColumns
End Sub

Sub FTP_DownloadProgress (ServerPath As String, TotalDownloaded As Long, Total As Long)
Dim s As String
's = "Downloaded " & Round(TotalDownloaded / 1000) & "KB"
s = "Downloaded " & TotalDownloaded & "Bytes"
If Total > 0 Then s = s & " out of " & Round(Total / 1000) & "KB"
Log(s)
End Sub

Sub FTP_DownloadCompleted (ServerPath As String, Success As Boolean)
Log(EPSFtpServer & ServerPath & ", Success=" & Success)
If Success = False Then Log(LastException.Message)
End Sub

Sub FTP_ListCompleted (ServerPath As String, Success As Boolean, Folders() As FTPEntry, Files() As FTPEntry)
Log(ServerPath)
If Success = False Then
Log(LastException)
Else
For i = 0 To Folders.Length - 1
Log(Folders(i).Name)
Next
For i = 0 To Files.Length - 1
Log(Files(i).Name & ", " & Files(i).Size & ", " & DateTime.Date(Files(i).Timestamp))
Next
End If
End Sub

Private Sub Page1_Resize(Width As Int, Height As Int)

End Sub

Private Sub Application_Background
File.Delete(File.DirTemp, "pikett-info.txt")
FTP.DownloadFile("/info_client/pikett-info/pikett-info.txt", False, File.DirTemp, "pikett-info.txt")
FTP.List("info_client/pikett-info/")


End Sub
---------------------------------------------------------------------------------

Thanks for help



[tufanv]

Try to add to sv with sv.panel.addview(.... )
and try to set the
sv.contentwidth tp scrollview.width
and sv.contentheight to stg like 3000 and try again.

and if you can post your code between code tags it would be easier for us to understand the code.



[ConnorMc]

...it was enough to set sv.contentheight - thank you very much, tufanv.

Next time I'll start playing around with the properties by myself before posting...

What are the 'code tags' for this forum?



[tufanv]

sv1.contentheight=100

this is a sample. You can use CODE /CODE with bracelets



[klaus]

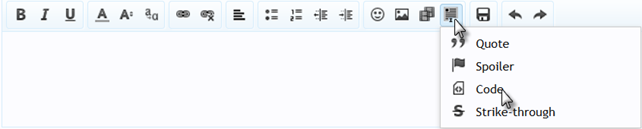

Code tags:



[ConnorMc]

...now it's clear:

Sub Signing_Code()
    Msgbox("Thank you guys!")
End Sub
