B4R Question B4R Board Selection Error

[rwblinn]

Hi,

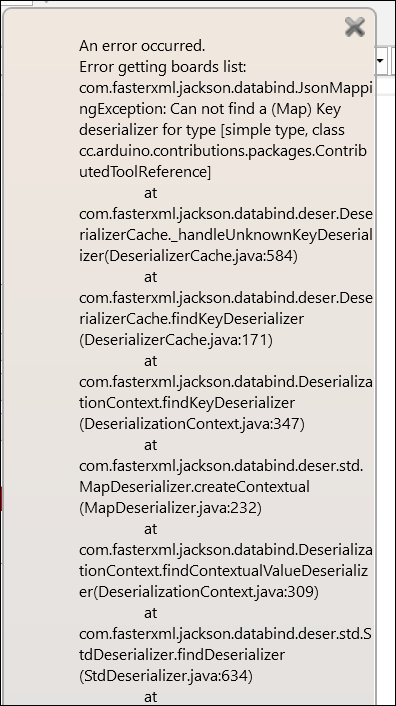

After installation B4R, configuring the pathes, the board selector gives an error.
The Arduino UNO is connected to PC port COM4 which is recognized in the drop down.



[inakigarm]

My error: (I've installed the last Arduino IDE)

On Arduino IDE --> Arduino/Genuino Uno and COM3 --> Runs fine

On B4R: --> Board Tools Selector --> can select Board, but Serial Port is empty (Refresh doesn't solve this)

Any idea ??



[Erel]

These two issues are not related to each other.

@rwblinn Are you using Arduino IDE v1.6.7+? Does the Arduino IDE run properly (can you select a board)?

@inakigarm Please start a new thread for this issue.



[rwblinn]

@rwblinn Are you using Arduino IDE v1.6.7+? Does the Arduino IDE run properly (can you select a board)?

Arduino IDE 1.6.8.
The Aduino IDE is running properly with boards like UNO, MEGA. Board selection no issue, port recognized. Test sketched running ok.
The Arduino IDE is installed in a local path C:\Daten\arduino\IDE\Arduino.exe from which the IDE is running fine.



[Erel]

Can you enable the IDE logs and post them:
- Create a folder named c:\temp
- Run B4R from the command line with b4r -log

It will create a file named log.txt in c:\temp



[rwblinn]

Hi Erel,

pls find the content of log.txt after performing two tasks:
1) started B4R > Tool > Board Selector
and
2) by compiling led test program which displays the error "please select a board first"

B4R version: 1.00 BETA 1
.Net version: 4.0.30319.42000
B4XClassifer created
B4XErrorTagger created
Gui: 1006
*** no reuse ***
Gui: 401
Gui: 90
Gui: 60
B4XClassifer created
B4XErrorTagger created
*** no reuse ***
Gui: 53
Compilation task: 89.0543
Compilation task: 1.999
Gui: 99



[Erel]

I've uploaded a new version (Beta 2) that will print the error to the logs. Please try it again with the new version.



[rwblinn]

Please find the logfile attached - same errors as reported previously.



[Erel]

Beta #3 was uploaded. It should fix this issue. It will read the boards data from an included file (boards.txt) if it fails to fetch the boards list from the Arduino IDE.



[rwblinn]

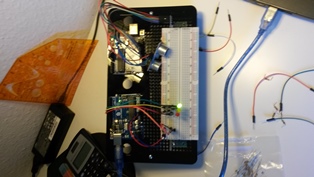

Solved - Got the first program running - green blinking led (see image below - left arduino) = thanks a lot.

my test environment as a starter = 2 arduinos



[Moch Firmansyah]

Hi, Erel

How to add item of my self arduino product on Board Selector menu if I want B4R support for my product? Ex: my product name is KM-Duino32 this is atmega32 microcontroller based. in Arduino IDE we can modified or create new board spesification it self for support our product and running well.Thanks in advance..



[Erel]

B4R gets the list of boards from the Arduino IDE. So it should include all the additional boards as well.



[Moch Firmansyah]

OK...thank you for your reply, I will try.!
