B4A Library [B4X] [B4A]🌀 B4XDaisyCanvasSpinner - Beautiful 3-Ring Animated Loading Indicator!

Hi Fam

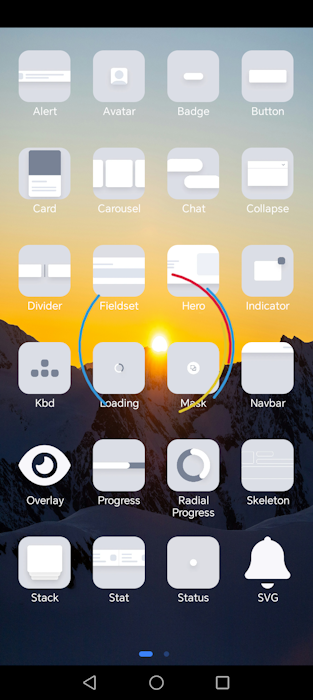

If you are looking to replace standard OS progress bars with something modern, fluid, and cross-platform, look no further. I'd like to introduce the B4XDaisyCanvasSpinner—a sleek, animated loading spinner built entirely from scratch using B4XCanvas and B4XPath. We have set the opacity of our DaisyOverlay to 0 for this and put the loader on top.

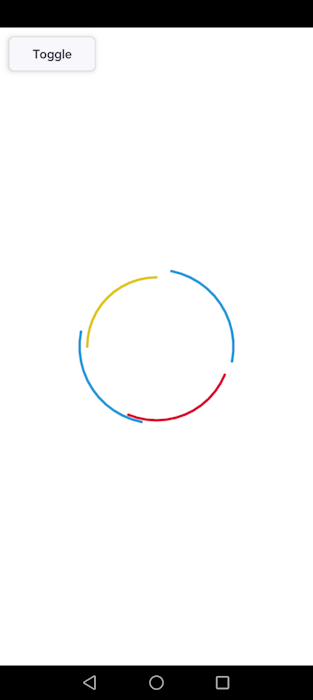

Inspired by popular CSS web loaders (specifically loader-1.css), this component features three concentric colored rings that spin smoothly at different speeds using a single Timer. Because it's purely drawn using the canvas, it is completely cross-platform for B4A, B4i, and B4J!

Key Features:

• Fully Customizable: Easily change the Size, Primary Color, Secondary Color, Tertiary Color, and Stroke Width directly through the Designer Properties or programmatically.
• Smart Architecture: Utilizes three transparent overlay panels to ensure 100% perfect concentricity and smooth, independent rotation.
• Easy Integration: Comes with helpful methods like AttachTo (to instantly expand and center over a target view) and AddToParent for fine-grained coordinate placement.

Simple Usage Example: You can add it via the Visual Designer, or easily instantiate it in code.

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private spinner As B4XDaisyCanvasSpinner ' Declare the spinner
End Sub

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.Color = xui.Color_White

    ' Initialize the spinner
    spinner.Initialize(Me, "spinner")

    ' Customize colors and stroke programmatically
    spinner.Color1 = 0xFF3498DB ' Primary Blue
    spinner.Color2 = 0xFFDB213A ' Secondary Red
    spinner.Color3 = 0xFFDEC52D ' Tertiary Yellow
    spinner.StrokeWidth = 3dip

    ' Attach the spinner full-screen to the given view (e.g., an overlay panel or the Root)
    spinner.AttachTo(Root)

    ' Show the spinner
    spinner.Show
End Sub

Private Sub StopLoading
    ' Hide the spinner when your background task finishes
    spinner.Hide
End Sub

Enjoy creating stunning and responsive UIs, and let me know your thoughts or suggestions in the thread below!

Related Content

[B4X] [B4A] B4XDaisy UI Kit - Native Components inspired by DaisyUI & Tailwind

Hi Fam Disclaimer: The [B4A] in the title? This b4xlib has only been tested with B4A, thus the title. I have not checked the cross-platform functionality as its on the roadmap when I finish the complete library. The b4xlib is still in ALPHA stage, things might change, apis might break and...

www.b4x.com

Origin Story...

Whilst our component is purely native based on B4XCanvas... If you have been using SithasoDaisy5, you will remember this from the webloader we use. So I wanted to prove to myself this can be done natively too. This is inspired by this loader... you might remember on ABM, has been my favourate loader eversince.

/*Loader 1- Spinning */

#loader-1 #loader{
    position: relative;
    left: 50%;
    top: 50%;
    height: 20vw;
    width: 20vw;
    margin: -10vw 0 0 -10vw;
    border: 3px solid transparent;
    border-top-color: #3498db;
    border-bottom-color: #3498db;
    border-radius: 50%;
    z-index: 2;
    -webkit-animation: spin 2s linear infinite;
    -moz-animation: spin 2s linear infinite;
    -o-animation: spin 2s linear infinite;
    animation: spin 2s linear infinite;
}
#loader-1 #loader:before{
    content: "";
    position: absolute;
    top:2%;
    bottom: 2%;
    left: 2%;
    right: 2%;
    border: 3px solid transparent;
    z-index: 2;
    border-top-color: #db213a;
    border-radius: 50%;
    -webkit-animation: spin 3s linear infinite;
    -moz-animation: spin 3s linear infinite;
    -o-animation: spin 3s linear infinite;
    animation: spin 3s linear infinite;
}
#loader-1 #loader:after{
    content: "";
    position: absolute;
    top:5%;
    bottom: 5%;
    left: 5%;
    right: 5%;
    border: 3px solid transparent;
    border-top-color: #dec52d;
    z-index: 2;
    border-radius: 50%;
    -webkit-animation: spin 1.5s linear infinite;
    -moz-animation: spin 1.5s linear infinite;
    -o-animation: spin 1.5s linear infinite;
    animation: spin 1.5s linear infinite;
}
/*Keyframes for spin animation */
@-webkit-keyframes spin {
    0%   {
        -webkit-transform: rotate(0deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(0deg);  /* IE 9 */
        transform: rotate(0deg);  /* Firefox 16+, IE 10+, Opera */
    }
    50% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(180deg);  /* Firefox 16+, IE 10+, Opera */
    }
    100% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(360deg);  /* Firefox 16+, IE 10+, Opera */
    }
}

@-moz-keyframes spin {
    0%   {
        -webkit-transform: rotate(0deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(0deg);  /* IE 9 */
        transform: rotate(0deg);  /* Firefox 16+, IE 10+, Opera */
    }
    50% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(180deg);  /* Firefox 16+, IE 10+, Opera */
    }
    100% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(360deg);  /* Firefox 16+, IE 10+, Opera */
    }
}
@-o-keyframes spin {
    0%   {
        -webkit-transform: rotate(0deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(0deg);  /* IE 9 */
        transform: rotate(0deg);  /* Firefox 16+, IE 10+, Opera */
    }
    50% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(180deg);  /* Firefox 16+, IE 10+, Opera */
    }
    100% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(360deg);  /* Firefox 16+, IE 10+, Opera */
    }
}
@keyframes spin {
    0%   {
        -webkit-transform: rotate(0deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(0deg);  /* IE 9 */
        transform: rotate(0deg);  /* Firefox 16+, IE 10+, Opera */
    }
    50% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(180deg);  /* Firefox 16+, IE 10+, Opera */
    }
    100% {
        -webkit-transform: rotate(360deg);  /* Chrome, Opera 15+, Safari 3.1+ */
        -ms-transform: rotate(360deg);  /* IE 9 */
        transform: rotate(360deg);  /* Firefox 16+, IE 10+, Opera */
    }
}

So yeah, you can port CSS & HTML to a working native component. Nothing is really impossible.

Yeah ! #JohnWickAccent



[MarcoRome]

Hi @Mashiane .
Great.
I read in the title:

[B4X] -->[B4A]<-- etc...​

In your post i read: "Because it's purely drawn using the canvas, it is completely cross-platform for B4A, B4i, and B4J!"

Why do you say B4A in the title when it's compatible with B4i/B4J ?
Maybe the title is a bit misleading.



[Mashiane]

Why do you say B4A in the title when it's compatible with B4i/B4J ?

Hi

I have not run tests yet for B4i and B4J, the reason that I wrote B4A clearly is because for now everything works with B4A, the other platforms are on the roadmap.
