Hi Fam!
Are you looking for a clean, modern, and highly customizable way to display chronological events, progress steps, or history logs in your apps? I'm excited to introduce B4XDaisyTimeline—a powerful custom view that brings the sleek aesthetics of DaisyUI timelines straight to B4X!
Key Features:
Quick Usage Example:
Here is a simple snippet showing how to initialize a vertical timeline, add boxed items, and apply a custom color variant to the first step:
Drop any questions, suggestions, or showcase your own implementations below. Happy coding!
Related Content
www.b4x.com
Are you looking for a clean, modern, and highly customizable way to display chronological events, progress steps, or history logs in your apps? I'm excited to introduce B4XDaisyTimeline—a powerful custom view that brings the sleek aesthetics of DaisyUI timelines straight to B4X!
Key Features:- Flexible Orientations: Easily switch between vertical and horizontal layouts depending on your UI needs.
- Rich Customization: Fully customize Line Colors, Marker Sizes, Marker Colors, and Text Sizes.
- DaisyUI Theming: Out-of-the-box support for DaisyUI variants like primary, secondary, accent, info, success, warning, and error.
- Boxed Items & Shadows: Elevate your timeline items with beautiful, customizable box shadows (sm, md, lg, xl, 2xl).
- Custom SVG Icons: Use the default checkmark or inject your own SVG path data for the middle markers.
- Compact & Snap Modes: Toggle Compact mode to push all items to one side, or SnapIcon to snap markers to the start instead of the middle.

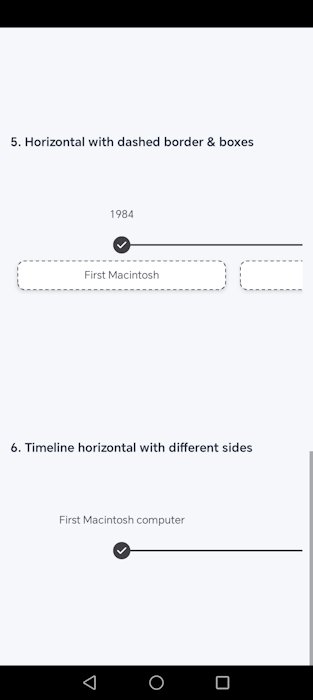

- Dashed Borders: Easily toggle dashed connecting lines to indicate pending or future steps.
Quick Usage Example:Here is a simple snippet showing how to initialize a vertical timeline, add boxed items, and apply a custom color variant to the first step:
B4X:
' 1. Declare the component
Private MyTimeline As B4XDaisyTimeline
' 2. Initialize and add to your parent view (e.g., Root)
MyTimeline.Initialize(Me, "MyTimeline")
MyTimeline.AddToParent(Root, 12dip, 20dip, 300dip, 400dip) ' [4, 15]
MyTimeline.setOrientation("vertical") ' [8]
' 3. Add Timeline Items
' Parameters: Id, StartText, EndText, BoxOnStart, BoxOnEnd [5]
MyTimeline.AddItemBox("item1", "1984", "First Macintosh computer", False, True)
MyTimeline.AddItemBox("item2", "1998", "iMac", False, True)
MyTimeline.AddItemBox("item3", "2001", "iPod", False, True)
MyTimeline.AddItemBox("item4", "2007", "iPhone", False, True)
' 4. Customize Specific Items (Optional)
' Make the first item stand out with a "primary" color variant and a dashed border
MyTimeline.SetItemVariant("item1", "primary") ' [4, 16]
MyTimeline.SetItemDashedBorder("item1", True) ' [4, 6]
' Note: You can also mark items as "done" or change their icons!
MyTimeline.SetItemDone("item1", True) ' [17]Drop any questions, suggestions, or showcase your own implementations below. Happy coding!
