Hi Fam
I am pleased to introduce B4XDaisyStack, another component in the B4X Daisy UI Kit series.

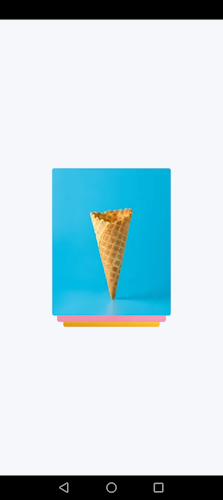

Inspired by the visual utility of the DaisyUI stack component, this view allows you to stack elements on top of each other with automatic offset calculations, creating a "depth" effect perfect for image galleries, notification toasts, or card decks.
The "Glue": B4XDaisyVariants B4XDaisyStack relies on B4XDaisyVariants to interpret size tokens and handle consistent property parsing. This ensures that your stack's dimensions and behavior align perfectly with other components like B4XDashboard or B4XDaisyAvatar.
Key Features

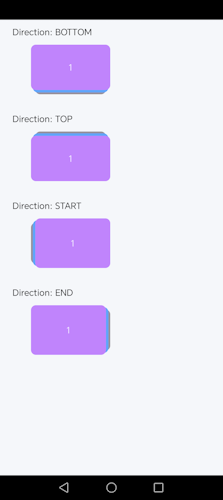

• Directional Stacking: Supports stacking in four directions: bottom (default), top, start, and end.
• Automatic Depth: The component automatically calculates positions for the top, middle, and bottom layers using your defined StepPrimary and StepSecondary offsets.
• Auto-Fill: When AutoFillLayers is enabled, child views are automatically resized to fit their specific layer frame—no manual sizing required.
• Layout Animation: Built-in LayoutAnimationMs support for smooth transitions when adding/removing layers or resizing the stack.
🛠 Dependencies
1. B4XDaisyVariants.bas (Static Code Module) - Included in the attachment
1. Designer Configuration: Add B4XDaisyStack to your layout.
• Direction: bottom
• StepPrimary: 7 (Offset for the bottom-most card)
• StepSecondary: 3 (Offset for the middle card)
Designer Properties
• Direction: Controls the visual flow of the stack (bottom, top, start, end).
• StepPrimary: The offset distance (in dip) for the furthest back layer.
• StepSecondary: The offset distance (in dip) for the middle layer.
• AutoFillLayers: If true, child views are resized to fill the calculated layer bounds.
• LayoutAnimationMs: Duration in milliseconds for layout updates.
• RoundedBox: Applies a standard 8dip corner radius to the stack container itself.
Related Content:
I am pleased to introduce B4XDaisyStack, another component in the B4X Daisy UI Kit series.
Inspired by the visual utility of the DaisyUI stack component, this view allows you to stack elements on top of each other with automatic offset calculations, creating a "depth" effect perfect for image galleries, notification toasts, or card decks.
The "Glue": B4XDaisyVariants B4XDaisyStack relies on B4XDaisyVariants to interpret size tokens and handle consistent property parsing. This ensures that your stack's dimensions and behavior align perfectly with other components like B4XDashboard or B4XDaisyAvatar.
Key Features• Directional Stacking: Supports stacking in four directions: bottom (default), top, start, and end.
• Automatic Depth: The component automatically calculates positions for the top, middle, and bottom layers using your defined StepPrimary and StepSecondary offsets.
• Auto-Fill: When AutoFillLayers is enabled, child views are automatically resized to fit their specific layer frame—no manual sizing required.
• Layout Animation: Built-in LayoutAnimationMs support for smooth transitions when adding/removing layers or resizing the stack.
🛠 Dependencies
1. B4XDaisyVariants.bas (Static Code Module) - Included in the attachment
1. Designer Configuration: Add B4XDaisyStack to your layout.
• Direction: bottom
• StepPrimary: 7 (Offset for the bottom-most card)
• StepSecondary: 3 (Offset for the middle card)
B4X:
Sub Globals
Private Stack As B4XDaisyStack
Private xui As XUI
End Sub
Sub Activity_Create(FirstTime As Boolean)
Activity.LoadLayout("MainLayout")
' Add simple colored panels to the stack
For i = 1 To 3
Dim p As B4XView = xui.CreatePanel("")
p.SetColorAndBorder(xui.Color_ARGB(255, Rnd(50, 200), Rnd(50, 200), Rnd(50, 200)), 0, 0, 8dip)
Dim lbl As Label
lbl.Initialize("")
lbl.Text = "Card " & i
lbl.Gravity = Gravity.CENTER
p.AddView(lbl, 0, 0, 100dip, 50dip) ' Size will be overridden by AutoFillLayers
Stack.AddLayer(p)
Next
' Or use the convenience helper for quick cards
Stack.AddColorLayer(xui.Color_Blue, "Top Card", xui.Color_White, 8dip)
End Sub
' Change direction at runtime
Sub btnChangeDirection_Click
Stack.Direction = "top"
' The stack will animate to the new layout if LayoutAnimationMs > 0
End Sub• Direction: Controls the visual flow of the stack (bottom, top, start, end).
• StepPrimary: The offset distance (in dip) for the furthest back layer.
• StepSecondary: The offset distance (in dip) for the middle layer.
• AutoFillLayers: If true, child views are resized to fill the calculated layer bounds.
• LayoutAnimationMs: Duration in milliseconds for layout updates.
• RoundedBox: Applies a standard 8dip corner radius to the stack container itself.
