Android Question B4X views not shown correctly in Designer

[toby]

I'm using B4A 9.80 and I'm having some problems while trying to add some b4x views to my project

For new projects, all I need is to add xui views library and everything works as expected.

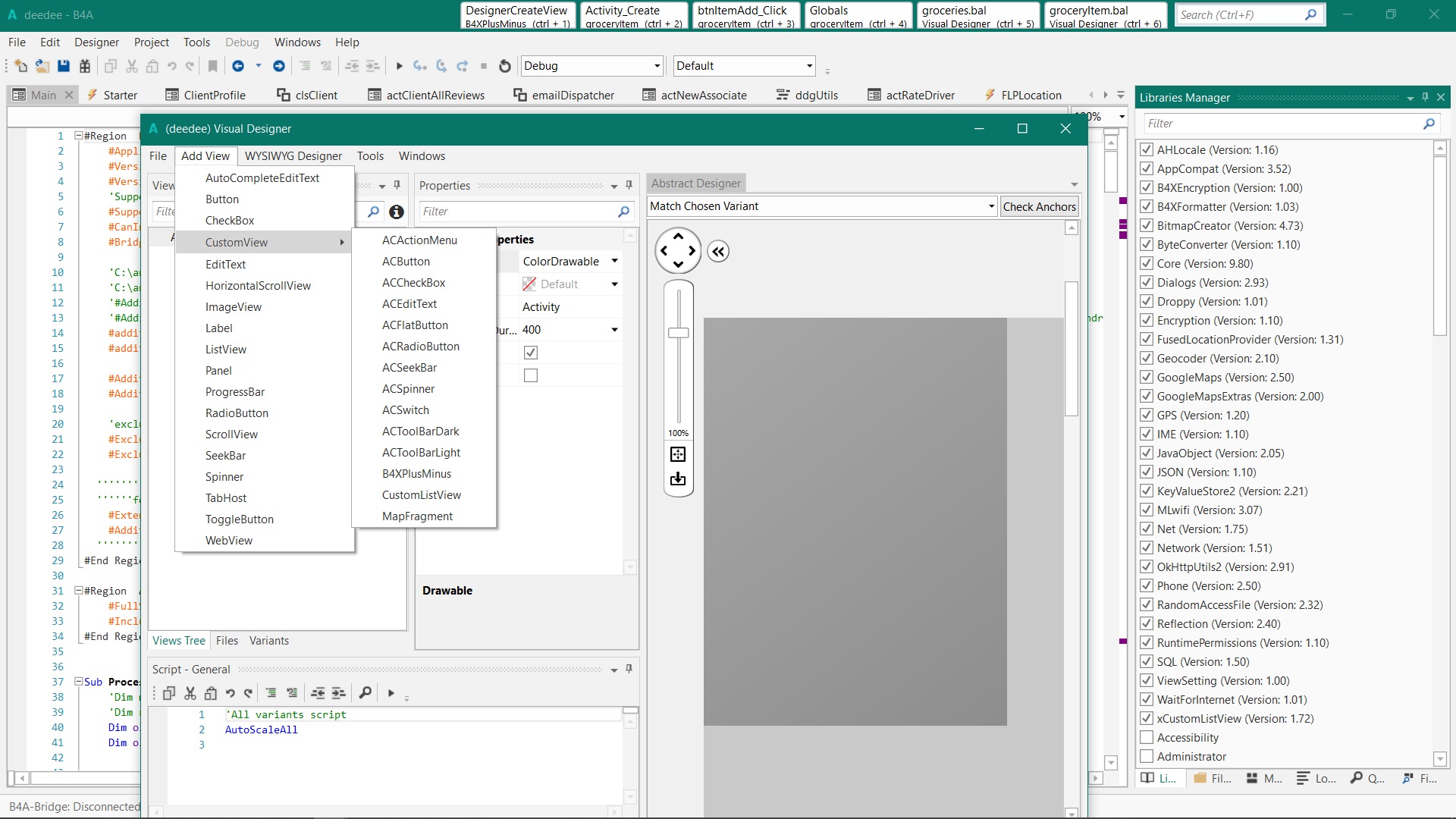

For my existing project, I get b4xplusminus view without adding the xui views library, which is weird. If the xui views library is added, no b4x views is shown, but even the b4xplusminus view.

There is likely some kind of conflict unknown to me. Any hint,? please.



[Erel]

There is no relation between B4XView and XUI Views.

Maybe you have a B4XPlusMinus class module?



[toby]

You were right! Earlier I added b4xplusminus.bas to my project and I forgot about it. After removing the module, all b4x views appear correctly in the designer.

thanks



[Erel]

After removing the module, all b4x views appear correctly in the designer.

You are making the same mistake. B4XViews have nothing to do with XUI Views custom views.



[toby]

There is no relation between B4XView and XUI Views.

Strange indeed. For me, without checking xui view library, no b4x view would appear in the designer.

What's the proper way to get b4x views to show?



[klaus]

What do you mean with b4x view ?

You cannot add B4XViews directly in the Designer.
You need to add 'standard' views like Panel, Label, ImageView etc.

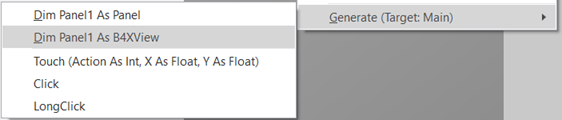

But, you can, then declare them as B4XViews in the code with:

Example with a Panel.



[toby]

What do you mean with b4x view ?

You cannot add B4XViews directly in the Designer.
You need to add 'standard' views like Panel, Label, ImageView etc.
But, you can, then declare them as B4XViews in the code with:

View attachment 92482

Example with a Panel.

The B4x views I was talking about are the views with "B4X" prefix in the designer under Customview, such as b4xplusminus, b4xCombobox, b4xFloatingTextField.



[klaus]

I think that you need to post a project showing the problem to allow Erel to look at it.



[DonManfred]

such as b4xplusminus

b4xplusminus
This search leads you to the (1st result) page

[B4X] B4XPlusMinus - Spinner / wheel alternative

B4XPlusMinus is a cross platform control introduced in XUI Views v2.05: https://www.b4x.com/android/forum/threads/b4x-xui-views-cross-platform-views-and-dialogs.100836/ As you can see in the above image it supports three different formations: horizontal, vertical and bottom. The bottom...

www.b4x.com

Here you can read that this view is part of "XUI Views" library. It is a internal library you just need to mark in the library tab.

B4XPlusMinus is a cross platform control introduced in XUI Views v2.05



[toby]

This is a dummy project without any code. I first saved the project in order to open the designer. After I select Add View from the menu, I see that the CustomView entry is disabled; I don't see those B4Xxxx views anywhere.

At this point, if I add xui views library, the Customview entry would be enabled and the B4Xplusminus (and b4xFloatingTextfield, etc) would appear under it.



[klaus]

Well, now I am lost!
The project you posted works as expected !!!???
So, what's the problem?



[Erel]

B4XPlusMinus is a custom view. It is not a B4XView.

@toby please watch this video tutorial: https://www.b4x.com/android/forum/threads/b4x-xui-cross-platform-native-ui-library.84359/#content



[toby]

Well, now I am lost!
The project you posted works as expected !!!???
So, what's the problem?

If I understood Erel correctly, the way, by checking xui views library, I add B4Xxxx views (b4xplusminus, b4xFloatingTextField, b4xSignature, etc) is wrong. I'll watch the video, suggested by erel, asap.



[DonManfred]

If I understood Erel correctly, the way, by checking xui views library, I add B4Xxxx views (b4xplusminus, b4xFloatingTextField, b4xSignature, etc) is wrong.

I think you got confused by the Terms in some way?

A B4XView is not a real View but a kind of Wrapper around standard views like Label, Panel, Buttons....

b4xplusminus is a Class. Under the line it can be wrapped in a b4xview.



[klaus]

I'm afraid that there is still a misunderstanding!
Erel speaks of B4XViews, which are supersets of 'standard' views, that's what I tried to explain in post#6.
To use these, you need the XUI library.

The B4Xxxx views you are referring to are included in the XUI Views library.
The project in your post#10, works as expected!
If you check the XUI Views library in the Libraries Manager Tab you can choose them in the Designer and if you uncheck this library you cannot select these objects!
If you add a B4XPlusMinus object and then uncheck the XUI Views library you'll get an error during compilation!



[toby]

Thank you @DonManfred & @klaus for clarifying it. That means I use them correctly but mentioned them incorrectly, They should be called XUI views, not B4X views. The reason I called them b4x views is they all have "b4x" prefix (b4xPlusMinus, b4xSignature, ....)



[Mahares]

The reason I called them b4x views is they all have "b4x" prefix (b4xPlusMinus, b4xSignature, ....)

I agree with you Toby. The terminology is confusing. When in doubt, just put a check in the XUI Views library pane. It will take care of XUI and customlistview libraries as they are referenced automatically with the use of XUI Views.
