B4A Library [B4X] [XUI] AS MultiColumnCustomListView based on xCustomListView

Hello this is a mutli column custom list view. You can add 1-100 columns, the screen is the limit. The items can have different heights.

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee.

If a stress test is performed on the view, unwanted behavior can occur, but this does not happen in normal operation. Remember to always test in release mode!

AS_MultiColumnCustomListView
Author: Alexander Stolte
Version: 1.00

• AS_MultiColumnCustomListView
  • Events:
    • ItemClick (Index As Int, Value As Object)
    • ItemLongClick (Index As Int, Value As Object)
    • ReachEnd
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • Add (Pnl As B4XView, Value As Object) As String
      Adds a custom item.
    • Class_Globals As String
    • Commit As String
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
      Base type must be Object
    • getColumnCount As Int
    • Initialize (Callback As Object, EventName As String) As String
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
  • Properties:
    • ColumnCount As Int [read only]

Changelog

• 1.00
  • Release
• 1.01
  • BugFixes
• 1.02
  • Add Clear - Clears all lists
• 1.03
  • Add Designer Property LazyLoading
  • Add Designer Property LazyLoadingExtraSize
  • Add Event LazyLoadingAddContent
  • Add set ColumnCount

Have Fun



[asales]

Waiting for a long time to a view like this. Thanks!

Customlistview with 2 columns and different heights

I saw this post: https://www.b4x.com/android/forum/threads/customlistview-with-2-or-more-columns.118135/ but I want to create a customlistview with 2 columns and different heights. The cell will adjust according to content. Is like the image below. Any tips to make this? Thanks in advance.

www.b4x.com



[Mahares]

You may want to check the Sub AS_MultiColumnCustomListView1_ItemClick (Index As Int, Value As Object)
The event does not fire.



[Alexander Stolte]

Update

• 1.01
  • BugFixes



[Alexander Stolte]

Update

• 1.02
  • Add Clear - Clears all lists



[byz]

Is there any optimization for performance? For example, I load hundreds of views, each containing an image and 2 labels. like PreoptimizedCLV.



[Alexander Stolte]

Update

• 1.03
  • Add Designer Property LazyLoading
  • Add Designer Property LazyLoadingExtraSize
  • Add Event LazyLoadingAddContent
  • Add set ColumnCount

Example project is updated and is now using lazy loading



[byz]

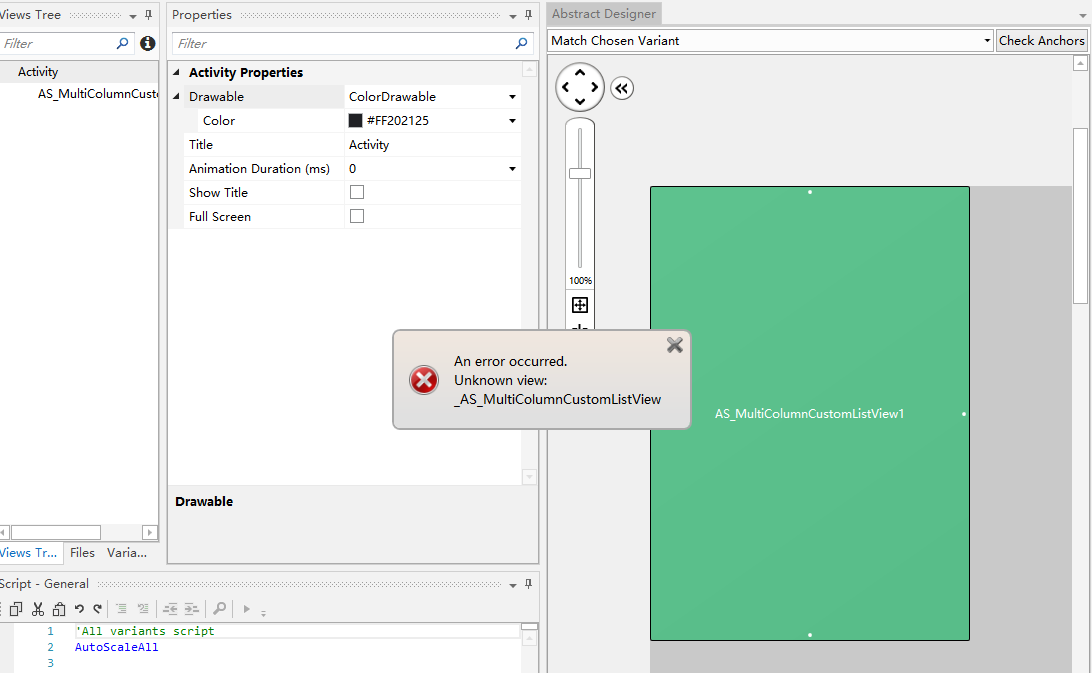

hi,Alexander Stolte,An error is reported when adding via the context menu in Designer. and adding via top menu is ok.



[Alexander Stolte]

An error is reported when adding via the context menu in Designer. and adding via top menu is ok.

My views all only support the top menu.



[LucaMs]

My views all only support the top menu.

I don't think we need to do anything special for the context menu. I had never used it, to be honest, but I see and can add my B4XLib-Views that way too.
I assume the two menus are actually the same.

Are you sure? And if so, why?



[Alexander Stolte]

Are you sure? And if so, why?

It's only been reported to me twice so far and I have no idea what the problem is, but it sounds stressful to fix it in all 60+ libraries just because 2 people use the menu.



[LucaMs]

It's only been reported to me twice so far and I have no idea what the problem is, but it sounds stressful to fix it in all 60+ libraries just because 2 people use the menu.

I think it's a mistake made by those two people



[Alexander Stolte]

I have to correct myself, I didn't even know that you can add views with a right click in the views tree, but even if you use the .bas file you get an error.



[LucaMs]

I have to correct myself, I didn't even know that you can add views with a right click in the views tree, but even if you use the .bas file you get an error.

I only have one View of yours (mea culpa ? ), I don't know what it is, I think I have downloaded it just to try to help someone. I added it that way (right-click = context) and had no problems.

I suppose (99%) that the context menu and "menu bar menu" are identical and at least operate in the same way. We could ask Erel, but I have never read any differences; as mentioned, I didn't even know that possibility existed (it's no more convenient than from the "top menu", I think).
