B4A Library [B4X] [XUI] AS Placeholder View V0.2 BETA

First, i spend a lot of time in creating views, some views i need by my self, but some views not and to create a high quality view cost a lot of time. If you want to support me, then you can do it here by Paypal.

This is a B4X variant of the 50 shades of lib. for android.

This is a beta, because i only test it on B4A, but the code is B4X, it can have bugs on B4I or B4J.

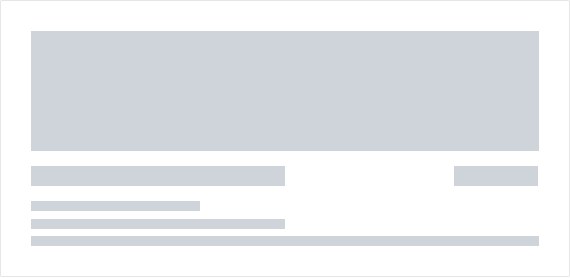

The View need a "Parent" with the views you want to have a shape, the placeholder create a shape of this layout.

Property "Automatic Layout Duplicate" = False

ASPlaceholder
Author: Alexander Stolte
Version: 0.2 BETA

• ASPlaceholder
  • Functions:
    • Class_Globals As String
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
      Base type must be Object
    • getAnimation_Duration As Int
    • getAnimation_Type As String
    • getANIMATION_TYPE_NONE As String
    • getANIMATION_TYPE_TRANSITION As String
    • getBackground_Color_Of_Shape As Int
    • Hide As String
      Stops the animation
    • Initialize (Callback As Object, EventName As String) As String
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • Placeholder (ParentView As B4XView) As String
    • setAnimation_Duration (Duration As Int) As String
    • setAnimation_Type (Animation As String) As String
    • setBackground_Color_Of_Shape (Color As Int) As String
    • setBackground_Color_Of_Shape_Array (Color As Int()) As String
    • Show As String
    • Start As String
    • Stop As String
  • Properties:
    • Animation_Duration As Int
    • Animation_Type As String
    • ANIMATION_TYPE_NONE As String [read only]
    • ANIMATION_TYPE_TRANSITION As String [read only]
    • Background_Color_Of_Shape As Int
    • Background_Color_Of_Shape_Array

If you have bugs or new features, then write a comment

If you like my work, then spend me a coffe or two

Change log:
- V0.1 BETA

• Beta Release

- V0.2 BETA

• Add Property "Automatic Layout Duplicate"
• Add Background_Color_Of_Shape_Array
• BugFixes

Have Fun



[Alexander Stolte]

If you have Animation Ideas, then write it in the comments.



[Alexander Stolte]

- V0.2 BETA

• Add Property "Automatic Layout Duplicate"
• Add Background_Color_Of_Shape_Array
• BugFixes



[embedded]

Is it work with B4J...



[Alexander Stolte]

Is it work with B4J...

is this a question?



[Ferdari]

Hi @Alexander Stolte , thanks for your lib, its very useful.

Can we have a wave effect as animation?
