Android Question BLE2 - setNotify

[kompiler]

I have problem with BLE2 library and Arduino Bluno form DFRoot
https://www.dfrobot.com/wiki/index.php/Bluno_SKU:DFR0267

DF Robot Service: 0000dfb0-0000-1000-8000-00805f9b34fb
DF Robot Characteristics: 0000dfb1-0000-1000-8000-00805f9b34fb

when I try SetIndication

ServiceId = "0000dfb0-0000-1000-8000-00805f9b34fb"
ReadChar = "0000dfb1-0000-1000-8000-00805f9b34fb"

Private Sub Manager_Connected (Services As List)
    manager.SetIndication(ServiceId,ReadChar,True)
End Sub

in log

starter_manager_connected (java line: 144)
java.lang.NullPointerException: Attempt to invoke virtual method 'boolean android.bluetooth.BluetoothGattDescriptor.setValue(byte[])' on a null object reference
at anywheresoftware.b4a.objects.BleManager2.setNotify(BleManager2.java:305)
at anywheresoftware.b4a.objects.BleManager2.SetNotify(BleManager2.java:295)
at b4a.example.starter._manager_connected(starter.java:144)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
at anywheresoftware.b4a.BA$2.run(BA.java:328)
at android.os.Handler.handleCallback(Handler.java:751)
at android.os.Handler.dispatchMessage(Handler.java:95)
at android.os.Looper.loop(Looper.java:154)
at android.app.ActivityThread.main(ActivityThread.java:6126)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:886)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:776)

Bluno sends one character every second

Please help



[Erel]

1. I think that you are not using the latest version of BLE2. The latest version is v1.35.

2. Start with printing the services and characteristics.
https://www.b4x.com/android/forum/threads/get-values-from-device-using-ble.57758/#post-363602



[kompiler]

I have v1.35. Services and characteristics in log

Private Sub Manager_Connected (Services As List)
    For i=0 To Services.Size-1
        manager.ReadData(Services.Get(i))
    Next
End Sub

Private Sub Manager_DataAvailable (Srv As String, Characteristics As Map)
    Log(Srv)
    For i = 0 To Characteristics.Size - 1
        Log("Key: " & Characteristics.GetKeyAt(i))
        Log("Val: " & Characteristics.GetValueAt(i))
        Dim BC As ByteConverter
        Log("Str: " & BC.StringFromBytes(Characteristics.GetValueAt(i),"utf-8"))
    Next
    Log(" ")
End Sub

00001801-0000-1000-8000-00805f9b34fb
Key: 00002a05-0000-1000-8000-00805f9b34fb
Val: [B@ef3dba6
Str:

00001800-0000-1000-8000-00805f9b34fb
Key: 00002a00-0000-1000-8000-00805f9b34fb
Val: [B@32549e7
Str: BLUNO
Key: 00002a01-0000-1000-8000-00805f9b34fb
Val: [B@30f0994
Str: ����
Key: 00002a02-0000-1000-8000-00805f9b34fb
Val: [B@eca5c3d
Str: ��
Key: 00002a04-0000-1000-8000-00805f9b34fb
Val: [B@8720c32
Str: P����������
Key: 00002a03-0000-1000-8000-00805f9b34fb
Val: [B@8f29d83
Str:

0000180a-0000-1000-8000-00805f9b34fb
Key: 00002a23-0000-1000-8000-00805f9b34fb
Val: [B@19d2b00
Str: }��������
Key: 00002a24-0000-1000-8000-00805f9b34fb
Val: [B@5057f39
Str: DF Bluno
Key: 00002a25-0000-1000-8000-00805f9b34fb
Val: [B@f30b97e
Str: 0123456789
Key: 00002a26-0000-1000-8000-00805f9b34fb
Val: [B@5b78edf
Str: FW V1.93
Key: 00002a27-0000-1000-8000-00805f9b34fb
Val: [B@c29f72c
Str: HW V1.7
Key: 00002a28-0000-1000-8000-00805f9b34fb
Val: [B@f35d5f5
Str: SW V1.93
Key: 00002a29-0000-1000-8000-00805f9b34fb
Val: [B@19aef8a
Str: DFRobot
Key: 00002a2a-0000-1000-8000-00805f9b34fb
Val: [B@2b039fb
Str: ���experimental
Key: 00002a50-0000-1000-8000-00805f9b34fb
Val: [B@9d55a18
Str:
������

0000dfb0-0000-1000-8000-00805f9b34fb
Key: 0000dfb1-0000-1000-8000-00805f9b34fb
Val: [B@7dadc71
Str:
Key: 0000dfb2-0000-1000-8000-00805f9b34fb
Val: [B@7c07a56
Str:

Blue should be my characteristics and service

https://github.com/DFRobot/BlunoBasicDemo/blob/master/README.md



[kompiler]

Sending the character works well, I see in the console BLUNO incoming characters.

manager.WriteData(ServiceId, ReadChar, BC.StringToBytes("test","utf-8"))

SetNotify still generates an error.

ServiceId = 0000dfb0-0000-1000-8000-00805f9b34fb
ReadChar = 0000dfb1-0000-1000-8000-00805f9b34fb

starter_manager_connected (java line: 145)
java.lang.NullPointerException: Attempt to invoke virtual method 'boolean android.bluetooth.BluetoothGattDescriptor.setValue(byte[])' on a null object reference
at anywheresoftware.b4a.objects.BleManager2.setNotify(BleManager2.java:305)
at anywheresoftware.b4a.objects.BleManager2.SetNotify(BleManager2.java:295)
at b4a.example.starter._manager_connected(starter.java:145)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
at anywheresoftware.b4a.BA$2.run(BA.java:328)
at android.os.Handler.handleCallback(Handler.java:751)
at android.os.Handler.dispatchMessage(Handler.java:95)
at android.os.Looper.loop(Looper.java:154)
at android.app.ActivityThread.main(ActivityThread.java:6126)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:886)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:776)

But if I change ServiceId and ReadChar, then there is no error

ServiceId = 00001801-0000-1000-8000-00805f9b34fb
ReadChar = 00002a05-0000-1000-8000-00805f9b34fb
without errors

ServiceId = 00001800-0000-1000-8000-00805f9b34fb
ReadChar = 00002a00-0000-1000-8000-00805f9b34fb
without errors

ServiceId = 0000180a-0000-1000-8000-00805f9b34fb
ReadChar = 00002a23-0000-1000-8000-00805f9b34fb
without errors



[Erel]

What is the output of Log(manager.GetCharacteristicProperties(service, char)) ?



[kompiler]

Erel, thank you for your interest in the topic

Private Sub Manager_Connected (Services As List)
    Log(manager.GetCharacteristicProperties(ServiceId, ReadChar))
End Sub

Log

30

I found more information about DFRobot BLE devices
https://www.dfrobot.com/forum/viewtopic.php?f=2&t=148
Can this information be useful?

attr handle: 0x0001, end grp handle: 0x000b uuid: 00001800-0000-1000-8000-00805f9b34fb
attr handle: 0x000c, end grp handle: 0x000f uuid: 00001801-0000-1000-8000-00805f9b34fb
attr handle: 0x0010, end grp handle: 0x0022 uuid: 0000180a-0000-1000-8000-00805f9b34fb
attr handle: 0x0023, end grp handle: 0xffff uuid: 0000dfb0-0000-1000-8000-00805f9b34fb

public static final String SerialPortUUID="0000dfb1-0000-1000-8000-00805f9b34fb";
public static final String CommandUUID="0000dfb2-0000-1000-8000-00805f9b34fb";
public static final String ModelNumberStringUUID="00002a24-0000-1000-8000-00805f9b34fb";

SerialPort String Notification Handle
char-read-uuid dfb1
handle: 0x0025 value: 3c

Command String
char-read-uuid dfb2
handle: 0x0028 value: 02

Model Number String
char-read-uuid 2a24
handle: 0x0014 value: 44 46 20 42 4c 75 6e 6f 00 == DF BLuno\0

> characteristics
handle: 0x0002, char properties: 0x02, char value handle: 0x0003, uuid: 00002a00-0000-1000-8000-00805f9b34fb
handle: 0x0004, char properties: 0x02, char value handle: 0x0005, uuid: 00002a01-0000-1000-8000-00805f9b34fb
handle: 0x0006, char properties: 0x0a, char value handle: 0x0007, uuid: 00002a02-0000-1000-8000-00805f9b34fb
handle: 0x0008, char properties: 0x0a, char value handle: 0x0009, uuid: 00002a03-0000-1000-8000-00805f9b34fb
handle: 0x000a, char properties: 0x02, char value handle: 0x000b, uuid: 00002a04-0000-1000-8000-00805f9b34fb
handle: 0x000d, char properties: 0x20, char value handle: 0x000e, uuid: 00002a05-0000-1000-8000-00805f9b34fb
handle: 0x0011, char properties: 0x02, char value handle: 0x0012, uuid: 00002a23-0000-1000-8000-00805f9b34fb
handle: 0x0013, char properties: 0x02, char value handle: 0x0014, uuid: 00002a24-0000-1000-8000-00805f9b34fb
handle: 0x0015, char properties: 0x02, char value handle: 0x0016, uuid: 00002a25-0000-1000-8000-00805f9b34fb
handle: 0x0017, char properties: 0x02, char value handle: 0x0018, uuid: 00002a26-0000-1000-8000-00805f9b34fb
handle: 0x0019, char properties: 0x02, char value handle: 0x001a, uuid: 00002a27-0000-1000-8000-00805f9b34fb
handle: 0x001b, char properties: 0x02, char value handle: 0x001c, uuid: 00002a28-0000-1000-8000-00805f9b34fb
handle: 0x001d, char properties: 0x02, char value handle: 0x001e, uuid: 00002a29-0000-1000-8000-00805f9b34fb
handle: 0x001f, char properties: 0x02, char value handle: 0x0020, uuid: 00002a2a-0000-1000-8000-00805f9b34fb
handle: 0x0021, char properties: 0x02, char value handle: 0x0022, uuid: 00002a50-0000-1000-8000-00805f9b34fb
handle: 0x0024, char properties: 0x1e, char value handle: 0x0025, uuid: 0000dfb1-0000-1000-8000-00805f9b34fb
handle: 0x0027, char properties: 0x1e, char value handle: 0x0028, uuid: 0000dfb2-0000-1000-8000-00805f9b34fb
handle: 0x002a, char properties: 0x18, char value handle: 0x002b, uuid: 0000dfb3-0000-1000-8000-00805f9b34fb
handle: 0x002d, char properties: 0x10, char value handle: 0x002e, uuid: 0000dfb4-0000-1000-8000-00805f9b34fb
handle: 0x0031, char properties: 0x02, char value handle: 0x0032, uuid: 0000dfb5-0000-1000-8000-00805f9b34fb


** GAP **
handle: 0x0001, uuid: 2800 - 00 18 1800 means Generic Access Service
handle: 0x0002, uuid: 2803 - 02 03 00 00 2a 02,0003,2a00 (R,hnd=3,type=device name)
handle: 0x0003, uuid: 2a00 - (blank)
handle: 0x0004, uuid: 2803 - 02 05 00 01 2a 02,0005,2a01 (R,hnd=5,type=appearance)
handle: 0x0005, uuid: 2a01 - 00 00
handle: 0x0006, uuid: 2803 - 0a 07 00 02 2a 0a,0007,2a02 (WR,hnd=7,type=Peripheral privacy flag)
handle: 0x0007, uuid: 2a02 - 00
handle: 0x0008, uuid: 2803 - 0a 09 00 03 2a 0a,0009,2a03 (WR,hnd=9,type=Reconnection Address)
handle: 0x0009, uuid: 2a03 - 00 00 00 00 00 00
handle: 0x000a, uuid: 2803 - 02 0b 00 04 2a 02,000b,2a04 (R,hnd=b,type=peripheral preferred connection parameters)
handle: 0x000b, uuid: 2a04 - 50 00 a0 00 00 00 e8 03 0050 00a0 0000 03e8 interval=100-200ms latency=0ms timeout=1000ms

** GATT **
handle: 0x000c, uuid: 2800 - 01 18 1801 means Generic Attribute Service
handle: 0x000d, uuid: 2803 - 20 0e 00 05 2a 02,000e,2a05 (R,hnd=e,type=service changed)
handle: 0x000e, uuid: 2a05 - Attribute can't be read
handle: 0x000f, uuid: 2902 - 00 00

** Device Info **
handle: 0x0010, uuid: 2800 - 0a 18 180a means Device Information
handle: 0x0011, uuid: 2803 - 02 12 00 23 2a 02,0012,2a23 (R,hnd=12,type=System ID)
handle: 0x0012, uuid: 2a23 - 62 c5 27 00 00 af 59 90
handle: 0x0013, uuid: 2803 - 02 14 00 24 2a 02,0014,2a24 (R,hnd=14,type=Model Number String)
handle: 0x0014, uuid: 2a24 - 44 46 20 42 4c 75 6e 6f 00 (DF BLuno)
handle: 0x0015, uuid: 2803 - 02 16 00 25 2a 02,0016,2a25 (R,hnd=16,Serial Number String)
handle: 0x0016, uuid: 2a25 - 30 31 32 33 34 35 36 37 38 39 00 (0123456789)
handle: 0x0017, uuid: 2803 - 02 18 00 26 2a 02,0018,2a26 (R,hnd=18,Firmware Revision String)
handle: 0x0018, uuid: 2a26 - 46 57 20 56 31 2e 30 00 (FW V1.0)
handle: 0x0019, uuid: 2803 - 02 1a 00 27 2a 02,001a,2a27 (R,hnd=1a,type=Hardware Revision String)
handle: 0x001a, uuid: 2a27 - 48 57 20 56 31 2e 30 00 (HW V1.0)
handle: 0x001b, uuid: 2803 - 02 1c 00 28 2a 02,001c,2a28 (R,hnd=1c,type=Software Revision Strin)
handle: 0x001c, uuid: 2a28 - 53 57 20 56 31 2e 30 00 (SW V1.0)
handle: 0x001d, uuid: 2803 - 02 1e 00 29 2a 02,001e,2a29 (R,hnd=1e,type=Mfg Name String
handle: 0x001e, uuid: 2a29 - 44 46 52 6f 62 6f 74 00 (DFRobot)
handle: 0x001f, uuid: 2803 - 02 20 00 2a 2a 02,0020,2a2a (R,hnd=20,type=IEEE Cert list)
handle: 0x0020, uuid: 2a2a - fe 00 65 78 70 65 72 69 6d 65 6e 74 61 6c (ffe0 experimental)
handle: 0x0021, uuid: 2803 - 02 22 00 50 2a 02,0022,2a50 (R,hnd=22,type=PnP ID)
handle: 0x0022, uuid: 2a50 - 01 0d 00 00 00 10 01

** BLUNO SPECIFIC **
handle: 0x0023, uuid: 2800 - b0 df dfb0
handle: 0x0024, uuid: 2803 - 1e 25 00 b1 df 1e,0025,dfb1 (NWWnRR,hnd=25,type= ??)
handle: 0x0025, uuid: dfb1 - 01 receivedCommand ()
handle: 0x0026, uuid: 2901 - 53 65 72 69 61 6c 20 52 63 76 (Serial Rcv)
handle: 0x0027, uuid: 2803 - 1e 28 00 b2 df 1e,0028,dfb2 (NWWnRR,hnd=28,type= ??)
handle: 0x0028, uuid: dfb2 - 02 DTR Port ???
handle: 0x0029, uuid: 2901 - 43 68 61 72 61 63 74 65 72 69 73 74 69 63 20 32 (Characteristic 2)
handle: 0x002a, uuid: 2803 - 18 2b 00 b3 df 18,002b,dfb3 (NW,hnd=2b,type= ??)
handle: 0x002b, uuid: dfb3 - Attribute can't be read Open USB??? receivedCommand gives (KeyPress:text)
handle: 0x002c, uuid: 2901 - 43 68 61 72 61 63 74 65 72 69 73 74 69 63 20 33 (Characteristic 3)
handle: 0x002d, uuid: 2803 - 10 2e 00 b4 df 10,002e,dfb4 (N,hnd=2e,type= ??)
handle: 0x002e, uuid: dfb4 - Attribute can't be read
handle: 0x002f, uuid: 2902 - 00 00
handle: 0x0030, uuid: 2901 - 43 68 61 72 61 63 74 65 72 69 73 74 69 63 20 34 (Characteristic 4)
handle: 0x0031, uuid: 2803 - 02 32 00 b5 df 02,0032,dfb5 (R,hnd=32,type= ??)
handle: 0x0032, uuid: dfb5 - Attribute requires authentication before read/write
handle: 0x0033, uuid: 2901 - 43 68 61 72 61 63 74 65 72 69 73 74 69 63 20 35 (Characteristic 5)



[Erel]

It doesn't support indications. You need to call SetNotify not SetIndication.



[kompiler]

All manager.GetCharacteristicProperties

Private Sub Manager_Connected (Services As List)
    For i=0 To Services.Size-1
        manager.ReadData(Services.Get(i))
    Next
End Sub

Private Sub Manager_DataAvailable (Srv As String, Characteristics As Map)
    For i = 0 To Characteristics.Size - 1
        Log(" ")
        Log("Service: " & Srv)
        Log("Characteristic: " & Characteristics.GetKeyAt(i))
        Log("Properties: " & manager.GetCharacteristicProperties(Srv, Characteristics.GetKeyAt(i)))
    Next
End Sub

Log

Discovering services.

Service: 00001801-0000-1000-8000-00805f9b34fb
Characteristic: 00002a05-0000-1000-8000-00805f9b34fb
Properties: 32

Service: 00001800-0000-1000-8000-00805f9b34fb
Characteristic: 00002a00-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 00001800-0000-1000-8000-00805f9b34fb
Characteristic: 00002a01-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 00001800-0000-1000-8000-00805f9b34fb
Characteristic: 00002a02-0000-1000-8000-00805f9b34fb
Properties: 10

Service: 00001800-0000-1000-8000-00805f9b34fb
Characteristic: 00002a04-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 00001800-0000-1000-8000-00805f9b34fb
Characteristic: 00002a03-0000-1000-8000-00805f9b34fb
Properties: 8

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a23-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a24-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a25-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a26-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a27-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a28-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a29-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a2a-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000180a-0000-1000-8000-00805f9b34fb
Characteristic: 00002a50-0000-1000-8000-00805f9b34fb
Properties: 2

Service: 0000dfb0-0000-1000-8000-00805f9b34fb
Characteristic: 0000dfb1-0000-1000-8000-00805f9b34fb
Properties: 30

Service: 0000dfb0-0000-1000-8000-00805f9b34fb
Characteristic: 0000dfb2-0000-1000-8000-00805f9b34fb
Properties: 30

I tried to setNotify with other services

ServiceId = "00001801-0000-1000-8000-00805f9b34fb"
ReadChar = "00002a05-0000-1000-8000-00805f9b34fb"
manager.SetNotify(ServiceId,ReadChar,True)

Discovering services.
Setting descriptor. Success = true
writing descriptor: true


But I need DFB0 and DFB1

ServiceId = "0000dfb0-0000-1000-8000-00805f9b34fb"
ReadChar = "0000dfb1-0000-1000-8000-00805f9b34fb"
manager.SetNotify(ServiceId,ReadChar,True)

Discovering services.
starter_manager_connected (java line: 140)
java.lang.NullPointerException: Attempt to invoke virtual method 'boolean android.bluetooth.BluetoothGattDescriptor.setValue(byte[])' on a null object reference
at anywheresoftware.b4a.objects.BleManager2.setNotify(BleManager2.java:305)
at anywheresoftware.b4a.objects.BleManager2.SetNotify(BleManager2.java:295)
at b4a.example.starter._manager_connected(starter.java:140)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
at anywheresoftware.b4a.BA$2.run(BA.java:328)
at android.os.Handler.handleCallback(Handler.java:739)
at android.os.Handler.dispatchMessage(Handler.java:95)
at android.os.Looper.loop(Looper.java:148)
at android.app.ActivityThread.main(ActivityThread.java:5525)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:730)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:620)



[kompiler]

I noticed an interesting thing during testing.

Private Sub Manager_Connected (Services As List)
    ServiceId = "00001801-0000-1000-8000-00805f9b34fb"
    ReadChar = "00002a05-0000-1000-8000-00805f9b34fb"
    manager.ReadData(ServiceId)
End Sub

Private Sub Manager_DataAvailable (Srv As String, Characteristics As Map)
    Log(Characteristics.Get(ReadChar))
    manager.ReadData2(ServiceId,ReadChar)
End Sub

Log

Discovering services.
[B@8a660af
No matching characteristic found.

It is understandable.

Private Sub Manager_Connected (Services As List)
    ServiceId = "0000dfb0-0000-1000-8000-00805f9b34fb"
    ReadChar = "0000dfb1-0000-1000-8000-00805f9b34fb"
    manager.ReadData(ServiceId)
End Sub

Private Sub Manager_DataAvailable (Srv As String, Characteristics As Map)
    Log(Characteristics.Get(ReadChar))
    manager.ReadData2(ServiceId,ReadChar)
End Sub

Log

Discovering services.
[B@98258cb
[B@b8fd8a8
[B@a329fc1
[B@4810366
[B@dbb6a7
[B@b5dd754
[B@d8876fd
[B@c09eff2
[B@e831643
[B@96b14c0
[B@f6a85f9
[B@cc3193e
[B@4b6d39f
[B@24cbcec
[B@6c488b5
[B@4538b4a
[B@13f0abb
[B@10e74d9
[B@3980e9e
[B@8668d7f
[B@201214c
[B@f688595
[B@e7276aa
[B@860829b
[B@7c50638
[B@e18e611
[B@8d95376
[B@f3aad77
[B@de04de4
[B@294d24d
[B@5ff3102
[B@822aa13
[B@4466450
[B@a694649
[B@7b35b4e
[B@983d46f
...


In log are random values without end. Bluno not send anything.
Sorry for my posts on this, but I really need this feature and I'm looking for solutions.



[Erel]

1. Search in both the internal libraries folder (Program Files (x86)\Anywhere Software\Basic4android\libraries) and the additional libraries folder and delete all references to the BLE2 library.
2. Download v1.35 and put it in the additional libraries folder.
3. No need to add any more information (other than the output I ask for). It is becoming difficult to understand this thread.

4.
What is the output of this code:

Dim s As String = "0000dfb0-0000-1000-8000-00805f9b34fb"
Dim c As String = "0000dfb1-0000-1000-8000-00805f9b34fb"
Log("Properties: " & manager.GetCharacteristicProperties(s, c))
Log("a")
SetNotify(s, c, false)
Log("b")
SetNotify(s, c, True)



[kompiler]

Log

Ready: true
Discovering services.
Properties: 30
a
starter_manager_connected (java line: 150)
java.lang.NullPointerException: Attempt to invoke virtual method 'boolean android.bluetooth.BluetoothGattDescriptor.setValue(byte[])' on a null object reference
at anywheresoftware.b4a.objects.BleManager2.setNotify(BleManager2.java:309)
at anywheresoftware.b4a.objects.BleManager2.SetNotify(BleManager2.java:295)
at b4a.example.starter._manager_connected(starter.java:150)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
at anywheresoftware.b4a.BA$2.run(BA.java:328)
at android.os.Handler.handleCallback(Handler.java:739)
at android.os.Handler.dispatchMessage(Handler.java:95)
at android.os.Looper.loop(Looper.java:148)
at android.app.ActivityThread.main(ActivityThread.java:5525)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:730)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:620)

I tried with Bluno UNO and Bluno BEETLE, the same result.



[Erel]

It seems like your peripheral device is misconfigured. It does support setting notifications based on the properties values returned. However there is no matching descriptor (the relevant descriptor id is: 00002902-0000-1000-8000-00805f9b34fb).



[kompiler]

My configuration bluno

AT+ROLE=ROLE_PERIPHERAL
AT+UART=115200
AT+CMODE=ANYONE
AT+NAME=BLUNO

and the latest firmware bluno 1.97.

Demo application works well, I test it

https://github.com/DFRobot/BlunoBasicDemo/tree/master/Android

I don't know why not work with BLE2.
I don't know what I can do to get it working.



[Erel]

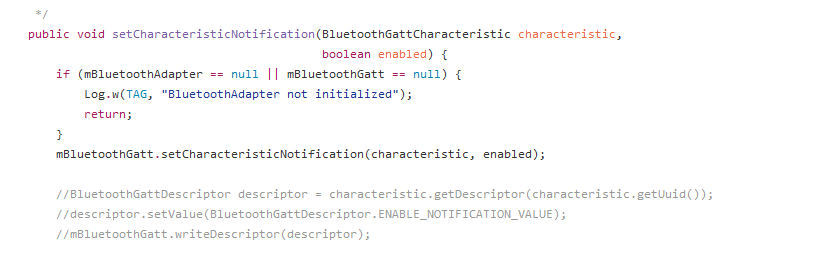

This code doesn't set the notifications. You can see that the descriptors section is commented out:

The descriptor must be set for the notifications to work.

You can do the same thing by catching this error with a Try / Catch block.



[kompiler]

Private Sub Manager_Connected (Services As List)
    Try
        manager.SetNotify(ServiceId,ReadChar,True)
    Catch
        Log(LastException)
    End Try
End Sub

Private Sub Manager_DataAvailable (Srv As String, Characteristics As Map)
    Dim BC As ByteConverter
    Log(BC.StringFromBytes(Characteristics.Get(ReadChar),"utf-8"))
End Sub

log

Discovering services.
(NullPointerException) java.lang.NullPointerException: Attempt to invoke virtual method 'boolean android.bluetooth.BluetoothGattDescriptor.setValue(byte[])' on a null object reference
test
working !!!!!!!!!!!!

Erel, thank you
