Android Question Button with rounded corners

[Brian Dean]

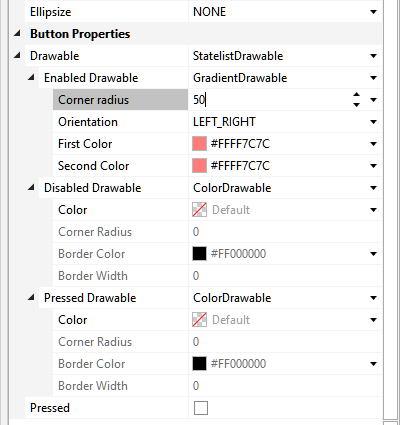

Some time ago, in the Designer, I managed to define a button with rounded edges. I did it as follows ...

I have forgotten how I did this, and I have spent over an hour using the forum search without finding an answer. The best I can do is to select a Statelist Drawable and ignore two of the three options. I am getting desperate. Can anybody help me?



[Mahares]

I am getting desperate. Can anybody help me?

Are you sure that was not a SwiftButton. The colordrawable is enabled if SwifButton, but not a regular button



[Brian Dean]

No, it was not a Swiftbutton; it was a button selected in the Designer.



[Erel]

You need to change the drawables to GradientDrawable:



[teddybear]

You need to change the drawables to GradientDrawable:

View attachment 138812

I think he knows this, I'm curious why there is no Drawable options in his screenshot, different version?



[Erel]

Something is indeed strange in that screenshot. It is not related to B4A version.



[Brian Dean]

Something is indeed strange in that screenshot.

That's good - maybe I am not going senile after all. Whatever I did it was repeatable because I used the same effect in more then one application. I prefer rounded buttons to square ones, so I would very much like to be able to repeat this effect, if I could only remember how.

In case it helps I am attaching one of the .bal files as an example.



[teddybear]

That's good - maybe I am not going senile after all. Whatever I did it was repeatable because I used the same effect in more then one application. I prefer rounded buttons to square ones, so I would very much like to be able to repeat this effect, if I could only remember how.

In case it helps I am attaching one of the .bal files as an example.

It's interesting, the button in the bal file is indeed like that



[Erel]

Create a new button. You should be able to change the drawable.



[Brian Dean]

Create a new button. You should be able to change the drawable.

That might be true, but I don't know how to change the drawable (except between Default and Statelist). I am managing to design my layout now by using cut and paste to copy the buttons that I have previously set up with rounded borders.



[Mahares]

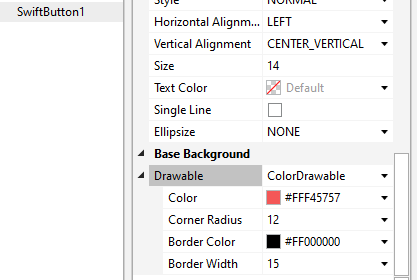

If you are concerned about having the design properties readily available in the designer, why not consider a SwiftButton instead of a regular button and benefit from even more properties.



[Brian Dean]

... why not consider a SwiftButton

When you made that suggestion yesterday I thought that I was the only person too dumb to know how to replace the two standard drawable types provided in the Designer with one that did what I wanted. Now it appears that I might be the only person who has ever managed to achieve it. Unfortunately I am still too dumb to remember how to do it again.

So this time I will follow your suggestion and try using a SwiftButton. Thank you for your patience.



[teddybear]

I'm really curious how you did that, perhaps it was from some mysterious place(just kidding), but it can be copied to designer of other project, I have saved it in my toolbox, so now I have three drawable options of the button view .
