B4J Code Snippet CIELAB color converter

Hi,
maybe useful for a few people

tested on B4J & A

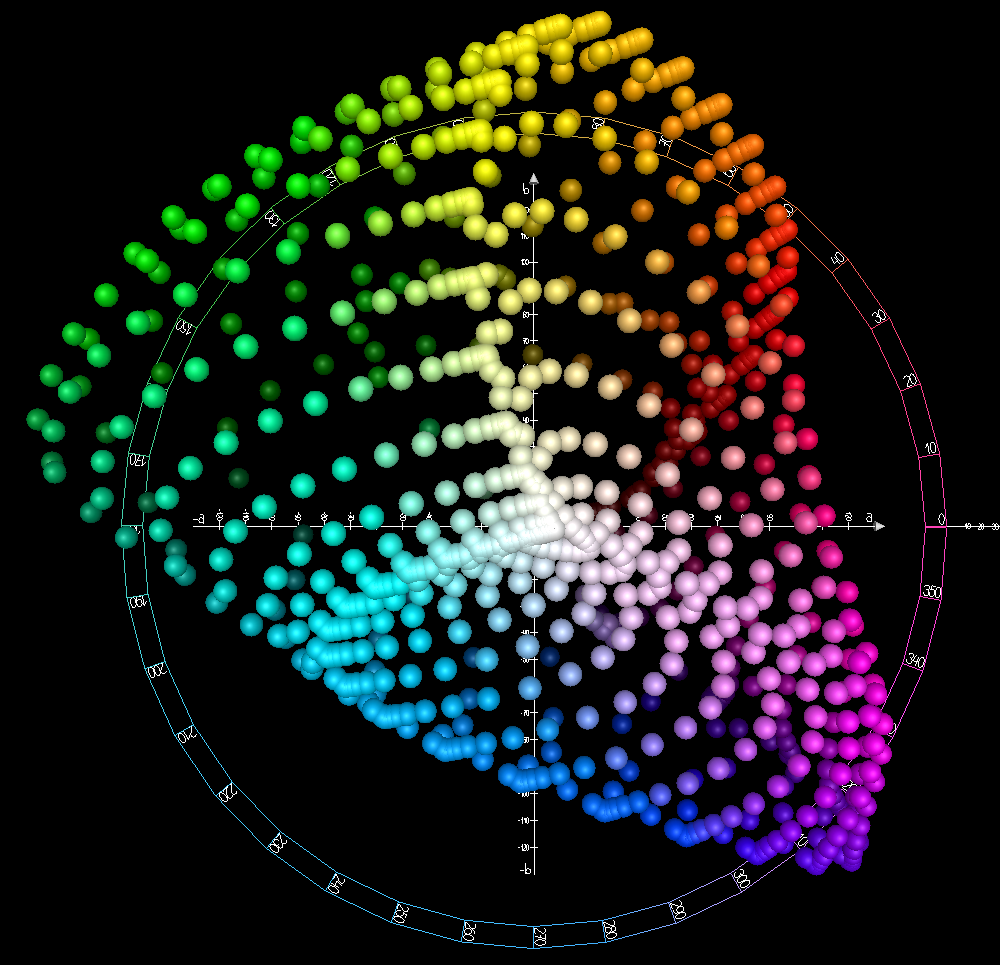

CIELAB color space - Wikipedia

en.wikipedia.org

Type albValue (xx As Double,yy As Double ,zz As Double)

Sub LABtoRGBInt(l As Double, a As Double,b As Double) As Int
    Dim ml(4) As String= XYZToRGB(LABtoXYZ(l,a,b))
    Return ml(3)
End Sub

Sub LABtoRGBval(l As Double, a As Double,b As Double) As Object
    Dim ml(4) As String= XYZToRGB(LABtoXYZ(l,a,b))
    Return ml
End Sub

Sub LABtoXYZ(l As Double, a As Double,b As Double) As albValue

    Dim X, Y, Z As  Double
    Y = ((L + 16.0) / 116.0)
    X = ((A / 500.0) + Y)
    Z = (Y - (B / 200.0))

    Dim Pow_X As Double = Power(X, 3.0)
    Dim Pow_Y As Double= Power(Y, 3.0)
    Dim Pow_Z As Double= Power(Z, 3.0)

    Dim Less As Double  = (216 / 24389)

    If (Pow_X > Less) Then
        X = Pow_X
    Else
        X = ((X - (16.0 / 116.0)) / 7.787)
    End If
    If (Pow_Y > Less) Then
        Y = Pow_Y
    Else
        Y = ((Y - (16.0 / 116.0)) / 7.787)
    End If
    If (Pow_Z > Less) Then
        Z = Pow_Z
    Else
        Z = ((Z - (16.0 / 116.0)) / 7.787)
    End If

    Dim r As albValue
    r.xx=X * 95.047
    r.yy=Y * 100.0
    r.zz=Z * 108.883

    Return r


End Sub

Sub XYZToRGB(xyz As albValue) As Object

    Dim X, Y, Z As  Double
    Dim R, G, B As  Double
    Dim Pow As Double = (1.0 / 2.4)
    Dim Less As Double = 0.0031308

    X = (xyz.xx / 100)
    Y = (xyz.yy / 100)
    Z = (xyz.zz / 100)

    'Wiki
'    R = ((X * 3.24071) + (Y * -1.53726) + (Z * -0.498571))
'    G = ((X * -0.969258) + (Y * 1.87599) + (Z * 0.0415557))
'    B = ((X * 0.0556352) + (Y * -0.203996) + (Z * 1.05707))

    'nVIDIA
    R = ((X * 3.240479) + (Y * -1.53715) + (Z * -0.498535))
    G = ((X * -0.969256) + (Y * 1.875991) + (Z * 0.041556))
    B = ((X * 0.055648) + (Y * -0.204043) + (Z * 1.057311))

    If (R > Less) Then
        R = ((1.055 * Power(R, Pow)) - 0.055)
    Else
        R =R* 12.92
    End If
    If (G > Less) Then
        G = ((1.055 * Power(G, Pow)) - 0.055)
    Else
        G =G* 12.92
    End If
    If (B > Less) Then
        B = ((1.055 * Power(B, Pow)) - 0.055)
    Else
        B =B* 12.92
    End If

    R = R * 255
    G = G * 255
    B = B * 255

    If R > 255 Then R = 255
    If G > 255 Then G = 255
    If B > 255 Then B = 255
    If R < 0 Then R = 0
    If G < 0 Then G = 0
    If B < 0 Then B = 0

    Dim r2 As String = r
    Dim g2 As String = G
    Dim b2 As String = b

    Dim r1,g1,b1 As Int
    r1=NumberFormat(r2,0,0)
    g1=NumberFormat(g2,0,0)
    b1=NumberFormat(b2,0,0)

    Dim mycolint As Int = xui.Color_RGB(r1,g1,b1)


    Dim rgb(4) As String
    rgb(0)=r1
    rgb(1)=g1
    rgb(2)=b1
    rgb(3)=mycolint

    Return rgb
End Sub



[DonManfred]

xyz As albValue

The customtype albValue is missing?



[madru]

The customtype albValue is missing?

corrected
