Android Question CLV VisibleRangeChanged, how to add panel height

[nickysuwandi]

Dear

I have try too using CLV VisibleRangeChanged, but i have some problem with panel height.
The panel item in CLV didn't load full page.

My code like this

Private Sub clvhistory_VisibleRangeChanged (FirstIndex As Int, LastIndex As Int)
For Each i As Int In Pclvhistory.VisibleRangeChanged(FirstIndex, LastIndex)
Dim item As CLVItem = clvhistory.GetRawListItem(i)
Dim pnl As B4XView = xui.CreatePanel("" )
'Dim pnl As Panel
item.Panel.AddView(pnl , 0, 0, item.Panel.Width, item.Panel.Height)
pnl.LoadLayout("pgmenuhistoryitem")
Dim ItemHistory1 As ItemHistory
ItemHistory1 =item.Value
lblmenuhistoryitem_no.Text =ItemHistory1.nobaris
Next
End Sub

I had try add height in panel height like this

item.Panel.AddView(pnl , 0, 0, item.Panel.Width, item.Panel.Height+200)

but this not make any change in my view

this the result

Anyone know how to solve this panel height problem?


Thanks

Nicky



[Erel]

Please use [code]code here...[/code] tags when posting code.

Are you using PreoptimizedCLV? In most cases it is a mistake to use it.



[nickysuwandi]

Please use [code]code here...[/code] tags when posting code.

Are you using PreoptimizedCLV? In most cases it is a mistake to use it.

Dear Erel

I had develop this apps under android 13, there no problem with panel height.

went i upgrade to android 13, this problem occurs.

but, i will try send the example here.

Thanks Erel for your quick response


Nicky



[nickysuwandi]

Please use [code]code here...[/code] tags when posting code.

Are you using PreoptimizedCLV? In most cases it is a mistake to use it.

Dear Erel

I have upload example code, i had try it on android under 13 (no problem with panel height), and android 13 (problem with panel height)
I don't know where is wrong from this code.

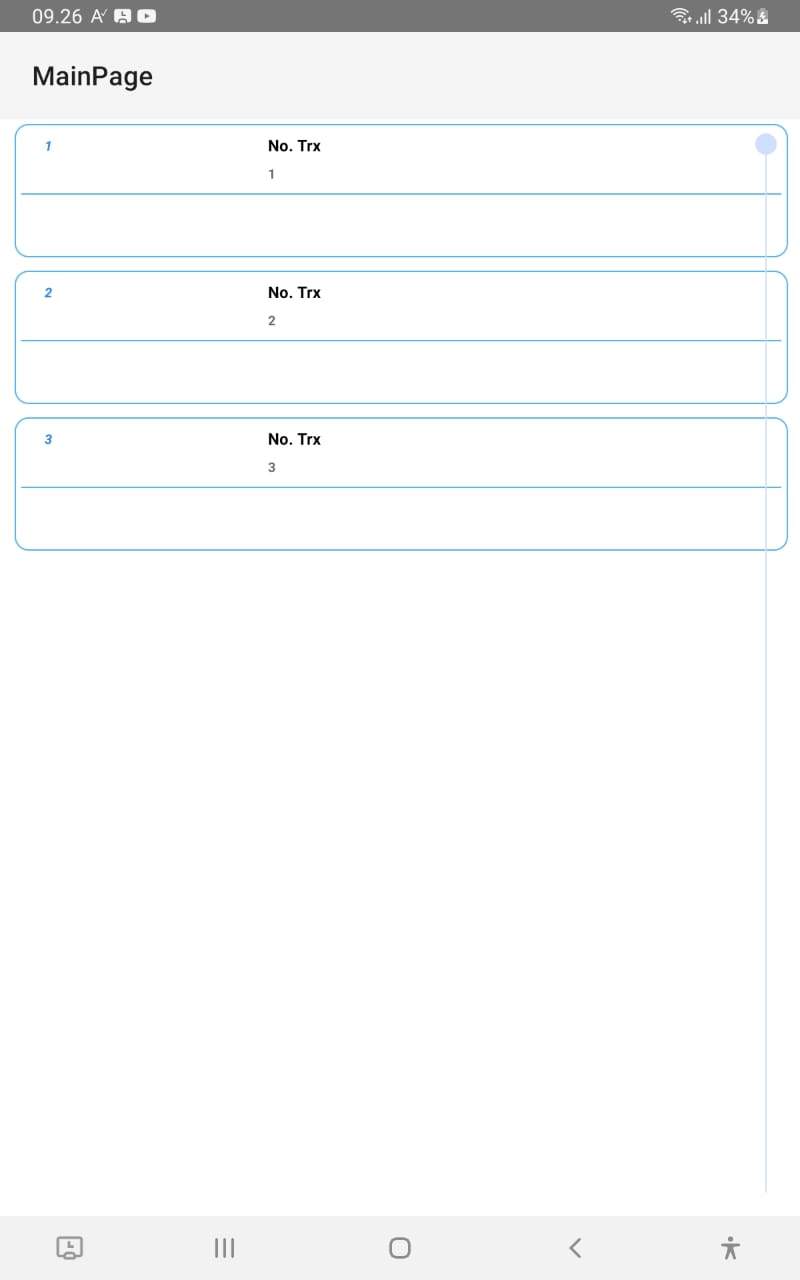

This is when running in android below 13

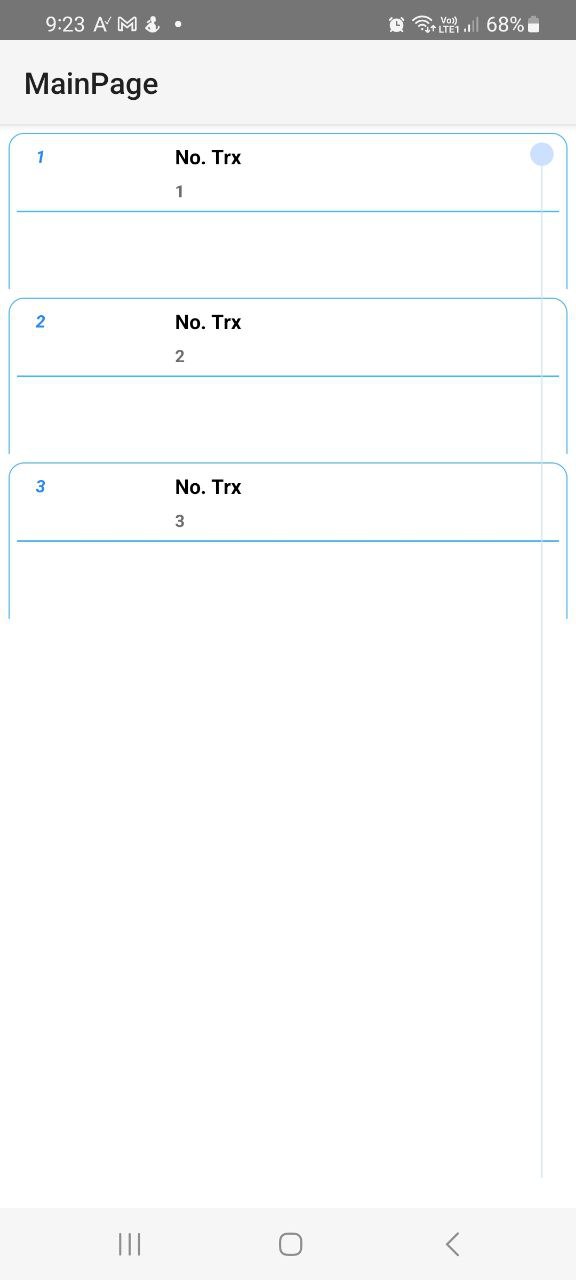

This when running in android 13

Thanks

Nicky



[Erel]

You need to use the comment link at the top of B4XMainPage to export the project as a zip file.



[nickysuwandi]

You need to use the comment link at the top of B4XMainPage to export the project as a zip file.

Like this?

Thanks

Nicky



[rraswisak]

Not tested since i don't have android 13, please try this...

Private Sub clvhistory_VisibleRangeChanged (FirstIndex As Int, LastIndex As Int)
    For Each i As Int In Pclvhistory.VisibleRangeChanged(FirstIndex, LastIndex)
        Dim item As CLVItem = clvhistory.GetRawListItem(i)
        Dim pnl As B4XView = xui.CreatePanel("")
        pnl.LoadLayout("pgmenuhistoryitem") ' load layout first so we can get the view
        Dim v As B4XView = clvhistory.GetPanel(i).GetView(0) 'get panel view in the layout
        item.Panel.AddView(pnl , 0, 0, item.Panel.Width, v.Height + v.Top * 2) 'adjust he height base on panel height with space at top and bottom
        Dim ItemHistory1 As ItemHistory
        ItemHistory1 =item.Value
        lblmenuhistoryitem_no.Text =ItemHistory1.nobaris
        lblmenuhistoryitem_trno.Text =ItemHistory1.trno
    Next
End Sub



[nickysuwandi]

Not tested since i don't have android 13, please try this...

Private Sub clvhistory_VisibleRangeChanged (FirstIndex As Int, LastIndex As Int)
    For Each i As Int In Pclvhistory.VisibleRangeChanged(FirstIndex, LastIndex)
        Dim item As CLVItem = clvhistory.GetRawListItem(i)
        Dim pnl As B4XView = xui.CreatePanel("")
        pnl.LoadLayout("pgmenuhistoryitem") ' load layout first so we can get the view
        Dim v As B4XView = clvhistory.GetPanel(i).GetView(0) 'get panel view in the layout
        item.Panel.AddView(pnl , 0, 0, item.Panel.Width, v.Height + v.Top * 2) 'adjust he height base on panel height with space at top and bottom
        Dim ItemHistory1 As ItemHistory
        ItemHistory1 =item.Value
        lblmenuhistoryitem_no.Text =ItemHistory1.nobaris
        lblmenuhistoryitem_trno.Text =ItemHistory1.trno
    Next
End Sub

Dear Rraswisak

error in line 6



[rraswisak]

Okay forget about my untested code above, i'm using PreoptimizesCLV on my InvitationTable, so i hope this will also work on android 13 too

Changes started from line 20 - 25

Sub PTampilHistoryItem()
    Dim inthari As Int
    clvhistory.Clear
    Pclvhistory.Initialize(Me, "Pclvhistory", clvhistory)
    Try
        Dim strsql As String
        strsql="select trno from jual " 'count(produk)
        Dim Curs As Cursor
        Dim i,intbrsjual As Int
        Curs = SQL1.ExecQuery(strsql)
        Curs.Position = 0
        intbrsjual=0
        For i = 0 To Curs.RowCount - 1
            Curs.Position = i
            intbrsjual = intbrsjual+1
            Dim ItemHistory1 As ItemHistory
            ItemHistory1.nobaris=intbrsjual
            ItemHistory1.trno=Curs.GetString("trno")

            'Get actual height of layout for PreoptimizedCLV
            Dim pnl As B4XView = xui.CreatePanel("")
            pnl.LoadLayout("pgmenuhistoryitem")
            Dim height As Int = pnl.GetView(0).Height + pnl.GetView(0).Top * 2

            Pclvhistory.AddItem(height, xui.Color_White, ItemHistory1)
            'Pclvhistory.AddItem(110dip, xui.Color_White, ItemHistory1)
        Next
        Pclvhistory.Commit
        Curs.close
    Catch
        Log(LastException)
    End Try
End Sub



[nickysuwandi]

Okay forget about my untested code above, i'm using PreoptimizesCLV on my InvitationTable, so i hope this will also work on android 13 too

Changes started from line 20 - 25

Sub PTampilHistoryItem()
    Dim inthari As Int
    clvhistory.Clear
    Pclvhistory.Initialize(Me, "Pclvhistory", clvhistory)
    Try
        Dim strsql As String
        strsql="select trno from jual " 'count(produk)
        Dim Curs As Cursor
        Dim i,intbrsjual As Int
        Curs = SQL1.ExecQuery(strsql)
        Curs.Position = 0
        intbrsjual=0
        For i = 0 To Curs.RowCount - 1
            Curs.Position = i
            intbrsjual = intbrsjual+1
            Dim ItemHistory1 As ItemHistory
            ItemHistory1.nobaris=intbrsjual
            ItemHistory1.trno=Curs.GetString("trno")

            'Get actual height of layout for PreoptimizedCLV
            Dim pnl As B4XView = xui.CreatePanel("")
            pnl.LoadLayout("pgmenuhistoryitem")
            Dim height As Int = pnl.GetView(0).Height + pnl.GetView(0).Top * 2

            Pclvhistory.AddItem(height, xui.Color_White, ItemHistory1)
            'Pclvhistory.AddItem(110dip, xui.Color_White, ItemHistory1)
        Next
        Pclvhistory.Commit
        Curs.close
    Catch
        Log(LastException)
    End Try
End Sub

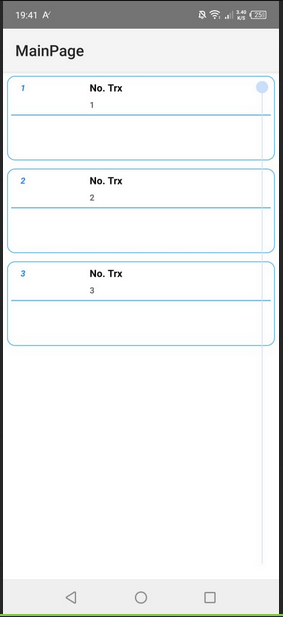

View attachment 137087

Okay forget about my untested code above, i'm using PreoptimizesCLV on my InvitationTable, so i hope this will also work on android 13 too

Changes started from line 20 - 25

Sub PTampilHistoryItem()
    Dim inthari As Int
    clvhistory.Clear
    Pclvhistory.Initialize(Me, "Pclvhistory", clvhistory)
    Try
        Dim strsql As String
        strsql="select trno from jual " 'count(produk)
        Dim Curs As Cursor
        Dim i,intbrsjual As Int
        Curs = SQL1.ExecQuery(strsql)
        Curs.Position = 0
        intbrsjual=0
        For i = 0 To Curs.RowCount - 1
            Curs.Position = i
            intbrsjual = intbrsjual+1
            Dim ItemHistory1 As ItemHistory
            ItemHistory1.nobaris=intbrsjual
            ItemHistory1.trno=Curs.GetString("trno")

            'Get actual height of layout for PreoptimizedCLV
            Dim pnl As B4XView = xui.CreatePanel("")
            pnl.LoadLayout("pgmenuhistoryitem")
            Dim height As Int = pnl.GetView(0).Height + pnl.GetView(0).Top * 2

            Pclvhistory.AddItem(height, xui.Color_White, ItemHistory1)
            'Pclvhistory.AddItem(110dip, xui.Color_White, ItemHistory1)
        Next
        Pclvhistory.Commit
        Curs.close
    Catch
        Log(LastException)
    End Try
End Sub

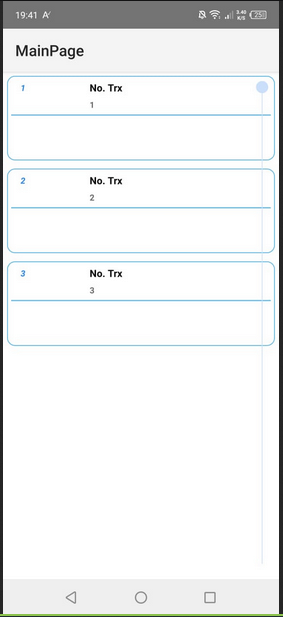

View attachment 137087

Thanks Rraswisak

I had try and i work perfectly. From your idea, i had changed this line

Pclvhistory.AddItem(130dip, xui.Color_White, ItemHistory1)

and it work perfectly.
