B4J Question CLVExpandable without borders?

[Midimaster]

I'm studying Erels CLVExpandable tutorial in B4J...
https://www.b4x.com/android/forum/t...g-or-collapsing-xcustomlistview-items.106148/

...and I cannot understand how to remove the border and rounded corner around the items.

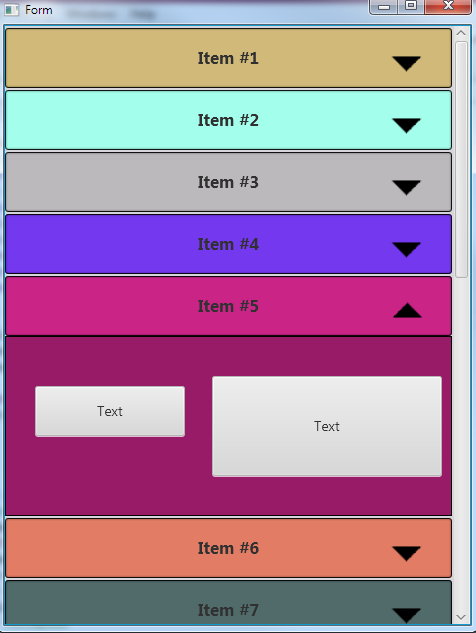

I succeded with the expandable part, where I now have the same color and no border. But between the reduced item and its expanded part (see row 5) remains a line. How to remove it?



[LucaMs]



[TILogistic]

and see borde:



[Midimaster]

The divider height was not responsible for that behavior. Setting to 0 brings the panels closed together. but the thin line remains.

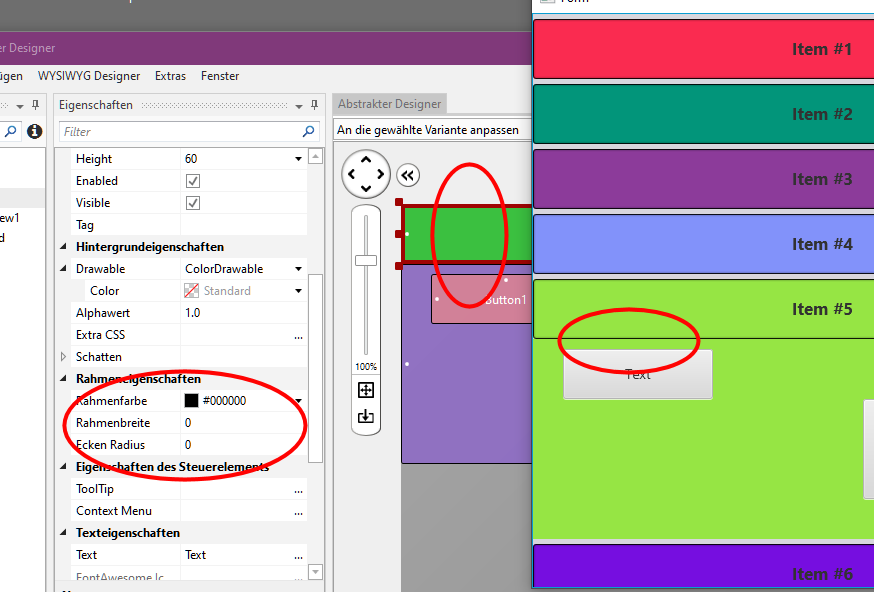

of course i did set the borders to zero! but the border still remains



[TILogistic]

see design:

sample B4J



[Midimaster]

see design:
sample B4J

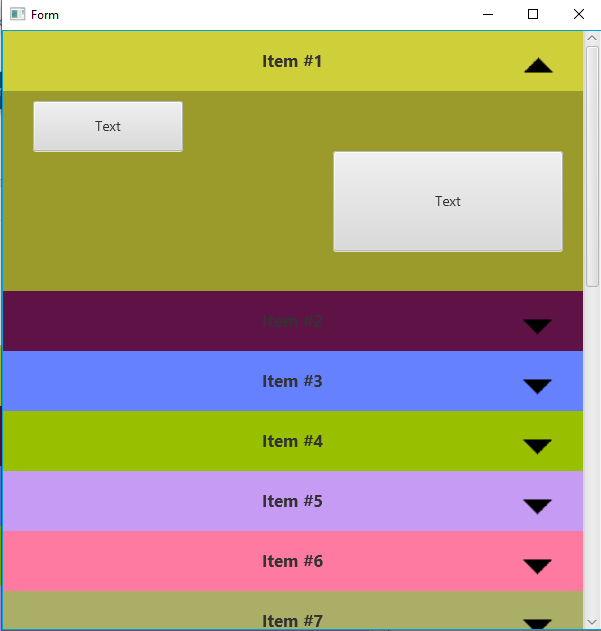

Thank you! your code works. Don't know why... but it works. Will report, when I find the difference.

wow! it was exactly the same zip with the same files in it. same dates and sames sizes. But my first download did work wrong. yours works perfect!!!



[TILogistic]

and see borde:


View attachment 101040

simple:

Delete the borders in the designer.



[Midimaster]

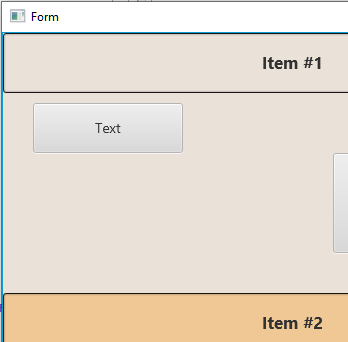

Strange:



[TILogistic]

upload your example to test on my b4J ide



[TILogistic]

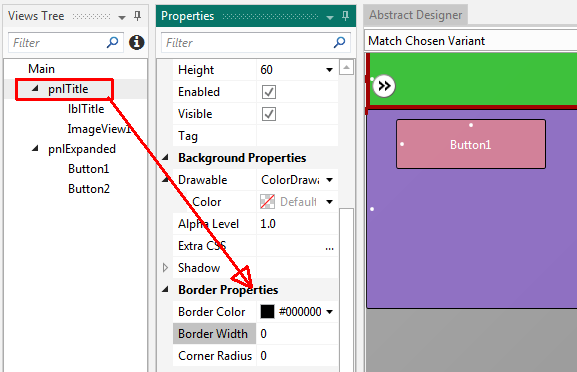

see:

Delete the borders in the designer.

Item:

main
pnlTitle
lblTitle

pnlExpanded



[Midimaster]

upload your example to test on my b4J ide

you asked me for the zip file with the border problems



[LucaMs]

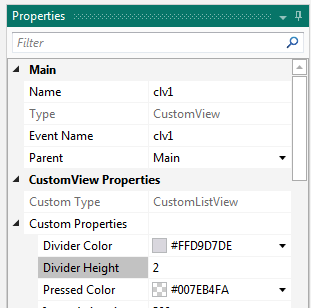

You still have 2 as "Divider height". Set it to 0 (clv1). Post #2



[Midimaster]

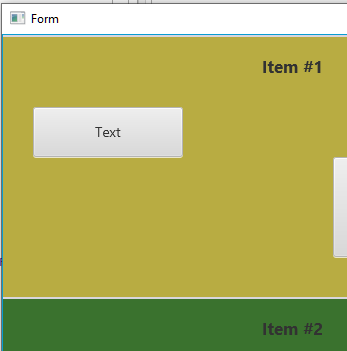

of course I already tested it also with DividerHeight=0. same result:

and the zip from oppara works also with a DividerHeight > 0 perfect:



[LucaMs]

and the zip from oppara works also with a DividerHeight > 0 perfect:

The Divider Height is, of course, the space between Items.

You don't want borders around the title (I finally get it? ); to achieve this, you must set the border thickness of the Panel containing the lblTitle, that is the pnlTitle, to 0.

EDIT: and of lblTitle too.



[LucaMs]

EDIT: and of lblTitle too.

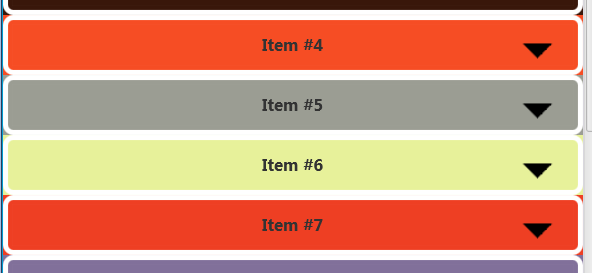

big & white border width of lblTitle, with corner radius too. It's so nice ?
