Android Question CustomListView change panel(list) background color when clicked

[phukol]

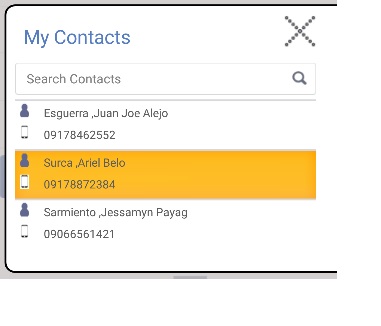

Hi guys, just want to ask how can i change the background color of my CustomListView when i click or press one of the list. Currently, its constantly giving me the orange color.



[eurojam]

you can do something similar to this, it is just an example, not tested;
first you add some Panels to your customlistview, like

...
    For i = 1 To 10
        Dim p As Panel
        p.Initialize("clv_panel")
        clv1.Add(p, 50dip, "Item #" & i)
    Next
...

then you define the panel_click sub like

Sub clv_panel_Click
    Dim p As Panel
    p = Sender
    p.Color = Colors.Green
End Sub

that's it, more or less



[phukol]

you can do something similar to this, it is just an example, not tested;
first you add some Panels to your customlistview, like

...
    For i = 1 To 10
        Dim p As Panel
        p.Initialize("clv_panel")
        clv1.Add(p, 50dip, "Item #" & i)
    Next
...

then you define the panel_click sub like

Sub clv_panel_Click
    Dim p As Panel
    p = Sender
    p.Color = Colors.Green
End Sub

that's it, more or less

Thank you that will work, however, when you click on the panel, they will turn to green but if ever you select and click another panel, it will also turn to green. Also the click event of customlist view will be disabled. Im thinking that it would be better if we change the code in customlistview to change the actual click event for it.



[phukol]

I looked around and found out that i need to change this:
idPressed = r.GetStaticField("android.R$drawable", "list_selector_background")

"list_selector_background" to "list_pressed_holo_dark"

however i need to use the android resources library to access list_pressed_holo_dark? can anyone point me how i can do this?



[phukol]

For anyone having the same issue kindly use NinePatch Drawabales tutorial. What i did is make a sub which returns a drawable like this

Public Sub SetNinePatchDrawable( ImageName As String) As BitmapDrawable
   Dim r As Reflector
   Dim package As String
   Dim id As Int
   package = r.GetStaticField("anywheresoftware.b4a.BA", "packageName")
   id = r.GetStaticField(package & ".R$drawable", ImageName)
   r.Target = r.GetContext
   r.Target = r.RunMethod("getResources")
   Return  r.RunMethod2("getDrawable", id, "java.lang.int")

End Sub

Then i made use of a png background placed inside Objects > res > drawable. Set it to read only and just call it's file like this

pressedDrawable = Utils.SetNinePatchDrawable("list_selector_pressed_holo_dark")

And problem fixed.



[imbault]

@phukol , can you explain how you modify:

    idPressed = r.GetStaticField("android.R$drawable", "list_selector_background")

To something else, in order to get another backcolor, when an item of the CustomListView is clicked

Thanks a lot
