Bug? Designer Problem

[tufanv]

Hello,

For my iphone 6 , when i add 4 squares next to reach other , there are some gaps between some squares altough there mustn't. I use for left : 0%x , 25%x,50%x ,75%x . After some tests JanPRO found out the following :

The result of operations like 25%X are often decimal digits, for the iPhone 6s for example: 25%X = 103.5, but the designer converts this value to103.
So when you check the left property of for example button in the code, the value is 103, but this is wrong, it must be 103.5.

For iphone4 , there is no problem because that 25%x value is 80.

Is it a bug ?

TY



[Erel]

Can you upload a layout file that demonstrates this issue?



[tufanv]

Can you upload a layout file that demonstrates this issue?

I hope layout is enough. Posted



[Erel]

Note that you can replace most of this script with anchors.

Where are the 4 squares?

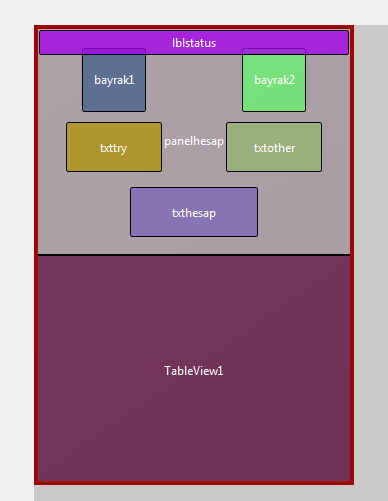

[tufanv]

Note that you can replace most of this script with anchors.

Where are the 4 squares?

sorry . I put the wrong bil file. here it is is. there are no 4 squares. There are buttons like the calculators between the buttons 2 , 5 , 8 and 3, 6 , 9 there is small gap in iphone6



[Erel]

It is indeed related to the fact that the width is 375 which is not divisible by 4. You can use this script to align the buttons properly:

Button1.SetLeftAndRight(0, 25%x)
w = Button1.Width
Button2.SetLeftAndRight(w, 2 * w)
Button3.SetLeftAndRight(2 * w, 3 * w)
Button4.SetLeftAndRight(3 * w, 100%x)
