Wish Designer: See ID of each View containded in an Activity

[Gianni Sassanelli]

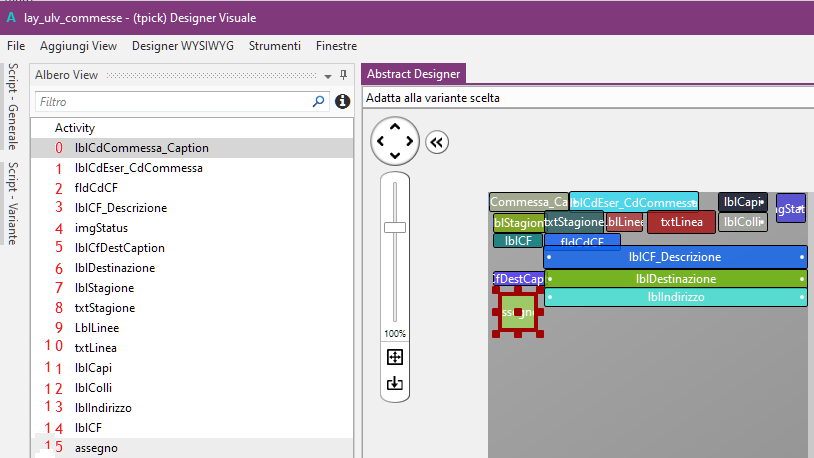

For activities with many views it is useful to see the id of each view



[Erel]

(you mean the index, not the id)



[Sandman]

Hmm... Why is that useful? I've never felt the need, am I missing something?



[Erel]

It can be useful when you load the layout multiple times, for example with CLV.

You can then do something like:

Dim p As B4XView = clv.GetPanel(x)
p.GetView(8).Text = "abc" 'txtStagione

There are of course, other ways to organize the references and I would say that if your layout becomes complicated then this method is probably not the best one. It will break when you add or remove a view.



[Gianni Sassanelli]

It can be useful when you load the layout multiple times, for example with CLV.

You can then do something like:

Dim p As B4XView = clv.GetPanel(x)
p.GetView(8).Text = "abc" 'txtStagione

There are of course, other ways to organize the references and I would say that if your layout becomes complicated then this method is probably not the best one. It will break when you add or remove a view.

Hi Erel,
i develop some business management software app.

The best for me would be

Panel.GetView_byName("lblCustomer").Text = "My customer name"

For this i use Ultimate List View library
to set the bound from view and data i write some code as this code example...

Sub ULV_RowContentFiller(RowID As Long, LayoutName As String, LayoutPanel As Panel, Position As Int)
'this is called from each record in UltimateList

    Dim mpRow                    As Map     = ULV_List.Get(RowID)

    Dim lblCodArt                 As Label = LayoutPanel.GetView(1) ' cod articolo
    Dim lblDescrizione          As Label = LayoutPanel.GetView(4) ' descr articolo
    Dim lblTaglia                    As Label = LayoutPanel.GetView(2)
    Dim fldTaglia                   As Label = LayoutPanel.GetView(3) ' taglia
    Dim lblQtaDaPrelevare    As Label = LayoutPanel.GetView(5)
    Dim fldQtaDaPrelevare     As Label = LayoutPanel.GetView(6) ' qta
    Dim lblQtaPrelevata        As Label = LayoutPanel.GetView(7)
    Dim fldQtaPrelevata         As Label = LayoutPanel.GetView(8) ' qta
    'Dim etichettaColore         As Label = LayoutPanel.GetView(9)
    Dim lblColore                 As Label = LayoutPanel.GetView(10)
    'Dim lblbox                     As Label = LayoutPanel.GetView(11)
    Dim fldbox                     As Label = LayoutPanel.GetView(12)
    Dim fldMP                     As Label = LayoutPanel.GetView(14)
    Dim fldUbicazione            As Label = LayoutPanel.GetView(16)


    fldUbicazione.Text            = mpRow.Get("ubicazione")
    fldbox.Text                     = mpRow.Get("barcode")
    fldbox.TextSize                 = 12
    fldbox.Visible                 = True
    lblCodArt.Text                 = mpRow.Get("cod_articolo")
    lblDescrizione.Text             = mpRow.Get("articolo")
    fldMP.Text                        = mpRow.Get("materiale")
    fldQtaDaPrelevare.Text         = mpRow.Get("qta")
    fldQtaPrelevata.Text         = mpRow.Get("qtaprelevata")
    LayoutPanel.Tag                 = mpRow.Get("barcode")



[Erel]

Panel.GetView_byName("lblCustomer").Text = "My customer name"

It is simple to create a similar solution:

For i = 1 To 1000
Dim p As B4XView = XUI.CreateView("")
p.SetLayoutAnimated(...)
p.LoadLayout(...)
Dim ViewsMap As Map
ViewsMap.Initialize
For Each v As B4XView In p.GetAllViewsRecursive
 If v.Tag <> "" Then ViewsMap.Put(v.Tag, v) 'set the tag of the views that you want to access, in the designer.
Next
p.Tag = ViewsMap
Next

GetViewFromPanel(CLV.GetPanel(50), "lblCustomer").Text = "abcde"

Sub GetViewFromPanel(p As B4XView, Name As String) As B4XView
 Dim m As Map = p.Tag
 Return m.Get(Name)
End Sub
