This is a B4A class that wraps ML Kit digital ink recognition. More information here: https://developers.google.com/ml-kit/vision/digital-ink-recognition
This feature has a large set of dependencies. I recommend starting with a simpler feature such as this one: https://www.b4x.com/android/forum/threads/b4x-textrecognition-based-on-mlkit.161210/#content
Once you get it working you can continue with the digital ink feature.

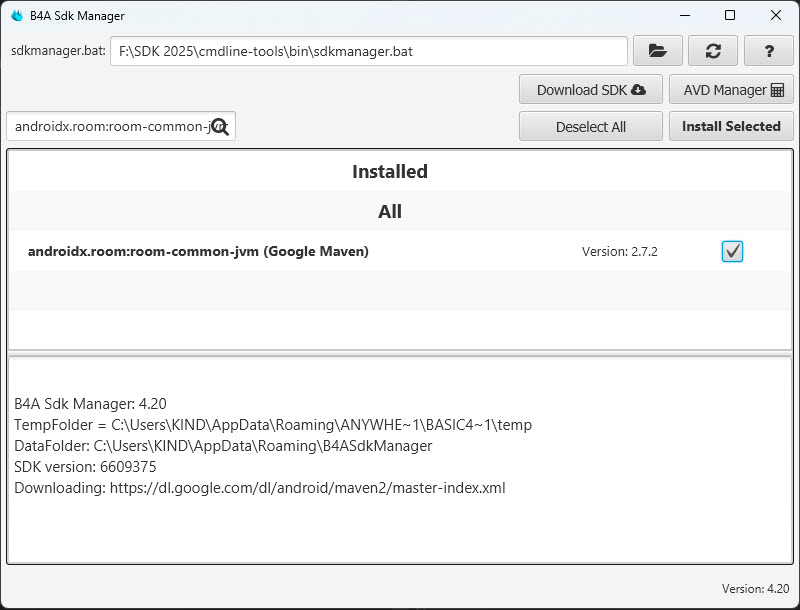

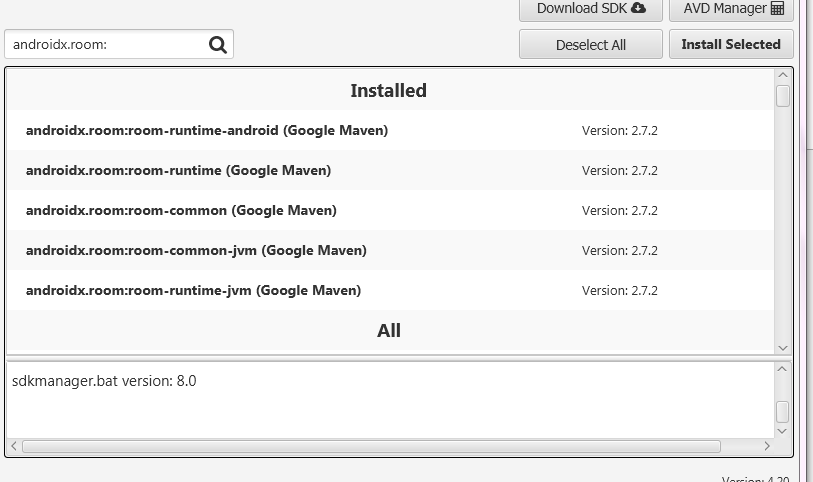

Open B4A Sdk Manager and install the following resources (you might need to install a few more resources. If you get a "missing module" during compilation then install it):
B4X:
androidx.work:work-gcm
androidx.work:work-multiprocess
androidx.room:room-runtime
androidx.room:room-common
androidx.room:room-compiler
androidx.room:room-compiler-processing
androidx.room:room-compiler-processing-testing
androidx.room:room-guava
androidx.room:room-gradle-plugin
androidx.room:room-migration
androidx.room:room-paging
androidx.room:room-paging-android
androidx.room:room-ktx
androidx.room:room-paging-guava
androidx.room:room-paging-rxjava2
androidx.room:room-runtime-android
androidx.room:room-paging-rxjava3
androidx.room:room-rxjava2
androidx.room:room-rxjava3
androidx.room:room-testing
androidx.room:room-testing-android
androidx.sqlite:sqlite
androidx.sqlite:sqlite-android
androidx.sqlite:sqlite-framework
androidx.sqlite:sqlite-framework-android
androidx.sqlite:sqlite-ktx
androidx.paging:paging-common
androidx.paging:paging-common-android
androidx.paging:paging-common-ktx
androidx.paging:paging-compose
androidx.paging:paging-compose-android
androidx.paging:paging-guava
androidx.paging:paging-runtime
androidx.paging:paging-runtime-ktx
androidx.paging:paging-rxjava2
androidx.paging:paging-rxjava2-ktx
androidx.paging:paging-rxjava3
androidx.paging:paging-testing
androidx.paging:paging-testing-android
androidx.compose.animation:animation
androidx.compose.animation:animation-android
androidx.compose.animation:animation-core
androidx.compose.animation:animation-core-android
androidx.compose.animation:animation-graphics
androidx.compose.animation:animation-graphics-android
androidx.compose.animation:animation-tooling-internal
androidx.paging:paging-common-jvm
androidx.paging:paging-testing-jvm
androidx.work:work-runtime
androidx.work:work-runtime-ktx
androidx.work:work-rxjava2
androidx.work:work-rxjava3
androidx.work:work-testing

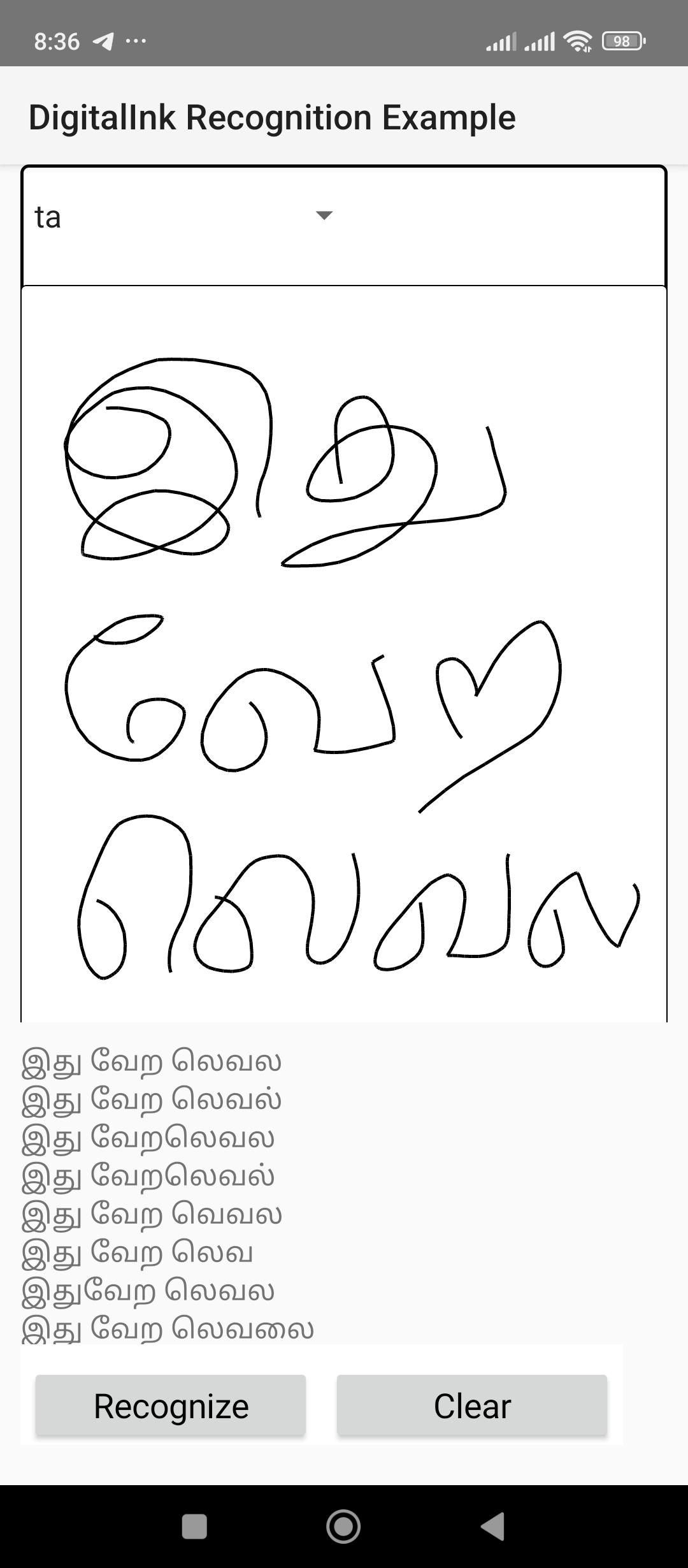

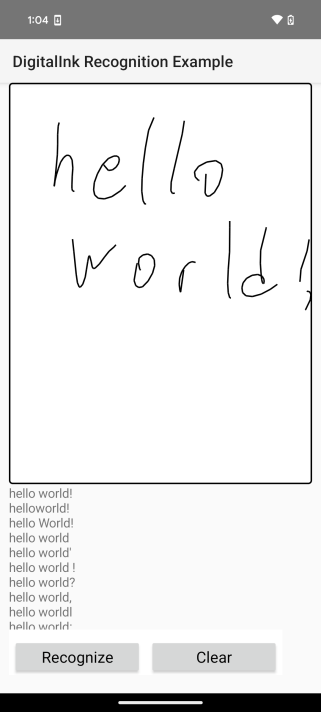

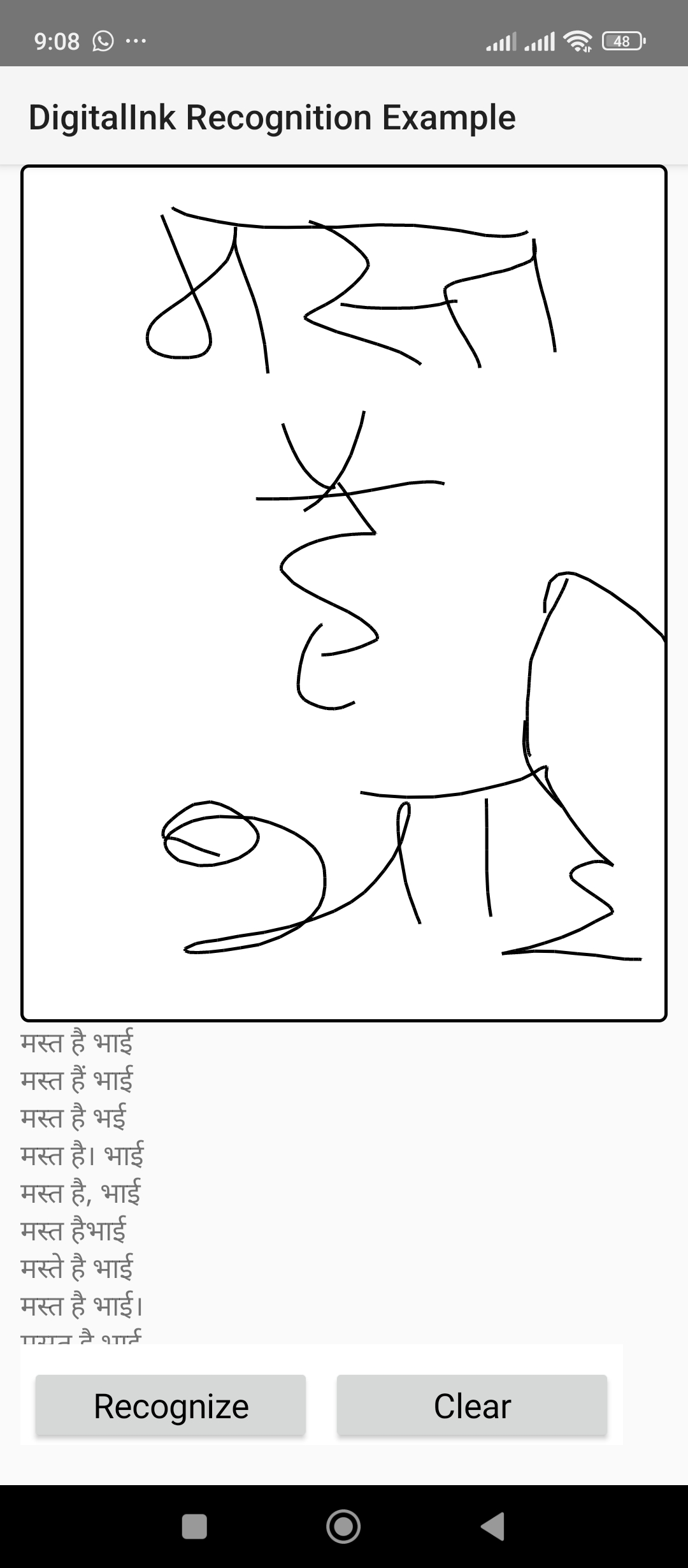

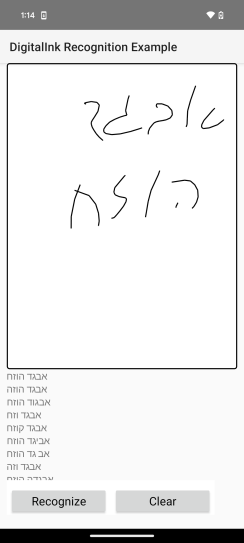

Usage is quite simple and demonstrated in the attached example.
The app collects a list of strokes which are then processed with a call to recognizer.Recognize. The top 10 candidates are returned.
It supports many languages: https://developers.google.com/ml-kit/vision/digital-ink-recognition/base-models#text
The language model is downloaded if needed.
Don't miss the manifest editor snippet.
