Android Question Draw any shape

[BaGRoS]

Hi

Needs to draw a variety of shapes, circles squares triangles. Filled with color or texture. I thought about ImageView, but when they are close to each other I will not be able to check in which exactly was clicked. Also needs them to animate the show with a fairly high accuracy at millisecond.
Some ideas?

Best regards



[DonManfred]

even if they overlap. You always get the clicked image in the click event.
Note that a imageview always have a rect to click on. Even if you show a circle. Always the hole imageview is clickable.



[BaGRoS]

Then I can use ImageView??



[DonManfred]

Tell my why not



[BaGRoS]

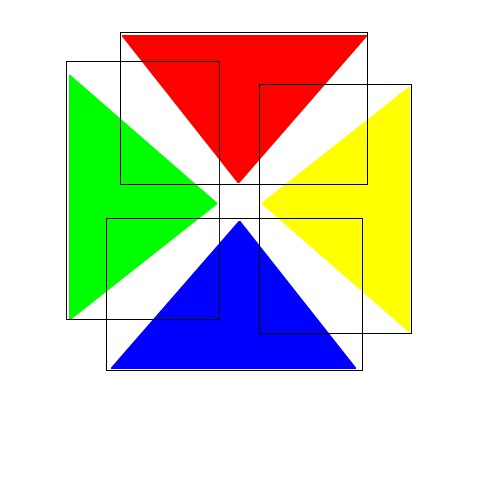

This is sample picture
4 times ImageView, and I want testing click ONLY on color triangles, not on space between.



[BaGRoS]

For test I make and on phone I see If I click in space between circles in black space then ImageView recognizes a click. I need to know when it clicked ONLY circle, not all ImageView. I save images as png without background with transparent.



[Erel]

Create a canvas object for each ImageView.

You can then get the touched pixel color with Canvas.Bitmap.GetPixel(x, y). Use the color value to decide whether the user touched the shape.



[BaGRoS]

Thx mate, I started testing...
