Android Question drawing circle with dot (on Title)

[mw71]

Hi

- how can i draw a circle with a "red dot" on xxx°?
- how can i do this on Activity Titel?

Thanks



[Mahares]

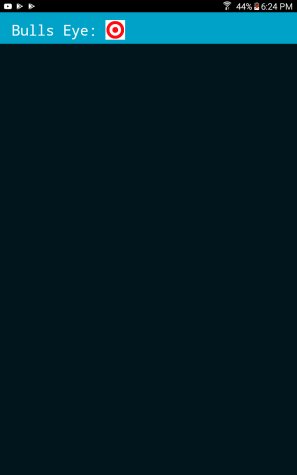

You can do something like this using CSBuilder:

Dim cs As CSBuilder
    cs.Initialize.Size(30).Typeface(Typeface.MONOSPACE)
    cs.Append("Bulls Eye: ").Image(LoadBitmap(File.DirAssets, "reddot.png"), 40dip, 40dip, False).PopAll
    Activity.Title = cs

For goodness sake, you should at least try to type the word title correctly. It is not titel; it is title. I know English is not the native language for many of us, but it makes it easier for people searching the forum when the word is spelled correctly. It is even typed for you in the IDE.



[mw71]

Hello,
CSBouilder looks good.
Is there a way to "rotate" the image? I need it as direction indicator.

Thanks

ps: Titel is change to Title



[Mahares]

Is there a way to "rotate" the image? I need it as direction indicator.

Dim cs As CSBuilder
    cs.Initialize.Size(30).Typeface(Typeface.MONOSPACE)
    cs.Append("Bulls Eye: ").Image(LoadBitmap(File.DirAssets, "reddot.png").Rotate(45), 40dip, 40dip, False).PopAll
    Activity.Title = cs



[mw71]

works fine

mny Thanks
