Gps4ppc

Erel

Erel

B4X founder
Staff member
Licensed User
Longtime User
A newer version of GPS4PPC is available here: http://www.b4x.com/forum/open-source-projects/5208-gps4ppc-v2-0-a.html

This application includes a couple of tools you can use with GPS and / or with navigation.
It supports:
- Converting coordinates between Lat / Lon and UTM grids.
- Converting coordinates between different datums and different formats.
- Calculating the distance and course between two coordinates.
- Using a GPS device it can show the present position, speed, and course (digitally and visually) in different formats, datums and grids.
- It includes an on screen large numpad so there is no need to use the smaller soft keyboard.

The setup file can be downloaded here: http://www.b4x.com/files/GPS4PPC.zip

The source code is attached.



Attachments

  • GPS4PPC.zip
    41.1 KB · Views: 1,369
Last edited:
M

micronaet

New Member
Licensed User
compile for WM 6.0

I'm a new user and I'm sorry for my english. I would like to know how can I choose in basic4ppc the type of compilation. I've tried the Gps4ppc exe file for wm6 and it works correctly but if I try to compile the source file with my basic4ppc, after the installation on the device, I have an error. In fact, at the end of the installation Windows says that the program is planned for one previous version.

Erel

Erel

B4X founder
Staff member
Licensed User
Longtime User
The source code uses SerialDevice.dll / SerialDesktop.dll libraries.
These libraries are only supported on .Net CF 1.0.
WM6.0 devices are installed with .Net CF 2.0.
The Serial2 library is supported by .Net CF 2.0.
Using Tools - Components, you should remove these two libraries and add Serial2.dll to the device and desktop.
See this page for more information about .Net CF 1.0/2.0: www.b4x.com/netcf2.html

M

Mole

New Member
Idea for using GPS4PPC

Hi

:sign0104: Sorry if I posted this in the wrong place!

I have an idea for an application using GPS. I haven't been able to find this done by anyone else, and I think other people would find it useful aswell.

My idea is, I would like to be able to log co-ordinates of a journey using GPS, then display them later, overlaid as a "trail" on a map - preferably one of the web maps, like googlemaps or multimap. I know the logging would be possible, but I have no idea whether overlaying the trail on someone elses map is possible!

Any ideas anyone? :confused:

Mole

derez

derez

Expert
Licensed User
Longtime User
Recording GPS

Hi
Your Idea has been implemented (like most of the good ideas) :
this is a code fraction for the recording of the parameters:

If flag.recording = -2 Then
record_line(line) = t_time & "," & t_date & "," & t_speed & "," & t_track & "," & temp_long & "," & t_EW & "," & temp_lat & "," & t_NS & "," & t_alt & "," & t_sat
lineno.Text = line
If line < 2998 Then line = line + 1
End If

all the lines of parameters are stored in an array and if the user want to save - it is written to a file using the following sub:

Sub SavePB_Click
StopM_Click
SaveDialog1.Filter = "PlayBack files|*.rec"
If SaveDialog1.Show <> cCancel Then
WaitCursor (True)
PBfile = SaveDialog1.File
FileOpen(c20,pbfile,cwrite)
line = 0
Do
line = line + 1
FileWrite(c20,record_line(line))
Loop Until record_line(line) = "RECORD END"
FileClose(c20)
line = 1
WaitCursor (false)
Else
Return
End If
End Sub

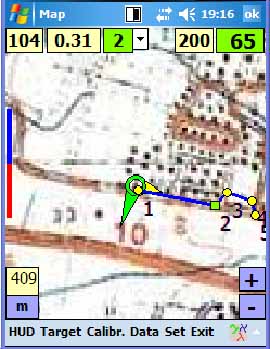

I don't place this recording on the map because it will take too much runtime resources (lines are recorded every few seconds), but I can put on the moving map a route, made by connecting way-points with a line, while each way-point is drawn by a small circle, see photo attached.


Attachments

  • route.jpg
    53.6 KB · Views: 709
M

mcflaytasche

Member
Licensed User
Longtime User
Hello derez,
what programm are you using for the movingmap.
Is it written in Basic4ppc?
I'm searching about a Software that can do movingmap.
Thanks about your help
Stefan

derez

derez

Expert
Licensed User
Longtime User
mcflaytasche said:
Hello derez,
what programm are you using for the movingmap.
Is it written in Basic4ppc?
I'm searching about a Software that can do movingmap.
Thanks about your help
Stefan
Click to expand...

hi
The program is what I wrote myself.
Since the map is a picture (jpg), I use the function DrawImage to put the picture on the screen, where the position of the origin is calculated as the distances from the relative coordinate to the map origin, multiplied by the factor of conversion from distance to pixels on the screen.The position is refreshed every time I have new position coordinates from the gps.

R

rpn42s

New Member
Hello,

I am a new user and need help. I cannot make the software to work on the ipaq3955 after installation. It is missing the file GPS4PPC.EXE. Only pictures of Lat Long, Converter & GPS were shown but cannot access application.

Anyone got some idea?

Thanks

Cableguy

Cableguy

Expert
Licensed User
Longtime User
The ZIP file only contains the souce code and files used to create the aplication, it is not a compiled ( exe ) aplication.
Open it with your basic4ppc IDE and run it.

Kanne

Kanne

Member
Licensed User
Longtime User
extendted GPS-View

Hi,

I found this tool when searching for PPC-applications for geocaching.

It would be helpful to have this function available:
in the GPS-view I would like to have a function where I may enter a destination and the display should show me the distance and direction according to the current GPS-position (should not be so diffcult, because all calculations are already available in the Caclculator-view)

Another question:
I just downloaded the trial version of the BASIC4PPC; on the desktop I may test / compile the source using Debug/Build /RUN but it's not possible to compile the source via file\compile\device ... is this due to the trail-version ?!

regards

taximania

taximania

Well-Known Member
Licensed User
Longtime User
Welcome to the forum Kanne.

The trial version doesn't allow you to compile .exe for Desktop or Device.

Go on :sign0060: buy it. It's worth it.



Just don't write TV gameshows :sign0137:
See my sig :signOops:

F

flet

New Member
CAB file

All, I don't use ActiveSync but still would like to test GPS4PPC. I don't have Basic4PPC installed yet (first I'd like to evaluate the GPS app, then go through the langage installation process).
Could someone send me (or post on the forum) a CAB (or PPC .exe) file for installing GPS4PPC?
Thanks

M

maxcfung

New Member
Licensed User
Hi, I need some help with getting GPS4PPC to work with the HTC Cruise.
These are the settings which works fine with google map and mapking.

GPS program port: (COM4)
GPS hardware port: (none)
Baud rate: 4800

In GPS4PPC,
When I hit connect, a msg box pops up with GPS connected, but after 2 seconds another msg box pops up with GPS disconnected. Any other ports will pop an msg for error opening port.

Many thanks =)

M

maxcfung

New Member
Licensed User
Yes it seems to be the same problem. Would there be another way other than paying GPSGate 20 bucks ^^?
