Android Question greek characters from sqlite not shown in webview

Phayao · May 24, 2018

Hello,

I like to display greek words from an sqlite DB in a webview, using <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> in the head. But that seems to change nothing.

Most characters are shown, but some are just left out, especially those with a tilde and accent as \ above.

For example: "υἱοῦ" the last character is missing,
"Δαυὶδ" = David, the i is mising
"τὸν" the middle character o is missing

When I load the cur.getstring(...) into a label, it is displayed nearly 100% correctly.
But to change to label element is very inconvenient - does someone has a good idea ?

Thanks a lot,

Chris

Erel · May 24, 2018

The images are broken.

If cur.GetString returns the correct value then it should look properly in WebView.

Check it with Log(cur.GetString(...))

Phayao · May 24, 2018

Erel said:
The images are broken.

If cur.GetString returns the correct value then it should look properly in WebView.

Check it with Log(cur.GetString(...))

Thank you Erel,
the broken links are because i put the link to a dropbox image, what obviously does not work.

Yes, the log gives the correct characters - but in the webview the characters with tilde and backward slash accent are missing.
I also took out any css formatting of the table where i present the words and even let out any formatting as table - still the same :-(
Any idea ?

Thank you, Chris

Erel · May 27, 2018

What is the output of Log(cur.GetString(...))?

Phayao · May 28, 2018

Hi Erel,

with Log(cur.Getstring(..)) I get the greek word back as it is in the DB, in the right way.
For example - in the DB: Δαυὶδ -> the output is the same: Δαυὶδ
But when I show it in a table in webview, the i is missing (Δαυ δ).
I have the feeling it has something to do with character encoding.

DonManfred · May 28, 2018

Phayao said:
But when I show it in a table in webview

How are you creating the HTML?
Can you upload the generated HTML?

Erel · May 29, 2018

Post the html and we will be able to help you. Maybe you need to add a charset attribute to the html.

Phayao · May 29, 2018

From the log the generated HTML is:

B4X:

<html><head><meta http-equiv='Content-Type' content='text/html charset=UTF-8' /></head><body>
<style type='text/css'>
        table {width: 100%;border: 1px solid #cef;text-align: left; }
        th { font-weight: bold;    background-color: #acf;    border-bottom: 1px solid #cef; }
        td,th {    padding: 4px 5px; }
        .odd {background-color: #def; }
        .odd td {border-bottom: 1px solid #cef; }
        a { text-decoration:none; color: #000;}</style>
<table><thead><tr>
<th>ID</th><th>VERSE_ID</th><th>CONTEXTUAL_FORM</th><th>TRANSLITERATED_CONTEXTUAL_FORM</th><th>MORPHOLOGY_ID</th><th>STRONGS_WORD_ID</th><th>ENGLISH</th></thead></tr>
<tr><td>27</td><td>2</td><td>Ἰούδας</td><td>Ioudas</td><td>N-NMS</td><td>2455</td><td>Judah</td></tr>
<tr class='odd'><td>28</td><td>2</td><td>δὲ</td><td>de</td><td>Conj</td><td>1161</td><td>moreover</td></tr>
<tr><td>29</td><td>2</td><td>ἐγέννησεν</td><td>egennēsen</td><td>V-AIA-3S</td><td>1080</td><td>begat</td></tr>
<tr class='odd'><td>30</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr><td>31</td><td>2</td><td>Φαρὲς</td><td>Phares</td><td>N-AMS</td><td>5329</td><td>Perez</td></tr>
<tr class='odd'><td>32</td><td>2</td><td>καὶ</td><td>kai</td><td>Conj</td><td>2532</td><td>and</td></tr>
<tr><td>33</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr class='odd'><td>34</td><td>2</td><td>Ζαρὰ</td><td>Zara</td><td>N-AMS</td><td>2196</td><td>Zerah</td></tr>
<tr><td>35</td><td>2</td><td>ἐκ</td><td>ek</td><td>Prep</td><td>1537</td><td>of</td></tr>
<tr class='odd'><td>36</td><td>2</td><td>τῆς</td><td>tēs</td><td>Art-GFS</td><td>3588</td><td>-</td></tr>
<tr><td>37</td><td>2</td><td>Θάμαρ,</td><td>Thamar</td><td>N-GFS</td><td>2283</td><td>Tamar;</td></tr>
<tr class='odd'><td>38</td><td>2</td><td>Φαρὲς</td><td>Phares</td><td>N-NMS</td><td>5329</td><td>Perez</td></tr>
<tr><td>39</td><td>2</td><td>δὲ</td><td>de</td><td>Conj</td><td>1161</td><td>moreover</td></tr>
<tr class='odd'><td>40</td><td>2</td><td>ἐγέννησεν</td><td>egennēsen</td><td>V-AIA-3S</td><td>1080</td><td>begat</td></tr>
<tr><td>41</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr class='odd'><td>42</td><td>2</td><td>Ἑσρώμ,</td><td>Hesrōm</td><td>N-AMS</td><td>2074</td><td>Hezron;</td></tr>
<tr><td>43</td><td>2</td><td>Ἑσρὼμ</td><td>Hesrōm</td><td>N-NMS</td><td>2074</td><td>Hezron</td></tr>
<tr class='odd'><td>44</td><td>2</td><td>δὲ</td><td>de</td><td>Conj</td><td>1161</td><td>moreover</td></tr>
<tr><td>45</td><td>2</td><td>ἐγέννησεν</td><td>egennēsen</td><td>V-AIA-3S</td><td>1080</td><td>begat</td></tr>
<tr class='odd'><td>46</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr><td>47</td><td>2</td><td>Ἀράμ,</td><td>Aram</td><td>N-AMS</td><td>689</td><td>Ram;</td></tr>
</table></body></html>

Although in the html output in the log, all characters are shown correctly - but in the webview the ὲ and Ἀ and ὸ are only blanks.

Slowly I'm loosing my mind....

Erel · May 30, 2018

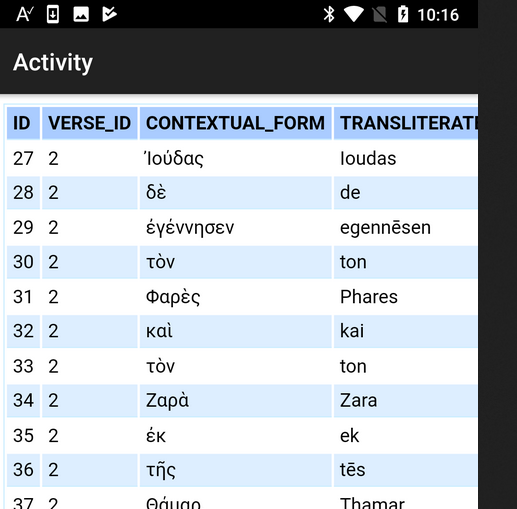

Works fine here:

B4X:

Sub Activity_Create(FirstTime As Boolean)
   'Do not forget to load the layout file created with the visual designer. For example:
   Activity.LoadLayout("1")
   WebView1.LoadHtml($"<html><head><meta http-equiv='Content-Type' content='text/html charset=UTF-8' /></head><body>
<style type='text/css'>
        table {width: 100%;border: 1px solid #cef;text-align: left; }
        th { font-weight: bold;    background-color: #acf;    border-bottom: 1px solid #cef; }
        td,th {    padding: 4px 5px; }
        .odd {background-color: #def; }
        .odd td {border-bottom: 1px solid #cef; }
        a { text-decoration:none; color: #000;}</style>
<table><thead><tr>
<th>ID</th><th>VERSE_ID</th><th>CONTEXTUAL_FORM</th><th>TRANSLITERATED_CONTEXTUAL_FORM</th><th>MORPHOLOGY_ID</th><th>STRONGS_WORD_ID</th><th>ENGLISH</th></thead></tr>
<tr><td>27</td><td>2</td><td>Ἰούδας</td><td>Ioudas</td><td>N-NMS</td><td>2455</td><td>Judah</td></tr>
<tr class='odd'><td>28</td><td>2</td><td>δὲ</td><td>de</td><td>Conj</td><td>1161</td><td>moreover</td></tr>
<tr><td>29</td><td>2</td><td>ἐγέννησεν</td><td>egennēsen</td><td>V-AIA-3S</td><td>1080</td><td>begat</td></tr>
<tr class='odd'><td>30</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr><td>31</td><td>2</td><td>Φαρὲς</td><td>Phares</td><td>N-AMS</td><td>5329</td><td>Perez</td></tr>
<tr class='odd'><td>32</td><td>2</td><td>καὶ</td><td>kai</td><td>Conj</td><td>2532</td><td>and</td></tr>
<tr><td>33</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr class='odd'><td>34</td><td>2</td><td>Ζαρὰ</td><td>Zara</td><td>N-AMS</td><td>2196</td><td>Zerah</td></tr>
<tr><td>35</td><td>2</td><td>ἐκ</td><td>ek</td><td>Prep</td><td>1537</td><td>of</td></tr>
<tr class='odd'><td>36</td><td>2</td><td>τῆς</td><td>tēs</td><td>Art-GFS</td><td>3588</td><td>-</td></tr>
<tr><td>37</td><td>2</td><td>Θάμαρ,</td><td>Thamar</td><td>N-GFS</td><td>2283</td><td>Tamar;</td></tr>
<tr class='odd'><td>38</td><td>2</td><td>Φαρὲς</td><td>Phares</td><td>N-NMS</td><td>5329</td><td>Perez</td></tr>
<tr><td>39</td><td>2</td><td>δὲ</td><td>de</td><td>Conj</td><td>1161</td><td>moreover</td></tr>
<tr class='odd'><td>40</td><td>2</td><td>ἐγέννησεν</td><td>egennēsen</td><td>V-AIA-3S</td><td>1080</td><td>begat</td></tr>
<tr><td>41</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr class='odd'><td>42</td><td>2</td><td>Ἑσρώμ,</td><td>Hesrōm</td><td>N-AMS</td><td>2074</td><td>Hezron;</td></tr>
<tr><td>43</td><td>2</td><td>Ἑσρὼμ</td><td>Hesrōm</td><td>N-NMS</td><td>2074</td><td>Hezron</td></tr>
<tr class='odd'><td>44</td><td>2</td><td>δὲ</td><td>de</td><td>Conj</td><td>1161</td><td>moreover</td></tr>
<tr><td>45</td><td>2</td><td>ἐγέννησεν</td><td>egennēsen</td><td>V-AIA-3S</td><td>1080</td><td>begat</td></tr>
<tr class='odd'><td>46</td><td>2</td><td>τὸν</td><td>ton</td><td>Art-AMS</td><td>3588</td><td>-</td></tr>
<tr><td>47</td><td>2</td><td>Ἀράμ,</td><td>Aram</td><td>N-AMS</td><td>689</td><td>Ram;</td></tr>
</table></body></html>"$)
End Sub

Phayao · Jun 4, 2018

Thank you Erel for trying that out.
Nevertheless, even I store the above html file as text file and read it into a webview, the mentioned characters are not shown for me (they are there in the html file). Maybe it's a Samsung specific problem, I'll try it out on another phone. Until now it remains a mystery.
Anyhow many thanks for your quick support, I appreciate the fantastic help in this forum. I'll post a new message when I manage to solve this issue.

Erel · Jun 4, 2018

Phayao said:
Maybe it's a Samsung specific problem

Most probably not.

Have you tried my code? Does it work for you?

Phayao · Jun 4, 2018

Hello,

when I use your code, the problem persists for me, no change, sorry.
I tried by using phone settings: default font and language English UK. No change.
So still some mystery remains.
(Another silly mistake from me: I am not able to insert a picture here, I do not know what the "image url" really means. The link to my dropbox is:
https://www.dropbox.com/s/hc4miuirfkuy0nv/Screenshot_2018-06-04-15-09-47.png?dl=0 )

Erel · Jun 4, 2018

In that case the WebView on your device doesn't behave properly. With some parsing you can extract the data and show it with TableView or FlexibleView.
