Help wanted: 3D-print prototype for an innovative dartboard

[Cadenzo]

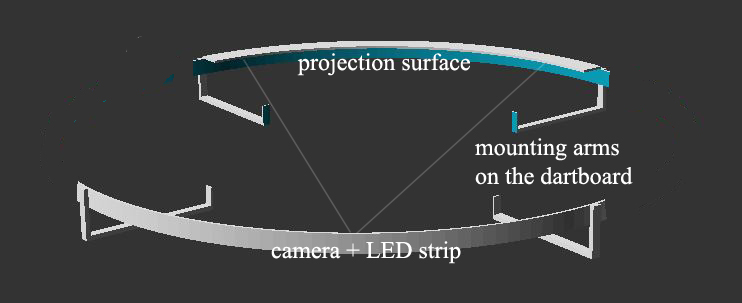

I’m developing a dart-detection system using light and shadow projection (patent pending).

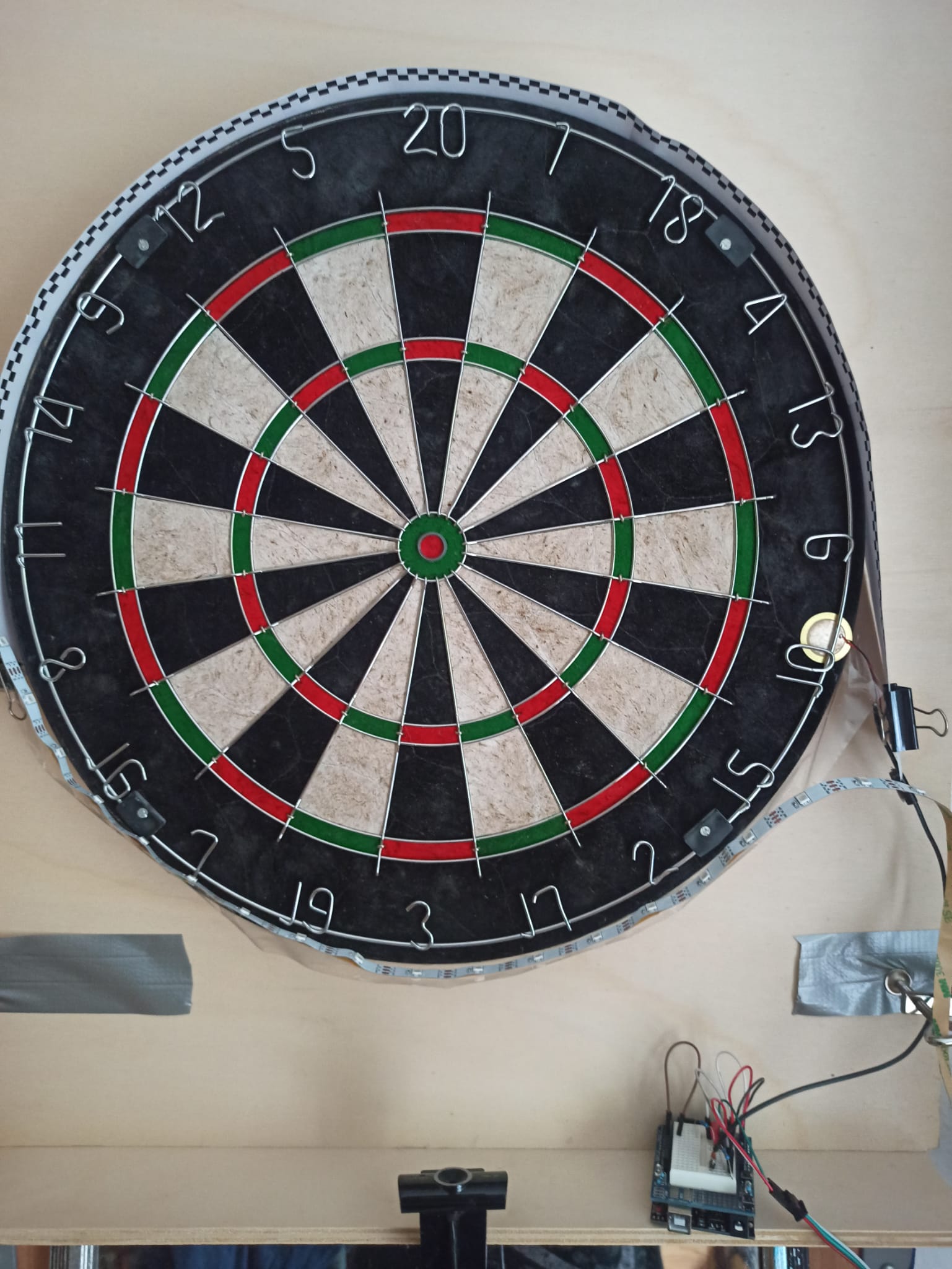

Already built a first paper prototype, and the software development is underway. Of course, written with B4R / B4A / B4i! (For desktop and server parts I still use VB.NET, mainly to reuse code from older projects.)

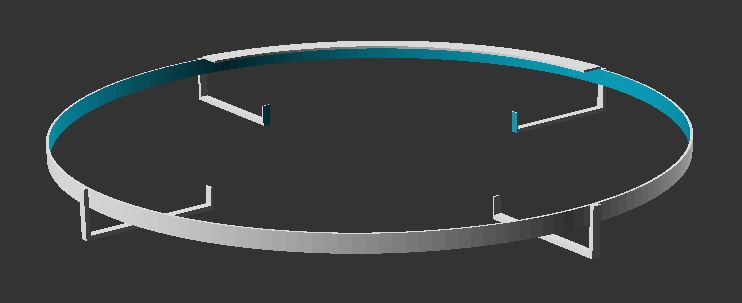

Now I’d like to move on to a real prototype to improve stability and accuracy (already made a first test version myself in OpenSCAD).

Looking for support with CAD modeling, STL/STEP files, and splitting a 72 cm ring into printable parts.
I offer payment or project involvement – and the chance to shape a unique invention

If you’re interested, just get in touch – I’m looking forward to creative collaborators!



[Serge Bertet]

Hello,
While studying your project I found that https://www.thingiverse.com/thing:4112111 is a good starting point.
Also I discovered this: https://autodarts.io/
Did you know about this kind of system already?



[Cadenzo]

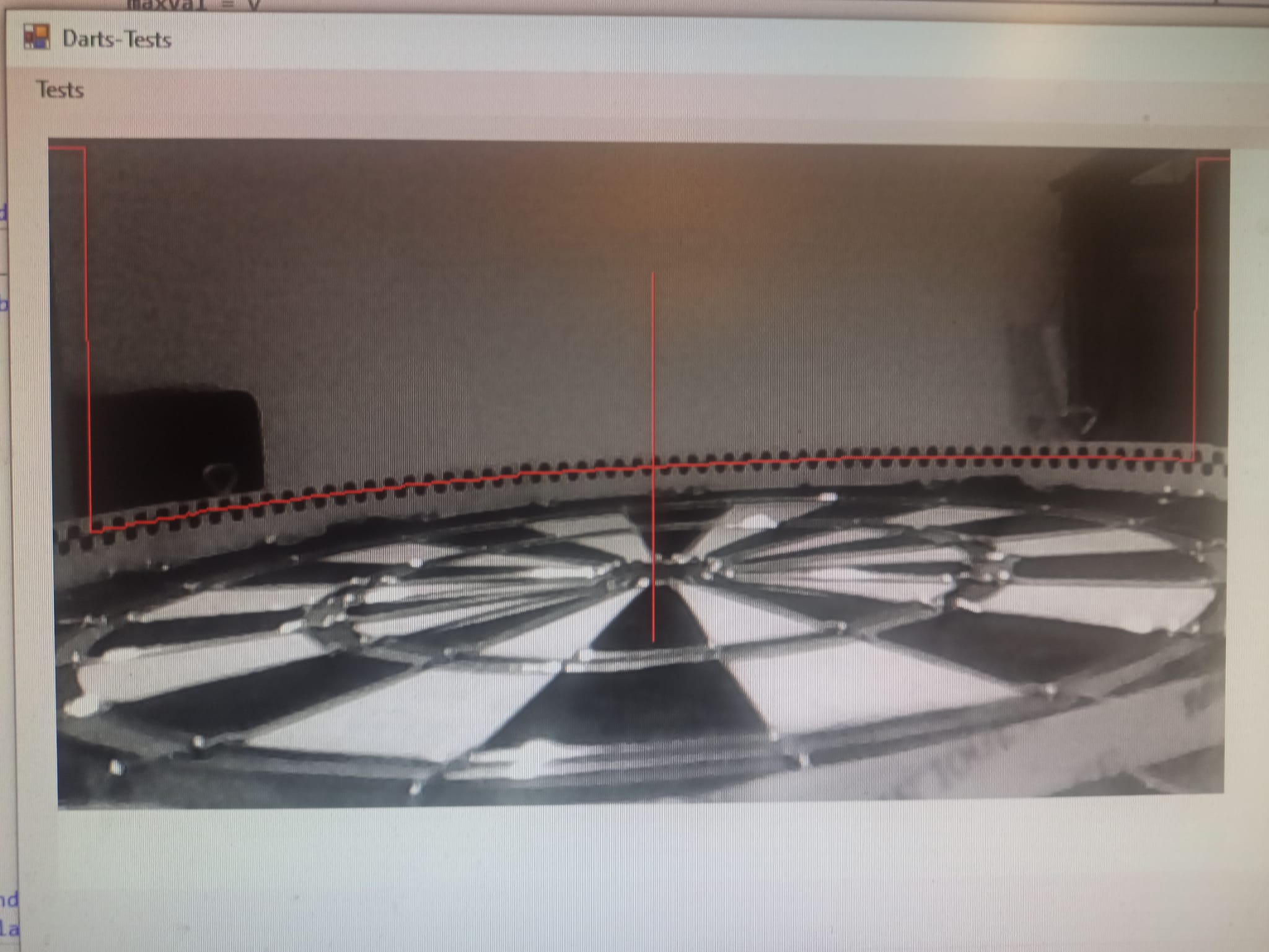

Thanks for your reply! Autodarts (and others like Scolia and Target Omni) use three or more cameras and require more processing power to analyze everything. I use a different method with just one camera to analyze shadows from different perspectives.

Your first link is a good starting point. However, my system needs some modifications. A larger inner surface of the ring, as well as a cover to block stray light. Also requires the ring to be closer to the dartboard. I don't need the entire ring, just about two-quarters of the top and bottom...



[charlesg]

I can help you with this.
