Android Question How can I use B4XSerializator in VB.NET/C# [Solved]

[alimanam3386]

Hi

I use M2Mqtt client library to connect c# to mosqitto broker in server side . All things is ok I receive simple string data from server in client side ( b4a)

In b4a/b4j we have Type structure like bellow code ( I don't know what is the bellow equals code in C# )

Type Message ( id as string , senderid as string , receiverid as string , msg as string )

My question is , how can I get/send this structure in c# side ? I used B4XSerializator but I dont know how can I use it to get/send Type structure like b4a/b4j code in server side ?



any help plz



[fixit30]

@Erel has kindly written a .Net dll so you can handle B4XSerializator objects.

https://www.b4x.com/android/forum/threads/b4x-net-framework-implementation-of-b4xserializator.73080/



[alimanam3386]

@Erel has kindly written a .Net dll so you can handle B4XSerializator objects.

https://www.b4x.com/android/forum/threads/b4x-net-framework-implementation-of-b4xserializator.73080/

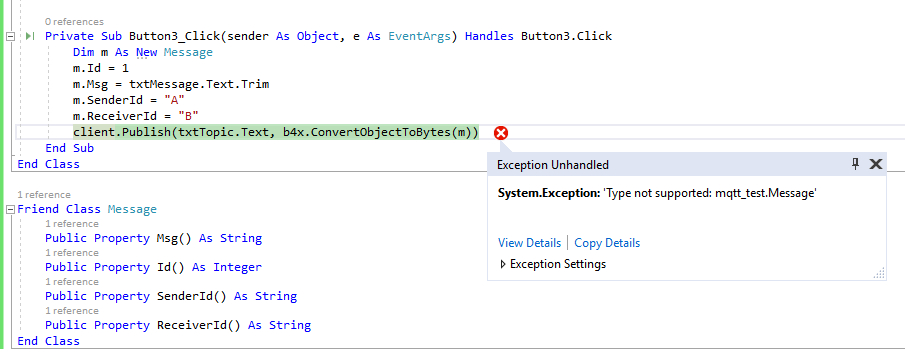

I did see this lib if you look better to my post I said I should use this lib in VB.NET/C# code but the problem is when I define a class in vb.net language I get this error :



[fixit30]

You are declaring your public properties as arrays.

Try removing the () from the variable name.



[alimanam3386]

You are declaring your public properties as arrays.

Try removing the () from the variable name.

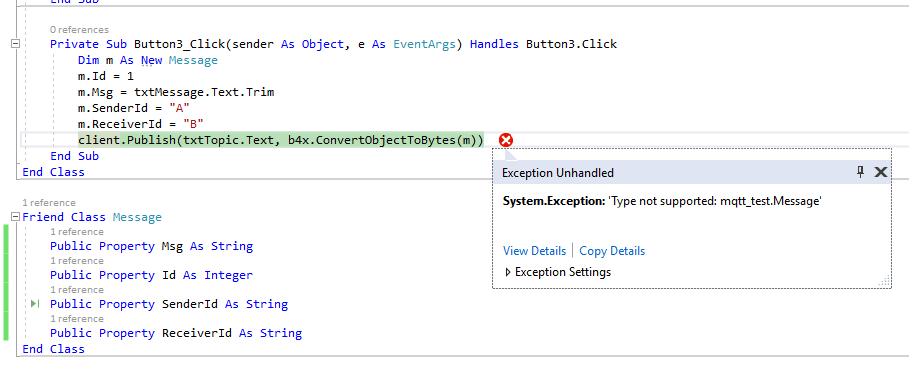

No its not array! It is not change the property value ( in VB.NET it is ok if you write () or not write () for properties )



[fixit30]

Sorry, I have not used this before.

You are using it incorrectly, you do not need to create a class, you need to initialise an object of type B4XType.

Something like this:

        Dim Dict As New System.Collections.Generic.Dictionary(Of Object, Object)
        Dict.Add("id", "1")
        Dict.Add("senderid", "A")
        Dict.Add("receiverid", "B")
        Dict.Add("msg", txtMessage.Text.Trim)
        Dim B4XMessage As New WpfApplication1.B4XType("Message", Dict)
        client.Publish(txtTopic.Text, b4x.ConvertObjectToBytes(B4XMessage))



[alimanam3386]

Sorry, I have not used this before.

You are using it incorrectly, you do not need to create a class, you need to initialise an object of type B4XType.

Something like this:

        Dim Dict As New System.Collections.Generic.Dictionary(Of Object, Object)
        Dict.Add("id", "1")
        Dict.Add("senderid", "A")
        Dict.Add("receiverid", "B")
        Dict.Add("msg", txtMessage.Text.Trim)
        Dim B4XMessage As New WpfApplication1.B4XType("Message", Dict)
        client.Publish(txtTopic.Text, b4x.ConvertObjectToBytes(B4XMessage))

I used your code but I did not receive any message from Client ( vb.net app ) I chenged your code to bellow code and it works :

        Dim d As New Dictionary(Of Object, Object)
        d.Add("Id", GetRandom(1, 500))
        d.Add("Msg", txtMessage.Text.Trim)
        d.Add("SenderId", "Windows App")
        d.Add("ReceiverId", "room1")
        client.Publish(txtTopic.Text, b4x.ConvertObjectToBytes(d))
