iOS Question How to add attachment to SMS message?

[JohnC]

This Tutorial shows how to send emails or SMS in iOS:

Mails and SMS messages

MailComposer and MessageComposer types from the iPhone library allow the user to send mails and SMS messages from your app. The users will see a pre-filled form which they can modify and send. (press on the small gear button and set the quality to HD) Not all devices support these two...

www.b4x.com

And it includes an example of how to send an attachment when sending "EMAILS".

But, how can I send an attachment when sending an SMS?



[JohnC]

Or is there a way to sent an "Intent" of sort to the iMessage app that will allow me to specify the text and an attachment, so the end result will be that my app will cause the iMessage app to pop-up with my text message pre-filled in and the attachment all ready to be sent simply by the user clicking "Send" in the iMessage app.



[DonManfred]

Aehm.... A SMS is just a small piece of Text. There is no such thing as an Attachment in an SMS.

Or did i interpret the question wrong?
Note that i do not own a iOS Device as of now so i do not know iMessage.

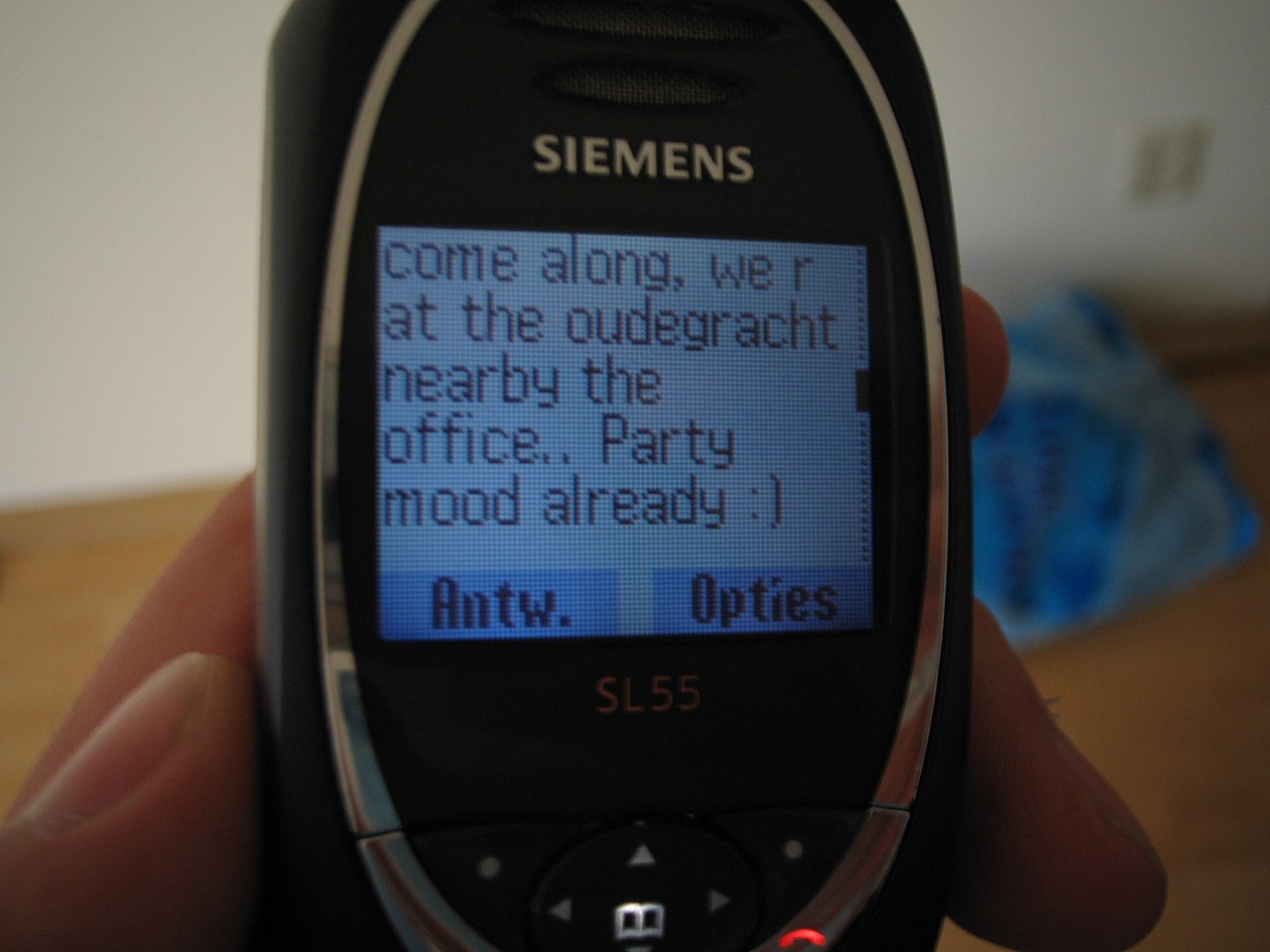

SMS - Wikipedia

en.wikipedia.org



[JohnC]

Yes, it's true that "technically" SMS messages don't have attachments. But, since pretty much every SMS app on both android and iOS also support MMS messages (that have attachments) and these same apps can receive both SMS and MMS, the two terms are pretty synonymous with one another as opposed to Emails. I just mentioned the term SMS because that is the term the example mentioned and I just wanted to make sure I differentiated my question from the email example of the code.

So, from now on when you see me mention SMS, I could also be referring to MMS



[Erel]

Sub Process_Globals
    Public App As Application
    Public NavControl As NavigationController
    Private Page1 As Page
    Private MessageComposer As MessageComposer
End Sub

Private Sub Application_Start (Nav As NavigationController)
    NavControl = Nav
    Page1.Initialize("Page1")
    Page1.Title = "Page 1"
    Page1.RootPanel.Color = Colors.White
    NavControl.ShowPage(Page1)
    MessageComposer.Initialize("MessageComposer")
    If MessageComposer.CanSendText Then
        MessageComposer.Body = "test"
        Log(AddAttachment(MessageComposer, "abc".GetBytes("utf8"), "plain.text", "1.txt"))
        MessageComposer.Show(Page1)
    End If
End Sub

Private Sub AddAttachment (mc As MessageComposer, data() As Byte, UTI As String, FileName As String) As Boolean
    Dim ControllerClass As NativeObject
    ControllerClass.Initialize("MFMessageComposeViewController")
    If ControllerClass.RunMethod("canSendAttachments", Null).AsBoolean Then
        If ControllerClass.RunMethod("isSupportedAttachmentUTI:", Array(UTI)).AsBoolean Then
            Dim no As NativeObject = mc
            Return no.RunMethod("addAttachmentData:typeIdentifier:filename:", _
                Array(no.ArrayToNSData(data), UTI, FileName)).AsBoolean
        Else
            Log("UTI not supported")
            Return False
        End If
    Else
        Log("Cannot send attachments.")
        Return False
    End If
End Sub

Use File.ReadBytes instead of "abc".GetBytes('utf8")

The file name is only used to set the name in the message.



[JohnC]

Erel, thank you!
