B4J Question How To Add Panel with Title in Border

[cklester]

Is there a panel view that allows for a title?

For example:

Google Image Result for https://www.mathworks.com/help/matlab/ref/uipanel_children_2.png



[Daestrum]

Javafx has a TitledPane, but you probably need to use javaobject to create it. Also you probably need to set setCollapsible(False) so it cannot be collapsed.

api here https://openjfx.io/javadoc/13/javafx.controls/javafx/scene/control/TitledPane.html

a simple test

#Region Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 600
    #JavaCompilerPath: 16, D:\jdk-16.0.1\bin\
#End Region

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private xui As XUI
    Private Button1 As B4XView
    Dim b1 As Button
    Dim tp As JavaObject
End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.RootPane.LoadLayout("Layout1")
    MainForm.Show
    b1.Initialize("b1")
    b1.PrefWidth = 100
    b1.PrefHeight = 20
    b1.Text = "myButton"
    tp.InitializeNewInstance("javafx.scene.control.TitledPane",Array("MyTitle",b1))
    tp.RunMethod("setCollapsible",Array(False))
    MainForm.RootPane.AddNode(tp,50,250,150,100)
End Sub

Sub Button1_Click
    xui.MsgboxAsync("Hello World!", "B4X")
End Sub
Sub b1_click
    Log("it works")
End Sub

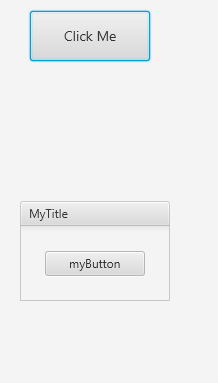

It looks like this



[TILogistic]

??

Google Image Result for https://www.mathworks.com/help/matlab/ref/uipanel_children_2.png

GroupBox / TitledBorder in JavaFX 2?

Is there something like a GroupBox or TitledBorder available on JavaFX 2? Thanks for any hint :-)

stackoverflow.com



[TILogistic]

forum:

GroupBox

Is there any solution for the "old" GroupBoxes ? or

www.b4x.com



[cklester]

forum:

GroupBox

Is there any solution for the "old" GroupBoxes ? or

www.b4x.com

Thanks, @oparra ! I should have searched for "groupbox" but I forgot that's what they were called.
