B4J Question HTMLEditorWrapper - Edit HTML

T201016 · May 23, 2022

Hello,
I have a question about the text editor from the example: HTMLEditorWrapper

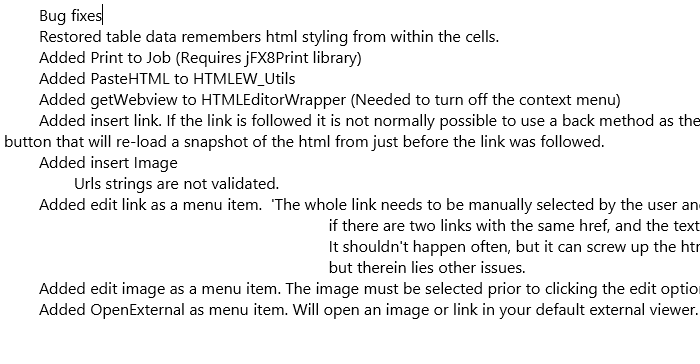

Well, if you want to print the entire text (see: ScreenShot_0.png) on an A4 sheet,
I only get a fragment of the text printout (ScreenShot_1.png).
I checked the printer parameters, but nothing seems to be wrong
setting, such as multi-page 4 in 1 printing.

I print using the function below,
where "PrintOut" is the content of the text to be printed:

PrintToJobRun:

Public Sub PrintToJobRun(Job As Object, PrintOut As String) As ResumableSub
    Dim WebV As B4XView = HTMLEditor1.As(JavaObject).RunMethod("lookup",Array("WebView"))
    If WebV.IsInitialized Then
'
'        May be needed to hide the caret, I've seen it once or twice on prints
'        PRINTOUT of formatted text in HtmlText. (don't do anything!)
'
        Dim OrigHTML As String = HTMLEditor1.HtmlText
        HTMLEditor1.HtmlText = PrintOut

        Dim JS As JavaObject
        JS.InitializeStatic("org.jsoup.Jsoup")
        Dim Doc As JavaObject = JS.RunMethod("parse", Array(HTMLEditor1.HtmlText))

        Dim Body As JavaObject = Doc.RunMethod("body",Null)
        Dim PropStr As String = Body.RunMethod("attr",Array("style"))
        Body.RunMethod("attr",Array("style","caret-color:transparent;" & PropStr))

        Dim WebE As JavaObject = WebV.As(JavaObject).RunMethodJO("getEngine",Null)
        WebE.RunMethod("print",Array(Job))
        Sleep(50)
'
'        Unhide the caret
'
        HTMLEditor1.HtmlText = OrigHTML
        HERequestFocus
        Return True
    Else
        Return False
    End If
End Sub

Thank you in advance for your help in explaining how to actually print in A4 format, the entire content of the text.

stevel05 · May 25, 2022

Try this one, You'll see the changes I've made to the Initialize_A4 sub.

Basically they are

Created a new form to display the preview and a new layout to keep them separate and avoid possible timing issues with resizing the label.
Set some padding on the labels to avoid clipping at the right edge of the print.
Set the fontsizes in code, probably not needed if you check the layout fontsizes are the same, but it's probably be easier to maintain.
Added an option to use the PrintDialog (it made it easier to test so I left it there)
Set the label width and height to the reported printable width and height from the printerLayout
Removed the wait on the preview form just so it's easier to compare the preview and the...

Magma · May 23, 2022

Without using this library.. with little knowledge i have... I think that you must create a table with some pixels width and then into it a column 100% with width <600pixels (<table><tr><td>)...

as i remember an A4 is about 600pixels at 72dpi (screen resolution)

Simulate A4 page in HTML

I need to create an HTML page with A4 paper size. I know that A4 paper size in pixels is: 595px x 842px (string No. 10-11). But while I put those sizes and try to print the page (I print to PDF f...

stackoverflow.com

T201016 · May 23, 2022

I invoke the function : PrintToJobRun(...)

PrintToJobRun:

            Dim PJ As PrinterJob = PrinterJob_Static.CreatePrinterJob
            Dim JS As JobSettings = PJ.GetJobSettings
            If JobName = "" Then JobName = "New 1"
            JS.SetJobName(JobName)
            If PJ.ShowPageSetupDialog(Null) = False Then
                PJ.CancelJob
                HERequestFocus
                Return False
            End If
            If PJ.ShowPrintDialog(Null) = False Then
                PJ.CancelJob
                HERequestFocus
                Return False
            End If
            Wait For (PrintToJobRun(PJ.GetObject, HTMLEW_Utils.GetHTMLfromClipboard)) Complete (EndJop As Boolean)
            If EndJop = True Then
                xui.Msgbox2Async("File: "&JobName&CRLF&"Successfully spooleded to the printer queue.", "Printer Job","OK","","",Null)
            End If
            If PJ.EndJob = True Then
                Dim myClipBoard As JavaObject
                myClipBoard.InitializeStatic("javafx.scene.input.Clipboard")
                myClipBoard.RunMethodJO("getSystemClipboard",Null).RunMethod("clear",Null)
            End If

T201016 · May 23, 2022

Without using this library.. with little knowledge i have... I think that you must create a table with some pixels width and then into it a column 100% with width <600pixels (<table><tr><td>)...

as i remember an A4 is about 600pixels at 72dpi (screen resolution)

Thank you very much, I will try your method.
But I want formatted text (what I see on the screen, I want the printer to print me)
Thanks again for your quick response

Magma · May 23, 2022

hope you will find a solution...

this was just a thought... but i think will work...

stevel05 · May 23, 2022

The print to job sub as provided should print the content of the HTMLEditor view. Changing the Editor content in the printtojob sub can cause timing issues as the page has to be loaded before it can be printed. It is difficult to see what you are trying to achieve from the code you have posted.

When I tested it, just adding the code to hide the cursor was OK with the given delays. If you need more help, can you post your project?

T201016 · May 23, 2022

stevel05 said:
The print to job sub as provided should print the content of the HTMLEditor view. Changing the Editor content in the printtojob sub can cause timing issues as the page has to be loaded before it can be printed. It is difficult to see what you are trying to achieve from the code you have posted.

When I tested it, just adding the code to hide the cursor was OK with the given delays. If you need more help, can you post your project?

I welcome you, @stevel05
My goal is to print the content of the HTML editor view on an A4 sheet.
This is done with the button: btnPrints_Click.

Unfortunately, in my project, the printout of the HTML editor view content fits in the first quarter of A4 paper,
as if it were a 4-on-1 multi-page printout. In addition, the rest of the text is sometimes cut off invisible on the printout.

I have attached the sources.
I will be grateful for your help. Regards.

PS. i use in project: bcprov-jdk15on-154

Download: bcprov-jdk15on-154 www.java2s.com

stevel05 · May 23, 2022

Can you explain more how it should work? When I click the print button I see html code in a new window. If I uncomment the SharedCode.PrintToJob, I get the code printed on an A4Page using a PDF printer.

Unfortunately I can't open the fxml layout files I don't have SceneBuilder installed any more.

It looks as though you are printing the raw HTML, not the rendered output. Is that correct?

T201016 · May 24, 2022

stevel05 said:
Can you explain more how it should work? When I click the print button I see html code in a new window. If I uncomment the SharedCode.PrintToJob, I get the code printed on an A4Page using a PDF printer.

Unfortunately I can't open the fxml layout files I don't have SceneBuilder installed any more.

It looks as though you are printing the raw HTML, not the rendered output. Is that correct?

Hello again.
I tried to explain my steps step by step:

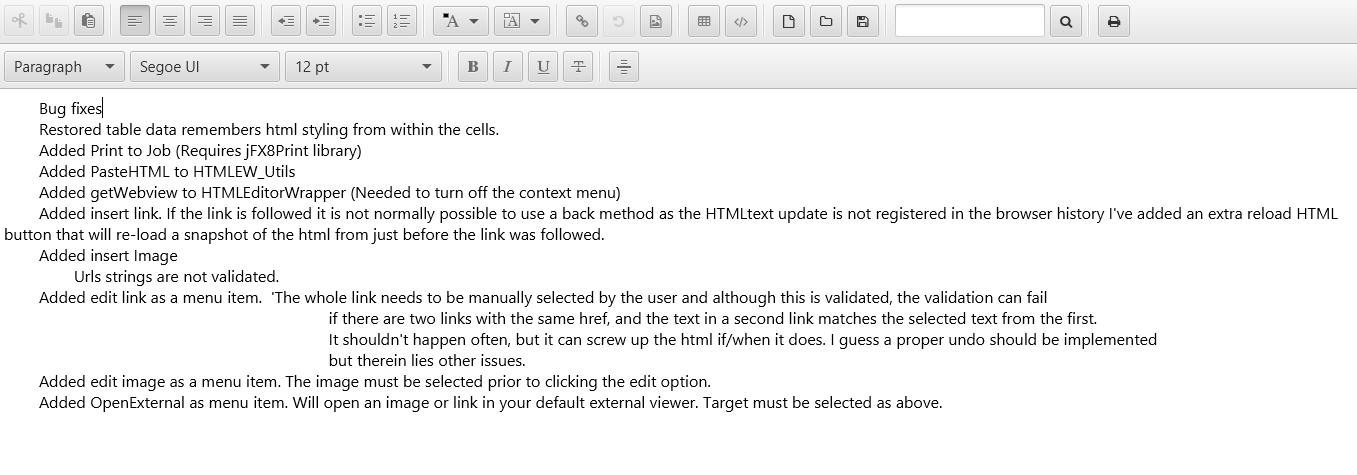

01. STEP0-HTML View Editor.PNG
- I mark the entire content of the text;
- I remember selected text to the cache;
- I click print (btnPrints_Click);
- In the new window I can see the HTML code (STEP1-Print preview.PNG);
- Result from the printer (STEP2-from the Printer.PNG)

02. STEP0-HTML View Editor.PNG
- I mark the entire content of the text;
I DON'T REMEMBER THE SELECTED TEXT FOR THE CACHE;
- I click print (btnPrints_Click);
- In the new window I can see normal text (STEP3-Print preview.PNG);
- Result from the printer (STEP4-from the Printer.PNG)

Progress on 01 and 02 is correct and in line with my expectations.
The only thing that worries me is the results from the printer. Both prints are not arranged

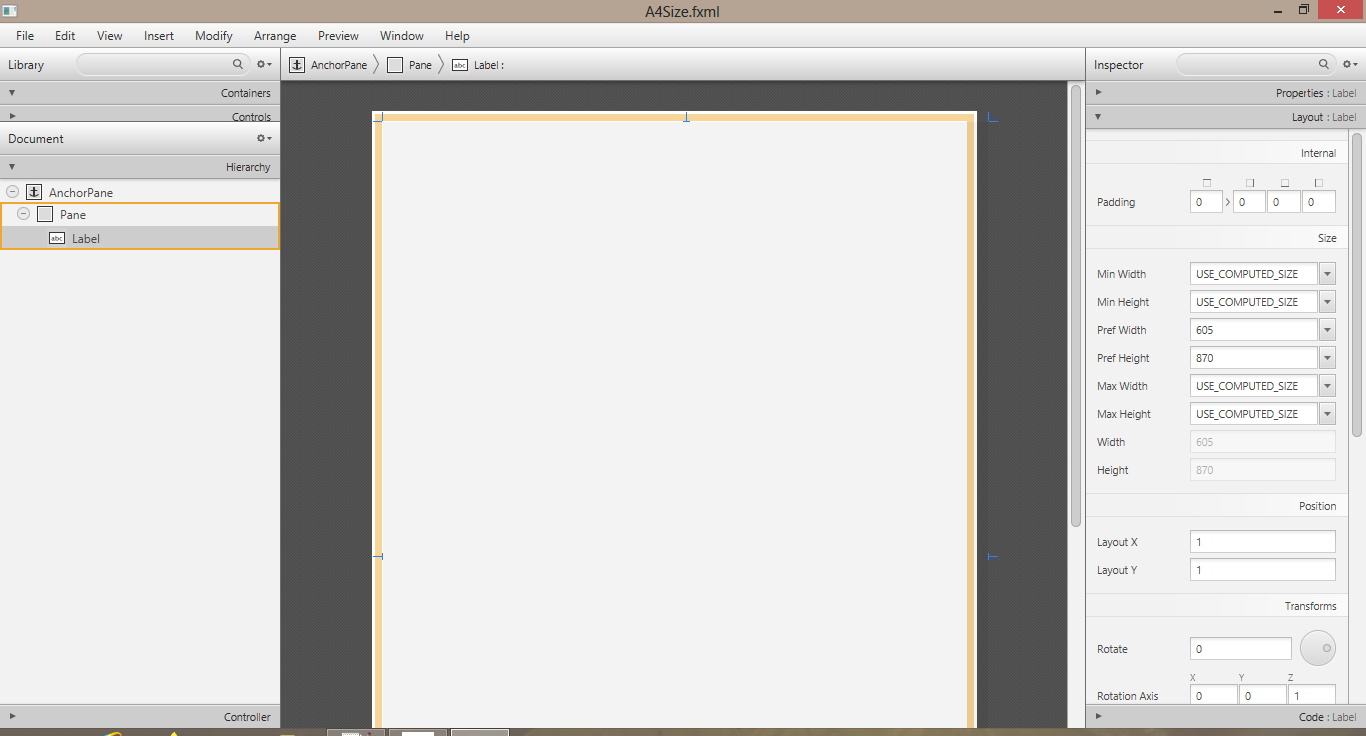

on the entire surface of an A4 sheet. I attached the 01_A4Size.FXML.PNG file
in which the parameters of the "LblTotal" Label, in which I am placing it, are visible
the content of the selected text in an HTML editor.

I have doubts about the correct size of the A4 sheet in the FXML layout,
which I accepted for A4 = 605x870, for Letter = 620x775.
Perhaps they cause such an effect of printouts from the printer (?).

Thank you for your interest and help so far
Regards, have a good day.

stevel05 · May 24, 2022

Have you tried switching the paper from landscape to portrait in the Printer dialog?

T201016 · May 24, 2022

I will add that the laptop screen is
resolution: 1366x768. Does it matter?

T201016 · May 24, 2022

stevel05 said:
Have you tried switching the paper from landscape to portrait in the Printer dialog?

No, it is fixed vertically.

stevel05 · May 24, 2022

T201016 said:
I will add that the laptop screen is
resolution: 1366x768. Does it matter?

No, you are not printing the whole screen. Just the view which you have set the size of in the layout.

stevel05 · May 24, 2022

This is what I get printing to a pdf.

T201016 · May 24, 2022

stevel05 said:
No, you are not printing the whole screen. Just the view which you have set the size of in the layout.

So in the FXML system I have to specify different proportions? I'll work on it. I will let you know when something comes out. Thanks

stevel05 · May 24, 2022

Do not use the FXML layout, create a new bjl layout with the Designer with a label of the same dimensions, Just don't anchor it to width or height.

T201016 · May 24, 2022

stevel05 said:
This is what I get printing to a pdf.

Yes, indeed a crashed view to the right of the margin. So I should increase the view size ...

T201016 · May 24, 2022

stevel05 said:
Do not use the FXML layout, create a new bjl layout with the Designer with a label of the same dimensions, Just don't anchor it to width or height.

I'll try to do just that. Thanks again for your support.

stevel05 · May 24, 2022

Not really as the size then wouldn't be A4. You probably need to change the wrapping or the padding.

stevel05 · May 24, 2022

You also need to bear in mind that although the A4 page size is 605 x 870 pixels, the printer will have a margin in which you can't print, so you will need to reduce the layout size to take account of these, or adjust it once the layout is loaded.
