B4J Question [ jSD_XuiView ] Card Flip Animation dont works on b4j

[Waldemar Lima]

I'm trying to convert the example done in b4a to b4j, but it is not showing animation of the flip cards!

Can anyone help me? below are the sources.

B4A source ( main source by @LucasMS ) ( Topic Here )
B4J source ( DOWNLOAD ) ( I applied both algorithms, but none of them worked... )

B4j doesn't support flip card animations ?



[Star-Dust]

B4j doesn't support flip card animations ?

No. the rotate(x,y,z) method is only for b4a and b4i in SD_XuiView library

See here

[B4X] [XUI] SD XUIView

I'm happy to announce the publication of my new B4XView library. This library adds to the XUi Views the native views of the three platforms (Android / IOS / Desktop) so that they can be managed by Design, using them as XUI views without having to change its type in the Globals Sub. With this...

www.b4x.com



[TILogistic]

??

JavaFX - Transformations

JavaFX - Transformations - Transformation is nothing but changing graphics into something else by applying some rules. These rules allow you to apply various types of transformations such as shifting the position of the object by maintaining its shape, rotating the object based on an angle...

www.tutorialspoint.com



[Star-Dust]

??

JavaFX - Transformations

JavaFX - Transformations - Transformation is nothing but changing graphics into something else by applying some rules. These rules allow you to apply various types of transformations such as shifting the position of the object by maintaining its shape, rotating the object based on an angle...

www.tutorialspoint.com

It refers to a specific library not in general how to do this



[TILogistic]

only java B4A sample:

private Sub FlipImageJava (RotationX As Float, RotationY As Float, Rotation As Float)
    jo.RunMethod("flipImage", Array As Object(mBaxView, RotationX, RotationY, Rotation, 1280.0f * Density))
End Sub

#IF JAVA
public void flipImage (ImageView imageView, float RotationX, float RotationY, float Rotation, float CameraDistance)
{
    import android.widget.ImageView;
    import android.util.DisplayMetrics;

    //BA.LogInfo("flipImage: In");

    /*---------------------------------------------------------------------------------------
    //Better to use parameter CameraDistance as B4A already provides the information required.
    //However, here's a way to do it:
    DisplayMetrics metrics = getResources().getDisplayMetrics();
    float CameraDistance = 1280.0f * (metrics.density * 160f);
    ----------------------------------------------------------------------------------------
    */
    float PivotX = imageView.getWidth()/2.0f;                    //'width centre
    float PivotY = imageView.getHeight()/2.0f;                    //height centre

    imageView.setPivotX(PivotX);
    imageView.setPivotX(PivotX);
    imageView.setPivotY(PivotY);
    imageView.setRotationX(RotationX);
    imageView.setRotationY(RotationY);
    imageView.setRotation(Rotation);
    imageView.setCameraDistance(CameraDistance);

    //BA.LogInfo("flipImage: Out");
}
#End If

Card flip (flip between 2 images)

Hi I am looking to flip card (many cards), meaning flip between 2 images with the card flip effect. I found this, but this is very limited library https://www.b4x.com/android/forum/threads/flipimageview.37396/#post-274973 is there other solution? library?

www.b4x.com

simple demo JavaFX - Transformations

Rotate Application 90 Degress

For ease of coding, I've laid out the App 1080 wide by 1920 tall. (Portrait) All my references are based on those positions. Now I need to run the App on a 1920*1080 display so I need to rotate everything to fit the screen, can anyone point me in the right direction? Thanks

www.b4x.com



[Waldemar Lima]

No. the rotate(x,y,z) method is only for b4a and b4i in SD_XuiViee library

See here

[B4X] [XUI] SD XUIView

I'm happy to announce the publication of my new B4XView library. This library adds to the XUi Views the native views of the three platforms (Android / IOS / Desktop) so that they can be managed by Design, using them as XUI views without having to change its type in the Globals Sub. With this...

www.b4x.com

is there any alternative that has the same result but in b4j?



[Star-Dust]

only java sample:

Card flip (flip between 2 images)

Hi I am looking to flip card (many cards), meaning flip between 2 images with the card flip effect. I found this, but this is very limited library https://www.b4x.com/android/forum/threads/flipimageview.37396/#post-274973 is there other solution? library?

www.b4x.com

this is only for b4a



[Star-Dust]

simple demo JavaFX - Transformations

Rotate Application 90 Degress

For ease of coding, I've laid out the App 1080 wide by 1920 tall. (Portrait) All my references are based on those positions. Now I need to run the App on a 1920*1080 display so I need to rotate everything to fit the screen, can anyone point me in the right direction? Thanks

www.b4x.com

It wants to rotate on the Z axis, and there is no general method for views or nodes



[Star-Dust]

is there any alternative that has the same result but in b4j?

see here

3D rotation

Hi All, I just started on B4J yesterday so forgive me if im missing something here. I want to squirt some numbers into B4J via Bluetooth serial port from a 6 axis IMU i will be making. I have a 3D rectangle in designer (shapes - box(FX8) that i have full control over at DESIGN time BUT i want to...

www.b4x.com



[TILogistic]

It wants to rotate on the Z axis, and there is no general method for views or nodes

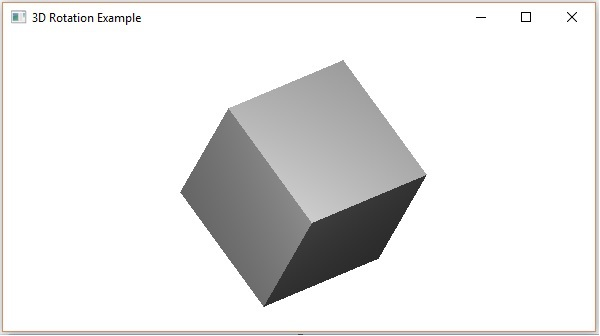

see the tutorial of Transformations in 3D Objects

Rotate rxBox = new Rotate(0, 0, 0, 0, Rotate.X_AXIS);
Rotate ryBox = new Rotate(0, 0, 0, 0, Rotate.Y_AXIS);
Rotate rzBox = new Rotate(0, 0, 0, 0, Rotate.Z_AXIS);



[LucaMs]

These two threads could lead to the solution:
https://stackoverflow.com/questions/37117475/attach-back-cover-to-a-card-image
https://stackoverflow.com/questions/19896562/flip-a-card-animation

If anyone wants to try using inline java...
Otherwise you'll have to wait for Erel... Sunday.
