"bored of seeing the same old Android Loader? SimpleArcLoader is one thing you should try"
This is a wrap of SimpleArcLoader library: https://github.com/generic-leo/SimpleArcLoader
And will share it to you guys "as-is".
Designer Custom View Supported.
Classes:
Just extract the content of the zip (including AAR) in your Additional Library folder.
This is a wrap of SimpleArcLoader library: https://github.com/generic-leo/SimpleArcLoader
And will share it to you guys "as-is".
Designer Custom View Supported.
Classes:
- JSArcConfiguration - configure colors, width and text of your loader
- JSSimpleArcDialog (DIALOG)
- JSSimpleArcLoader (VIEW) - Add it to activity, panel, or layout (designer)
JSSimpleArcLoader
Version: 0.3
Version: 0.3
- JSArcConfiguration
Fields:- STYLE_COMPLETE_ARC As Int
- STYLE_SIMPLE_ARC As Int
- Initialize
- IsInitialized As Boolean
- AnimationSpeed As Int [write only]
- AnimationSpeedWithIndex As Int [write only]
- ArcMargin As Int [write only]
- ArcWidthInPixel As Int [write only]
- Colors() As Int [write only]
- LoaderStyle As Int [write only]
- Text As String [write only]
- TextColor As Int [write only]
- TextSize As Int [write only]
- TypeFace As Typeface [write only]
- JSSimpleArcDialog
Events:- OnDismiss
- Dismiss
Dismiss ArcDialog - Initialize (eventName As String)
Initialize JSSimpleArcDialog
ba:
eventName: - Initialize2 (eventName As String, config As JSArcConfiguration)
Initialize JSSimpleArcDialog
ba:
eventName: event name
config: JSArcConfiguration - IsInitialized As Boolean
- IsShowing As Boolean
Check if dialog is showing
Return type: @return:IsShowing - Show (Cancelable As Boolean)
Show JSSimpleArcDialog with default configuration - Show2 (config As JSArcConfiguration, Cancelable As Boolean)
Show JSSimpleArcDialog with custom configuration
config: JSArcConfiguration
Cancelable:
- JSSimpleArcLoader
Methods:- BringToFront
- DesignerCreateView (paramPanelWrapper As PanelWrapper, paramLabelWrapper As LabelWrapper, paramMap As Map)
- Initialize
- Invalidate
- Invalidate2 (arg0 As Rect)
- Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
- IsInitialized As Boolean
- IsRunning As Boolean
Checks if ArcLoader is running.
Return type: @return:true, if successful - RemoveView
- RequestFocus As Boolean
- SendToBack
- SetBackgroundImage (arg0 As Bitmap)
- SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
- SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
- SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
- SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
- Start
Start ArcLoader animation. - Stop
Stop ArcLoader animation. - refreshArcLoaderDrawable (configuration As JSArcConfiguration)
Refresh ArcLoader configuration.
configuration: JSArcConfiguration
- Background As Drawable
- Color As Int [write only]
- Enabled As Boolean
- Height As Int
- Left As Int
- Parent As Object [read only]
- Tag As Object
- Top As Int
- Visible As Boolean
- Width As Int
B4X:

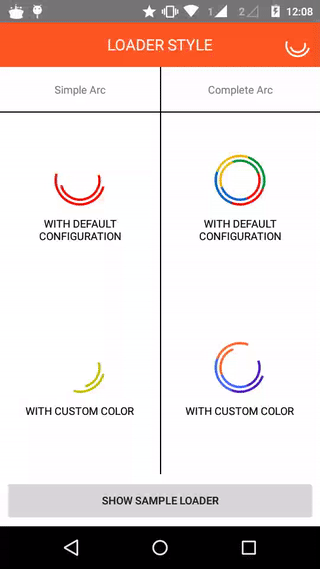

Sub Activity_Create(FirstTime As Boolean)
Dim size As Int = Activity.Width / 2 - 15%x / 2
Dim left As Int = 5%x
Dim top As Int = 10%y
'-----------
Dim arc1 As JSSimpleArcLoader
arc1.Initialize
Activity.AddView(arc1, left, top, size, size)
'-----------
left = arc1.Left + arc1.Width + 5%x
Dim arc2 As JSSimpleArcLoader
arc2.Initialize
Dim config As JSArcConfiguration
config.Initialize
config.LoaderStyle = config.STYLE_COMPLETE_ARC
arc2.refreshArcLoaderDrawable(config)
Activity.AddView(arc2, left, top, size, size)
'-----------
top = arc2.Top + arc2.Height + 5%x
left = 5%x
Dim arc3 As JSSimpleArcLoader
arc3.Initialize
Dim config As JSArcConfiguration
config.Initialize
config.LoaderStyle = config.STYLE_SIMPLE_ARC
config.Colors = Array As Int(0xFFE91E63)
arc3.refreshArcLoaderDrawable(config)
Activity.AddView(arc3, left, top, size, size)
'-----------
left = arc3.Left + arc3.Width + 5%x
Dim arc4 As JSSimpleArcLoader
arc4.Initialize
Dim config As JSArcConfiguration
config.Initialize
config.LoaderStyle = config.STYLE_COMPLETE_ARC
config.Colors = Array As Int(0xFFE91E63, 0xFF3F51B5, 0xFF9C27B0)
arc4.refreshArcLoaderDrawable(config)
Activity.AddView(arc4, left, top, size, size)
'----------
top = arc4.Top + arc4.Height + 10dip
Dim btnShowDialog As Button
btnShowDialog.Initialize("btnShowDialog")
Activity.AddView(btnShowDialog, 20dip, top, 100%x - 40dip, 56dip)
btnShowDialog.Text = "Show ArcDialog"
End Sub

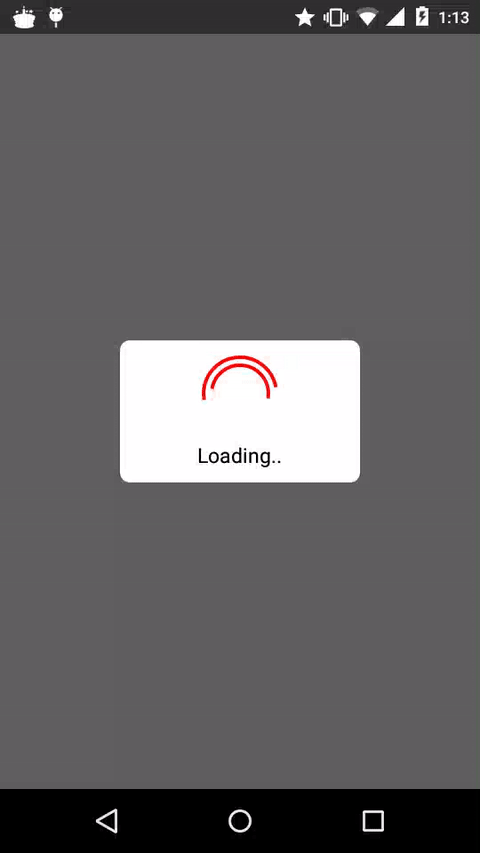

Sub btnShowDialog_Click
Try
Dim config As JSArcConfiguration
config.Initialize
config.LoaderStyle = config.STYLE_COMPLETE_ARC
config.Colors = Array As Int(0xFFE91E63, 0xFF3F51B5, 0xFF9C27B0, 0xFFFFC107, 0xFFF44336, 0xFF4CAF50, 0xFF03A9F4)
config.Text = "Loading..Please wait..."
Dim dlg As JSSimpleArcDialog
dlg.Initialize("dlg")
dlg.Show2(config, True)
Catch
Log(LastException)
End Try
End Sub
Sub dlg_OnDismiss
ToastMessageShow("dismiss", False)
End SubJust extract the content of the zip (including AAR) in your Additional Library folder.
