Android Question Left Drawer Unable to Show.

[lkching7]

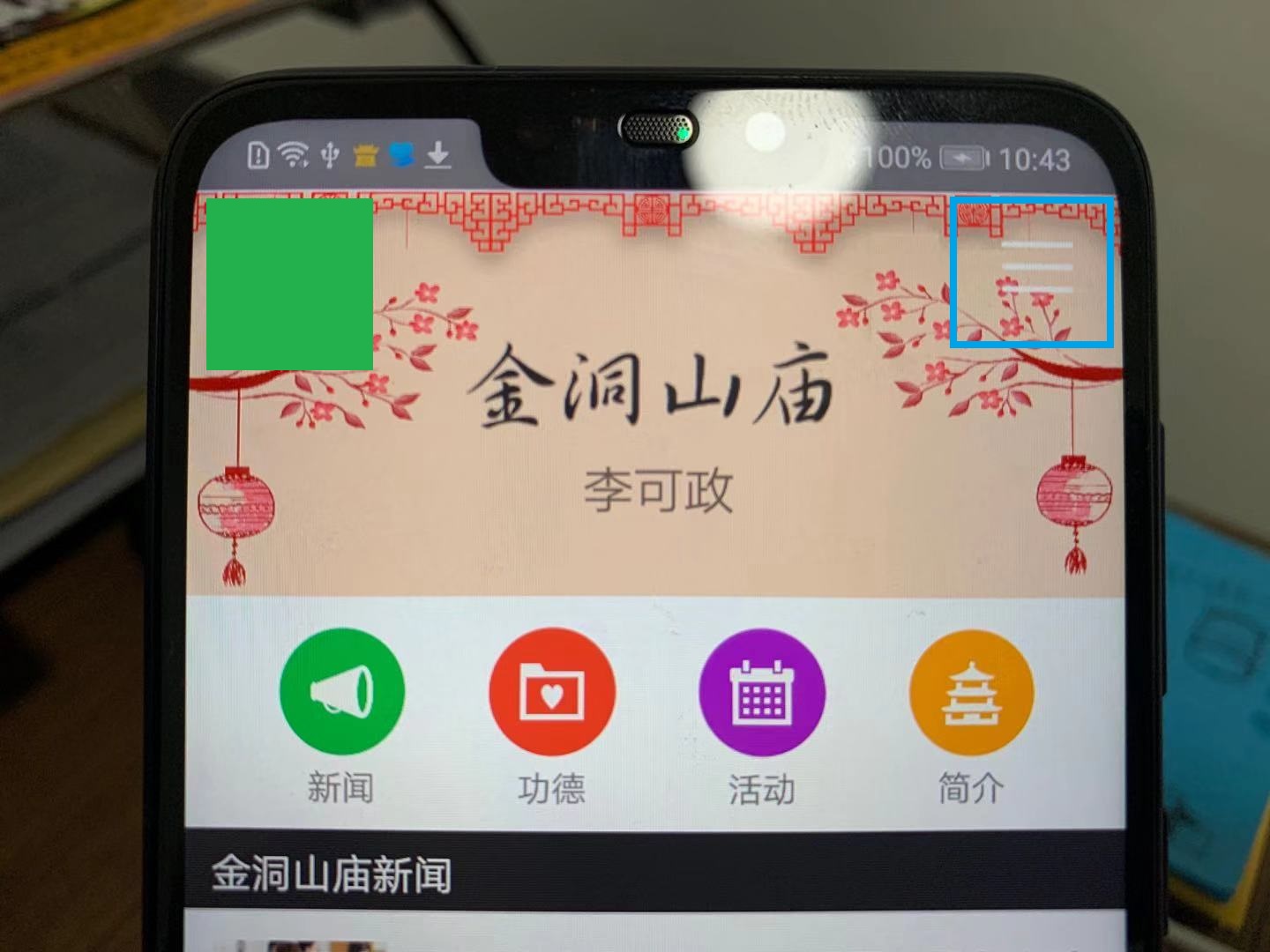

When I Create a Button In Green Area. When I Click The Button. The Left Drawer Would Not Show.
But When I Move The Button To Right Hand Side (Blue Area). The Left Drawer Will Come Out

Drawer.Initialize(Me, "Drawer", Activity, 200dip)
Drawer.LeftPanel.LoadLayout("lyDrawerLeft")

Sub Activity_KeyPress (KeyCode As Int) As Boolean
    If KeyCode = KeyCodes.KEYCODE_BACK And Drawer.LeftOpen Then
        Drawer.LeftOpen = False
        Return True
    End If
    Return False
End Sub

Sub btnSideMenu_Click
    Drawer.LeftOpen=True
End Sub



[Erel]

Can you reproduce it in a small project?



[lkching7]

Can you reproduce it in a small project?

Thank Erel ：)



[Erel]

I thought that you are asking about the action bar buttons (which you can and should use instead of these buttons).

Touches in the "ExtraWidth" section are intercepted by the drawer. You can decrease ExtraWidth in B4XDrawer if you like.

Tip: never use CustomListView module. Only xCustomListView library.
