Android Question ListView with squared items

[ThePuiu]

Is there a library that can build a listview similar to the one attached? It must support vertical scrolling, self-alignment of items and click item. If not, how can such a control be simulated?
Thank you!



[LucaMs]

https://www.b4x.com/android/forum/threads/customlistview-a-flexible-list-based-on-scrollview.19567/



[eps]

and ULV if you want to as well - provided by @Informatix (a paid for library)



[ThePuiu]

https://www.b4x.com/android/forum/threads/customlistview-a-flexible-list-based-on-scrollview.19567/

Does CustomListView allow you to set the panel width or is it equal to the width of the container? Same for ULV?



[LucaMs]

It is based on ScrollView, so the internal panel width is equal to the scrollview width.



[ThePuiu]

There are two controls in the attached image: first one allows the vertical scroll, and the lower one allows a single row and scroll only horizontally. If there is no control with similar behavior, how can I best simulate their behavior?



[RauchG]

From Klaus...

https://www.b4x.com/android/forum/threads/customlistplushorizontal-load-and-save.79632/#post-504526



[udg]

If there is no control with similar behavior, how can I best simulate their behavior?

If using CLV, just prepare a layout with two of them: one in the upper area for the "matrix" items and a second one in the lower area of your layout for the horizontal-scrolling one. This "second CLV" could indeed be a simpler HorizontalScrollView (so your design will be CLV+HSV).
Self-aligment: you compute the relative position when adding each item, so it's done in code.
Click events: no problem; use a single click event and Sender to know which item was clicked.



[ThePuiu]

Based on Klaus example and with udg's explanations I'll start to build it! Hope I'll don't have any problems with ItemClick event...



[RauchG]

Based on Klaus example and with udg's explanations I'll start to build it! Hope I'll don't have any problems with ItemClick event...

I could help you



[ThePuiu]

Done, it working like a charm! Thank you all!



[ThePuiu]

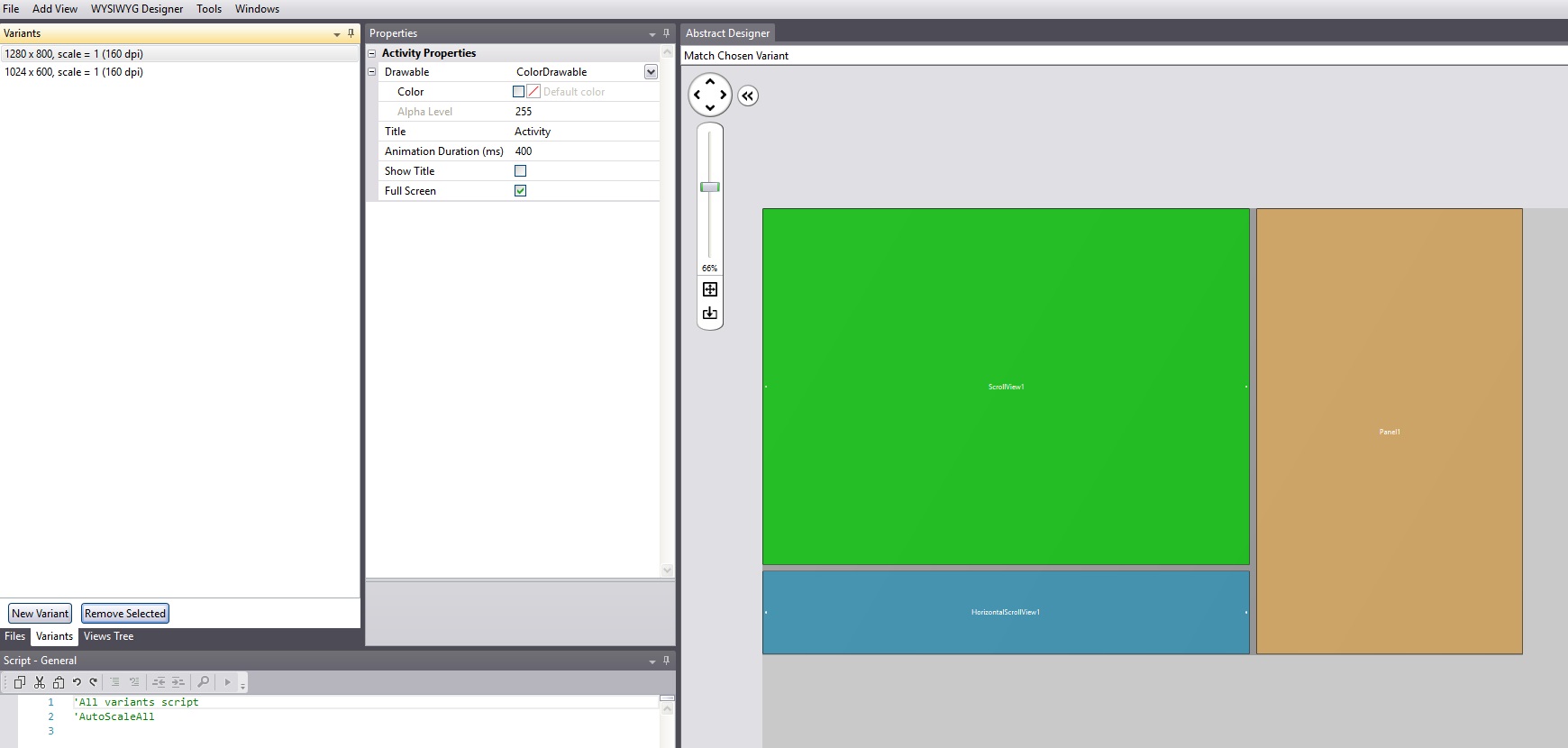

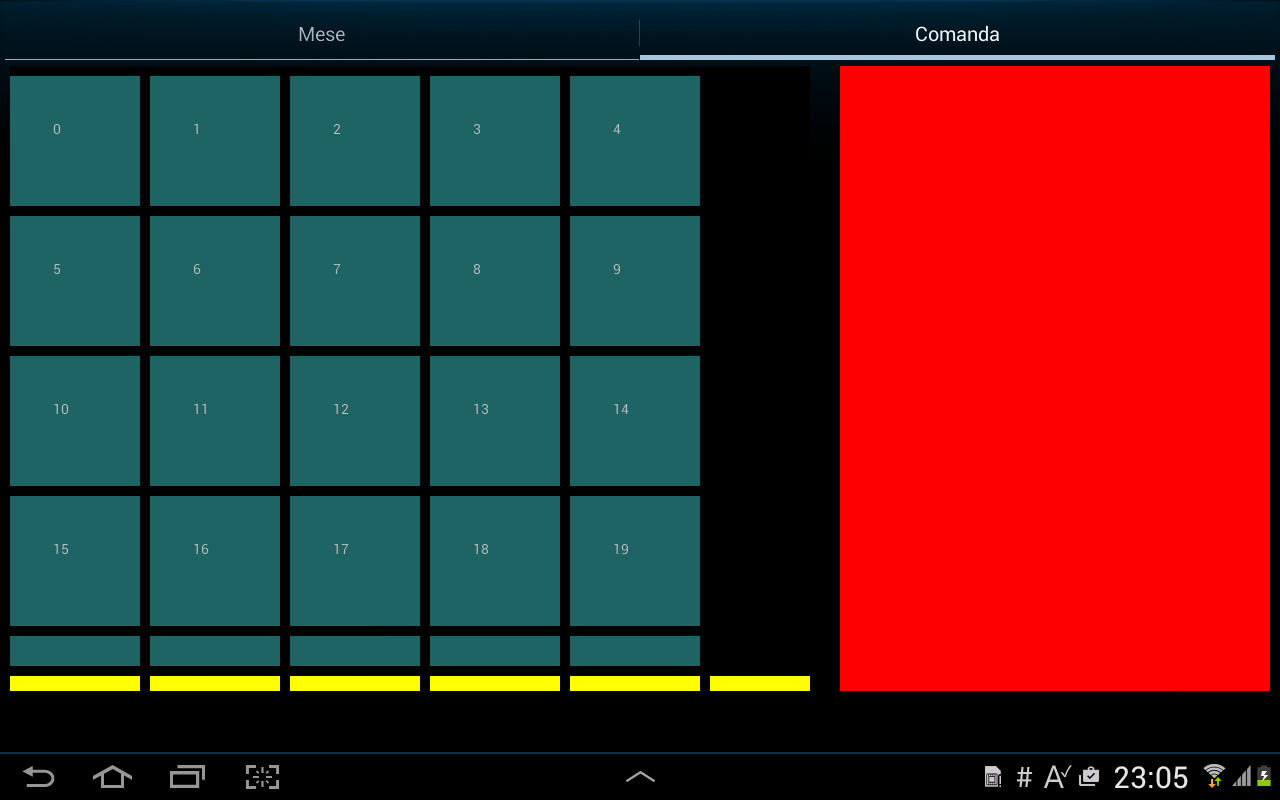

I have a problem ... it is not strictly related to this topic but: although in the designer appears correctly (pics a.jpg) on my tablets it appears truncated (pics b.png). The code used is: Scale.SetReferenceLayout (800, 1280, 1) What do not I do well?



[Erel]

Please start a new for this.



[DonManfred]

What do not I do well?

Posting in the wrong thread.
You always should create a new thread for any new question you have.
