Android Question MeasureMultilineTextHeight and CSBuilder

[alon]

Hi,

I am using CSBuilder on a Label,
for a reason that I do not understand, the Height I am getting from MeasureMultilineTextHeight ,
is not as it should be, it is too short for all the text.


Thanks in advance.

Sub DrawListView

    Dim Table As List
    Dim i As Int
    Dim su As StringUtils
    '

    clvDoh.Clear

    Dim sQuery As String
    sQuery="select * " & _
           " from kriot WHERE LeTarik = " & _
            DBUtils.Fmsg(sCurDate)

    If Starter.bShowAll = False Then
        sQuery=sQuery &  " AND status = 0 "
    End If

    '
    sQuery=sQuery & " ORDER BY status,RecId"


    Table = DBUtils.ExecuteMemoryTable(Starter.sql,sQuery  ,Null  , 0)

    If Table.Size =0 Then Return  ' if no records

    For i = 0 To Table.Size - 1 'Creating The Itmes Parents and childs
        Cols = Table.Get(i)
        clvDoh.Add(CreateListItem( clvDoh.AsView.Width, clvDoh.AsView.Height) , $"Item #${i}"$) '24-10-2019
    Next

End Sub
Sub CreateListItem( Width As Int, Height As Int) As Panel
    Dim p As Panel
    Dim su As StringUtils
    Dim stmp As String
    Dim item As ItemProp
    p.Initialize("")
    p.SetLayout(0 ,  0,  Width, Height) '24-10-2019
    p.LoadLayout("listitem")
    p.Color = Colors.White

    lblDetails.TextColor = Colors.Black
    lblTel.TextColor = Colors.Black

    Try
        item.Initialize
        item.Recid = Cols(0)
        item.MisparTofes = Cols(1)
        item.Shlav = Cols(13)


        lblDetails.Tag = item    '
        If ModFunc.Val (Cols(13)) > 0 Then
            stmp =  Cols(6).Trim & " [ ק " & Cols(1) & "/" & Cols(13) & " ]"  & CRLF    &  Cols(5).Trim                 'sha + shemlako
        Else
            stmp =  Cols(6).Trim & " [ ק " & Cols(1) & " ]"  & CRLF    &  Cols(5).Trim                 'sha + shemlako
        End If


        If ModFunc.Len(Cols(7)) > 0 Then 'ktovetlako
            stmp = stmp &  CRLF & Cols(7)
        End If

        If ModFunc.Len(Cols(10)) > 0 Then 'teorparit
            stmp = stmp & CRLF & "תאור: " & Cols(10)
        End If

        If ModFunc.Len(Cols(11)) > 0 Then 'degem
            stmp = stmp & CRLF & "דגם: " & Cols(11)
        End If
        '===================================
        '26-11-2017
        If Starter.bShowTarikHatkana Then
            If ModFunc.Len(Cols(25)) > 0 And Cols(25) <> "01.01.1900" Then 'TarikHatkana
                stmp = stmp & CRLF & "תאריך התקנה: " & Cols(25)
            End If
        End If
        '===================================
        If ModFunc.Len(Cols(12)) > 0 Then 'takala
            stmp = stmp & CRLF & Starter.sTakalaName &  Cols(12)  '26-09-2019
        End If

        stmp = stmp & CRLF
        '==================================
        '21-01-2018
        If ModFunc.Len(Cols(12)) > 0 Then 'takala
            cs =  ModFunc.MarkPattern2(stmp, "\d\d\d\d\d\d\d\d\d+", 0,Starter.sTakalaName &  Cols(12)) '19-11-2019
        Else
            cs =  ModFunc.MarkPattern(stmp, "\d\d\d\d\d\d\d\d\d+", 0)
        End If

        lblDetails.Text = cs
        cs.EnableClickEvents(lblDetails)
        '==================================
        lblTel.Text = Cols(8)
        If Cols(34).Length > 0 Then '26-09-2019 Akrai
            lblTel.Text = Cols(8) & CRLF & Cols(34)
            lblTel.Height = su.MeasureMultilineTextHeight (lblTel,lblTel.Text) + 1%y '18-11-2019
        End If
        '==================================
        '02-01-2018
        lblHatra.Visible = False
        If ModFunc.Val(Cols(18)) > 0 Then
            lblHatra.Top = lblTel.Top + lblTel.Height + 0.5%y '19-11-2019
            lblHatra.Text = "התראה " & Cols(18) & " דק'"
            lblHatra.Visible = True
        End If
        '==================================
        If stmp.Length > 0 Then
            lblDetails.Height= su.MeasureMultilineTextHeight(lblDetails, cs )+ 2%y
            iItemHeight = lblDetails.Height
        End If
        '==================================
        '07-01-2018
        lblOved.Visible = False
        If Starter.bMenahelAvoda Then
            If ModFunc.Len(Cols(26)) > 2 Then
                '18-11-2019 = Adding Cols(15)
                lblOved.Text = "טכנאי: " & Cols(15) & " | " & Cols(26).SubString2(0,Cols(26).Length -2)
                lblOved.Visible = True
                lblOved.Top = lblDetails.Top + lblDetails.Height   + 2%y
                iItemHeight = iItemHeight + lblOved.Height
            Else
                If ModFunc.Len(Cols(15)) > 2 Then
                    lblOved.Text = "טכנאי: " &  Cols(15)
                    lblOved.Visible = True
                    lblOved.Top = lblDetails.Top + lblDetails.Height  + 2%y
                    iItemHeight = iItemHeight + lblOved.Height + 2%y
                End If
            End If
        End If
        '==================================


    Catch
        Log(LastException)
    End Try
    p.Height = iItemHeight  '24-10-2019
    Return p
End Sub



[Erel]

  Dim sQuery As String
    sQuery="select * " & _
           " from kriot WHERE LeTarik = " & _
            DBUtils.Fmsg(sCurDate)

A bit better:

  Dim sQuery As String = $"select *
         from kriot WHERE LeTarik = ${DBUtils.Fmsg(sCurDate)}"$

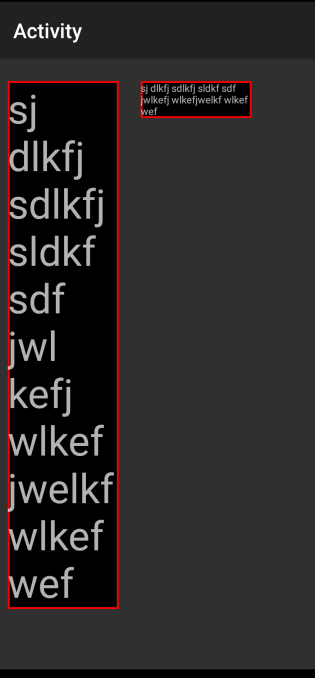

I've made a simple test and it does measure the CSBuilder string correctly:

Sub Activity_Create(FirstTime As Boolean)
   Activity.LoadLayout("1")
   Dim su As StringUtils
   Dim cs As CSBuilder
   Dim s As String = $"sj dlkfj sdlkfj sldkf sdf
jwlkefj wlkefjwelkf wlkef wef"$
   cs.Initialize.Size(40).Append(s).PopAll
   Label1.Text = cs
   Label1.Height = su.MeasureMultilineTextHeight(Label1, cs)
   cs.Initialize.Size(10).Append(s).PopAll
   Label2.Text = cs
   Label2.Height = su.MeasureMultilineTextHeight(Label2, cs)
End Sub



[alon]

  Dim sQuery As String
    sQuery="select * " & _
           " from kriot WHERE LeTarik = " & _
            DBUtils.Fmsg(sCurDate)

A bit better:

  Dim sQuery As String = $"select *
         from kriot WHERE LeTarik = ${DBUtils.Fmsg(sCurDate)}"$

I've made a simple test and it does measure the CSBuilder string correctly:

Sub Activity_Create(FirstTime As Boolean)
   Activity.LoadLayout("1")
   Dim su As StringUtils
   Dim cs As CSBuilder
   Dim s As String = $"sj dlkfj sdlkfj sldkf sdf
jwlkefj wlkefjwelkf wlkef wef"$
   cs.Initialize.Size(40).Append(s).PopAll
   Label1.Text = cs
   Label1.Height = su.MeasureMultilineTextHeight(Label1, cs)
   cs.Initialize.Size(10).Append(s).PopAll
   Label2.Text = cs
   Label2.Height = su.MeasureMultilineTextHeight(Label2, cs)
End Sub

Well in some cases it works fine but in some other cases it does not.
by the way in some devices everything looks fine.

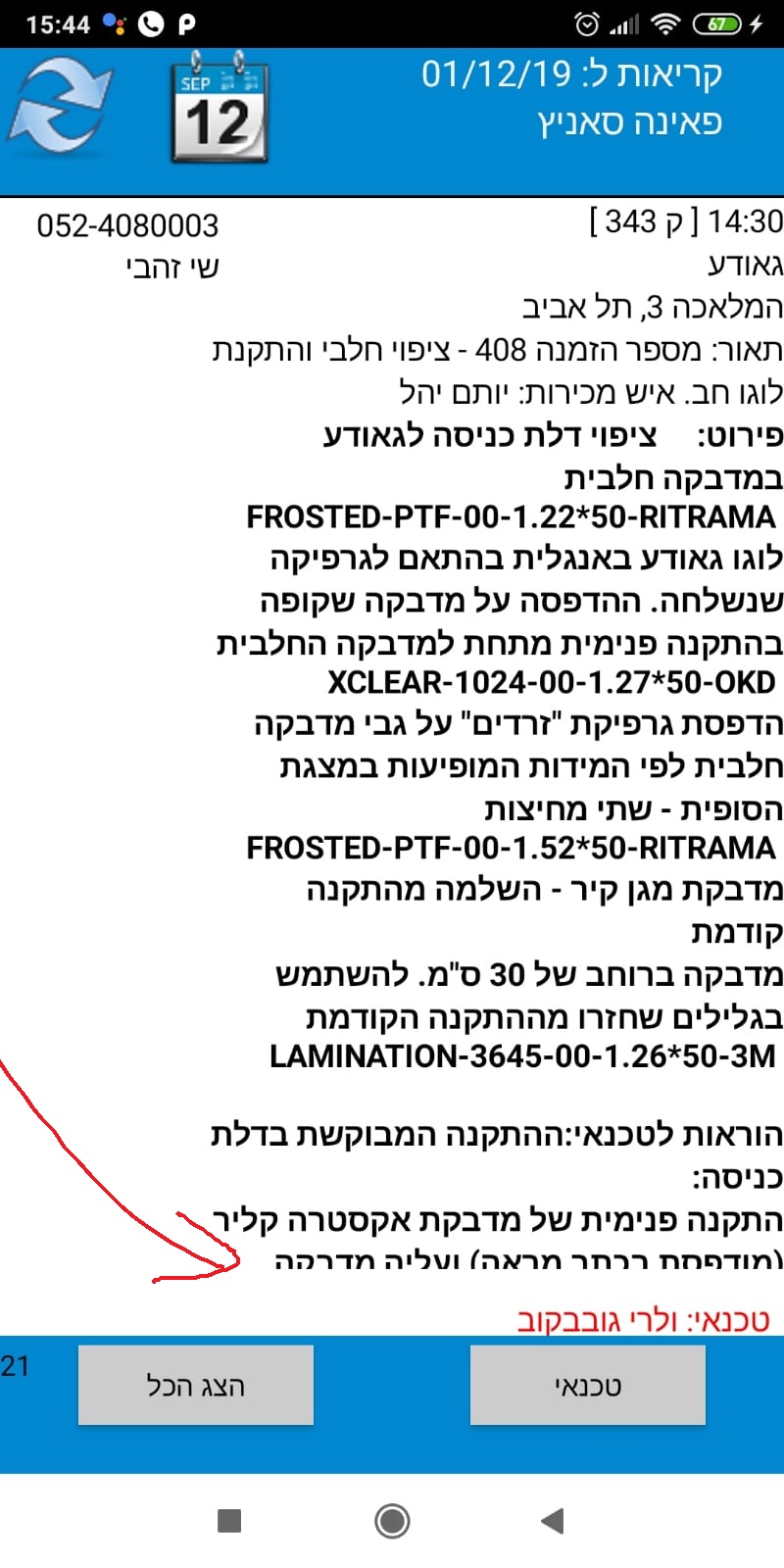

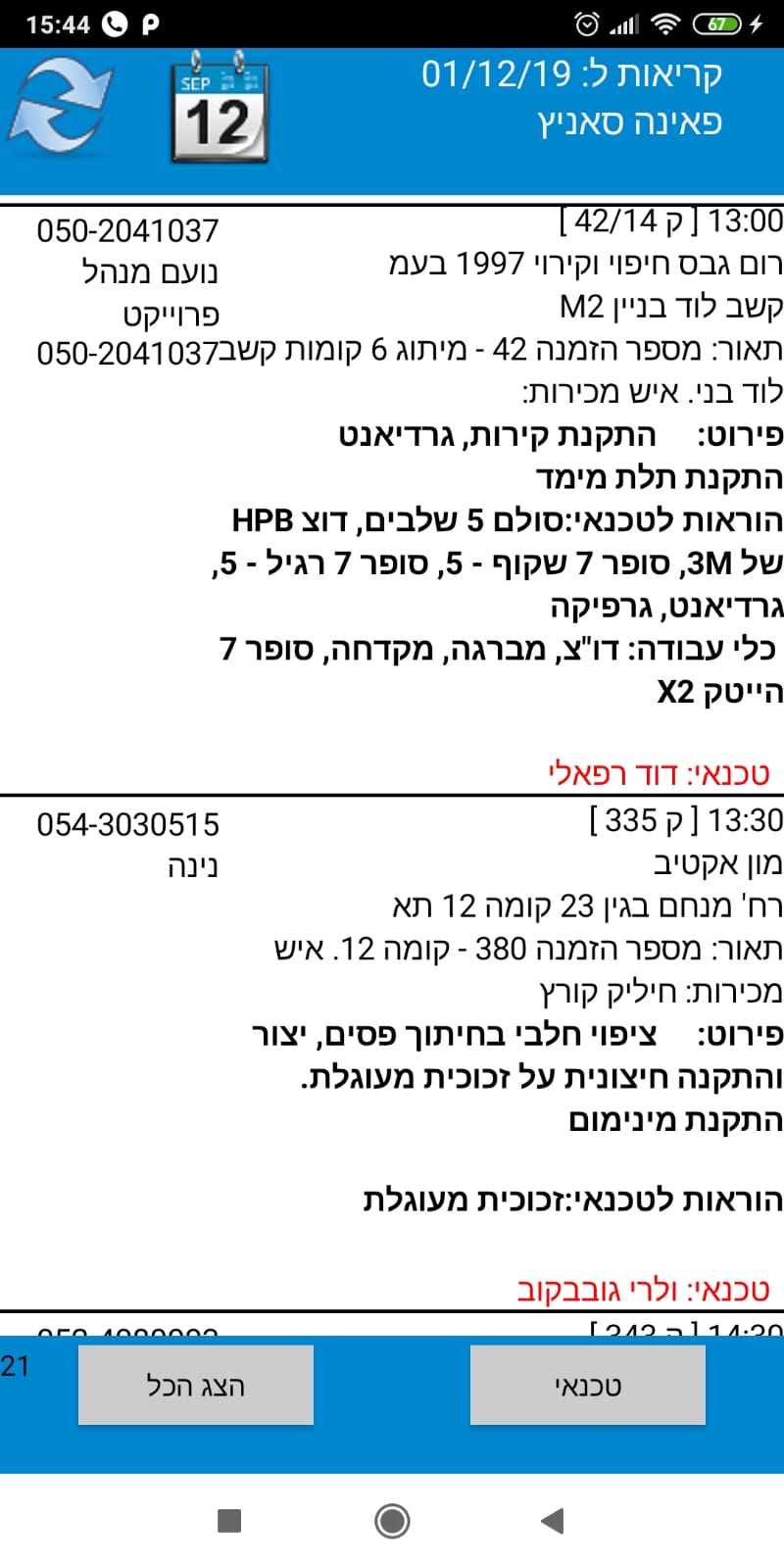

as you can see in the pics , there are 2 items that looks fine , and the next one looks bad.



[Erel]

This is handled internally so there isn't much that you can do about it except of increasing the extra height.
If it was non-LTR text then I would've suggested to use BCTextEngine. However it will not work properly with LTR text.



[alon]

This is handled internally so there isn't much that you can do about it except of increasing the extra height.
If it was non-LTR text then I would've suggested to use BCTextEngine. However it will not work properly with LTR text.

I have already increase it by 2%y

what else can I do?



[Erel]

Are you sure that it works properly on some devices?

what else can I do?

Increase it by more.
