Android Question Odd behavior with xcustomlistview and Android slider library.

[Reminisce]

Hello guys, before adding the slider to my
activity, MY XCLV(xcustomlistview) displays all item completely.
Now I added the slider, and added my XCLV below it.
The issue now is my 'XCLV doesn't scroll to the last item, I have adjusted the height of my XCLV severally, it just doesnt seem to work, the remaining items doesn't show.

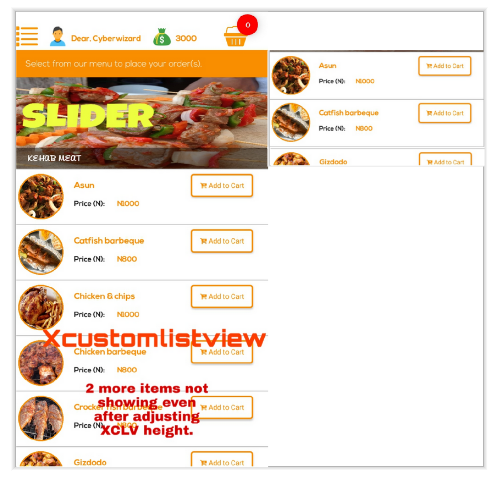

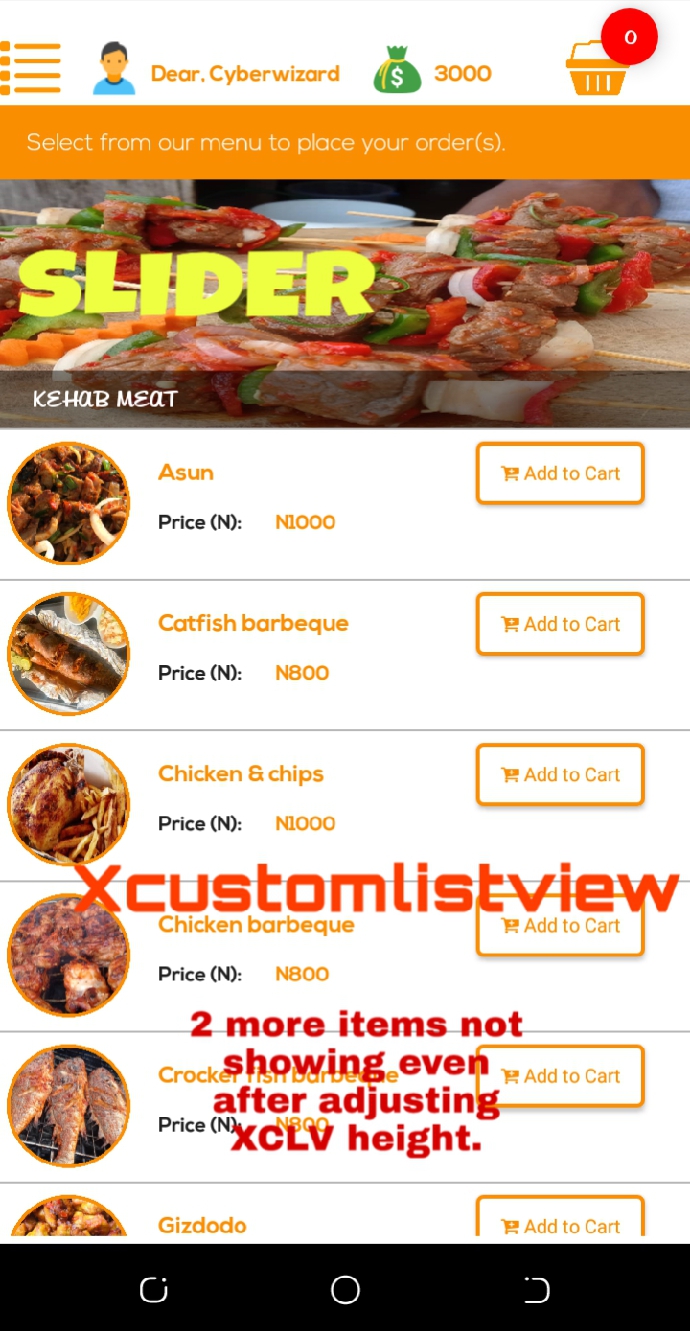

I have attached a screenshot describing the issue.
What could be wrong?



[MicroDrie]

mmm ..... Could it be that you have to lower the height of the CLV by the image height (after a screen rotation)?



[Reminisce]

mmm ..... Could it be that you have to lower the height of the CLV by the image height (after a screen rotation)?

View attachment 92415

I don't understand what you mean. My activity is in portrait only.



[Erel]

Can you post a screenshot of the abstract designer?



[MicroDrie]

I don't understand what you mean. My activity is in portrait only.

It looks to me that the CLV is taking the full height and perhaps you need to subtract the height of the image height (which looks like to have the height of the missing 2 items) . I think that therefore Erel ask you to the layout.



[Reminisce]

Can you post a screenshot of the abstract designer?



[Reminisce]

Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("mainmenu")

    slider.Initialize("slider")

    Activity.AddView(slider,0,lblmenuinfo.Height +lblmenuinfo.Top,100%x,20%y)

    clvitems.AsView.Top = slider.Top + slider.Height

    clvitems.AsView.Height = 60%y

    slider.Color = Colors.white

    slider.Delay = 3000

    slider.SetTransition(slider.SLIDER_TRANSITION_Fade)

    slider.Start

    '

    'SET CART BADGE

    badge.Initialize

    badge.SetBadge(btncart,clvcartitems.Size)



    'init slidemenu

    slidemenu.Initialize(Activity, Me, "SlideMenu", btnmenu.Top+btnmenu.Height,100%x, 35%y,Starter.maincolour,Colors.White,False)

    slidemenu.AddItem("My Profile",LoadBitmap(File.DirAssets,"profile.png"),"profile")

    slidemenu.AddItem("Total Spent",LoadBitmap(File.DirAssets,"money.png"),"")

    slidemenu.AddItem("Orders",LoadBitmap(File.DirAssets,"orders.png"),"")

    slidemenu.AddItem("Cart",LoadBitmap(File.DirAssets,"cart2.png"),"cart")

The slider is added at runtime, so I had to reposition my CLV's top and height properties.



[Erel]

The layout design is wrong. You need to use anchors.

Add a panel as a placeholder for the slider and later add it to that panel.



[Reminisce]

@MicroDrie thanks for your time.

@Erel ,thanka alot for your time and effort, adding a panel did the trick.

You're a magician. ?
