B4A Library SIP Linphone 4.3 wrapper for B4A

Hello everyone

I present you the SIP Linphone library wrapper
This is an implementation of a fairly old version of Linphone 4.3
Almost all classes and methods that are present in Linphone are implemented
I will be glad if someone tests it This is my first library for B4A, besides,
I am not a professional programmer and I started working with Java not so long ago,
but I will gladly accept comments on possible errors and will try to fix them.

The archive with the library and an example of use are attached

I spent quite a lot of time, so if someone wants to thank me, I will not refuse
4100119094185464
yoomoney.ru

And I apologize, English is not my native language, I am from Russia

MyPJSIP.rar - https://disk.yandex.ru/d/IITkrcdI66KBRw

BAlinphone.rar - https://disk.yandex.ru/d/9POjQQ3CUGqhQw



[Semendey]

Not a big update
Added features:
isMicMuted()
isSpeakerEnabled()


BAlinphone.rar — https://disk.yandex.ru/d/9POjQQ3CUGqhQw



[f0raster0]

I'm getting this error

B4A Version: 13.10
Parsing code.    (0.00s)
    Java Version: 19
Building folders structure.    (0.02s)
Compiling code.    (0.01s)
Compiling layouts code.    (0.00s)
Organizing libraries.    (0.00s)
    (AndroidX SDK)
Compiling resources    (0.08s)
Linking resources    (0.31s)
    build tools: 34.0.0, android jar: android-34
Compiling generated Java code.    Error
Cannot find: C:\Program Files\Anywhere Software\B4A\libraries\linphone43.jar



[Semendey]

I'm getting this error

B4A Version: 13.10
Parsing code.    (0.00s)
    Java Version: 19
Building folders structure.    (0.02s)
Compiling code.    (0.01s)
Compiling layouts code.    (0.00s)
Organizing libraries.    (0.00s)
    (AndroidX SDK)
Compiling resources    (0.08s)
Linking resources    (0.31s)
    build tools: 34.0.0, android jar: android-34
Compiling generated Java code.    Error
Cannot find: C:\Program Files\Anywhere Software\B4A\libraries\linphone43.jar

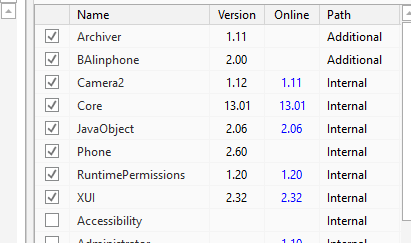

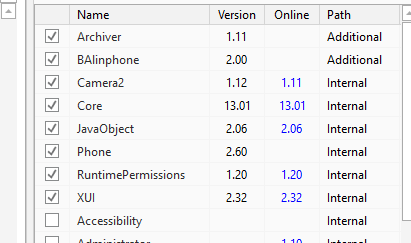

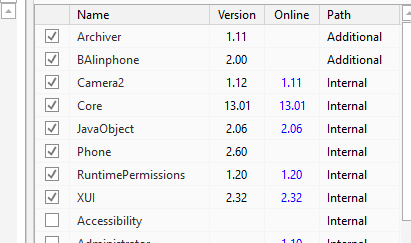

View attachment 163416

Sorry. Forgot to add linphone43.jar to the archive.
Here is a link to the full one.
Download again.

Яндекс

Найдётся всё

disk.yandex.ru



[thinktank]

thank you, is there any example b4a code for using this library, a demo b4a project will be highly appreciated...



[Semendey]

thank you, is there any example b4a code for using this library, a demo b4a project will be highly appreciated...

In the first message

MyPJSIP.rar — https://disk.yandex.ru/d/IITkrcdI66KBRw



[Semendey]

Colleagues.
I noticed one feature when using with Android 14
The Linphone 4.3 library in the default configuration settings contains the following parameters:

register_only_when_network_is_up=1
auto_net_state_mon=1

which, as I understand it, tell the kernel Linphone to register only when there is a network connection and monitor the network status

But as we know, Android 14 has certain limitations on network monitoring,
and the Linphone 4.3 library itself is quite old,
which most likely cannot work with the network status according to the new rules.

Because of this, there are interruptions in registration on SIP servers.

Can anyone else verify my assumptions?

Be careful when developing for Android 14



[Semendey]

Colleagues.
I noticed one feature when using with Android 14
The Linphone 4.3 library in the default configuration settings contains the following parameters:

register_only_when_network_is_up=1
auto_net_state_mon=1

which, as I understand it, tell the kernel Linphone to register only when there is a network connection and monitor the network status

But as we know, Android 14 has certain limitations on network monitoring,
and the Linphone 4.3 library itself is quite old,
which most likely cannot work with the network status according to the new rules.

Because of this, there are interruptions in registration on SIP servers.

Can anyone else verify my assumptions?

Be careful when developing for Android 14

It is possible to bypass this behavior:
1. You need to disable network monitoring

XXX.SetConfig("sip","register_only_when_network_is_up","0")
XXX.SetConfig("sip","auto_net_state_mon","0")

2. Set your reconnection timer



[alimanam3386]

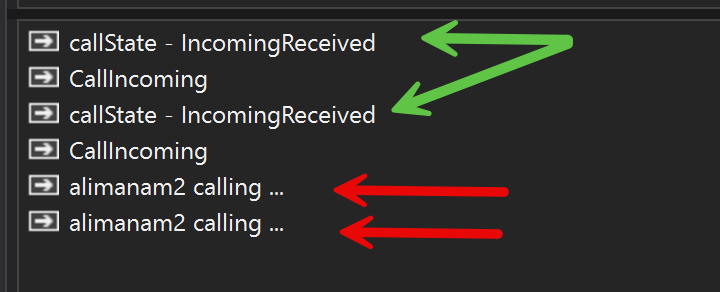

Thank you for your fantastic job , One question how we can get who is calling ? ( when you make a video or audio call the receiver how can knows who is calling )
