Android Question [Solved] How to increase the B4XSearchTemplate to nearly full screen size and also show title bar ?

[AnandGupta]

Edit: There is another solution by changing b4xsearchtemplate.bas file

[Solution] Increase B4XSearchTemplate without losing title bar (.bas changes)

Well my problem of 'title missing' , refer below thread, is solved by changing the.bal file and adding a title label, thanks to Mahares. https://www.b4x.com/android/forum/threads/solved-how-to-increase-the-b4xsearchtemplate-to-nearly-full-screen-size-and-also-show-title-bar.138318/#post-875725...

www.b4x.com

I want to increase the B4XSearchTemplate to nearly full screen size.

I can get it with

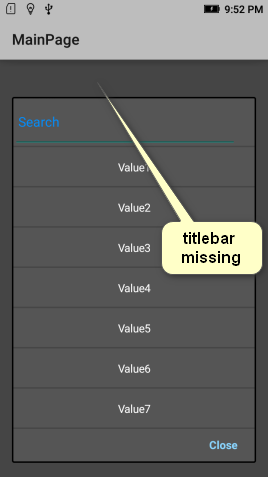

    B4XSearchTemplate1.Resize(90%x, 80%y) '<-- this increases size but removes title

this removes the title line !

I thought title is hidden, so below line moves the box down,

    B4XDialog1.Base.Top = 50dip '<-- this moves but title gone in above case

but title bar is still missing.



How to bring back the title and increase size ?

The sample project is attached.

Edit: Also see me notes on title here,

[Solved] How to increase the B4XSearchTemplate to nearly full screen size and also show title bar ?

Edit: There is another solution by changing b4xsearchtemplate.bas file https://www.b4x.com/android/forum/threads/solution-increase-b4xsearchtemplate-without-losing-title-bar-bas-changes.138373/ I want to increase the B4XSearchTemplate to nearly full screen size. I can get it with...

www.b4x.com



[William Lancee]

I responded to something similar a few days ago.

https://www.b4x.com/android/forum/threads/b4x-searchtemplate-dialog-help-needed.138269/

I couldn't get the title back either. So skip the title in dialog and make your own.



[AnandGupta]

I responded to something similar a few days ago.

https://www.b4x.com/android/forum/threads/b4x-searchtemplate-dialog-help-needed.138269/

I couldn't get the title back either. So skip the title in dialog and make your own.

But the code means I have to re-create all things.
There must be something simple, I think, to get what I want.
I have .Resize() and .Top() so the title should be there.

Since Erel liked your reply, I think it is by design of B4XSearchTemplate .
Ok. I may have (which I do not want) to look into B4XSearchTemplate codes for it.



[Mahares]

There must be something simple, I think, to get what I want

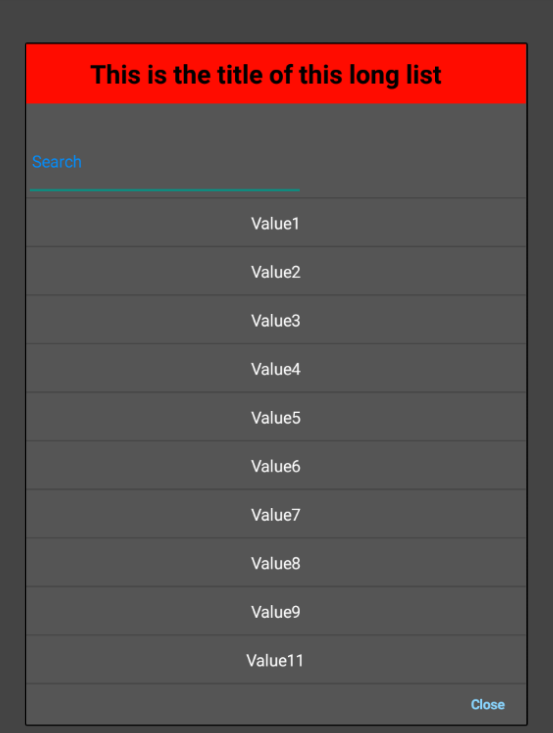

Another way without adding any code is to add searchtemplate.bal, an internal layout located in the XUI VIES library after you unzip it. Afte you add it to the file folder of your project, add a label to it as your title and tweak the position and size above the search box., and save the layout with the change. See attached done to your project with it on. You do not even need to mess with the XUI Views lib if you use the layout I have in the attached project. Tweak it to your liking.



[AnandGupta]

Thanks a lot @Mahares for the changes. ?

Yes I have already extracted and renamed,
gB4XSearchTemplate.bas
gB4XDialog.bas
also searchtemplate.bal
And made few changes here and there and understood that title is from b4xdialog and so I have to resize/move it too.

But man, the codes are very high level from my knowledge point of view

Your idea of adding title in search works well, but I am getting error if I want to change title text from code,

Private Sub Button1_Click

'    B4XDialog1.Title = "Tittle1"
    B4XSearchTemplate1.Resize(90%x, 80%y)
    Dim dia As  Object = B4XDialog1.ShowTemplate(B4XSearchTemplate1, "", "", "Close")
'    B4XDialog1.Base.Top = 50dip

'    lblTitle.Text = "Tittle1"    '<-- this gives error (shd be first initialize)


    Wait For (dia) Complete (Result As Int)
    If Result = xui.DialogResponse_Positive Then
        Log(B4XSearchTemplate1.SelectedItem)
    End If

End Sub

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private B4XSearchTemplate1 As B4XSearchTemplate
    Private B4XDialog1 As B4XDialog
    Private lblTitle As Label
End Sub

Any help on how to fix it is appreciated.



[AnandGupta]

Hi @Mahares

I am marking your reply as solution as it helped me get what I want. ?

I found the code to set the title,

    B4XSearchTemplate1.mBase.GetView(0).As(Label).Text = "test1"

(I moved the label at top in designer)

So this fulfills my request. Also I learnt that 'only extracting the .bal and using it in files, the library uses that .bal file and not from its own files. ?
This opens up many more possibilities.



[Mahares]

I found the code to set the title,

Yes,, it works Anand. You do not need to add as(label). The below is good enough:

B4XSearchTemplate1.mBase.GetView(0).Text = "India is a Great Country"  '0 means: label added is the first hierarchy wise in layout
