B4J Library Starchild_B4J_Dialogs

This library contains three simple and stylish Dialog classes. They are intended to provide an App styled user interface to the B4J window/form environment.

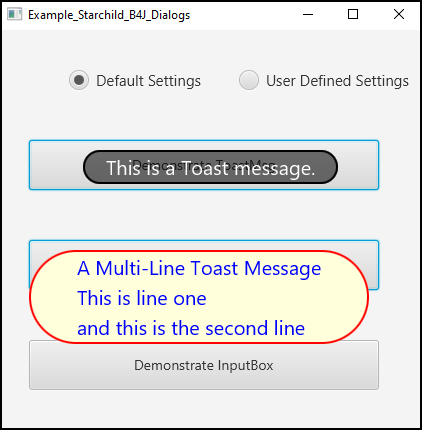

  • A ToastMsg class to present a single or multi-line banner momentarily on top of the owner form.

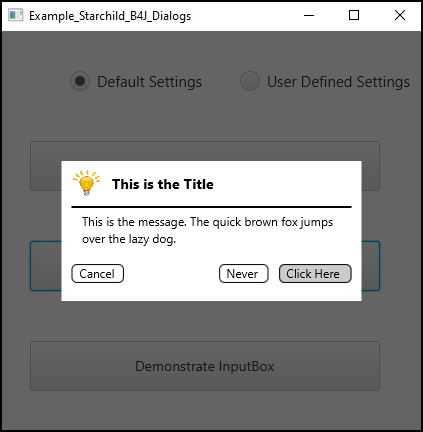

  • A MsgBox class to present more complex information to the user with an icon, title and multi-line message body then requesting the user to acknowledge by clicking on one of the three button choices. This is a NON-BLOCKING dialog box that presents centrally on top of the owner form.

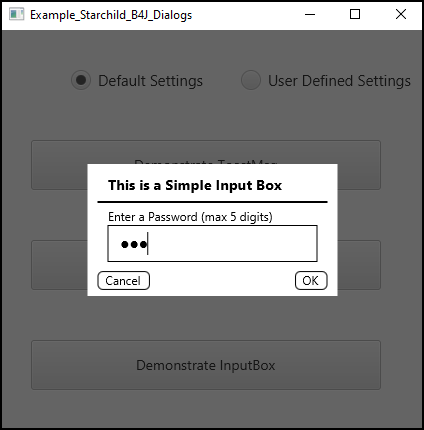

  • An InputBox class to firstly present the user with information but requesting user data entry (can use limited text types, lengths, multi-line, etc) then requesting the user to acknowledge by clicking on one of the three button choices. This is a NON-BLOCKING dialog box that presents centrally on top of the owner form.
Dialogs are a convenient way to interrupt the normal program operation, grab the user’s immediate attention, and provide a controlled and simplified data entry and user response mechanism that can be easily and sequentially coded using “Wait For” and “Select Case” language commands.

Simple to use:
Dim MB as Starchild_B4J_MsgBox
Dim TM as Starchild_B4J_ToastMsg

MB.Initialize(MainForm,Me)
TM.Initialize(MainForm,Me)

MB.MsgBox(“Hello World”,“This is a MsgBox”)

Wait For (MB) Click

Select MB.Response
    Case MB. RESPONSE_POSITIVE
        TM.ToastMsg(“You Clicked the <OK> button”)
        Wait For (TM) Finished
End Select

Log (“Done”)












Currently Library v2.01


Attachments

  • Help_Starchild_B4J_Dialogs.pdf
    367.4 KB · Views: 344
  • Starchild_B4J_Dialogs.zip
    42.4 KB · Views: 308
  • ExampleB4jDialogs.zip
    9.5 KB · Views: 282
Last edited:
Click to expand...
I

icakinser

Member
Licensed User
Longtime User
When I tried to run any of the dialog the following error occurs:
B4X:
Waiting for debugger to connect...
Program started.
Resized
Error occurred on line: 70 (Main)
java.lang.ClassNotFoundException: javafx$scene$text$TextBuilder
    at anywheresoftware.b4j.object.JavaObject.getCorrectClassName(JavaObject.java:289)
    at anywheresoftware.b4j.object.JavaObject.InitializeStatic(JavaObject.java:75)
    at b4j.starchild.starchild_b4j_extras._measuretextheight(starchild_b4j_extras.java:1019)
    at b4j.starchild.starchild_b4j_msgbox._msgbox2(starchild_b4j_msgbox.java:587)
    at b4j.example.main$ResumableSub_DemoMsgBoxBT_MouseClicked.resume(main.java:503)
    at b4j.example.main._demomsgboxbt_mouseclicked(main.java:465)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:632)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:234)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:167)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:91)
    at anywheresoftware.b4a.shell.ShellBA.raiseEvent2(ShellBA.java:98)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:78)
    at anywheresoftware.b4j.objects.NodeWrapper$1.handle(NodeWrapper.java:93)
    at anywheresoftware.b4j.objects.NodeWrapper$1.handle(NodeWrapper.java:1)
    at javafx.base/com.sun.javafx.event.CompositeEventHandler.dispatchBubblingEvent(CompositeEventHandler.java:86)
    at javafx.base/com.sun.javafx.event.EventHandlerManager.dispatchBubblingEvent(EventHandlerManager.java:238)
    at javafx.base/com.sun.javafx.event.EventHandlerManager.dispatchBubblingEvent(EventHandlerManager.java:191)
    at javafx.base/com.sun.javafx.event.CompositeEventDispatcher.dispatchBubblingEvent(CompositeEventDispatcher.java:59)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:58)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:56)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:56)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.EventUtil.fireEventImpl(EventUtil.java:74)
    at javafx.base/com.sun.javafx.event.EventUtil.fireEvent(EventUtil.java:54)
    at javafx.base/javafx.event.Event.fireEvent(Event.java:198)
    at javafx.graphics/javafx.scene.Scene$ClickGenerator.postProcess(Scene.java:3564)
    at javafx.graphics/javafx.scene.Scene$ClickGenerator.access$8200(Scene.java:3492)
    at javafx.graphics/javafx.scene.Scene$MouseHandler.process(Scene.java:3860)
    at javafx.graphics/javafx.scene.Scene$MouseHandler.access$1200(Scene.java:3579)
    at javafx.graphics/javafx.scene.Scene.processMouseEvent(Scene.java:1849)
    at javafx.graphics/javafx.scene.Scene$ScenePeerListener.mouseEvent(Scene.java:2588)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler$MouseEventNotification.run(GlassViewEventHandler.java:397)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler$MouseEventNotification.run(GlassViewEventHandler.java:295)
    at java.base/java.security.AccessController.doPrivileged(Native Method)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler.lambda$handleMouseEvent$2(GlassViewEventHandler.java:434)
    at javafx.graphics/com.sun.javafx.tk.quantum.QuantumToolkit.runWithoutRenderLock(QuantumToolkit.java:390)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler.handleMouseEvent(GlassViewEventHandler.java:433)
    at javafx.graphics/com.sun.glass.ui.View.handleMouseEvent(View.java:556)
    at javafx.graphics/com.sun.glass.ui.View.notifyMouse(View.java:942)
    at javafx.graphics/com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
    at javafx.graphics/com.sun.glass.ui.win.WinApplication.lambda$runLoop$3(WinApplication.java:174)
    at java.base/java.lang.Thread.run(Thread.java:834)

Starchild

Starchild

Active Member
Licensed User
Longtime User
icakinser said:
When I tried to run any of the dialog the following error occurs:
B4X:
Waiting for debugger to connect...
Program started.
Resized
Error occurred on line: 70 (Main)
java.lang.ClassNotFoundException: javafx$scene$text$TextBuilder
    at anywheresoftware.b4j.object.JavaObject.getCorrectClassName(JavaObject.java:289)
    at anywheresoftware.b4j.object.JavaObject.InitializeStatic(JavaObject.java:75)
    at b4j.starchild.starchild_b4j_extras._measuretextheight(starchild_b4j_extras.java:1019)
    at b4j.starchild.starchild_b4j_msgbox._msgbox2(starchild_b4j_msgbox.java:587)
    at b4j.example.main$ResumableSub_DemoMsgBoxBT_MouseClicked.resume(main.java:503)
    at b4j.example.main._demomsgboxbt_mouseclicked(main.java:465)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:632)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:234)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:167)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:91)
    at anywheresoftware.b4a.shell.ShellBA.raiseEvent2(ShellBA.java:98)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:78)
    at anywheresoftware.b4j.objects.NodeWrapper$1.handle(NodeWrapper.java:93)
    at anywheresoftware.b4j.objects.NodeWrapper$1.handle(NodeWrapper.java:1)
    at javafx.base/com.sun.javafx.event.CompositeEventHandler.dispatchBubblingEvent(CompositeEventHandler.java:86)
    at javafx.base/com.sun.javafx.event.EventHandlerManager.dispatchBubblingEvent(EventHandlerManager.java:238)
    at javafx.base/com.sun.javafx.event.EventHandlerManager.dispatchBubblingEvent(EventHandlerManager.java:191)
    at javafx.base/com.sun.javafx.event.CompositeEventDispatcher.dispatchBubblingEvent(CompositeEventDispatcher.java:59)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:58)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:56)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:56)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.EventUtil.fireEventImpl(EventUtil.java:74)
    at javafx.base/com.sun.javafx.event.EventUtil.fireEvent(EventUtil.java:54)
    at javafx.base/javafx.event.Event.fireEvent(Event.java:198)
    at javafx.graphics/javafx.scene.Scene$ClickGenerator.postProcess(Scene.java:3564)
    at javafx.graphics/javafx.scene.Scene$ClickGenerator.access$8200(Scene.java:3492)
    at javafx.graphics/javafx.scene.Scene$MouseHandler.process(Scene.java:3860)
    at javafx.graphics/javafx.scene.Scene$MouseHandler.access$1200(Scene.java:3579)
    at javafx.graphics/javafx.scene.Scene.processMouseEvent(Scene.java:1849)
    at javafx.graphics/javafx.scene.Scene$ScenePeerListener.mouseEvent(Scene.java:2588)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler$MouseEventNotification.run(GlassViewEventHandler.java:397)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler$MouseEventNotification.run(GlassViewEventHandler.java:295)
    at java.base/java.security.AccessController.doPrivileged(Native Method)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler.lambda$handleMouseEvent$2(GlassViewEventHandler.java:434)
    at javafx.graphics/com.sun.javafx.tk.quantum.QuantumToolkit.runWithoutRenderLock(QuantumToolkit.java:390)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler.handleMouseEvent(GlassViewEventHandler.java:433)
    at javafx.graphics/com.sun.glass.ui.View.handleMouseEvent(View.java:556)
    at javafx.graphics/com.sun.glass.ui.View.notifyMouse(View.java:942)
    at javafx.graphics/com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
    at javafx.graphics/com.sun.glass.ui.win.WinApplication.lambda$runLoop$3(WinApplication.java:174)
    at java.base/java.lang.Thread.run(Thread.java:834)
Click to expand...

I am assuming you are using OpenJDK
I am using Java 8 (jdk1.8.0_192).

It appears that OpenJDK has removed the class
javafx$scene$text$TextBuilder
from OpenJDK v2.00 and above.

I will need to load OpenJDK and debug this further.
I will get back to you with a fix in 24hrs.

Last edited:
Starchild

Starchild

Active Member
Licensed User
Longtime User
icakinser said:
When I tried to run any of the dialog the following error occurs:
B4X:
Waiting for debugger to connect...
Program started.
Resized
Error occurred on line: 70 (Main)
java.lang.ClassNotFoundException: javafx$scene$text$TextBuilder
    at anywheresoftware.b4j.object.JavaObject.getCorrectClassName(JavaObject.java:289)
    at anywheresoftware.b4j.object.JavaObject.InitializeStatic(JavaObject.java:75)
    at b4j.starchild.starchild_b4j_extras._measuretextheight(starchild_b4j_extras.java:1019)
    at b4j.starchild.starchild_b4j_msgbox._msgbox2(starchild_b4j_msgbox.java:587)
    at b4j.example.main$ResumableSub_DemoMsgBoxBT_MouseClicked.resume(main.java:503)
    at b4j.example.main._demomsgboxbt_mouseclicked(main.java:465)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:632)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:234)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:167)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:566)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:91)
    at anywheresoftware.b4a.shell.ShellBA.raiseEvent2(ShellBA.java:98)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:78)
    at anywheresoftware.b4j.objects.NodeWrapper$1.handle(NodeWrapper.java:93)
    at anywheresoftware.b4j.objects.NodeWrapper$1.handle(NodeWrapper.java:1)
    at javafx.base/com.sun.javafx.event.CompositeEventHandler.dispatchBubblingEvent(CompositeEventHandler.java:86)
    at javafx.base/com.sun.javafx.event.EventHandlerManager.dispatchBubblingEvent(EventHandlerManager.java:238)
    at javafx.base/com.sun.javafx.event.EventHandlerManager.dispatchBubblingEvent(EventHandlerManager.java:191)
    at javafx.base/com.sun.javafx.event.CompositeEventDispatcher.dispatchBubblingEvent(CompositeEventDispatcher.java:59)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:58)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:56)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.BasicEventDispatcher.dispatchEvent(BasicEventDispatcher.java:56)
    at javafx.base/com.sun.javafx.event.EventDispatchChainImpl.dispatchEvent(EventDispatchChainImpl.java:114)
    at javafx.base/com.sun.javafx.event.EventUtil.fireEventImpl(EventUtil.java:74)
    at javafx.base/com.sun.javafx.event.EventUtil.fireEvent(EventUtil.java:54)
    at javafx.base/javafx.event.Event.fireEvent(Event.java:198)
    at javafx.graphics/javafx.scene.Scene$ClickGenerator.postProcess(Scene.java:3564)
    at javafx.graphics/javafx.scene.Scene$ClickGenerator.access$8200(Scene.java:3492)
    at javafx.graphics/javafx.scene.Scene$MouseHandler.process(Scene.java:3860)
    at javafx.graphics/javafx.scene.Scene$MouseHandler.access$1200(Scene.java:3579)
    at javafx.graphics/javafx.scene.Scene.processMouseEvent(Scene.java:1849)
    at javafx.graphics/javafx.scene.Scene$ScenePeerListener.mouseEvent(Scene.java:2588)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler$MouseEventNotification.run(GlassViewEventHandler.java:397)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler$MouseEventNotification.run(GlassViewEventHandler.java:295)
    at java.base/java.security.AccessController.doPrivileged(Native Method)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler.lambda$handleMouseEvent$2(GlassViewEventHandler.java:434)
    at javafx.graphics/com.sun.javafx.tk.quantum.QuantumToolkit.runWithoutRenderLock(QuantumToolkit.java:390)
    at javafx.graphics/com.sun.javafx.tk.quantum.GlassViewEventHandler.handleMouseEvent(GlassViewEventHandler.java:433)
    at javafx.graphics/com.sun.glass.ui.View.handleMouseEvent(View.java:556)
    at javafx.graphics/com.sun.glass.ui.View.notifyMouse(View.java:942)
    at javafx.graphics/com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
    at javafx.graphics/com.sun.glass.ui.win.WinApplication.lambda$runLoop$3(WinApplication.java:174)
    at java.base/java.lang.Thread.run(Thread.java:834)
Click to expand...
It can now be run under OpenJDK.
I have updated the Starchild B4J_Dialogs library to v2.01 in the Top Post.
I have also reposted the Example ZIP with some minor changes.

Last edited:
You must log in or register to reply here.

Similar Threads

GMan
  • Question
B4J Question B4J OpenFile Dialog...
Replies
9
Views
659
PaulMeuris
P
William Lancee
  • Article
Share My Creation [B4J, B4X, IDE] The ColorMix Helper App - A Standalone Standby
Replies
4
Views
2K
Beja
Beja
aeric
  • Article
Share My Creation [Project Template] Web API Server
4 5 6
Replies
111
Views
35K
PABLO2013
PABLO2013
Starchild
  • Article
B4J Library Starchild_B4J_SmartGraphView
Replies
3
Views
2K
Starchild
Starchild
Alexander Stolte
  • Article
B4A Class [B4X] [XUI] AS MsgBox/Dialog
2
Replies
22
Views
12K
Alexander Stolte
Alexander Stolte
Top
