B4A Library SwitchButton

This is a wrap for this Github-project.
You need B4A V5.8+ to use this library.
You need B4A 6+ to use V1.5+ of this library.

New in V1.5
- The library is now available as aar file.
- I´ve added TextColor property


SwitchButton
Author: DonManfred (wrapper)
Version: 2.1

• SwitchButton
  Events:
  • onCheckedChanged (checked As Boolean)
  Fields:
  • ba As BA
  Methods:
  • BringToFront
  • DesignerCreateView (base As PanelWrapper, lw As LabelWrapper, props As Map)
  • Initialize (EventName As String)
  • Invalidate
  • Invalidate2 (arg0 As Rect)
  • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
  • IsInitialized As Boolean
  • RemoveView
  • RequestFocus As Boolean
  • SendToBack
  • SetBackgroundImage (arg0 As Bitmap)
  • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
  • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
  • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
  • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
  • isDrawDebugRect As Boolean
  • isFadeBack As Boolean
  • performClick As Boolean
  • setText (onText As CharSequence, offText As CharSequence)
  • setThumbMargin (left As Float, top As Float, right As Float, bottom As Float)
  • setThumbSize (width As Float, height As Float)
  • toggleImmediately
  Properties:
  • AnimationDuration As Long
  • BackColor As ColorStateList
  • BackDrawable As Drawable
  • BackDrawableRes As String [write only]
  • BackMeasureRatio As Float
  • BackRadius As Float
  • BackSizeF As PointF [read only]
  • Background As Drawable
  • Checked As Boolean [write only]
  • CheckedImmediately As Boolean [write only]
  • Color As Int [write only]
  • DrawDebugRect As Boolean [write only]
  • Enabled As Boolean
  • FadeBack As Boolean [write only]
  • Height As Int
  • Left As Int
  • Parent As Object [read only]
  • Process As Float
  • Tag As Object
  • ThumbColor As ColorStateList
  • ThumbDrawable As Drawable
  • ThumbDrawableRes As String [write only]
  • ThumbHeight As Float [read only]
  • ThumbMargin As RectF [read only]
  • ThumbMarginRect As RectF [write only]
  • ThumbRadius As Float
  • ThumbSize2 As PointF [write only]
  • ThumbSizeF As PointF [read only]
  • ThumbWidth As Float [read only]
  • TintColor As Int
  • Top As Int
  • Visible As Boolean
  • Width As Int

    SwitchButton1.ThumbDrawableRes = "flyme_thumb_drawable"
    SwitchButton1.BackDrawableRes = "flyme_back_drawable"
    SwitchButton2.BackDrawableRes = "ios_back_drawable"

    SwitchButton3.ThumbDrawableRes = "miui_thumb_drawable"
    SwitchButton3.BackDrawableRes = "miui_back_drawable"

    SwitchButton4.ThumbDrawableRes = "icon_github"
    SwitchButton5.ThumbDrawableRes = "ios_back_drawable"



[klarsys]

Sub SB_onCheckedChanged(checked As Boolean)
    Dim sb As SwitchButton = Sender
    Log(sb.Tag)
End Sub

I get this error:
java.lang.ClassCastException: b4a.example.main cannot be cast to com.github.switchbutton.SwitchButton



[DonManfred]

I get this error

Try the updated lib in post #1. V1.0.1



[klarsys]

Try the updated lib in post #1. V1.0.1

The error is gone now, Thanks!

But, `Log(sb.Tag)` returns null instead of it's tag.



[DonManfred]

how did you define Tag for the sb?
In my tryings i got logged the Tag i set previously



[klarsys]

I set the tag in designer...



[DonManfred]

try to set the tag by code. Just to make sure
I did set it by code

But i´ll check this later



[Daniel-White]

Hi folks, I was playing with this lib, I had been trying to put the TEXT "ON" and "OFF" states. but without any luck.

I did this added to the example swtichButton1.setTEXT("ON","OFF")
I did not see in the layout the text in the switch button what I am missing there?

witchButton1.setText("ON","OFF")
    SwitchButton1.ThumbDrawableRes = "flyme_thumb_drawable"
    SwitchButton1.BackDrawableRes = "flyme_back_drawable"
    SwitchButton2.BackDrawableRes = "ios_back_drawable"

Thanks youuuuuuuuuuu



[DonManfred]

Dont use a drawable when you want to get the text shown.

SwitchButton6.setText("ON","OFF")



[Daniel-White]

Dont use a drawable when you want to get the text shown.

SwitchButton6.setText("ON","OFF")

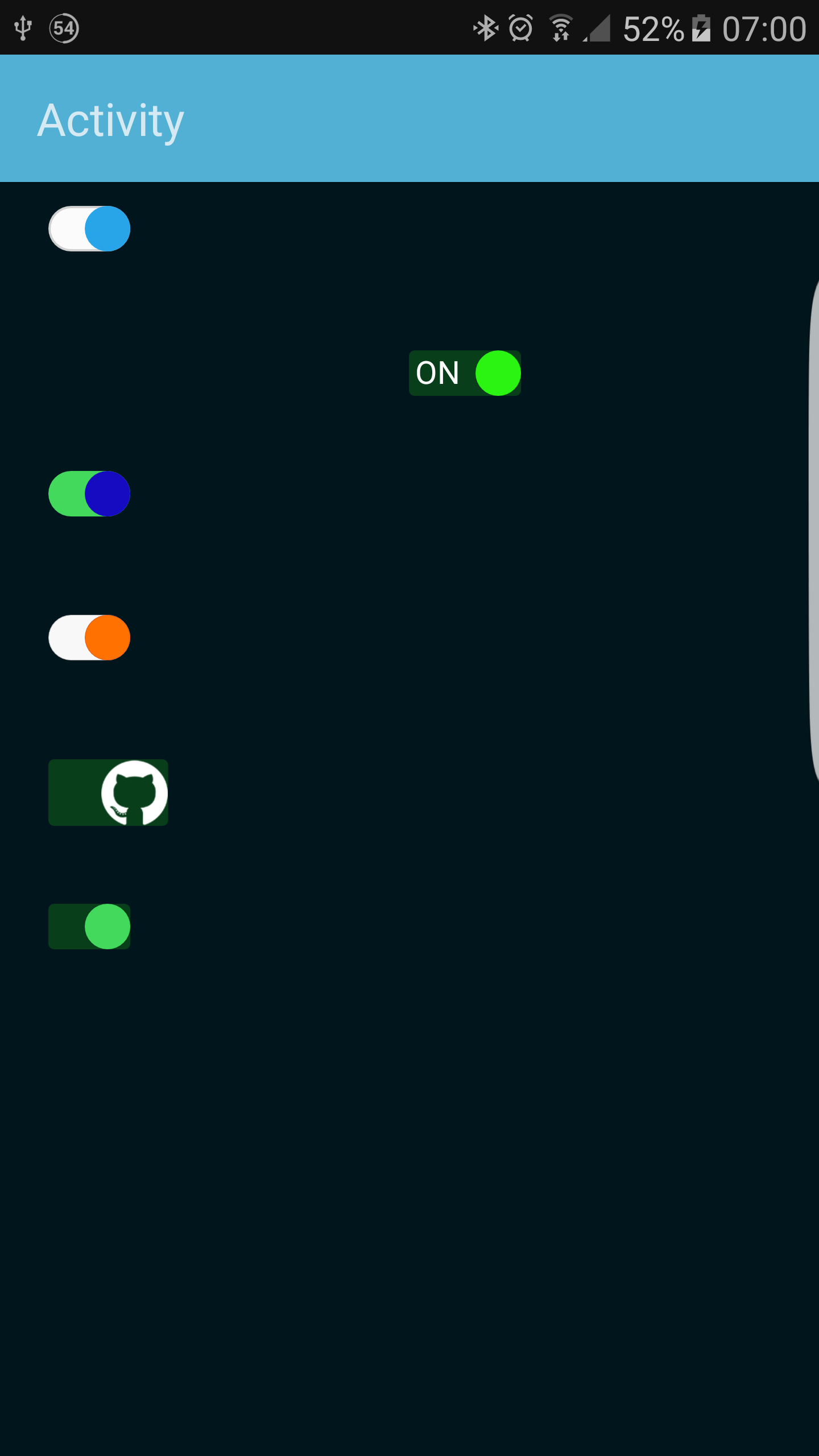

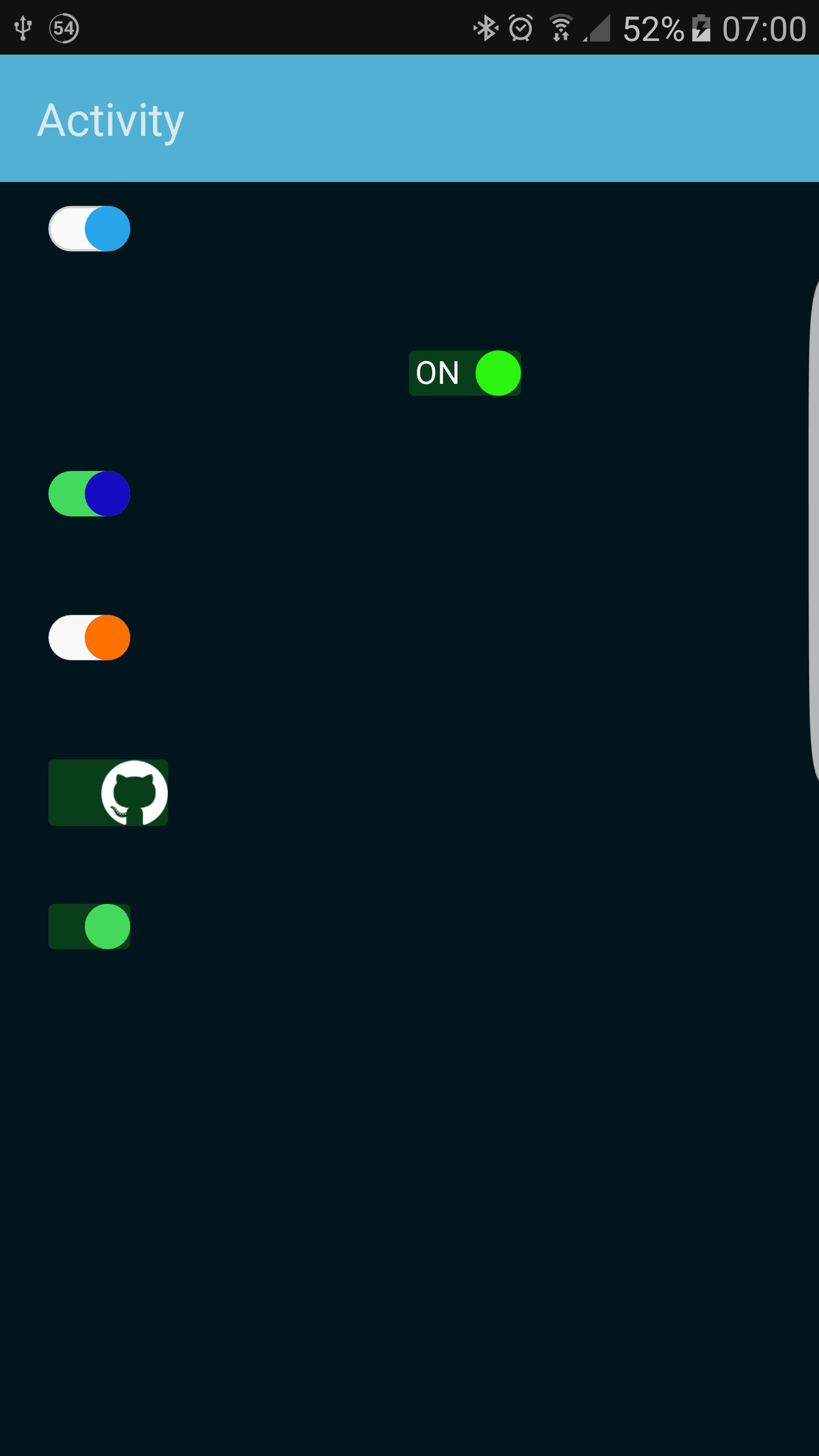

View attachment 45598

Thanks you soooooooooo much. so simple LoL

An exmple for the rest of mortals like me

    SwitchButton1.setText("ON","OFF")
'    SwitchButton1.ThumbDrawableRes = "flyme_thumb_drawable"
'    SwitchButton1.BackDrawableRes = "flyme_back_drawable"
'    SwitchButton2.BackDrawableRes = "ios_back_drawable"



[Daniel-White]

I did not discover how to change the color to SwitchButton1.setText("ON","OFF").
Can I put an example Black color the text ?
Thanks youuuuuuuuuuuu



[DonManfred]

Can I put an example Black color the text ?

Sadly the lib does not provide such properties.

I suggest to use drawables together with a label.



[DonManfred]

Sadly the lib does not provide such properties.

But i´ve added them

See update in Post #1



[Daniel-White]

But i´ve added them

See update in Post #1

OOO thanks you sooo much DonManfred. well, you push me run to upgrade to B4A Ver 6.0 and download the repositories etc.
It is working nice the TextColor property .
Thanks you Indeed.



[MarcoRome]

Hi Great Don. I have this error when i compile:

B4A version: 6.31
Parsing code. (0.00s)
Compiling code. (0.01s)
Compiling layouts code. (0.00s)
Organizing libraries. (0.78s)
Generating R file. Error
..\resource\values\attrs.xml:5: error: Attribute "kswThumbDrawable" has already been defined
..\resource\values\attrs.xml:6: error: Attribute "kswThumbColor" has already been defined
..\resource\values\attrs.xml:7: error: Attribute "kswThumbMargin" has already been defined
..\resource\values\attrs.xml:8: error: Attribute "kswThumbMarginTop" has already been defined
..\resource\values\attrs.xml:9: error: Attribute "kswThumbMarginBottom" has already been defined
..\resource\values\attrs.xml:10: error: Attribute "kswThumbMarginLeft" has already been defined
..\resource\values\attrs.xml:11: error: Attribute "kswThumbMarginRight" has already been defined
..\resource\values\attrs.xml:12: error: Attribute "kswThumbWidth" has already been defined
..\resource\values\attrs.xml:13: error: Attribute "kswThumbHeight" has already been defined
..\resource\values\attrs.xml:14: error: Attribute "kswThumbRadius" has already been defined
..\resource\values\attrs.xml:15: error: Attribute "kswBackRadius" has already been defined
..\resource\values\attrs.xml:16: error: Attribute "kswBackDrawable" has already been defined
..\resource\values\attrs.xml:17: error: Attribute "kswBackColor" has already been defined
..\resource\values\attrs.xml:18: error: Attribute "kswFadeBack" has already been defined
..\resource\values\attrs.xml:19: error: Attribute "kswBackMeasureRatio" has already been defined
..\resource\values\attrs.xml:20: error: Attribute "kswAnimationDuration" has already been defined
..\resource\values\attrs.xml:21: error: Attribute "kswTintColor" has already been defined
..\resource\values\attrs.xml:22: error: Attribute "kswTextOn" has already been defined
..\resource\values\attrs.xml:23: error: Attribute "kswTextOff" has already been defined
..\resource\values\attrs.xml:24: error: Attribute "kswTextMarginH" has already been defined

Any suggestion ?
Thanks
Marco



[DonManfred]

Any suggestion ?

New in V1.5
- The library is now available as aar file.

Try to remove the #additionalres directive



[MarcoRome]

Try to remove the #additionalres directive

Already try....

main_activity_create (java line: 369)
android.content.res.Resources$NotFoundException: Resource ID #0x0
at android.content.res.Resources.getValue(Resources.java:2480)
at android.content.res.Resources.getDrawable(Resources.java:1975)
at android.content.Context.getDrawable(Context.java:409)
at android.support.v4.content.ContextCompatApi21.getDrawable(ContextCompatApi21.java:26)
at android.support.v4.content.ContextCompat.getDrawable(ContextCompat.java:344)
at com.kyleduo.switchbutton.SwitchButton.setThumbDrawableRes(SwitchButton.java:702)
at de.donmanfred.SwitchButtonWrapper.setThumbDrawableRes(SwitchButtonWrapper.java:148)
at b4a.example.SwitchButton.main._activity_create(main.java:369)
at java.lang.reflect.Method.invoke(Native Method)
at java.lang.reflect.Method.invoke(Method.java:372)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
at b4a.example.SwitchButton.main.afterFirstLayout(main.java:102)
at b4a.example.SwitchButton.main.access$000(main.java:17)
at b4a.example.SwitchButton.main$WaitForLayout.run(main.java:80)
at android.os.Handler.handleCallback(Handler.java:739)
at android.os.Handler.dispatchMessage(Handler.java:95)
at android.os.Looper.loop(Looper.java:145)
at android.app.ActivityThread.main(ActivityThread.java:6912)
at java.lang.reflect.Method.invoke(Native Method)
at java.lang.reflect.Method.invoke(Method.java:372)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1404)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1199)



[DonManfred]

Upload a small example project which shows the problem. I´ll try to reproduce it...



[MarcoRome]

Upload a small example project which shows the problem. I´ll try to reproduce it...

I tried your example in #1

#Region  Project Attributes
    #ApplicationLabel: SwitchBTN-Ex
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region


'#AdditionalRes: ..\Resource

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.

End Sub

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.

    Private SwitchButton1 As SwitchButton
    Private SwitchButton2 As SwitchButton
    Private SwitchButton3 As SwitchButton
    Private SwitchButton4 As SwitchButton
    Private SwitchButton5 As SwitchButton
End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("Layout1")

  Dim States(3,1) As Int
  States(0,0) = 16842919    'Pressed
  States(1,0) = 16842910    'Enabled
  States(2,0) = -16842910 'Disabled

  Dim Color(3) As Int = Array As Int(Colors.Blue,Colors.Cyan,Colors.LightGray)

  Dim CSL As JavaObject
  CSL.InitializeNewInstance("android.content.res.ColorStateList",Array As Object(States,Color))
    SwitchButton1.ThumbColor = CSL

    SwitchButton1.ThumbDrawableRes = "flyme_thumb_drawable"
    SwitchButton1.BackDrawableRes = "flyme_back_drawable"
    SwitchButton2.BackDrawableRes = "ios_back_drawable"

    SwitchButton3.ThumbDrawableRes = "miui_thumb_drawable"
    SwitchButton3.BackDrawableRes = "miui_back_drawable"

    SwitchButton4.ThumbDrawableRes = "icon_github"
    SwitchButton5.ThumbDrawableRes = "ios_back_drawable"

    'SwitchButton1.Enabled = False

End Sub

Sub Switch_onCheckedChanged(checked As Boolean)

End Sub


Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub



[DonManfred]

I tried your example in #1

i tried it again too. With the #additionalres and the aar in additional libs folder.
It is working fine on my device.

Hmmm....

Try to clean project or so
