Android Question Timer Picker

[Nitin Joshi]

Can anyone suggest simple and good timer picker?



[MikeSW17]

Any good for you? https://www.b4x.com/android/forum/threads/singledateandtimepicker.74229/

SingleDateAndTimePicker

A partly wrap for this Github project. Posting: 1. B4A library files - extract them and copy them to your additional library folder 2. B4A sample project 3. LibRes.zip - extract the folder and copy it to the same folder level as that of the /Files and /Objects folders of the B4A project...

www.b4x.com



[Nitin Joshi]

I already tried this. APP throws below error as soon as it opens...

*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
main$ResumableSub_Activity_Createresume (java line: 464)
java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
at anywheresoftware.b4a.keywords.LayoutBuilder.loadLayout(LayoutBuilder.java:170)
at anywheresoftware.b4a.objects.ActivityWrapper.LoadLayout(ActivityWrapper.java:209)
at Test.V6.main$ResumableSub_Activity_Create.resume(main.java:464)
at Test.V6.main._activity_create(main.java:440)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:213)
at Test.V6.main.afterFirstLayout(main.java:105)
at Test.V6.main.access$000(main.java:17)
at Test.V6.main$WaitForLayout.run(main.java:83)
at android.os.Handler.handleCallback(Handler.java:888)
at android.os.Handler.dispatchMessage(Handler.java:100)
at android.os.Looper.loop(Looper.java:213)
at android.app.ActivityThread.main(ActivityThread.java:8178)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:513)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1101)
Caused by: java.lang.reflect.InvocationTargetException
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.objects.CustomViewWrapper.AfterDesignerScript(CustomViewWrapper.java:64)
at anywheresoftware.b4a.keywords.LayoutBuilder.loadLayout(LayoutBuilder.java:162)
... 15 more



[LucaMs]

https://www.b4x.com/android/forum/threads/class-clswheel-input-wheels.24319/#content



[MikeSW17]

I already tried this. APP throws below error as soon as it opens...

*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
......

Interesting. The provided sample also crashed the first time I installed it.
Then I modified the stkTarget version to 29 and it also threw an error - but continued to run and log the date/times I selected.
Then I cleaned the project, deleted the app from my device, rebuilt/installed and it works perfectly.

So it seems the Library can be made to work with a little 'playing around'.

Logger connected to:  samsung SM-G988B
--------- beginning of main
Not starting debugger since process cannot load the jdwp agent.
setConscryptValidator
setConscryptValidator - put
Returning zygote-cached class loader: /system/framework/android.test.base.jar
No Network Security Config specified, using platform default
No Network Security Config specified, using platform default
makeCurrent EglSurface : 0x0 -> 0x0
Class anywheresoftware.b4a.BA failed lock verification and will run slower.
Common causes for lock verification issues are non-optimized dex code
and incorrect proguard optimizations.
common created.
Starting remote logger. Port: 34116
TcpOptimizer-ON
[INFO] isPopOver=false, config=true
updateCaptionType >> DecorView@7123d28[], isFloating=false, isApplication=true, hasWindowDecorCaption=false, hasWindowControllerCallback=true
setCaptionType = 0, this = DecorView@7123d28[]
Input channel constructed: 'b8964f1', fd=69
setView = com.android.internal.policy.DecorView@7123d28 TM=true
Relayout returned: old=(0,0,1440,3200) new=(0,0,1440,3200) req=(1440,3200)0 dur=4 res=0x7 s={true 524520199056} ch=true fn=-1
ReliableSurface(0x790fd2f4a0) created from window(0x7a1fd713a0)
new_window_surface() [1440x3200] return: 0x3000
eglCreateWindowSurface : 0x790fd35b90 from window:0x7a1fd713a0
[DP] dp(1) 1 android.view.ViewRootImpl.reportNextDraw:10658 android.view.ViewRootImpl.performTraversals:3718 android.view.ViewRootImpl.doTraversal:2504
[DP] pd() Asnyc report
makeCurrent EglSurface : 0x0 -> 0x790fd35b90
mapper 4.x is not supported
mapper 3.x is not supported
Arm Module v1.0
[DP] pdf(0) 1 android.view.ViewRootImpl.lambda$performDraw$1$ViewRootImpl:4539 android.view.-$$Lambda$ViewRootImpl$DJd0VUYJgsebcnSohO6h8zc_ONI.run:6 android.os.Handler.handleCallback:938
[DP] rdf()
Compat change id reported: 147798919; UID 10531; state: DISABLED
*** Debugger waiting for connection (0) ***
show: focusDisplayId = 0, isFocusInDesktop = false mCustomDisplayId=-1 isDexDualMode=false
show: isActivityContext = false
Text: Xait in android.widget.ToastPresenter@237872a
Input channel constructed: '158716a', fd=80
setView = android.widget.LinearLayout@f1eebf6 TM=true
MSG_WINDOW_FOCUS_CHANGED 1 1
prepareNavigationBarInfo() DecorView@7123d28[main]
getNavigationBarColor() -16711423
prepareNavigationBarInfo() DecorView@7123d28[main]
getNavigationBarColor() -16711423
Starting input: tba=JHS.SingleDateAndTimePicker ic=null mNaviBarColor -16711423 mIsGetNaviBarColorSuccess true , NavVisible : true , NavTrans : false
startInputInner - Id : 0
startInputInner - mService.startInputOrWindowGainedFocus
Input channel constructed: 'ClientS', fd=86
Relayout returned: old=(0,99,1440,3032) new=(160,2590,1280,2808) req=(1120,218)0 dur=3 res=0x7 s={true 524520443216} ch=true fn=-1
[DP] dp(1) 0 android.view.ViewRootImpl.reportNextDraw:10658 android.view.ViewRootImpl.performTraversals:3718 android.view.ViewRootImpl.doTraversal:2504
[DP] pd() Asnyc report
ReliableSurface(0x790fd3ed40) created from window(0x7a1fdacd60)
new_window_surface() [1120x218] return: 0x3000
eglCreateWindowSurface : 0x790fd3f6d0 from window:0x7a1fdacd60
makeCurrent EglSurface : 0x790fd35b90 -> 0x790fd3f6d0
[DP] pdf(0) 0 android.view.ViewRootImpl.lambda$performDraw$1$ViewRootImpl:4539 android.view.-$$Lambda$ViewRootImpl$DJd0VUYJgsebcnSohO6h8zc_ONI.run:6 android.os.Handler.handleCallback:938
[DP] rdf()
prepareNavigationBarInfo() DecorView@7123d28[main]
getNavigationBarColor() -16711423
Starting input: tba=JHS.SingleDateAndTimePicker ic=null mNaviBarColor -16711423 mIsGetNaviBarColorSuccess true , NavVisible : true , NavTrans : false
startInputInner - Id : 0
hide : Surface(name=Surface(name=3be5150 InputMethod)/@0x45a656f - animation-leash)/@0xcb6c0c9
nativeSetFlags Done : Surface(name=Surface(name=3be5150 InputMethod)/@0x45a656f - animation-leash)/@0xcb6c0c9
release : Surface(name=Surface(name=9d60f83 NavigationBar0)/@0xf6d9ab - animation-leash)/@0xd0383ce
nativeRelease nativeObject s[519687845152]
nativeRelease nativeObject e[519687845152]
release : Surface(name=Surface(name=bff19c7 StatusBar)/@0x520961c - animation-leash)/@0xbfc12ef
nativeRelease nativeObject s[519687819952]
nativeRelease nativeObject e[519687819952]
After accept
*** Debugger waiting for connection (1) ***
Copying updated assets files (1)
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
** Activity (main) Resume **
release : Surface(name=JHS.SingleDateAndTimePicker/JHS.SingleDateAndTimePicker.main$_17443)/@0xf891abc
nativeRelease nativeObject s[519687839328]
nativeRelease nativeObject e[519687839328]
release : Surface(name=Surface(name=3be5150 InputMethod)/@0x45a656f - animation-leash)/@0xcb6c0c9
nativeRelease nativeObject s[519687845264]
nativeRelease nativeObject e[519687845264]
release : Surface(name=Surface(name=9d60f83 NavigationBar0)/@0xf6d9ab - animation-leash)/@0xcedda45
nativeRelease nativeObject s[519687847392]
nativeRelease nativeObject e[519687847392]
release : Surface(name=Surface(name=bff19c7 StatusBar)/@0x520961c - animation-leash)/@0x25259a
nativeRelease nativeObject s[519687848176]
nativeRelease nativeObject e[519687848176]
Relayout returned: old=(0,0,1440,3200) new=(0,0,1440,3200) req=(1440,3200)0 dur=7 res=0x1 s={true 524520199056} ch=false fn=3
makeCurrent EglSurface : 0x790fd3f6d0 -> 0x790fd35b90
ReliableSurface(0x790fd3ed40) destroyed
destroyEglSurface : 0x790fd3f6d0
eglDestroySurface() in
delete_surface() [1120x218] return
eglDestroySurface() out
EGLNativeWindowType 0x7a1fdacd60 disconnect failed
dispatchDetachedFromWindow: reset blurmask
dispatchDetachedFromWindow
release : Surface(name=Toast$_17443)/@0x99acdf2
nativeRelease nativeObject s[519687879312]
nativeRelease nativeObject e[519687879312]
Input channel destroyed: '158716a', fd=80
Thread[6,tid=18877,WaitingInMainSignalCatcherLoop,Thread*=0x7a0fd0bdd0,peer=0x13bc0dc8,"Signal Catcher"]: reacting to signal 28
SIGSAVEPRF profile save
ViewPostIme pointer 0
ViewPostIme pointer 1
YEAR = 2020
MONTH = Dec
DAY OF MONTH = 27
DAY OF WEEK = Sunday
HOUR = 9
MINUTE = 15
STRING DATE AND TIME = Sun Dec 27 09:15:00 GMT 2020
ViewPostIme pointer 0
ViewPostIme pointer 1
2020
Dec
27
Sunday
9
15
Sun Dec 27 09:15:00 GMT 2020
ViewPostIme pointer 0
ViewPostIme pointer 1
YEAR = 2020
MONTH = Dec
DAY OF MONTH = 29
DAY OF WEEK = Tuesday
HOUR = 9
MINUTE = 15
STRING DATE AND TIME = Tue Dec 29 09:15:00 GMT 2020



[Albert Kallal]

Can anyone suggest simple and good timer picker?

Yes, I can! - the least trouble - just works?
Use this:

The other concept? I Always store my time "things" as date + time.

This will result in the ability to do time spans, and never worry about crossing the day boundary.

So, the time picker from above looks like this:

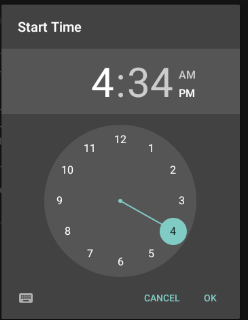

12 hour mode:

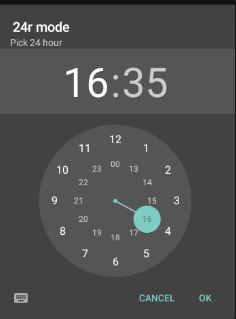

24 hour mode:

Now, as noted, I do adopt the concept of a date time.

Thus, with this code:

Sub Button1_Click


    Dim dtTodayWithTime As Long = DateTime.Now
    Dim dtToday As Long = GetTodayT

    Dim PopTime As TimeDialog
    PopTime.TimeTicks = dtTodayWithTime

    If PopTime.Show("","Start Time","Ok","Cancel","",Null) = DialogResponse.POSITIVE Then

        Dim pt As Period
        pt.Initialize
        pt.Hours = PopTime.Hour
        pt.Minutes = PopTime.Minute

        ' save today date with time part

        Dim MyResultDateTime As Long = DateUtils.AddPeriod(dtToday,pt)

        ' now for display
        ' 12 hour time
        EditText1.Text = TicksToDate(MyResultDateTime,fTime)

        ' Date 24 hour time
        EditText2.Text = TicksToDate(MyResultDateTime,fTime24)

        ' Date full text
        EditText3.Text = TicksToDate(MyResultDateTime,fDateFull)

        ' Date full text with time
        EditText4.Text = TicksToDate(MyResultDateTime,fDateFullT)

        ' Just the date
        EditText5.Text = TicksToDate(MyResultDateTime,fDate)


    End If

End Sub

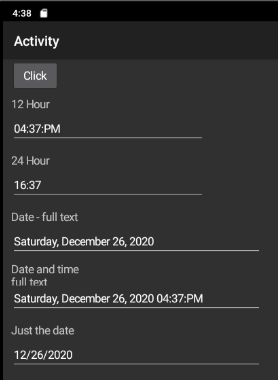

Then I get this:

So from that one "time thing", I can extract the date or what ever i wish.

The code I have for TicksToTime is based on me define a set of "date formats".
If I am to to do anything with time, then I put these constants into my app - right from the get go:

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.


    Public fDate As String = "MM/dd/yyyy"
    Public fTime As String = "hh:mm:a"    ' 12 hour AM/PM
    Public fTime24 As String = "kk:mm"      ' 24 hour

    Public fDateTime As String = "yyyy-MM-dd HH:mm:ss"
    Public fDateTimeSYS As String = "yyyy-MM-dd HH:mm:ss.000"

    Public fDateFull As String = "EEEE, MMMM dd, yyyy"

    Public fDateFullT As String = "EEEE, MMMM dd, yyyy " & fTime

End Sub

I VERY much had considered to store the ticks value. But sqLite, and even data I pull from SQL server etc. (as date time)? Well, they follow that standard format.
Thus, if I going to use that date/time value to interact with other systems - then best to stick to the android time format.

However, while dateutils is your friend?

I have two more routines - they let me convert from "ticks" to any of my above standard time formats.

Thus to same messy code - I have these 3 helper routines (that I used above in the sample code:

Sub DateToTicks(sDate As String, sFormat As String) As Long

   ' play nice - don't break anyones global format
   Dim sOLD As String = DateTime.DateFormat

   DateTime.DateFormat = sFormat
    Try
        Dim MyTicks As Long = DateTime.DateParse(sDate)
    Catch
        Log(LastException)
        MyTicks = 0
    End Try

   DateTime.DateFormat = sOLD

   Return MyTicks


End Sub

Sub TicksToDate(ticks As Long,sFormat As String) As String

    ' play nice - don't break anyones global format
    Dim sOld As String = DateTime.DateFormat

    DateTime.DateFormat = sFormat
    Try
        Dim sResult As String = DateTime.Date(ticks)
    Catch
        Log(LastException)
    End Try

    DateTime.DateFormat = sOld

    Return sResult

End Sub


Public Sub GetTodayT As Long
   ' get today WITHOUT time portion
    Dim tDay As Long = DateTime.Now

    Return DateUtils.SetDate(DateTime.GetYear(tDay),DateTime.GetMonth(tDay),DateTime.GetDayOfMonth(tDay))

End Sub

So, with above routines - you are now ready to start coding, playing and having fun with date and time formats.

As noted, having and adopting Date + time formats WHEN dealing with time is nice, since then if you span midnight - or even MORE time, you do NOT care, and thus I have a screen like this based on above routines:

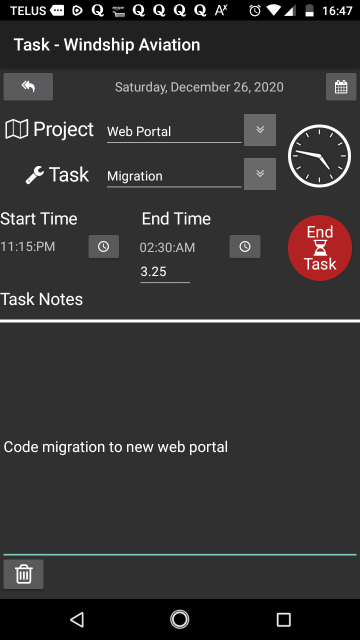

Note the FULL text date format in the upper right. And note the use of 12 hour formats - but STILL I cross midnight without issue.

So, having spent time on this?
Those built in dialogs - they work well, are quite easy to use, and you don't have to download or add anything more to B4A

Between dateutils, a few nice defined constants, and the DateToTicks, and TicksToDate? You quite much have a good ready to go framework in which to deal with time, dates and that of a nice time picker. The date picker in Dialogs2 is ALSO very nice - looks to be the standard Android picker, and again this helps for user learning curves and any user familiar having used Android.

Regards,
Albert D. Kallal
Edmonton, Alberta Canada
