Android Question Transparent panel

[fishwolf]

I have modify card example.
Is it possible set a total and percentage trasparent on panel?



[Sagenut]

In the layout Designer modify the Alpha of the color of the panel.
255 is solid color, 0 is totally transparent.



[TILogistic]

I have modify card example.
Is it possible set a total and percentage trasparent on panel?

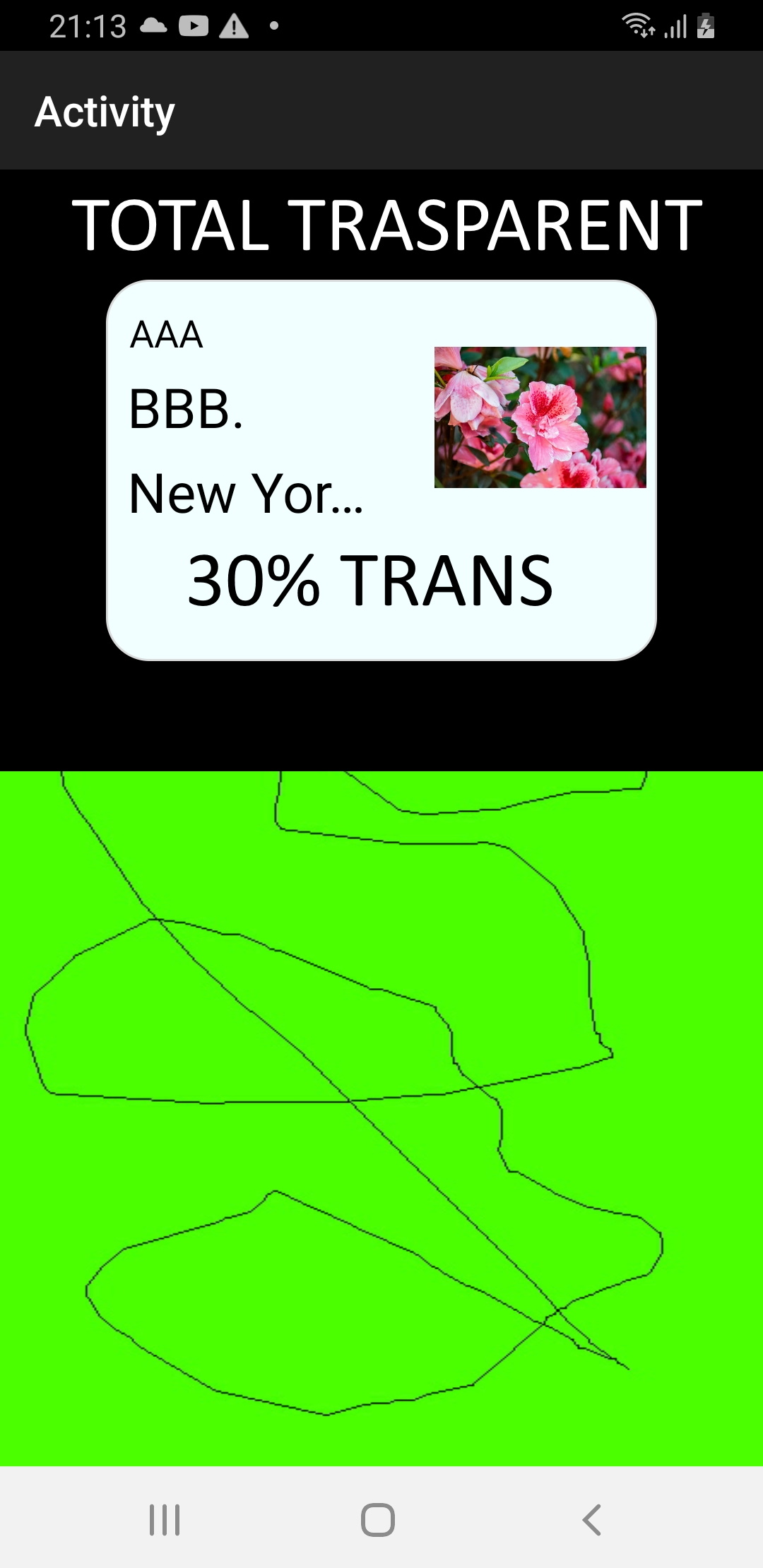

View attachment 144028

Use
example:

Private Sub CreateCard(Width As Int, Title As String, Image As String, Content As String) As Panel
    Dim p As B4XView = xui.CreatePanel("")
    SetAlpha(p, 0.3)

'Level between 0 (transparent) to 1 (opaque)
Public Sub SetAlpha (View As B4XView, Level As Float)
    #if B4A
    Dim jo As JavaObject = View
    Dim alpha As Float = Level
    jo.RunMethod("setAlpha", Array(alpha))
    #Else If B4J
    Dim n As Node = View
    n.Alpha = Level
    #else if B4i
    Dim v As View = View
    v.Alpha = Level
    #End If
End Sub

See:

Transparent Panel but with Shadow

Hi everyone, I'm experimenting some modern UI techniques... is it possibile to have a panel with transparent color and keeping the shadow? At the moment i'm achieving the shadow using the "Elevation" but if i put Color to transpartent the shadow disappears. Is there a better way to apply a...

www.b4x.com



[fishwolf]

Use
example:

Private Sub CreateCard(Width As Int, Title As String, Image As String, Content As String) As Panel
    Dim p As B4XView = xui.CreatePanel("")
    SetAlpha(p, 0.3)

'Level between 0 (transparent) to 1 (opaque)
Public Sub SetAlpha (View As B4XView, Level As Float)
    #if B4A
    Dim jo As JavaObject = View
    Dim alpha As Float = Level
    jo.RunMethod("setAlpha", Array(alpha))
    #Else If B4J
    Dim n As Node = View
    n.Alpha = Level
    #else if B4i
    Dim v As View = View
    v.Alpha = Level
    #End If
End Sub

See:

Transparent Panel but with Shadow

Hi everyone, I'm experimenting some modern UI techniques... is it possibile to have a panel with transparent color and keeping the shadow? At the moment i'm achieving the shadow using the "Elevation" but if i put Color to transpartent the shadow disappears. Is there a better way to apply a...

www.b4x.com

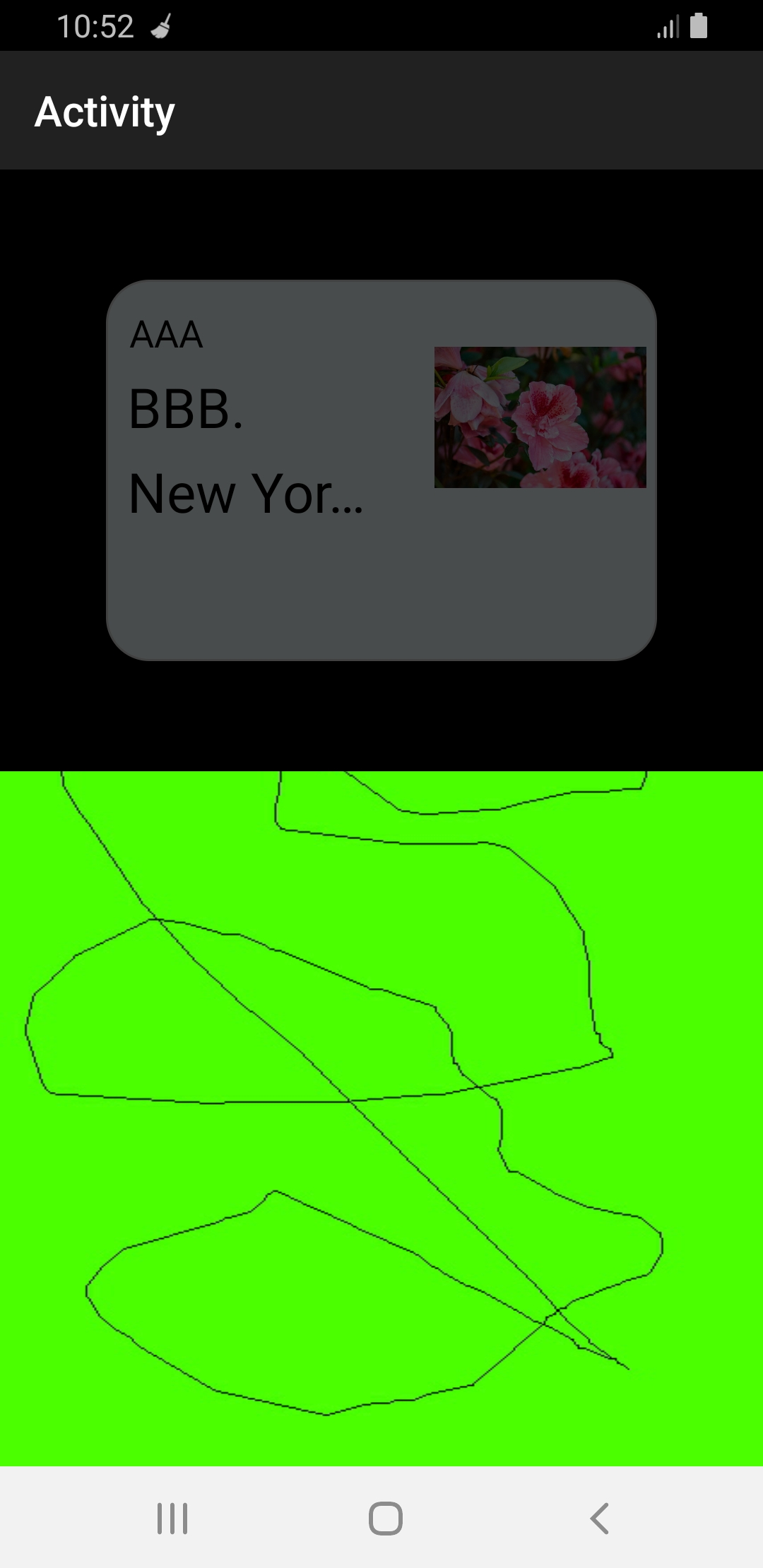

With this code i have OTTENUTO.jpg:

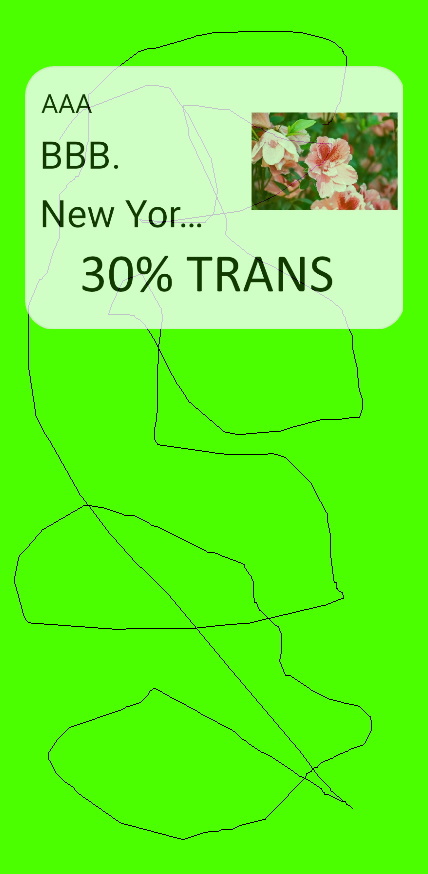

i would have this effect Desiderato.jpg:

Similar to this

can i have a complete example?

Thanks



[TILogistic]

?

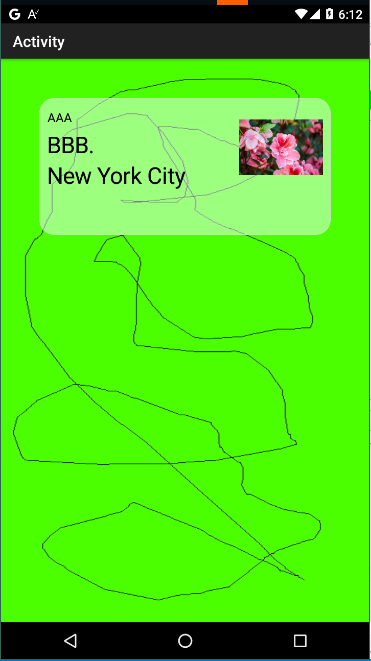

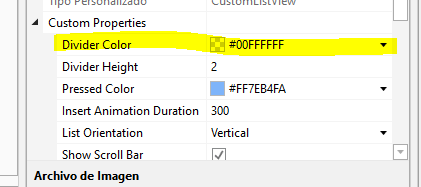

CLV Only Transparent divider color

And Card



[TILogistic]

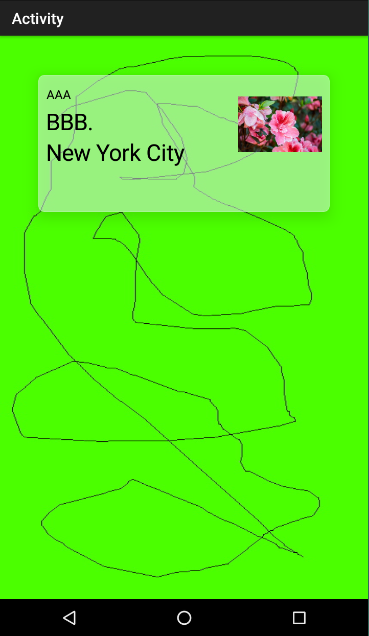

by code and with shadow

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.

    Dim ColorSelected, ColorUnselected As ColorDrawable

    Private CLV1 As CustomListView
    Private ImageFlower As B4XView
    Private LabelTitle As B4XView
    Private LabelBody As B4XView
    Private LabelAction As B4XView

    Private Panel1 As B4XView
End Sub

EDIT

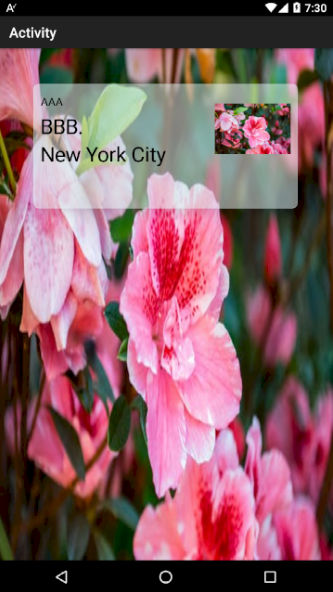

    CLV1.GetBase.SetBitmap(xui.LoadBitmapResize(File.DirAssets, "cardimage1.jpeg", CLV1.GetBase.Width, CLV1.GetBase.Height, False))

    CLV1.sv.ScrollViewInnerPanel.Color = xui.Color_Transparent 'color divisor

    CLV1.Add(CreateCard(CLV1.AsView.Width, $"AAA"$, bitmaps.Get(0), content), "")

Private Sub CreateCard(Width As Int, Title As String, Image As String, Content As String) As Panel
    Dim p As B4XView = xui.CreatePanel("")

    Dim height As Int = 280dip
    If GetDeviceLayoutValues.ApproximateScreenSize < 4.5 Then
        height = 310dip
    End If

    'height = 200dip
    p.SetLayoutAnimated(0, 0, 0, Width, height)
    p.LoadLayout("Card")

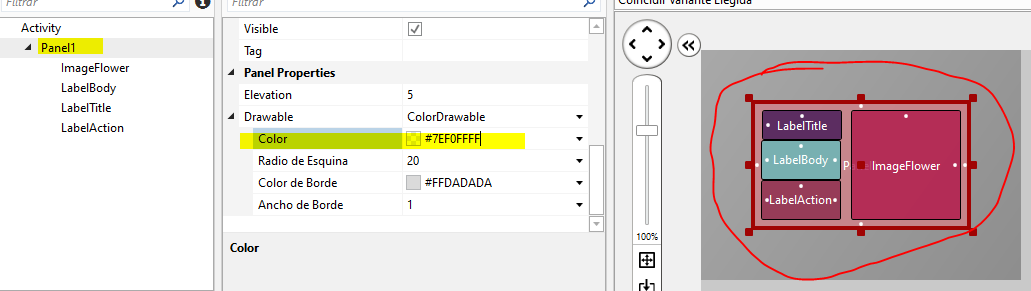

    Panel1.SetColorAndBorder(0x7EF0FFFF, 1dip, 0x7EF0FFFF, 8dip)
    SetShadow(Panel1, 8dip, 0x7EF0FFFF)
