B4A Library UISegmentedControl

This library was made based on UISegmentedControl for IOS

Installation instructions:
- Copy the .xml and .jar files to your custom libraries folder
- Select in your REFERENCED LIBRARIES

Version history:
V1.0 (Not published):
- Initial version

V1.1 (Not published):
- Bugs Corrections and add some features, like size of fonts, shadow (on/off), color of split, size of split, etc

V1.2 (First public release)

UISegmented
Author: Alberto Iglesias
Version: 1.2

• UISegmented
  Fields:
  • _shadow As Boolean
  • _splitcolor As Int
  • _splitwidth As Int
  Methods:
  • IsInitialized As Boolean
    Tests whether the object has been initialized.
  • _addbutton (pID As String, pText As String, pColor As Int, pSize As Int) As String
    Add a button like Segment.
    pID = Identifier to your Segment Button
    pText = Text to your Segment Button
    pColor = Color of the Text
    pSize = Size of the Text

    Examples:
    objUI1.addButton("y","num 2",Colors.Red,18)
    objUI2.addButton("4","4",Colors.White,18)
    objUI3.addButton("5","E",Colors.Black,14)
  • _asview As PanelWrapper
    Return Panel Object from UISegment
  • _author As String
    Return the author of this library
  • _build (Width As Int, height As Int) As String
    Need build "AFTER" put all of segment buttons and Split to calculate sizes
    Example: objUI3.Build(250dip,50dip)
  • _getpressed As String
    Return the Pressed Segment
  • _initialize (vCallback As Object, ev As String, colorA As Int, colorB As Int) As String
    Initializes the object. You can add parameters to this method if needed.

    Examples:
    Dim objUI1 As UISegmented
    objUI1.Initialize(Me,"objUI2",Colors.ARGB(255,196,83,82),Colors.ARGB(255,216,29,8))

    Dim objUI3 As UISegmented
    objUI3.Initialize(Me,"objUI3",Colors.White,Colors.White)
  • _setpressedbytag (pTag As String) As String
    Force to pressed a segment button, identifing by TAG value
  • _setpressedbytext (pText As String) As String
    Force to pressed a segment button, identifing by TEXT value
  • _unpressall As String
    Unpress all of segment buttons
  • _version As String
    Return the version of this library

Version: 1.3

* Add a flag to invert colors when the button is push or not

V1.3 (First public release)
New flag added..... InvertedColors = True/False

2 UISegmented Samples with InvertedColors True and False:

With InvertedColors = TRUE

With InvertedColors = FALSE (DEFAULT)



[CidTek]

Any chance you can make a UISwitch?



[NJDude]

Nice.

Would it be possible you translated the following to keep it kosher?

CorFonte As Int

TamFonte As Int

Texto As String



[Alberto Iglesias]

Ok NJDude, I will translate today and I post them



[Alberto Iglesias]

The "UISwitch" is already exist, look in this EREL class:

http://www.b4x.com/android/forum/threads/switch-view-android-4.38971/#content



[Alberto Iglesias]

NJDude, this translate is not necessary, this type in only for internal use. I take off from documentation



[CidTek]

The "UISwitch" is already exist, look in this EREL class:

http://www.b4x.com/android/forum/threads/switch-view-android-4.38971/#content

It doesn't look as good as the iOS one however, and since you were basing your SegmentedControl on the iOS version I thought I would put it out there.

I like the look of the iOS 7 one even better as good design usually requires no text labels to explain On/Off.



[CidTek]

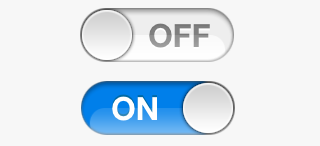

iOS 7 version of the UISwitch.



[Alberto Iglesias]

OK CidTek,

I do this library with this design based. In some days I put in the forum...

I think it will help you and others users.



[CidTek]

OK CidTek,

I do this library with this design based. In some days I put in the forum...

I think it will help you and others users.

Thank you! And for those of us that port our apps to Blackberrys it will even have a native look on those platforms.



[Alberto Iglesias]

CidTek,

It´s already done, look in:

http://www.b4x.com/android/forum/threads/uiswitch-switch-control-ios-like.44020


Enjoy!



[avacondios]

Hi, can you share the source code ?



[Douglas Farias]

have os limitation? android 2.3+ etc?



[billyrudi]

Hi Alberto,
i have need to change the logic of the colors in your control. then selected one must be on e the other grayed.
can you develop a flag to invert the selection?
regards Paolo Lops



[Alberto Iglesias]

Hey Paolo,

Check the version 1.3, I do this for your request...

Enjoy!



[billyrudi]

Hi Alberto you are great!.
Are you sure that the library1.3.zip is correct?
i don't see your flag...



[Alberto Iglesias]

Yes, it is. Look:

Version: 1.3

* Add a flag to invert colors when the button is push or not

V1.3 (First public release)
New flag added..... InvertedColors = True/False

Just download this version.



[billyrudi]

ok perfect. tank you.



[Mashiane]

Nice work, would be nice though of instead of text one can add images to each item. Any considerations?



[Dave O]

Is there a way to set the selection color? (It currently seems fixed as a dark gray.)

Basically, I'd like to create a control like the red/white one in the lower left of the graphic in the first post (unselected = white, selected = color).
