B4A Library UltraDBGrid v1.01 for B4A – Advanced Grid with Frozen Columns, Footers, and Custom Styles

UltraDBGrid v1.01 (B4A)

A fully customizable and database-friendly grid component for B4A,
designed to give developers maximum control over rows, columns, styles, and data binding.
Supports both manual column definitions and auto-detection from SQL queries.

---

Features

• Database Integration
  - Bind grid to any SQL query with DataSource.
  - Auto-detects columns if not defined manually.
• Custom Columns
  - Add columns manually via AddColumn.
  - Supports column widths, headers, and data types.
• Headers & Footers
  - Full control over colors, fonts, alignment, and height.
  - Frozen columns with independent headers & footers.
• Row Customization
  - Adjustable row height.
  - Alternate row styling.
  - Custom cell styles.
• Search & Sorting
  - Built-in search panel with highlight.
  - Auto-detects ORDER BY and shows sort indicators.
  - Single-click column sorting.
• Frozen Columns
  - First column can stay fixed while scrolling horizontally.
• Selection Handling
  - Customizable selection color.
  - Methods for clearing or refreshing selection.
• Customizable Grid Appearance
  - Grid background color.
  - Border visibility.
  - Highlight color.
  - Theme-friendly.
• Performance
  - Uses UltimateListView internally for smooth scrolling.
  - Supports large datasets.

---

Demo Apps (10 Examples)

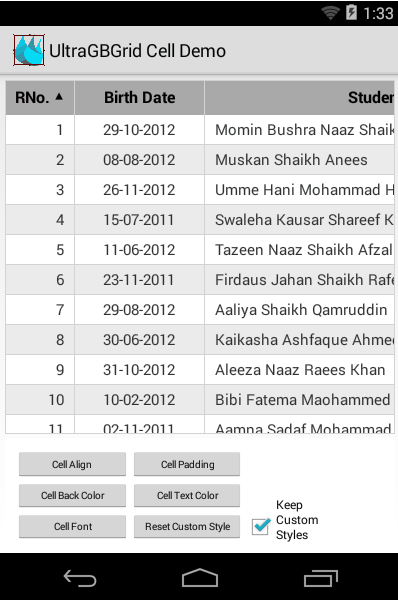

1. Cell Customization

2. Column & Row Customization

3. Database Binding

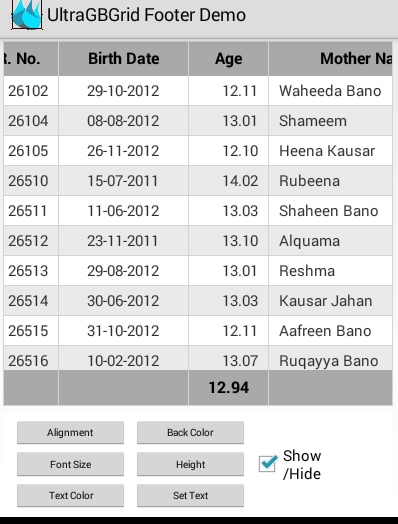

4. Footers

5. Frozen Column

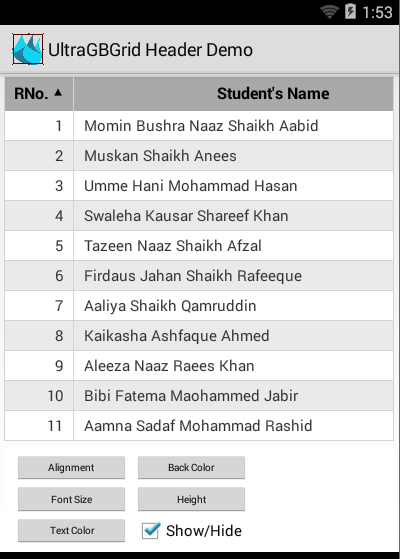

6. Headers

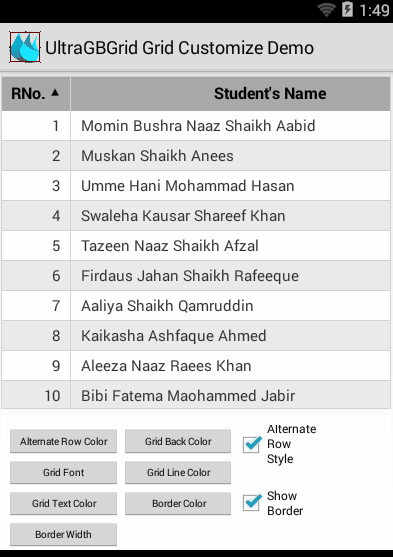

7. Grid Customization (colors, styles, etc.)

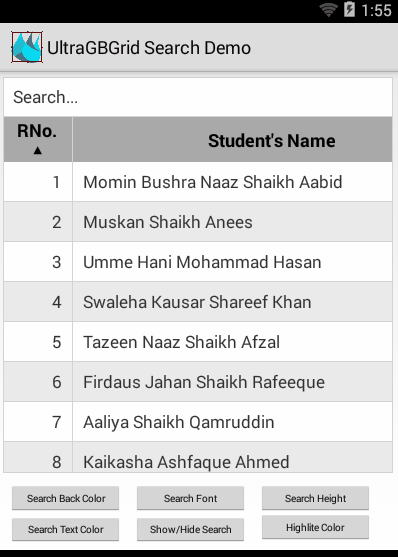

8. Search Queries

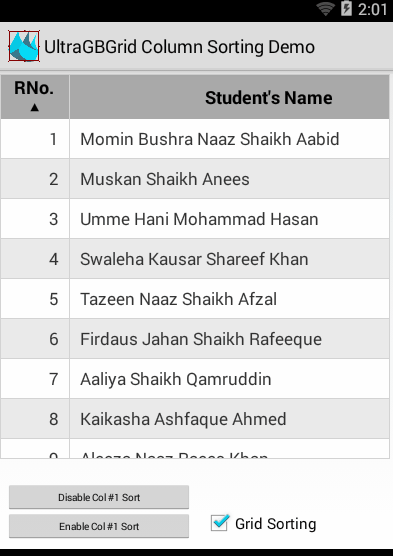

9. Sorting

10. Selections

---

Installation
1. Copy UltraDBGrid.bas to your project’s Class Modules.
2. Add UltimateListView library to your project.
3. Add UltraDBGrid to your layout or create it programmatically.

---

Quick Example

' Initialize grid
UltraDBGrid1.Initialize(Me, "Grid")
Activity.AddView(UltraDBGrid1, 0, 0, 100%x, 100%y)

' Add column manually (optional)
UltraDBGrid1.AddColumns("Name", "name", 120dip, UltraDBGrid1.TypeString)

' Bind to database
UltraDBGrid1.DataSource(SQL1, "SELECT id, name, salary FROM employees ORDER BY name")

---

Download

(Library + 10 Demo Apps + GIFs)

---

Notes
- Tested on B4A 12+ with UltimateListView.
- Current version: v1.01 (Initial Release).
- Feedback & feature requests are welcome!



[Mashiane]

Hi, if this is not a question perhaps it needs to be moved to the correct sub-forum. I see you are new, please ask @Erel to move this.

Also it seems your image links are broken. Would like to see that a great deal.

Seems awesome



[Xfood]

It would be better not to use
the UltimateListView library, since 2018, maybe you could use the xclv, which is an integrated library



[incendio]

It would be better not to use
the UltimateListView library, since 2018, maybe you could use the xclv, which is an integrated library

Why not ULV? I use both but for a table with more than 2K rows, still use ULV.

Also, for record search, not sure if xclv can do it.



[Xfood]

Also, for record search, not sure if xclv can do it.

Of course you can, you could even use a b4xtable, I'm just saying this because ulv is quite old, I'm not sure if it will work with the new versions of Android



[incendio]

Of course you can, you could even use a b4xtable, I'm just saying this because ulv is quite old, I'm not sure if it will work with the new versions of Android

Last time I checked, in my case, it worked fine with Android 16.



[alangonzalez91]

I was not able to see the images in topic



[Frank660405]

thx so much & this is what i need
