iOS Question upload to iphone connect error

[MList]

Hi, i am trying to upload my first app.
I have a distribution certificate, i created a store provision
Top Check BLE (com.list-magnetik.top-check)

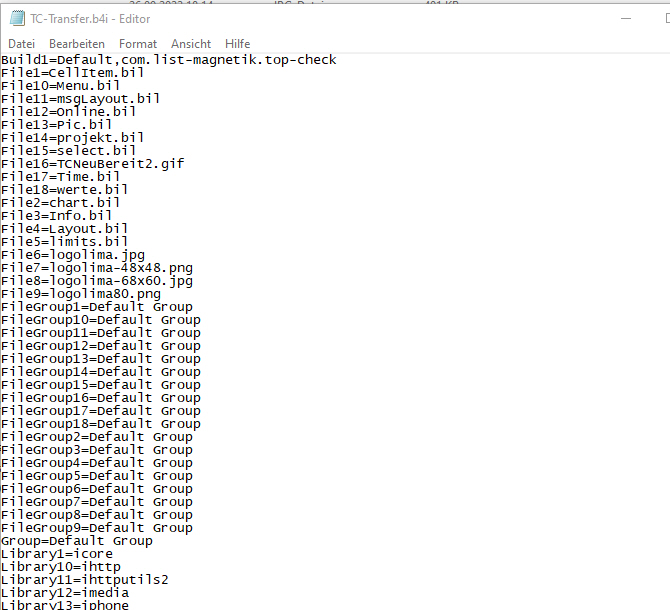

unfortunately the name has hypher, so i edited the B4i Source Code and changed the build manually to com.list-magnetik.top-check.
then i made a release app and downloaded the .zip file

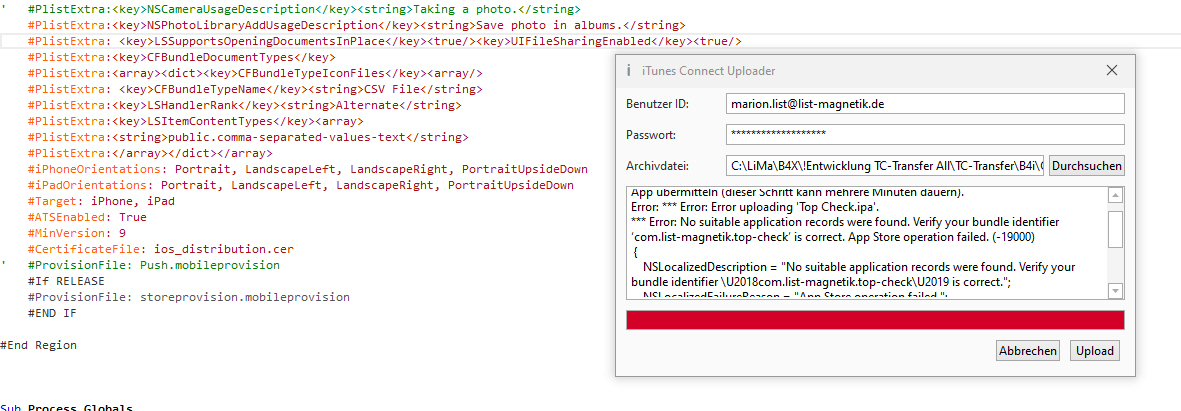

When trying to upload it to itunes i get the error in pic.
Please help !



[MarcoRome]

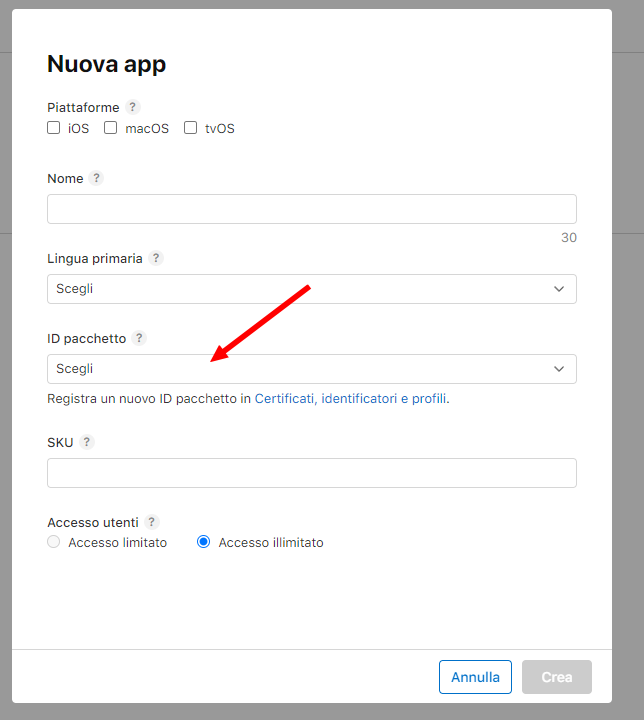

Have you created the app on the Apple Store and assigned the package id ?



[MList]

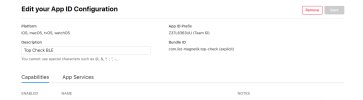

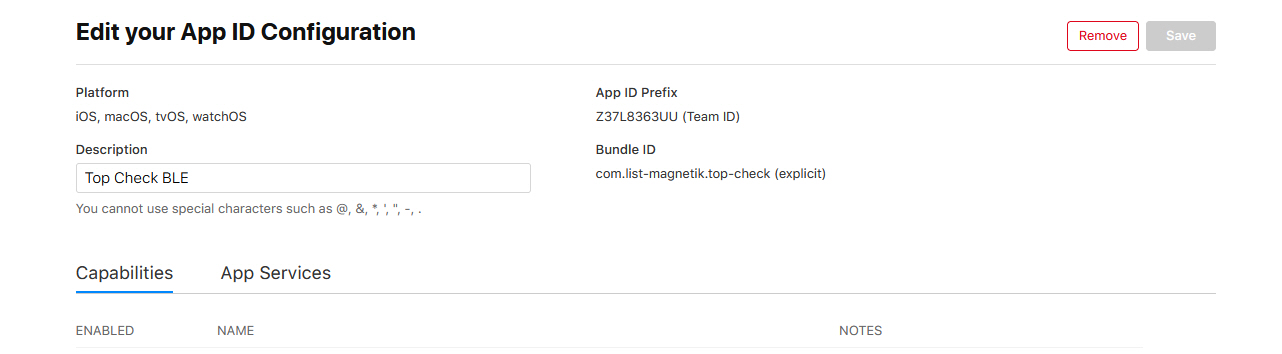

i am using hosted builder and created an identifier app Id.
the turorial didn't say anything else, do i have to create an app in appstore?
Now i did create an app in appstore and get the following error when uploading to itunes.

Error: Error:
[2022-10-04 08:00:14 EDT] <main> INFO: Configuring logging...
[2022-10-04 08:00:14 EDT] <main> INFO: Logging level set to eXtreme
[2022-10-04 08:00:22 EDT] <main> DEBUG: SMART-CLIENT: initializing data center locking ops: [authenticateForSession, validateAssets]
[2022-10-04 08:00:22 EDT] <main> DEBUG: SMART-CLIENT: initializing data centers with: [contentdelivery01.itunes.apple.com, contentdelivery02.itunes.apple.com]
[2022-10-04 08:00:22 EDT] <main> INFO: iTMSTransporter : iTunes Store Transporter [2.3.0]
[2022-10-04 08:00:22 EDT] <main> INFO: OS identifier: Mac OS X 11.4 (x86_64); jvm=14.0.2+12-iTunesOpenJDK-8; jre=14.0.2+12-iTunesOpenJDK-8
[2022-10-04 08:00:22 EDT] <main> INFO: Memory: [JVM] 997M free, 1024M total, 2048M max [System] (Physical) 29M free, 16384M total (Swap) 1288M free, 5120M total
[2022-10-04 08:00:22 EDT] <main> INFO: Client: altool 4.071 (1221)
[2022-10-04 08:00:22 EDT] <main> INFO: Upload mode selected.
[2022-10-04 08:00:22 EDT] <main> DBG-X: Memory: [JVM] 986M free, 1024M total, 2048M max [System] (Physical) 28M free, 16384M total (Swap) 1288M free, 5120M total
[2022-10-04 08:00:22 EDT] <main> DBG-X: Using operation named: authenticateForTransportDiscovery
[2022-10-04 08:00:22 EDT] <main> DBG-X: Apple's web service operation input parameters:
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter Application = iTMSTransporter
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter BaseVersion = 2.1.0
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter Client = altool
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter ClientVersion = 4.071 (1221)
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter OSIdentifier = Mac OS X 11.4 (x86_64); jvm=14.0.2+12-iTunesOpenJDK-8; jre=14.0.2+12-iTunesOpenJDK-8
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter StatisticsClientStartDateTimeZoneISO = 2022-10-04T08:00:22-04:00
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter StatisticsPreviousCallDurationInSecs = 0.739318666
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter TransporterArguments = -m upload -u marion.list@list-magnetik.de -vp json -DTxHeaders=eyJqZW5nYSI6dHJ1ZX0= -sessionid @env:51FCC0A4-4411-4AEA-9EDC-8F02C61C16E3 -sharedsecret **hidden value** -f /var/folders/2y/4tpm18sj38xfq92cwnl72ypm0000gn/T/A30BB628-DF8D-48CE-9D54-0AF58369EFD8/38cea45734b7ca2b8edb831d78b57d41.itmsp -indicator true -v eXtreme -Dtransporter.client=altool -Dtransporter.client.version=4.071 (1221)
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter Version = 2.3.0
[2022-10-04 08:00:22 EDT] <main> DBG-X: parameter iTMSTransporterMode = upload
[2022-10-04 08:00:22 EDT] <main> INFO: id = 20221004080022-321
[2022-10-04 08:00:22 EDT] <main> DEBUG: SMART-CLIENT: getCurrent(); current data center is null
[2022-10-04 08:00:22 EDT] <main> DEBUG: SMART-CLIENT: getCurrent(); iterator was null, setting it
[2022-10-04 08:00:22 EDT] <main> DEBUG: SMART-CLIENT: getCurrent(); setting current data center to: contentdelivery01.itunes.apple.com
[2022-10-04 08:00:22 EDT] <main> INFO: iTMSTransporter Correlation Key: b4dca62f-4359-45a0-864e-597321b89cee-0001
[2022-10-04 08:00:22 EDT] <main> DEBUG: SMART-CLIENT: Host HTTP header: contentdelivery01.itunes.apple.com
[2022-10-04 08:00:23 EDT] <main> DBG-X: Apple's web service operation return value:
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter EnableJWTForAllCalls = false
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter PreferredTransports = [HTTP, Signiant, Aspera]
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter TransportHosts.Signiant = [sgr604.apple.com:44001, sgr603.apple.com:44001, sgr601.apple.com:44001, sgr602.apple.com:44001]
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter ShouldUseFeatures = (null)
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter SessionExpiration = 2022-10-08T12:00:23.828Z
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter TransportHosts.Aspera = [vgr501.apple.com:33001, vgr503.apple.com:33001, vgr504.apple.com:33001, vgr502.apple.com:33001]
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter ShouldUseRESTAPIs = false
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter StreamingSettings = {LogStreamingEnabled=true, MultipartUploadsEnabled=true, AssetDescriptionStreamingEnabled=false}
[2022-10-04 08:00:23 EDT] <main> INFO: Transporter's command line arguments are: -m upload -u marion.list@list-magnetik.de -vp json -DTxHeaders=eyJqZW5nYSI6dHJ1ZX0= -sessionid @env:51FCC0A4-4411-4AEA-9EDC-8F02C61C16E3 -sharedsecret **hidden value** -f /var/folders/2y/4tpm18sj38xfq92cwnl72ypm0000gn/T/A30BB628-DF8D-48CE-9D54-0AF58369EFD8/38cea45734b7ca2b8edb831d78b57d41.itmsp -indicator true -v eXtreme -Dtransporter.client=altool -Dtransporter.client.version=4.071 (1221)
[2022-10-04 08:00:23 EDT] <main> INFO: Gathering the list of valid files from the package ...
[2022-10-04 08:00:23 EDT] <main> DEBUG: metadata.xml will be verified by Apple's web service to determine if it is a valid file.
[2022-10-04 08:00:23 EDT] <main> DEBUG: TopCheck.ipa will be verified by Apple's web service to determine if it is a valid file.
[2022-10-04 08:00:23 EDT] <main> INFO: Finished gathering the list of valid files from the package.
[2022-10-04 08:00:23 EDT] <main> INFO: Examining the package at: /var/folders/2y/4tpm18sj38xfq92cwnl72ypm0000gn/T/A30BB628-DF8D-48CE-9D54-0AF58369EFD8/38cea45734b7ca2b8edb831d78b57d41.itmsp
[2022-10-04 08:00:23 EDT] <main> INFO: Ensuring that package has well formed metadata file...
[2022-10-04 08:00:23 EDT] <main> DEBUG: Getting case-sensitive metadata xml filename...
[2022-10-04 08:00:23 EDT] <main> DEBUG: Case-sensitive metadata filename is: metadata.xml
[2022-10-04 08:00:23 EDT] <main> INFO: JSON:{"msg":{"phase":"Upload","description":"Analyzing metadata","index":0},"messageType":"VerifyProgress"}
[2022-10-04 08:00:23 EDT] <main> INFO: Performing authentication of package 38cea45734b7ca2b8edb831d78b57d41.itmsp ...
[2022-10-04 08:00:23 EDT] <main> DBG-X: Memory: [JVM] 968M free, 1024M total, 2048M max [System] (Physical) 27M free, 16384M total (Swap) 1288M free, 5120M total
[2022-10-04 08:00:23 EDT] <main> INFO: JSON:{"msg":{"phase":"Upload","count":2,"description":"Analyzing metadata","index":1},"messageType":"VerifyProgress"}
[2022-10-04 08:00:23 EDT] <main> DBG-X: Deflated 616 bytes to 456
[2022-10-04 08:00:23 EDT] <main> DBG-X: Using operation named: validateMetadata
[2022-10-04 08:00:23 EDT] <main> DBG-X: Apple's web service operation input parameters:
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter Application = iTMSTransporter
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter BaseVersion = 2.1.0
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter Client = altool
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter ClientVersion = 4.071 (1221)
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter Files = [metadata.xml, TopCheck.ipa]
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter Metadata = <?xml version="1.0" encoding="UTF-8"?>
<package version="software5.4" xmlns="http://apple.com/itunes/importer">
<software_assets apple_id="6443675080"
bundle_short_version_string="V1.002"
bundle_version="V1.002"
bundle_identifier="com.list-magnetik.top-check"
app_platform="ios">
<asset type="bundle">
<data_file>
<file_name>TopCheck.ipa</file_name>
<checksum type="md5">38cea45734b7ca2b8edb831d78b57d41</checksum>
<size>6192047</size>
</data_file>
</asset>
</software_assets>
</package>

[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter MetadataChecksum = 2e6c99e43471517debce1229855f7e09
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter MetadataCompressed = (suppressed)
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter MetadataInfo = {app_platform=ios, primary_bundle_identifier=, device_id=, bundle_identifier=com.list-magnetik.top-check, packageVersion=software5.4, apple_id=6443675080, asset_types=[bundle], bundle_version=V1.002, bundle_short_version_string=V1.002}
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter OSIdentifier = Mac OS X 11.4 (x86_64); jvm=14.0.2+12-iTunesOpenJDK-8; jre=14.0.2+12-iTunesOpenJDK-8
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter PackageName = 38cea45734b7ca2b8edb831d78b57d41.itmsp
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter PackageSize = 6192663
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter StatisticsClientStartDateTimeZoneISO = 2022-10-04T08:00:23-04:00
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter TransporterArguments = -m upload -u marion.list@list-magnetik.de -vp json -DTxHeaders=eyJqZW5nYSI6dHJ1ZX0= -sessionid @env:51FCC0A4-4411-4AEA-9EDC-8F02C61C16E3 -sharedsecret **hidden value** -f /var/folders/2y/4tpm18sj38xfq92cwnl72ypm0000gn/T/A30BB628-DF8D-48CE-9D54-0AF58369EFD8/38cea45734b7ca2b8edb831d78b57d41.itmsp -indicator true -v eXtreme -Dtransporter.client=altool -Dtransporter.client.version=4.071 (1221)
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter Version = 2.3.0
[2022-10-04 08:00:23 EDT] <main> DBG-X: parameter iTMSTransporterMode = upload
[2022-10-04 08:00:23 EDT] <main> INFO: id = 20221004080023-228
[2022-10-04 08:00:23 EDT] <main> INFO: iTMSTransporter Correlation Key: b4dca62f-4359-45a0-864e-597321b89cee-0001
[2022-10-04 08:00:23 EDT] <main> DEBUG: SMART-CLIENT: Host HTTP header: contentdelivery01.itunes.apple.com
[2022-10-04 08:00:24 EDT] <main> DBG-X: Apple's web service operation return value:
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter EnableJWTForAllCalls = false
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter ShouldUseFeatures = (null)
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter MinimumFileSizeThresholdForCheckum = 104857600
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter SoftwareMediaDescriptionFormat = binary
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter RestartClient = false
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter SoftwareMediaDescriptionThresholds = {in-app-purchase-content={extensions=[pkg], size=100000000}, ccats={extensions=[pdf], size=100000000}, product-archive={extensions=[pkg], size=100000000}, developer-id-package={extensions=[zip, pkg, dmg], size=100000000}, bundle={extensions=[zip, ipa], size=100000000}, large-icon={extensions=[jpg, png, jpeg], size=100000000}}
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter Success = false
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter Errors = [ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_short_version_string" at SoftwareAssets, ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_version" at SoftwareAssets]
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter FilesToUpload = [metadata.xml, TopCheck.ipa]
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter AssetsToDescribe = [{Role=source, Filename=TopCheck.ipa, ShouldDescribeAsset=true, UTI=com.apple.ipa}]
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter Checksums = {TopCheck.ipa=38cea45734b7ca2b8edb831d78b57d41}
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter FileSizes = {TopCheck.ipa=6192047}
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter ErrorCode = 1102
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter ErrorMessage = ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_short_version_string" at SoftwareAssets
ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_version" at SoftwareAsset
(1102)
[2022-10-04 08:00:24 EDT] <main> DBG-X: parameter ShouldUseRESTAPIs = false
[2022-10-04 08:00:24 EDT] <main> ERROR: ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_short_version_string" at SoftwareAssets
[2022-10-04 08:00:24 EDT] <main> ERROR: ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_version" at SoftwareAssets
[2022-10-04 08:00:24 EDT] <main> DBG-X: The error code is: 1102
[2022-10-04 08:00:24 EDT] <main> INFO: JSON:{"msg":{"phase":"Upload","count":2,"description":"Operation failed","index":2},"messageType":"VerifyProgress"}
[2022-10-04 08:00:24 EDT] <main> DBG-X: Returning 1

Out:



Package Summary:

1 package(s) were not uploaded because they had problems:
/var/folders/2y/4tpm18sj38xfq92cwnl72ypm0000gn/T/A30BB628-DF8D-48CE-9D54-0AF58369EFD8/38cea45734b7ca2b8edb831d78b57d41.itmsp - Error Messages:
ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_short_version_string" at SoftwareAssets
ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_version" at SoftwareAssets

*** Error: Error uploading 'TopCheck.ipa'.
*** Error: ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_short_version_string" at SoftwareAssets (-18000)
*** Error: ERROR ITMS-4236: "Invalid value 'V1.002' for bundle_version" at SoftwareAssets (-18000)



[MList]

Ok, that was the wrong #Version : V.102 No letter allowed ?
Now it worked, Thank you
