Android Question USBSerial Enhanced - Using usb-serial-for-android-3.10.0.aar

[Peter Simpson]

Hello everyone,
The usb-serial-for-android library is a popular open-source driver collection designed for Android devices acting as a USB host. It enables communication with various USB-to-serial converters without requiring root access or custom kernel drivers.

Here is an updated version of the current excellent USB Serial library from agraham, which in turn was originally wrapped from here. I have wrapped the latest version from the aforementioned GitHub repository. I added a few extra functions to the library, I hope they will be useful to other developers. This library has been tested on and targets SDK 35+. I name the library V1+ simply because I've added extra functions, thus the name enhanced.

This library supports a wide range of common hardware, including:

• CDC/ACM devices (such as Arduino Uno and Mega).
• FTDI chips (FT232R, FT232H, etc.).
• Silicon Labs CP210x controllers.
• Prolific PL2303 chips.
• Qinheng CH340 and CH341 devices.

There are three files in the attached lib zip file. Place all three files in your additional libraries folder.

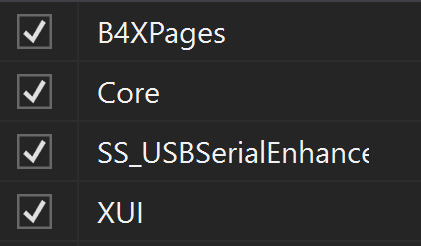

B4A library tab:

This library handles the low-level USB communication protocols and baud rate configurations, allowing developers to focus on the data exchange logic. This is the standard choice for connecting an Android tablet or phone to industrial equipment, sensors, or microcontrollers via a physical USB cable. It simplifies the process of requesting USB permissions from the user and managing the connection lifecycle.

Hotplug support is optional and can easily be removed. Hotplug USB devices support is integrated into the example app for developers who are interested in using it.

What does hotplug mean?
In the context of the usb-serial-for-android library and Android USB communication, hotplugging refers to the ability of the system to detect and handle USB devices being plugged in or removed while the application is running, without requiring a restart. When plugging in a compatible USB device, the app will launch automatically and a popup dialog will appear displaying “Open USB Serial to handle XXX...” (see the attached screenshot below). Adding the XML code in the manifest in conjunction with the xml, allows your app to launch automatically when inserting compatible USB devices.

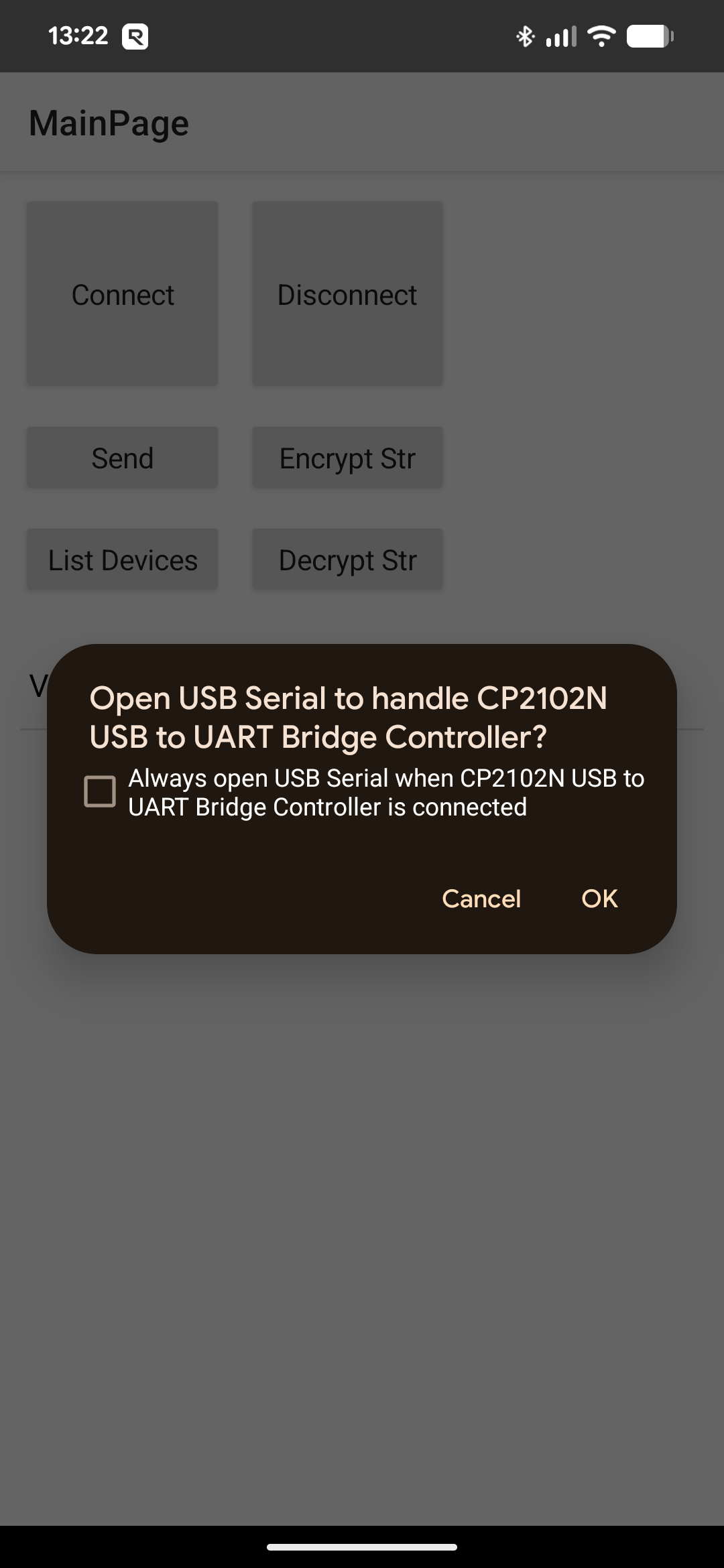

Screenshot in action:

Take note:
In the objects/res/xml/ folder, there is a read-only file called device_filter.xml. The primary purpose of this file is to tell the Android operating system which specific USB devices your application is interested in. It acts as a whitelist based on hardware identifiers. This XML file works in conjunction with optional code in the manifest which in turn works with the B4A receiver module. If you are not interested in hotplug support, you can comment out the optional manifest code, but that is NOT recommended.

SS_USBSerialEnhanced

Author: Peter Simpson
Version: 1.0

• USBSerialEnhanced
  Enhanced USB Serial library with support for 32-bit data types,
  advanced flow control, hotplugging, and synchronous I/O.
  Based on usb-serial-for-android-v3.10.0.aar
  • Events:
    • Closed (Vid As Int, Pid As Int, Serial As String, PortName As String)
    • Error (Message As String)
    • NewData (Data() As Byte)
    • Open (Vid As Int, Pid As Int, Serial As String, PortName As String)
    • PermissionDenied
    • PermissionGranted
    • SentData (Data() As Byte)
  • Fields:
    • AutoReconnect As Boolean
      Enables automatic reconnection when a previously used device is reattached.
      Matches devices using VID, PID, and optional serial number.
    • DevicePort As Int
      Selects the port index to open on the USB device.
      Defaults to 0 for single‑port devices.
    • PermissionGranted As Boolean
      Indicates whether the user has granted permission for the current USB device.
      Updated automatically during permission handling.
    • ReadBlock As Boolean
      When true, incoming data is ignored and the NewData event is not raised.
      Useful for temporarily suspending asynchronous reads.
    • SetPortByName As String
      Allows selecting a port by its internal driver name.
      Set a substring such as "CDC" or "FTDI" to match a specific port.
    • UseAsyncMode As Boolean
      When true, the IO manager is started automatically on Open().
      Set to false if you intend to use ReadBlocking() only.
  • Functions:
    • AddCustomDevice (VendorID As Int, ProductID As Int, DriverType As String)
      Adds a custom VID and PID mapping for devices not recognised automatically.
      VendorID The USB vendor identifier.
      ProductID The USB product identifier.
      DriverType The driver class name such as "CdcAcmSerialDriver".
    • BytesToFloat (Data As Byte()) As Float
      Converts a 4-byte array into a single 32-bit Float.
      Data is the 4-byte array containing the float value in Big-Endian order.
      Return a reconstructed floating point value, or 0.0f if the array length is not 4.
    • BytesToHex (data As Byte(), offset As Int, length As Int) As String
      Converts a byte array to a space‑separated hexadecimal string.
      data is the byte array to convert.
      Return a formatted hexadecimal string, or an empty string if the array is null or empty.
    • BytesToInt32 (Data As Byte()) As Int
      Converts a 4-byte array back into a 32-bit Signed Integer.
      Data is the 4-byte array in Big-Endian order.
      Return a reconstructed integer value, or 0 if the array length is not 4.
    • Close
      Closes the serial port connection and stops the internal IO manager.
    • CombineTo32Bit (highOrder As Int, lowOrder As Int) As Int
      Combines two 16-bit integers into a single 32-bit integer.
    • DecodeBase64ToString (base64 As String) As String
    • Dispose
      If the app is closing, you may want to unregister the hotplug receiver.
    • EncodeBase64FromString (text As String) As String
      Encodes a standard Java String into a Base64 text representation.
      text is the plain text String to encode. Must not be null.
      Return a Base64‑encoded String representing the original text.
    • EnumerateDevices As List
      Returns a list of all connected USB serial devices.
      Each list item contains Index, VID, PID, Manufacturer, Product, and Serial.
    • FloatToBytes (Value As Float) As Byte()
      Converts a 32-bit Float to a 4-byte array.
    • GetConnectedUsbDevices As List
      Returns a list of all connected USB devices, not limited to serial devices.
      Each item includes VID, PID, Class, SubClass, Protocol, Manufacturer, Product, and Serial.
    • GetConnectionState As String
      Returns the current connection state of the USB serial interface.
      Possible values:
      - Disconnected
      - Connected
      - Opening
    • GetDeviceInfo As Map
      Returns information about the currently opened USB device.
      If no device is open, this method returns Null.
      The returned Map contains:
      - VID
      - PID
      - Serial
      - Manufacturer
      - Product
      - PortName (if available)
    • GetDeviceManufacturer As String
      Returns the manufacturer name of the last successfully opened USB device if available.
      May return Null if the device does not expose a manufacturer string or no device has been opened.
    • GetDeviceProduct As String
      Returns the product name of the last successfully opened USB device if available.
      May return Null if the device does not expose a product string or no device has been opened.
    • GetDeviceProductId As Int
      Returns the Product ID of the last successfully opened USB device.
      Returns 0 if no device has been opened yet.
    • GetDeviceSerial As String
      Returns the serial number of the last successfully opened USB device if available.
      May return Null if the device does not expose a serial number or no device has been opened.
    • GetDeviceVendorId As Int
      Returns the Vendor ID of the last successfully opened USB device.
      Returns 0 if no device has been opened yet.
    • GetFloat32 (highOrder As Int, lowOrder As Int) As Float
      Converts two 16-bit registers into a 32-bit Float (IEEE 754).
    • GetHotplugStatus As Boolean
      Returns whether the hotplug receiver is currently registered.
    • GetLastEvent As String
      Returns the last USB-related event that occurred.
      Useful for dashboards that display live USB activity.
    • GetPortCount As Int
      Returns the number of serial ports available on the selected device.
      Returns zero if no driver is available.
    • HasPermission (vendorId As Int, productId As Int) As Boolean
      Checks if the application has permission to access the specified USB device.
      This updates the public PermissionGranted field.
      vendorId The Vendor ID of the hardware.
      productId The Product ID of the hardware.
    • HexToBytes (hex As String) As Byte()
      Converts a hexadecimal string to a byte array.
      Non‑hex characters are ignored. The string must contain an even number of hex digits.
      hex is the hexadecimal string to convert.
      Return a byte array containing the converted values.
    • Initialize (EventName As String)
      Initialises the USBSerialEnhanced object and prepares it for use.
      EventName The prefix used for all raised events.
    • InspectDevice (vid As Int, pid As Int) As Map
      Returns detailed capability information for a USB device matching the given VID and PID.
      Includes interfaces, endpoints, and descriptive fields.
      vid The vendor identifier.
      pid The product identifier.
    • Int32ToBytes (Value As Int) As Byte()
      Converts a 32-bit Signed Integer to a 4-byte array.
      Value The integer value to convert.
    • Open As Boolean
      Opens the selected USB serial device and starts asynchronous I/O.
      Returns true if the port is opened successfully, otherwise false.
    • PurgeHwBuffers (ReadBuffer As Boolean, WriteBuffer As Boolean)
      Clears the hardware input and output buffers.
      ReadBuffer True to clear the input buffer.
      WriteBuffer True to clear the output buffer.
    • ReadBlocking (Buffer As Byte(), Timeout As Int) As Int
      Performs a synchronous blocking read into the supplied buffer.
      Buffer The byte array to store received data.
      Timeout The read timeout in milliseconds.
      Returns the number of bytes read.
    • RefreshDevices As List
      Refreshes and returns the current list of connected USB devices.
      Convenience wrapper around GetConnectedUsbDevices().
    • RequestPermission (vendorId As Int, productId As Int)
      Requests temporary access permission for the specified USB hardware.
      This method handles the Android 14 requirement for explicit intents and
      raises PermissionGranted/PermissionDenied events based on the user's decision.
    • SetParameters (BaudRate As Int, DataBits As Int, StopBits As Int, Parity As Int)
      Sets the serial communication parameters for the active port.
      BaudRate The baud rate such as 9600 or 115200.
      DataBits The number of data bits.
      StopBits The number of stop bits.
      Parity The parity mode (0=None, 1=Odd, 2=Even, 3=Mark, 4=Space).
    • SplitFrom32Bit (value As Int) As Int()
      Splits a 32-bit integer into an array of two 16-bit integers.
    • StopIoManager
      Stops the SerialInputOutputManager and disables asynchronous reads.
      Required before using ReadBlocking().
    • Swap32BitEndianness (value As Int) As Int
      Reverses the byte order of a 32-bit integer.
    • Write (Data As Byte())
      Writes a byte array to the serial port.
      Data The bytes to send to the device.
      Raises the SentData event after a successful write.
      Handles RTS direction control automatically when RS485 mode is enabled.
  • Properties:
    • GetPortName As Int [write only]
      Property setter used to support syntax USBSerial.GetPortName = Index.
      This acts as a no-op but keeps API compatibility.
    • IsConnected As Boolean [read only]
      Returns true if the serial port is currently open.
      Indicates whether communication is active.
    • SelectDeviceByIndex As Int [write only]
      Selects a USB device by its index from the EnumerateDevices list.
      Index The index of the device to select.
    • SetBreak As Boolean [write only]
      Sends or clears a break condition on the serial line.
      Value True to start break, False to stop it.
    • SetDebugLogging As Boolean
      Returns whether debug logging is enabled for USB communication.
      When true, detailed diagnostic messages are written to the log.
    • SetDTR As Boolean [write only]
      Sets the Data Terminal Ready (DTR) line.
      Value True to assert DTR, False to release it.
    • SetFlowControl As Int [write only]
      Sets the hardware flow control mode for the serial port.
      Mode 0=None, 1=RTS/CTS, 2=DTR/DSR, 3=XON/XOFF.
    • SetRTS As Boolean [write only]
      Sets the Request To Send (RTS) line.
      Value True to assert RTS, False to release it.

Enjoy...



[aeric]

Why enhance version 1 while there is already UsbSerial library 2.0?

UsbSerial library 2.0 - supports more devices

This is an expanded version of the original UsbSerial library. It has added support for Prolific PL2303 USB to serial converters, Android ADK devices and USB permissions. All devices use the same simple interface intended to be used with AsyncStreams and AsyncStreamsText. Note that AsyncStreams...

www.b4x.com



[Peter Simpson]

Why enhance version 1 while there is already UsbSerial library 2.0?

Because I can, and that's a silly question...
