Using 16x2 or 20x4 LCD screens with an ARDUINO MEGA 2560 board

[Marc DANIEL]

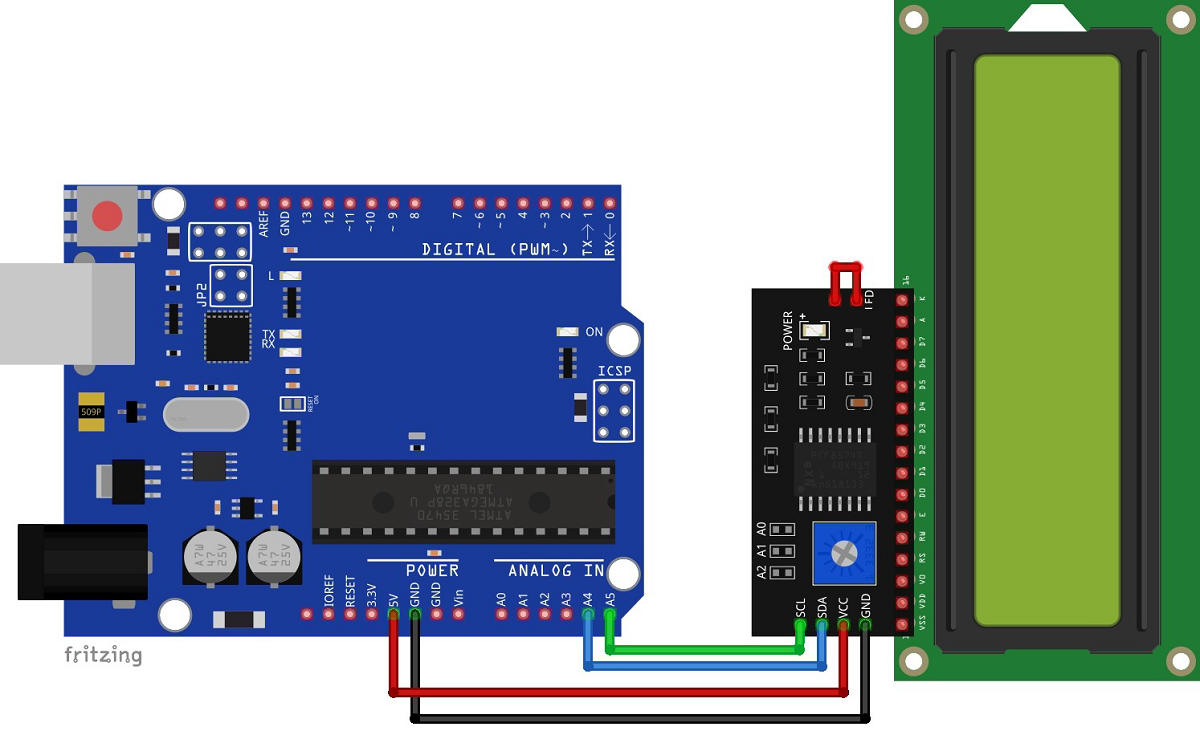

With an Arduino UNO board, the SDA pin of the I2C interface is connected to analog pin A4 and the SCL pin is connected to analog pin A5.
But this will absolutely not work with an Arduino MEGA 2560 board !

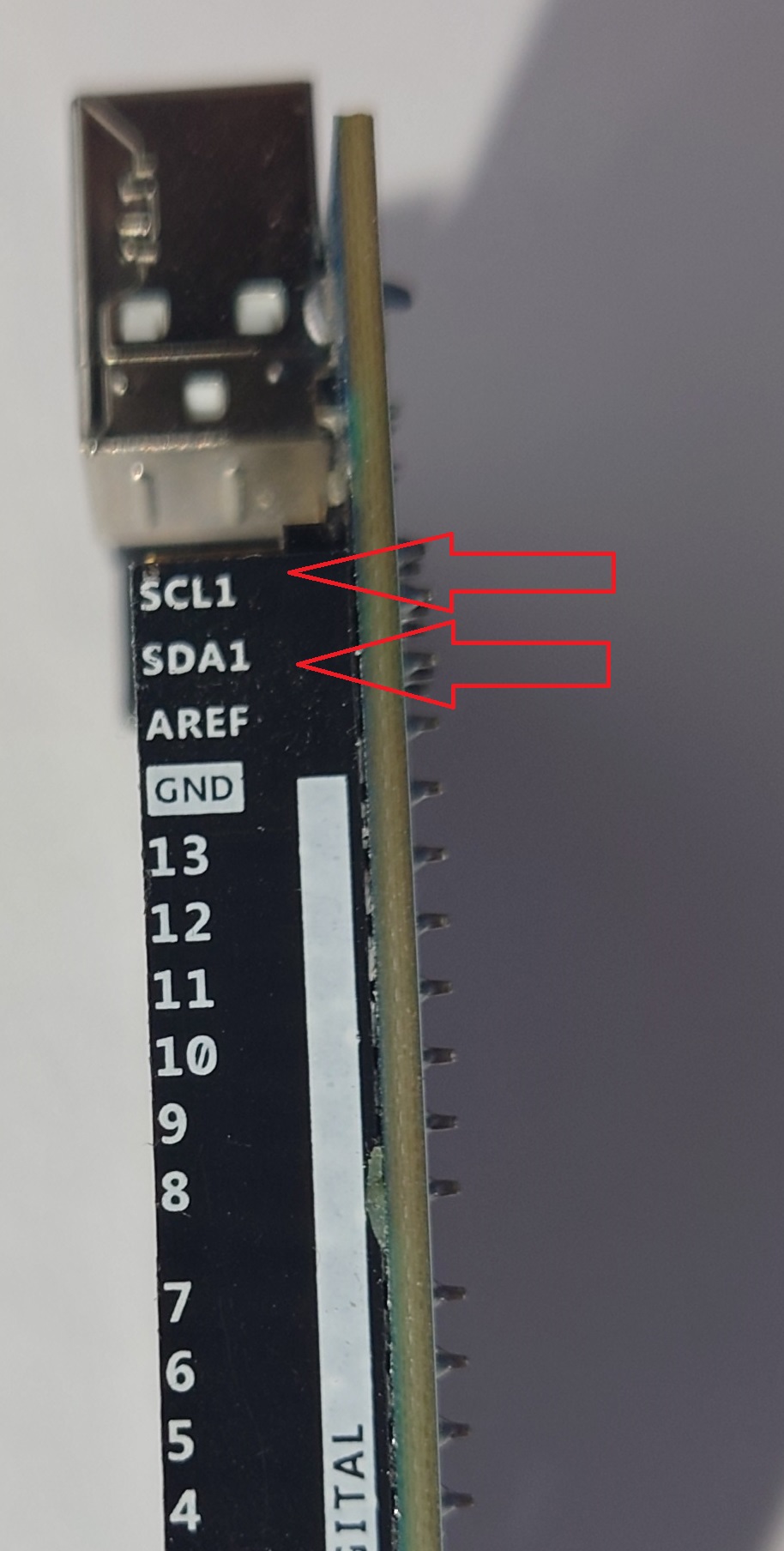

You will need to connect the SDA pin of the I2C interface to the SDA1 pin of the Arduino MEGA 2560 board and the SCL pin to the SCL1 pin

Examples of using LCD screens with an ARDUINO UNO card (Texts in French) >>> LCD screens examples

​



[Marc DANIEL]

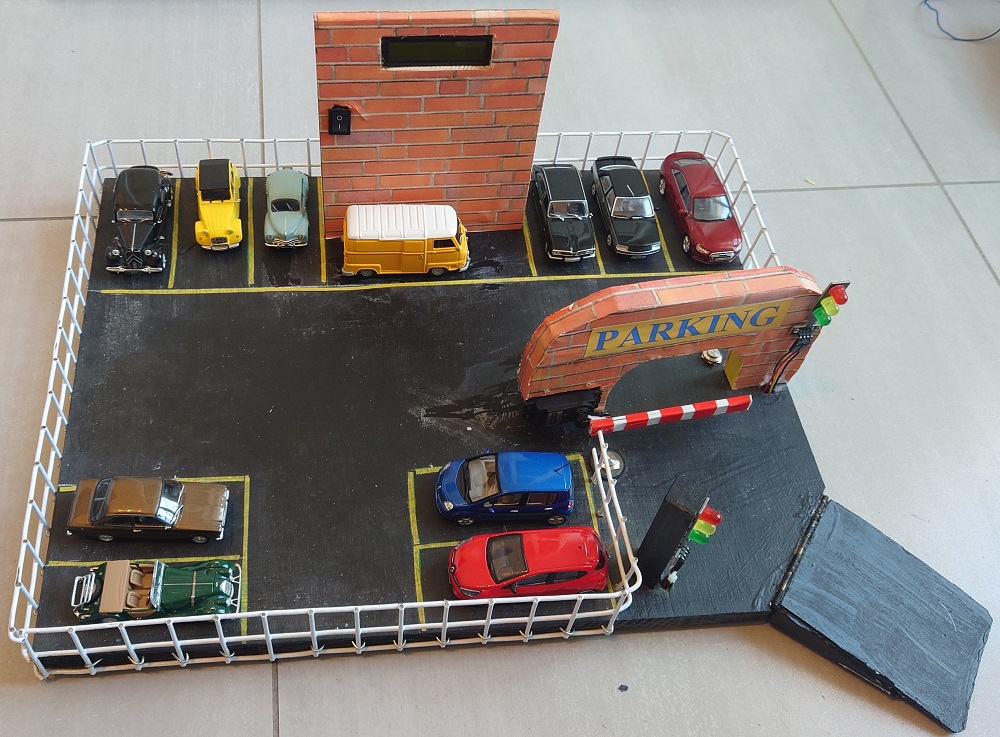

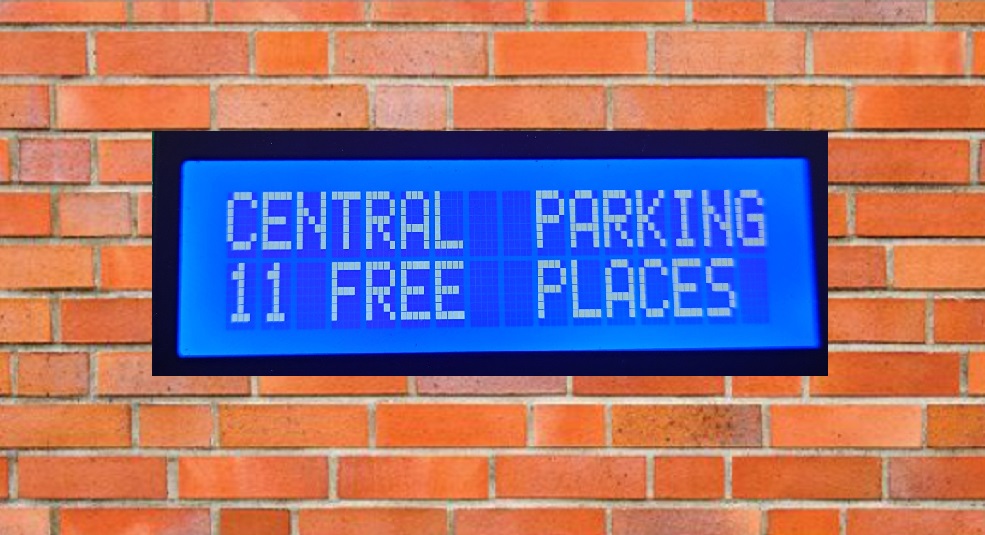

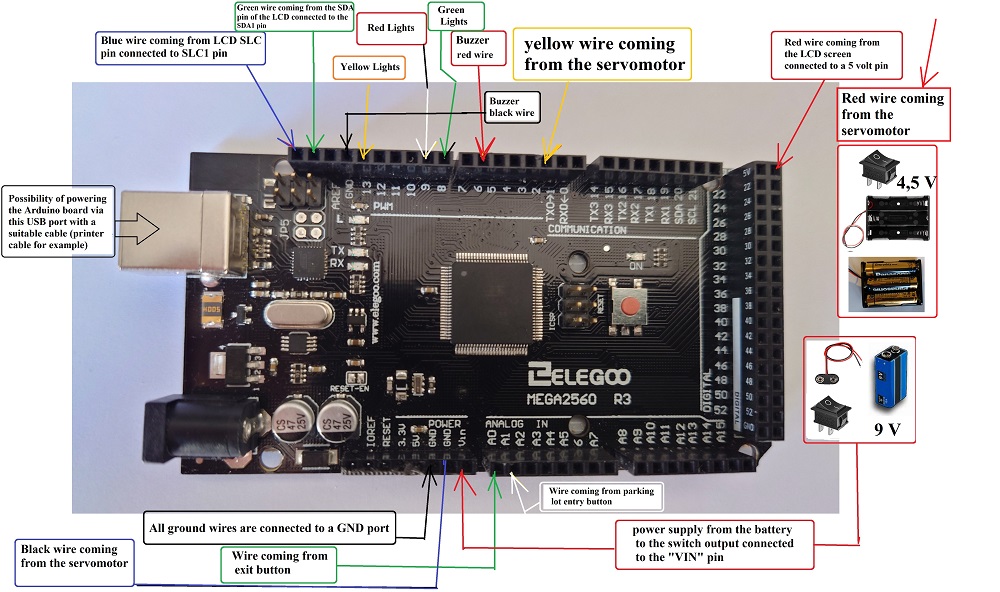

And now a B4R application combining an ARDUINO MEGA2560 R3 card with an LED screen and its I2C interface

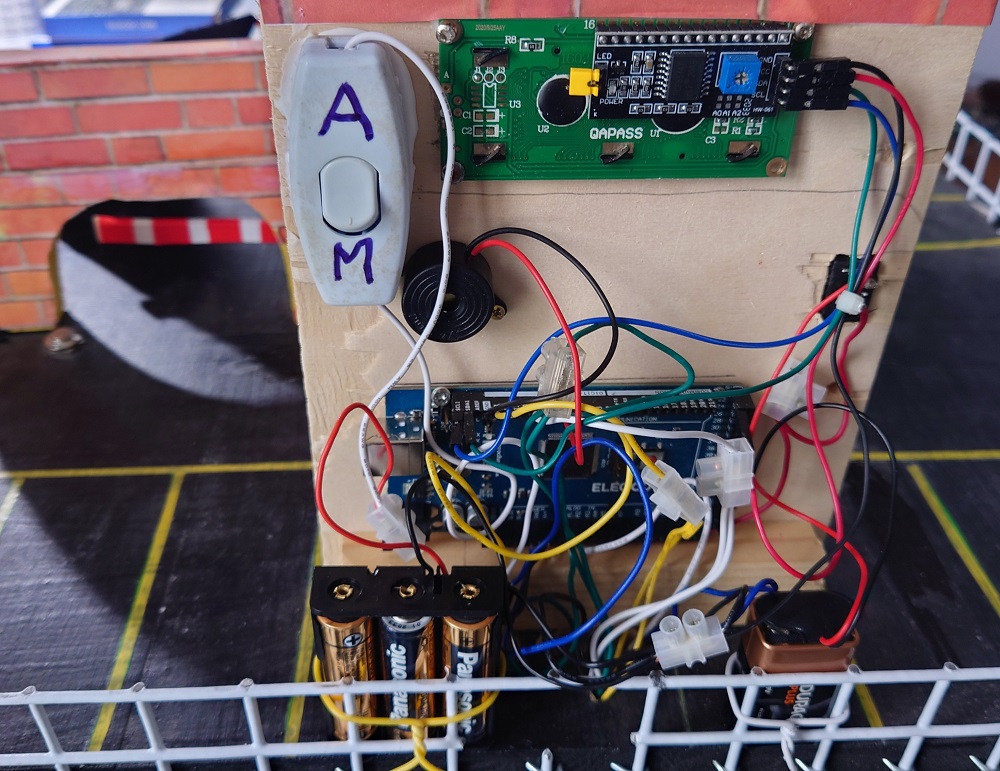

Back of panel

Learn more - En savoir plus

Download the B4R files: English version - Version française

VIDEO​
