Android Question View utils snippets on Android 7

[LucaMs]

View Utils snippets seem to not work on Android 7.

I tried just setRotationY.



[Star-Dust]

They work for me. I tried all the rotations.
Maybe you're confusing "It does not work on Android 7" with "I can not make it work". Quote



[LucaMs]

I will try again.


Thank you. I have few memory but for sure I will remember this your post:



[Star-Dust]

I will try again.
Thank you. I have few memory but for sure I will remember this your post:

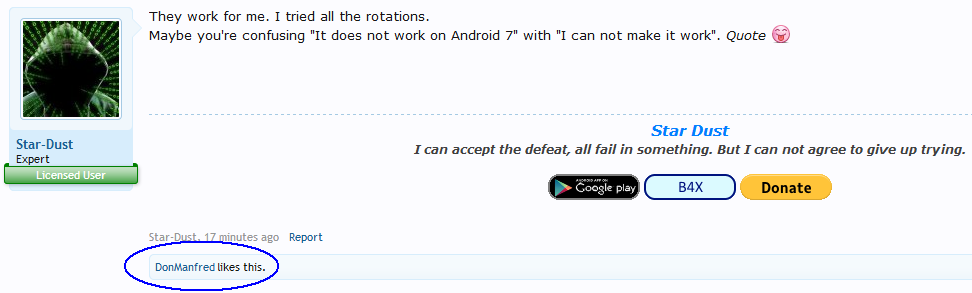

View attachment 67952

It was just a funny quote of @Informatix , "Ambassador does not bring penalty"



[LucaMs]

funny

Really funny but this is the last one, be sure.



[LucaMs]

View Utils snippets seem to not work on Android 7.

I tried just setRotationY.

The test project attached works on Android 4.4.2, does not work on Android 7.



[Star-Dust]

The test project attached works on Android 4.4.2, does not work on Android 7.

Some rare versions of Android 7 do not rotate with native commands.
For example on some Huawei, you're probably one of the few who's not working.


Samsung S6 - Android 7

Huawei MediaPad M3 - Android 7



[JordiCP]

Hi there,

I made some similar experiments a while ago, and found different behaviours between models. Not sure if related because I don't own a Huawei with Android 7, but worth a try.

Could you pls try the same example posted in #6 in the Huawei model, adding this sub and calling it at the end of Activity_Create()?

Sub increaseCameraDistance(v As View)
    Dim jo = v As JavaObject
    Dim dist As Float = jo.RunMethod("getCameraDistance", Null)
    Log(dist)
    dist = 2*dist
    jo.RunMethod("setCameraDistance",Array(dist))
End Sub

Just curious to see if it changes the output somehow and also the logged value (original cameraDistance)



[Star-Dust]

Hi there,

I made some similar experiments a while ago, and found different behaviours between models. Not sure if related because I don't own a Huawei with Android 7, but worth a try.

Could you pls try the same example posted in #6 in the Huawei model, adding this sub and calling it at the end of Activity_Create()?

Sub increaseCameraDistance(v As View)
    Dim jo = v As JavaObject
    Dim dist As Float = jo.RunMethod("getCameraDistance", Null)
    Log(dist)
    dist = 2*dist
    jo.RunMethod("setCameraDistance",Array(dist))
End Sub

Just curious to see if it changes the output somehow and also the logged value (original cameraDistance)

To study the rotations I use one of my programs that allows me to change the pivot by clicking on the image.
Here are the results with the change you suggested to me

Samsung

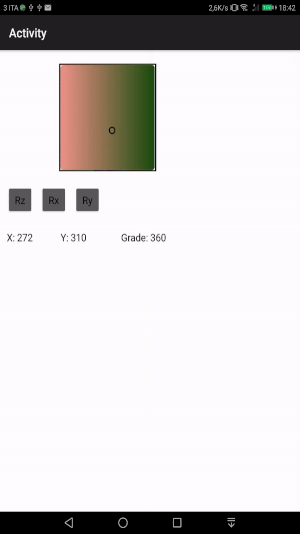

Huawei
It disappears as soon as it makes different rotations from the Z



[JordiCP]

Nice one!

If you decrease this value in the devices where it works (setCameraDistance(0)), there arrives a moment where, regardless the pivots, it makes exactly the same (disappears on X, Y rotations)

That's why I "supposed" that increasing the value on the Huawei would work.

BTW, which is the original cameraDistance value in the Huawei? (would make sense if it reads a 0)



[Star-Dust]

Yes is 0, Try set up to 0



[JordiCP]

Then it explains a lot. Better try with a larger value: 2000 or so



[Star-Dust]

Changing the value the Samsung sometimes crashes for the rotations of Y and X
While Huawei work fine, but sometimes crashes

Do you have an explanation?

Update: I found a value that stabilizes the rotation on Huawei and not crashes



[JordiCP]

This value affects the perspective settings when rotating around X/Y axis. The perspective will be sharper for lower values.
I think that most devices (I read it somewhere) have a "standard" value that is related to the largest screen side and also proportional to the device scale. When I made my tests, these values were something like 1920 and 1600, for a couple of devices I own.

A cameraDistance of 0 (Huawei) means that, when you rotate over the X/Y axis, a part of the image has negative coordinates relative to the camera, and that's the reason why it was not drawn.

Not sure why it crashes with some values. Possibly the same system makes use of these values to perform its animations, but as it is not a real "3D" camera it may be valid only up to a certain range.



[Star-Dust]

This value affects the perspective settings when rotating around X/Y axis. The perspective will be sharper for lower values.
I think that most devices (I read it somewhere) have a "standard" value that is related to the largest screen side and also proportional to the device scale. When I made my tests, these values were something like 1920 and 1600, for a couple of devices I own.

A cameraDistance of 0 (Huawei) means that, when you rotate over the X/Y axis, a part of the image has negative coordinates relative to the camera, and that's the reason why it was not drawn.

Not sure why it crashes with some values. Possibly the same system makes use of these values to perform its animations, but as it is not a real "3D" camera it may be valid only up to a certain range.

I entered the standard value I had on the Samsung is on the Huawei works perfectly without crashing



[JordiCP]

Now you have the missing piece for a rotating cube



[Star-Dust]

Now you have the missing piece for a rotating cube

Otherwise I would have done it by hand with the trigonometric functions



[LucaMs]

Just curious to see if it changes the output somehow and also the logged value (original cameraDistance)

The original value is... -0 !

I tried:

2000
-2000
0
1600

apparently nothing changes.



[JordiCP]

apparently nothing changes.

Do you mean that the view seem the same or that rotation does not work?

As I understand it, it doesn't change the appearance of the view when not rotated. Only has effect when rotating around X and/or Y axis.



[LucaMs]

Do you mean that the view seem the same or that rotation does not work?

As I understand it, it doesn't change the appearance of the view when not rotated. Only has effect when rotating around X and/or Y axis.

I mean that what I see is the same without adding that routine, then what you can see here:
Ops... I thought we were in the other thread
https://www.b4x.com/android/forum/threads/nineoldandroids.44393/page-4#post-589039
