Bug? Visual Designer Border Radius

[Cableguy]

I post this as a BUG, but I consider this to be more of a slight slip...

When creating (Adding) a Button and then styling it using ONLY the Visual Designer Properties, I set a bunch of them...
BorderColor, BorderRadius,Shadow,etc...
And I got a button where, althout I had set a different Background Color, and a Diferent Border Color, with about 10px Corner Radius, the BackGround Basepanel (Not sure how to call it) was still visible with the default color and 0px Corner Radius.
To solve this, I had to add to the CSS:
-fx-background-radius:10

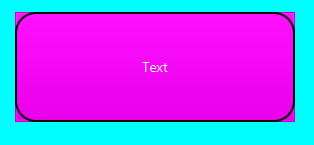

You can see this behaviour in the image below, The Left Button had the CSS line applied to it, the Right one has not...

My Logic in this BUG report is that, if the dev is setting the Border Radius value, he also wants the background to be in accordance!
This behaviour is also present in other nodes, like the TextField



[Erel]

The designer already sets this attribute. Maybe you overwrote it in the extra CSS field?



[Cableguy]

In the left on I had to add an extra CSS line, the right one has no extra CSS...

[EDIT] Here's a simple Layout, Only one Button, Activity Background color set, Button Background Color set, Border Width, Radius and Width



[Erel]

It works fine here and the -fx-background-radius attribute is set. You can print it with this code:

Sub AppStart (Form1 As Form, Args() As String)
   MainForm = Form1
   MainForm.RootPane.LoadLayout("LayoutBUG")
   Log(Button1.Style)
   MainForm.Show
End Sub

Is it possible that you are using an old version of jFX?



[Cableguy]

jFX 5.80!



[Erel]

What is the output of Log(Button1.Style) ?



[Cableguy]



[Erel]

There is indeed a bug here. The format of the radius value uses the default locale instead of the correct locale.

It is fixed for the next update.
