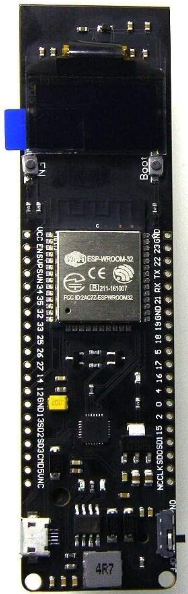

B4R Question Wifi Bluetooth ESP32 ESP-32 OLED de 0.96 WEMS TTGO

micro

Well-Known Member
Licensed User
Longtime User
Hi to all
With what library can I use the oled on board and if I have to initialize it as I2C what should I use as Oled_RST?
I don't see it from the schematic
Thanks


micro

Well-Known Member
Licensed User
Longtime User
Hi
any help?

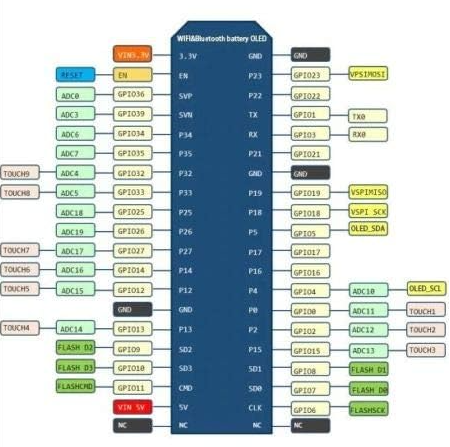

I tried with rAdafruitSSD1306 and GFX but it doesn't work, the screen always stays blank, the problem is I don't know whether to use InitializeHSPI or InitializeI2C and with which pins (The pin are Oled_SCL and Oled_SDA so 4 and 5).
Thanks
