Android Question xCustomListView isn't supported XUI View

[Theera]

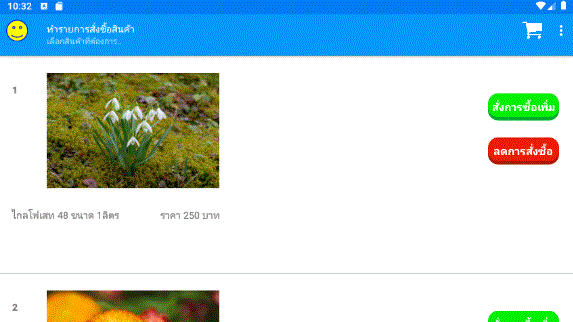

I have tried use SwiftButton in XUI View instead of Button View.
I use this
Dim xClVIndex as Int=ClVList.GetItemFromView(Sender)

I have the problem. I think GetItemFromView() cann't detect.



[LucaMs]

I have tried use SwiftButton in XUI View instead of Button View.
I use this
Dim xClVIndex as Int=ClVList.GetItemFromView(Sender)

I have the problem. I think GetItemFromView() cann't detect.

Custom views like XUI Views are "special", non native views.

Dim SwB As SwiftButton = Sender
Dim xClVIndex as Int=ClVList.GetItemFromView(SwB.mBase)

mBase is the Panel on which the custom view is built.



[Theera]

Custom views like XUI Views are "special", non native views.

Dim SwB As SwiftButton = Sender
Dim xClVIndex as Int=ClVList.GetItemFromView(SwB.mBase)

mBase is the Panel on which the custom view is built.

After I have tested,it still has error.

Private Sub btnBadge_Click
badge = badge + 1
UpdateIcon("cart", AddBadgeToIcon(cartBitmap, badge))

'Dim xCLVIndex As Int = CLVList.GetItemFromView(Sender) 'Get the row index by using the sender filter

Dim SwB As SwiftButton = Sender
Dim xClVIndex As Int=CLVList.GetItemFromView(SwB.mBase)

Dim xCLVItem As B4XView = CLVList.GetPanel(xClVIndex) 'Get the Item layout for the selected Row
Dim LblNum As B4XView = xCLVItem.GetView(0) '1st view in the layout index which is LblNum
'Dim LblText As B4XView = xCLVItem.GetView(1) '2nd view in the layout index which is LblText
Dim LblText As B4XView = xCLVItem.GetView(3) '4th view in the layout index which is LblText

LblNum.TextColor = XUI.Color_Blue 'Change the font color to blue
LblNum.Text = Chr(0xF118) 'Put an icon in the label (a smiley)
LblText.TextColor = XUI.Color_Red 'Change the font color to red
LblText.Text = "be selled" 'Put new text in the label
End Sub



[LucaMs]

Dim LblText As B4XView = xCLVItem.GetView(1) <----



[Theera]

Dim LblText As B4XView = xCLVItem.GetView(1) <----

Dim LblText As B4XView = xCLVItem.GetView(1) <----

I have changed for my layout (My LblText is 4th)

After I have tested,it still has error.



[Mahares]

I have changed for my layout (My LblText is 4th)

Post your projecct again after the change made. What Luca showed works for the previous project. Your problem has nothing to do with how SwiftButton works



[rraswisak]

Add line 12 is a must !

Sub CLVList_VisibleRangeChanged (FirstIndex As Int, LastIndex As Int)
    Dim ExtraSize As Int = 25 'Add 25 items at a time, this can be changed to suite your requirements
    For i = Max(0, FirstIndex - ExtraSize) To Min(LastIndex + ExtraSize, CLVList.Size - 1) 'Loop for adding/removing your items layout to or from the list
        Dim Pnl As B4XView = CLVList.GetPanel(i) 'Declare a new B4XView
        If i > FirstIndex - ExtraSize And i < LastIndex + ExtraSize Then 'Add a new item to the list
            If Pnl.NumberOfViews = 0 Then 'Add items to the list
                Dim TD As TestData = CLVList.GetValue(i) 'Get your custom Type
                Pnl.LoadLayout("ItemInfo") 'Load your
                'ImageView1.Bitmap=LoadBitmap(File.DirAssets, "glass.png")
                LblNum.Text = TD.LabelNum 'Self-explanatory
                LblText.Text = TD.LabelProduct 'Self-explanatory
                btnBadge.Tag = LblNum
                ImageView1.SetBitmap(XUI.LoadBitmapResize(File.DirAssets, TD.BitmapFile, ImageView1.Width, ImageView1.Height, True))
            End If
        Else 'Remove items from the list
            If Pnl.NumberOfViews > 0 Then
                Pnl.RemoveAllViews 'Remove none visible item from the main xCLV layout
            End If
        End If
    Next
End Sub

And modifiy the sub with this:

Private Sub btnBadge_Click
    badge = badge + 1
    UpdateIcon("cart", AddBadgeToIcon(cartBitmap, badge))

    Dim sb As SwiftButton = Sender
    Dim xCLVIndex As Int = CLVList.GetItemFromView(sb.Tag)
    Dim LblNum As B4XView = CLVList.GetPanel(xCLVIndex).GetView(0)
    Dim LblText As B4XView = CLVList.GetPanel(xCLVIndex).GetView(1)

    LblNum.TextColor = XUI.Color_Blue 'Change the font color to blue
    LblNum.Text = Chr(0xF118) 'Put an icon in the label (a smiley)
    LblText.TextColor = XUI.Color_Red 'Change the font color to red
    LblText.Text = "be selled" 'Put new text in the label
End Sub

Doing the same way for another swift button... good luck



[rraswisak]



[Theera]

Are you sure ?

View attachment 125204

Please send me sourcecode to compare code,don't you? although I have copied your sourcecode,I still have error.



[rraswisak]

Please send me sourcecode to compare code,don't you?

Im using your project sample in first post, and modify the code as described on post #7
